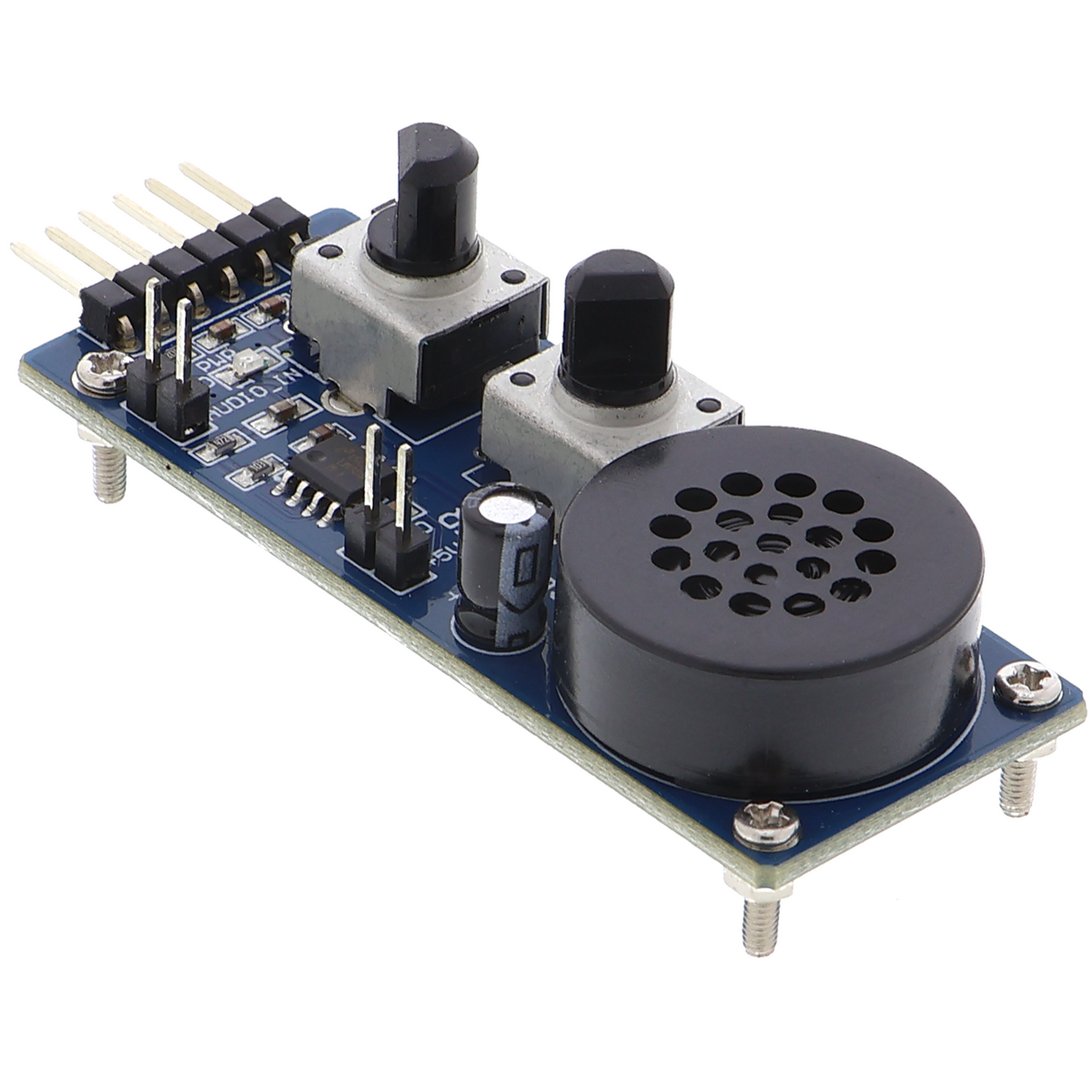

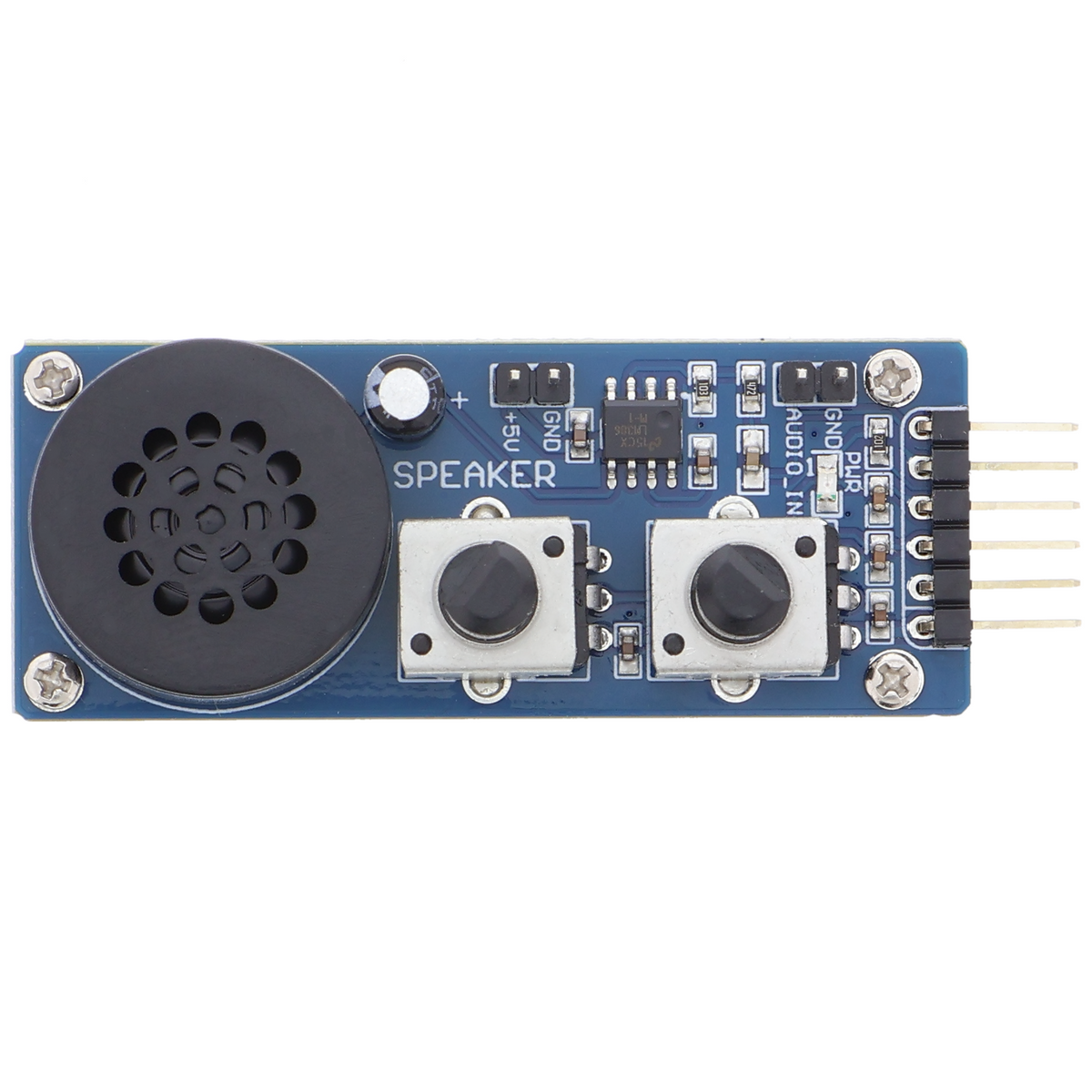

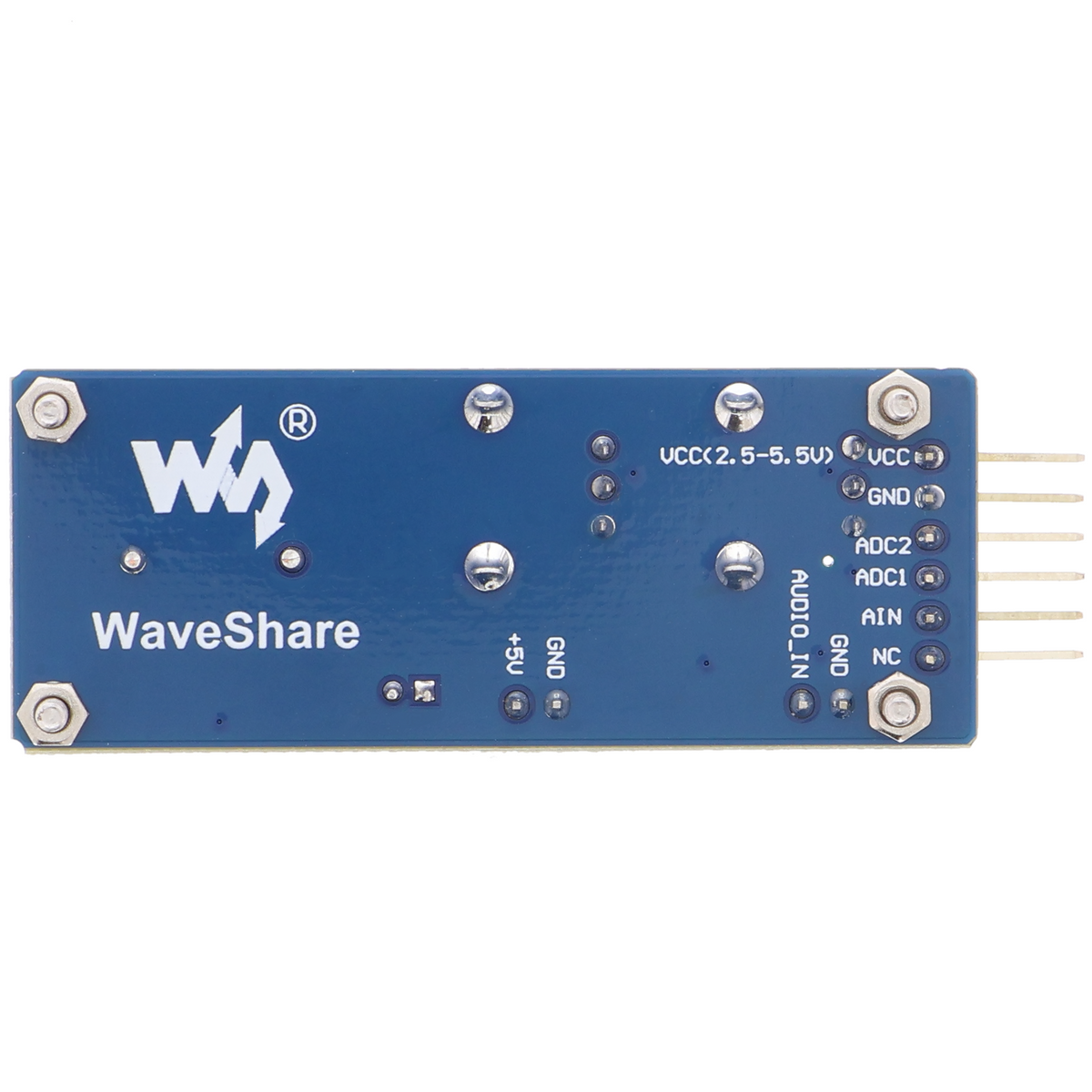

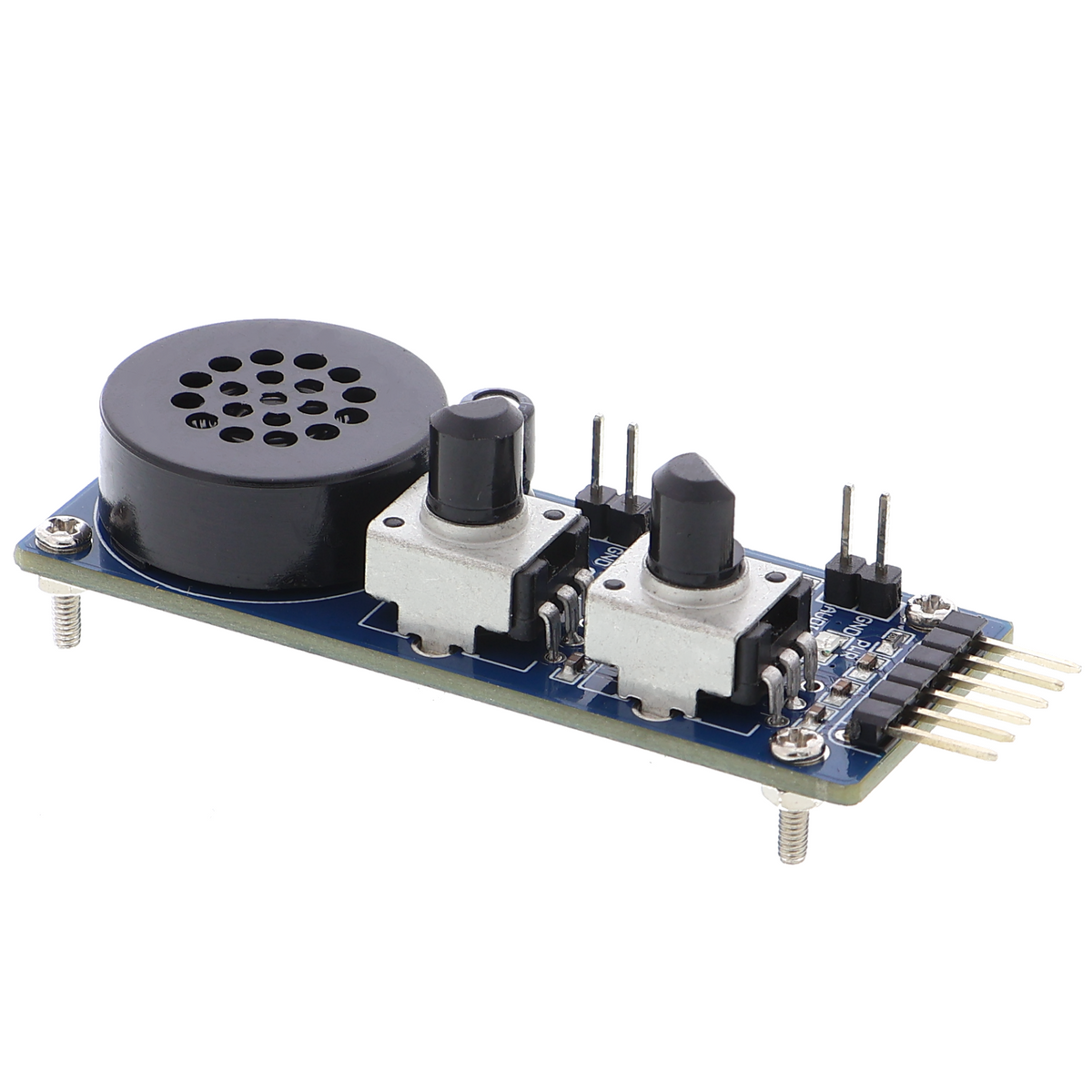

Waveshare analog test board - AD/DA converter with amplifier

Product Overview

• Analog test board for microcontrollers with A/D and D/A converters
• Integrated input and output amplifiers for measurement signals
• Testing and prototype development with extensive circuitry
• Compatible with common microcontroller boards via standard connectors
• Signal-conditioning circuits already integrated on the board

Product Description

The test board with integrated A/D and D/A converters simplifies the development of measurement circuits with microcontrollers. Instead of wiring capacitors, resistors, and operational amplifiers individually, the required signal-conditioning circuits are already assembled on the board. This saves setup time and reduces potential wiring errors.

The amplifiers adapt analog signal levels to the controller's input voltage range and vice versa. The test board is connected directly to a microcontroller via standard connectors, allowing the board and controller to work together without additional wiring.

It is suitable for prototyping sensor circuits, testing A/D converters, and developing control circuits that process analog inputs. The board can also be used for checking D/A conversion and signal quality during projects.

A microcontroller with A/D and D/A functions as well as digital inputs and outputs is required. A power supply for the board and the connected controller is also required, along with jumper wires for external signal sources or load resistors during output tests.

Safety Information

The test board is intended exclusively for building prototypes and for testing and development purposes. It is not intended for installation in household electrical circuits. Work on or near electrical installations must be carried out by qualified electricians; if in doubt, consult a qualified electrician before commissioning.

Scope of Delivery

• 1x Waveshare Analog Test Board for A/D and D/A MCUs, with input/output
