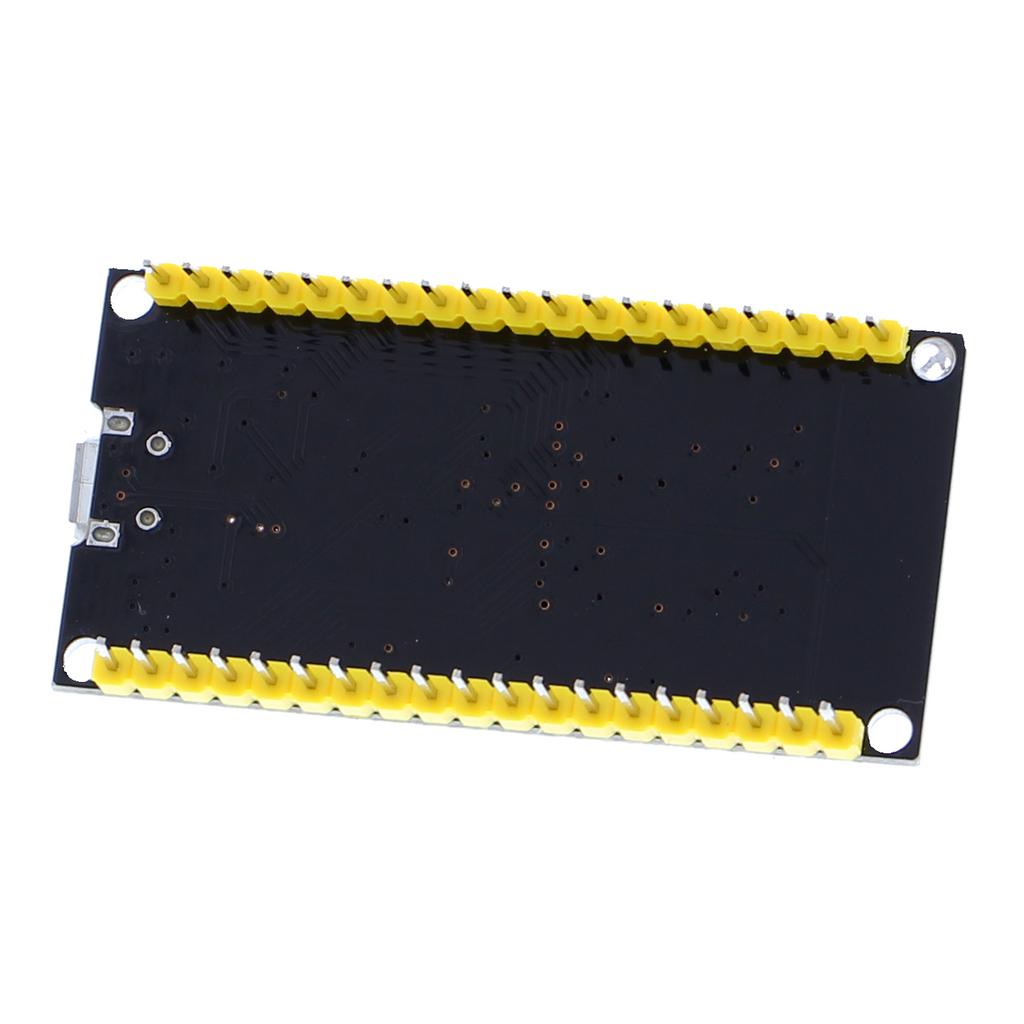

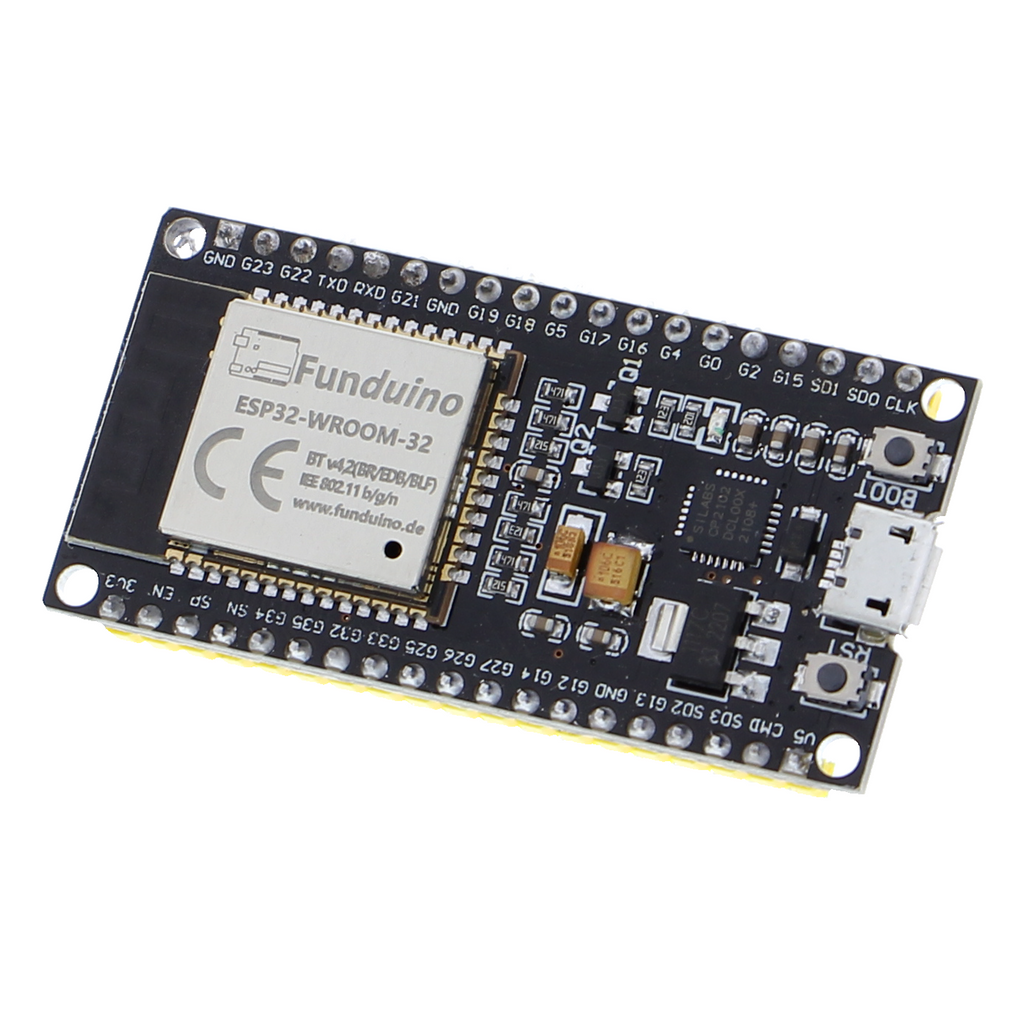

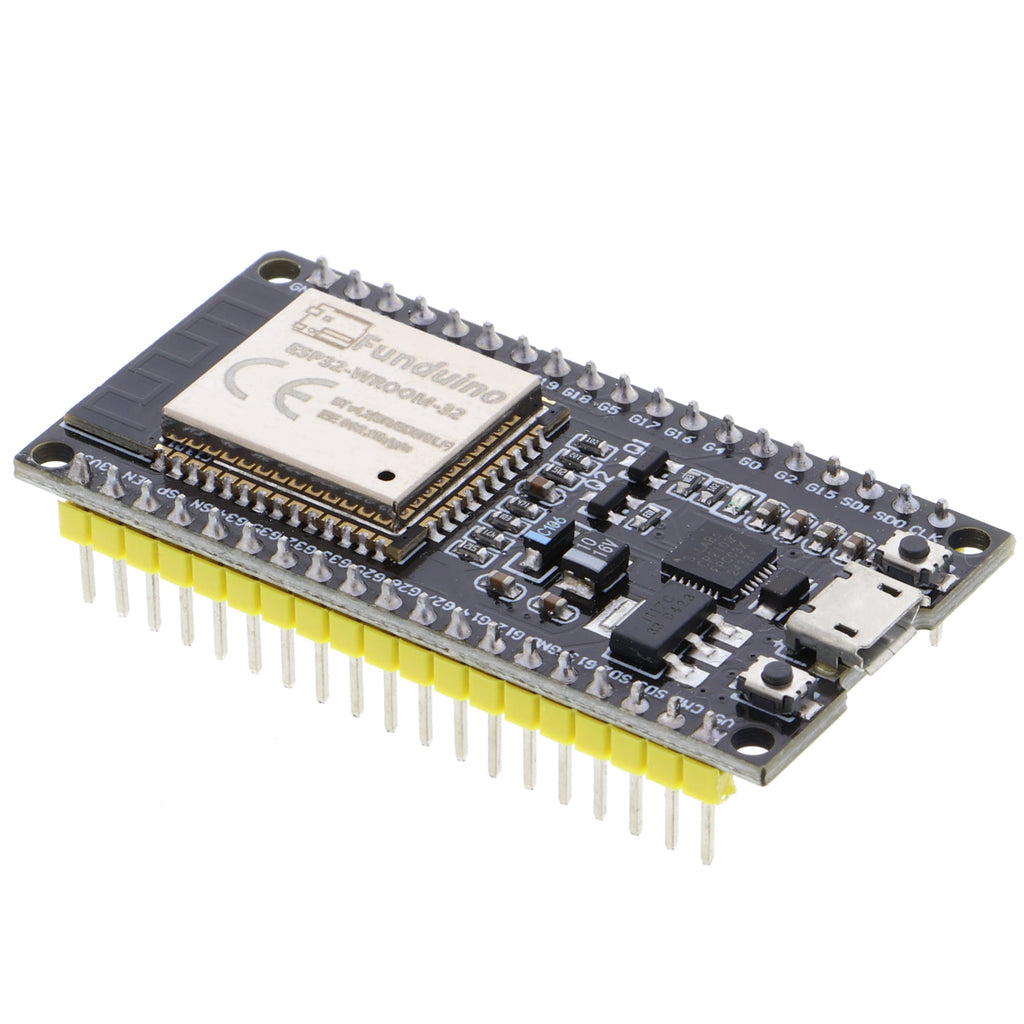

Funduino ESP32 development board - WROOM-32, Wi-Fi, Bluetooth, CP2102

Product overview

• Development board with the ESP32-WROOM-32 wireless module
• Two processor cores, clock frequency from 80 to 240 MHz
• 512 kB SRAM, 4 MB flash memory
• 34 digital I/O pins with SPI, I2C, UART, CAN
• 802.11 b/g/n Wi-Fi and Bluetooth 4.2 in the 2.4 GHz band
• Programming via Micro-USB with integrated CP2102 converter
• Compatible with Arduino IDE, ESP-IDF, and MicroPython

Product description

This development board is built around an ESP32-WROOM-32 chip. The processor has two cores and can be clocked between 80 and 240 MHz, with 512 kB SRAM and 4 MB flash memory available for programs and data. The two pin headers provide 34 digital inputs and outputs as well as analog channels with adjustable voltage, including the SPI, I2C, UART, and CAN interfaces. Some of the pins are internally assigned and are not available.

The board integrates 802.11 b/g/n Wi-Fi and Bluetooth 4.2, both in the 2.4 GHz band. This enables wireless communication with other devices, connection to existing networks, and operation as an independent access point. Programming is carried out via Micro-USB without an additional adapter, as the CP2102 converter is already soldered onto the board. One button puts the module into programming mode, while a second triggers restarts.

The board is suitable for IoT projects in which sensor data is transmitted wirelessly, for network-based control of actuators, and for developing standalone Wi-Fi devices. One example project could be the wireless monitoring of room temperatures with centralized evaluation, where several of these boards are placed at different locations and continuously send data to the local network.

The board requires a computer with a USB port for programming. The driver for the CP2102 chip must be installed. Development is carried out with Arduino IDE, ESP-IDF, or MicroPython.

Safety information

The board is intended exclusively for building prototypes and for testing and development purposes. It is not designed for use as part of a power supply system. Work on or immediately next to electrical installations may only be carried out by a qualified electrician. If you are unsure before commissioning, consult a qualified electrician.

Scope of delivery

• 1x Funduino ESP32 - NodeMCU, WLAN, WiFi development board with CP2102
