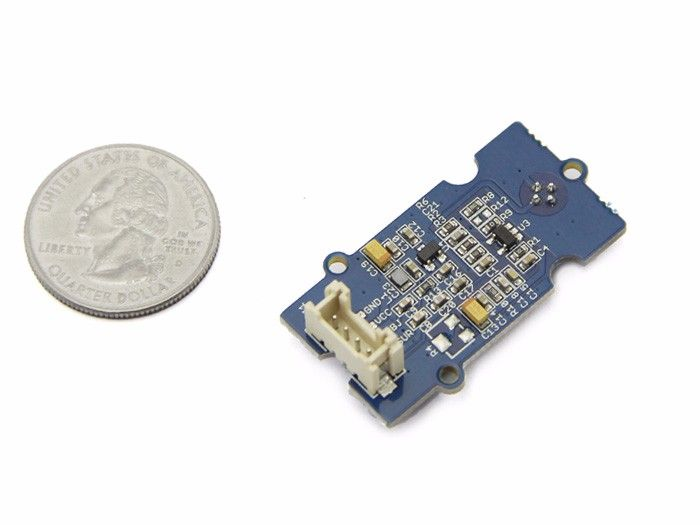

Grove - Infrared Temperature Sensor

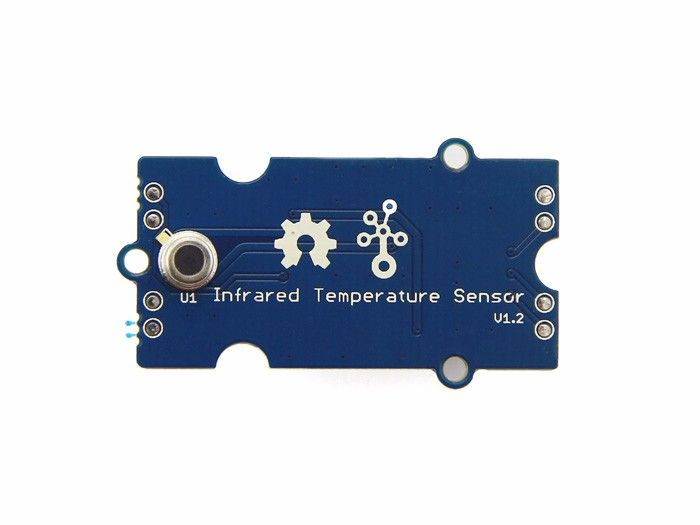

The infrared temperature sensor is a module for contactless temperature measurement. It consists of 116 thermocouples connected in series on a micromembrane with an active diameter of 545 μm. The sensor's black surface absorbs the incident thermal infrared radiation, which can trigger a voltage response at the output. This sensor outputs an analog voltage (0~1.1 V) corresponding to the target temperature.

Features:

• Contactless temperature measurement: Infrared temperature detection within 9 cm
• Wide temperature measurement range: The temperature measurement range extends from -10 to 100 ℃
• Low power consumption: Power consumption is less than 0.6 mW
• Accurate temperature measurement: Measurement accuracy error is only ±2℃
• Grove-compatible interface: The product supports “Plug and Play” and can be used flexibly for various Grove applications

Applications:

• Motion sensor
• Anti-theft system
• Switch
• Industrial automation
• Body distance control

Specifications:

• Package dimensions: 130 mm × 80 mm × 11 mm

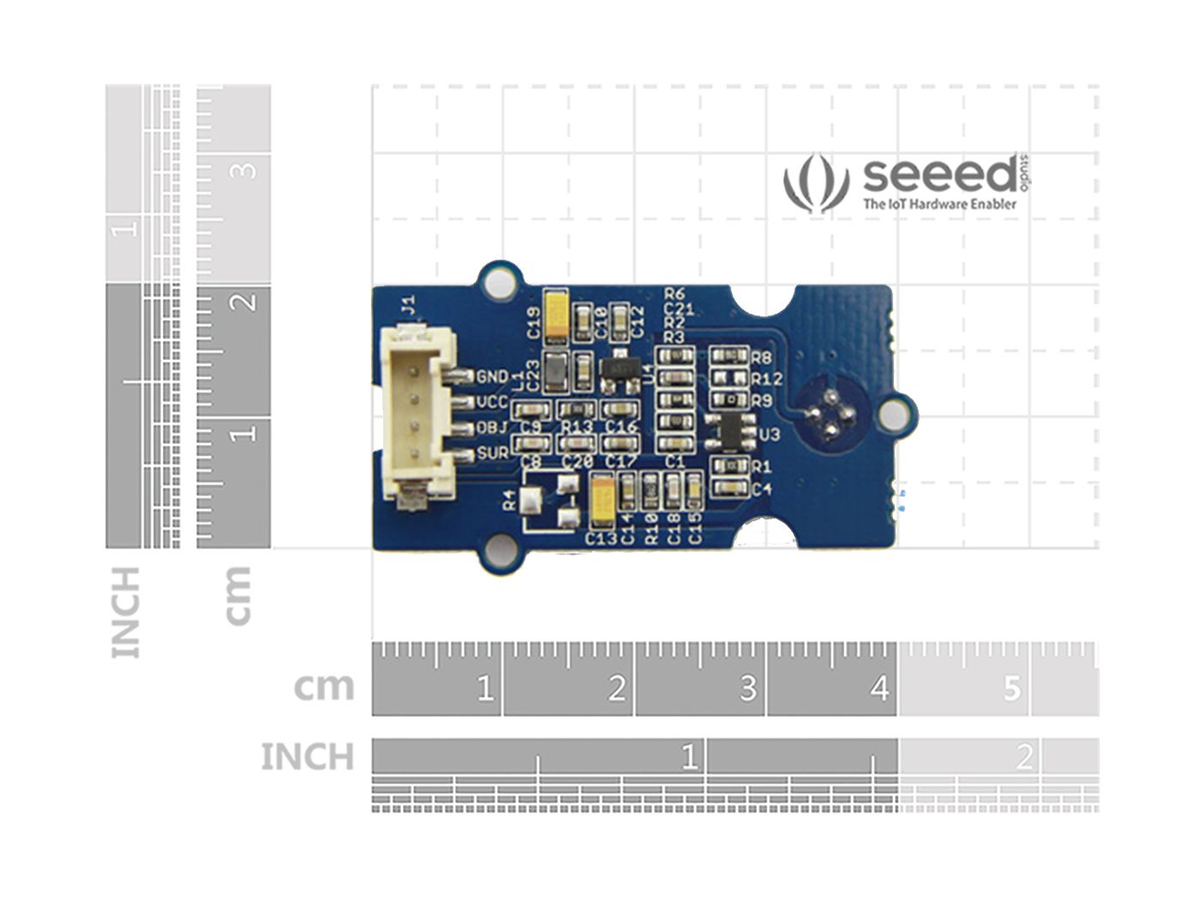

• Dimensions: 40 mm x 20 mm
• Supply voltage: 3.3 V/5 V
• Supply current: 160-200 uA
• Measurement range: -10~100°C
• Measurement accuracy: ±2℃
• Measurement distance: 9CM
• Hold time: 2S
• Operating temperature: -10~80 °C
• Storage temperature: -35-80 °C

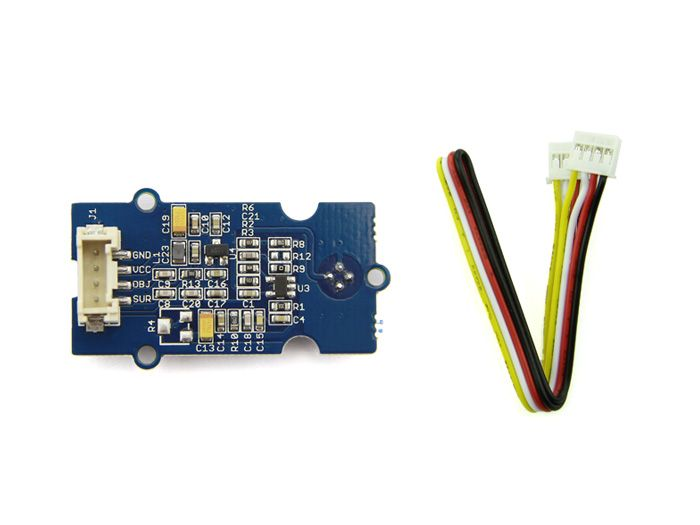

Package contents:

• 1x Grove - Infrared Temperature Sensor
• 1x Grove cable
