BMP180 barometric pressure sensor - temperature and altitude, I2C, 300-1100 hPa

Product overview

• Digital sensor for air pressure, temperature, and altitude in one module
• Air pressure measurement range of 300 to 1100 hPa, temperature range of −40 to +85 °C
• Altitude resolution of up to 1 m, air pressure accuracy of ±1 hPa
• I2C interface, operating voltage of 1.8 to 3.6 V
• Altitude is calculated from air pressure; on-site calibration is possible
• Small 8-pin DIP package or already mounted on a breakout board

Product description

A combined air pressure, temperature, and altitude sensor simultaneously measures several environmental parameters via the I2C bus. The module communicates with 1.8 to 3.6 V signal levels; connection to 5 V systems requires a level shifter between the power supply and data lines.

The sensor operates according to the principle of barometric altimetry, calculating the current altitude above sea level from the measured air pressure. Calibration is possible by entering a known reference altitude. Air pressure accuracy is approximately ±1 hPa, while the temperature measurement operates from −40 to +85 °C with sufficient resolution for weather stations and environmental data loggers.

Typical applications include weather stations that continuously record pressure and temperature, as well as portable altimeters for hiking and drone flights. The module is also frequently used in data loggers that store measurement data for later retrieval. If several of these sensors need to be queried simultaneously, the I2C bus is advantageous because they all connect to the same two lines and only one address per sensor needs to be configured.

An operating voltage of just 1.8 V is sufficient, enabling operation from low-voltage batteries or supercapacitors. Local calibration is required for altitude measurement if larger differences in altitude are to be resolved accurately. The module is supplied either as a bare sensor in an 8-pin package or already mounted on a breakout board with connectors, simplifying wiring.

Safety information

The module is not intended for installation in household electrical circuits and is intended exclusively for building prototypes and for testing and development purposes. Work on electrical installations is reserved for qualified electricians; if you have questions about the power supply or safe operation, consult a qualified electrician before commissioning.

Scope of delivery

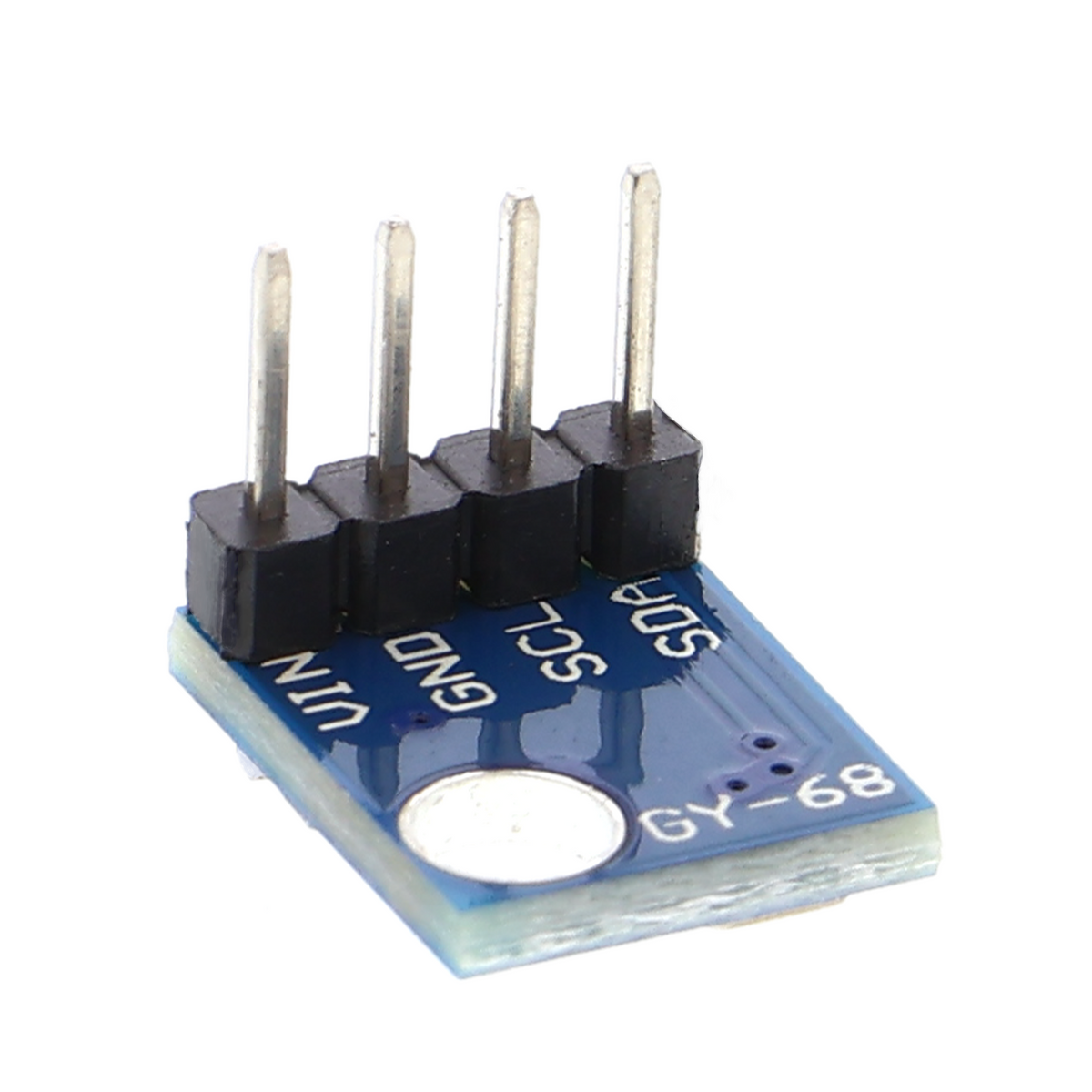

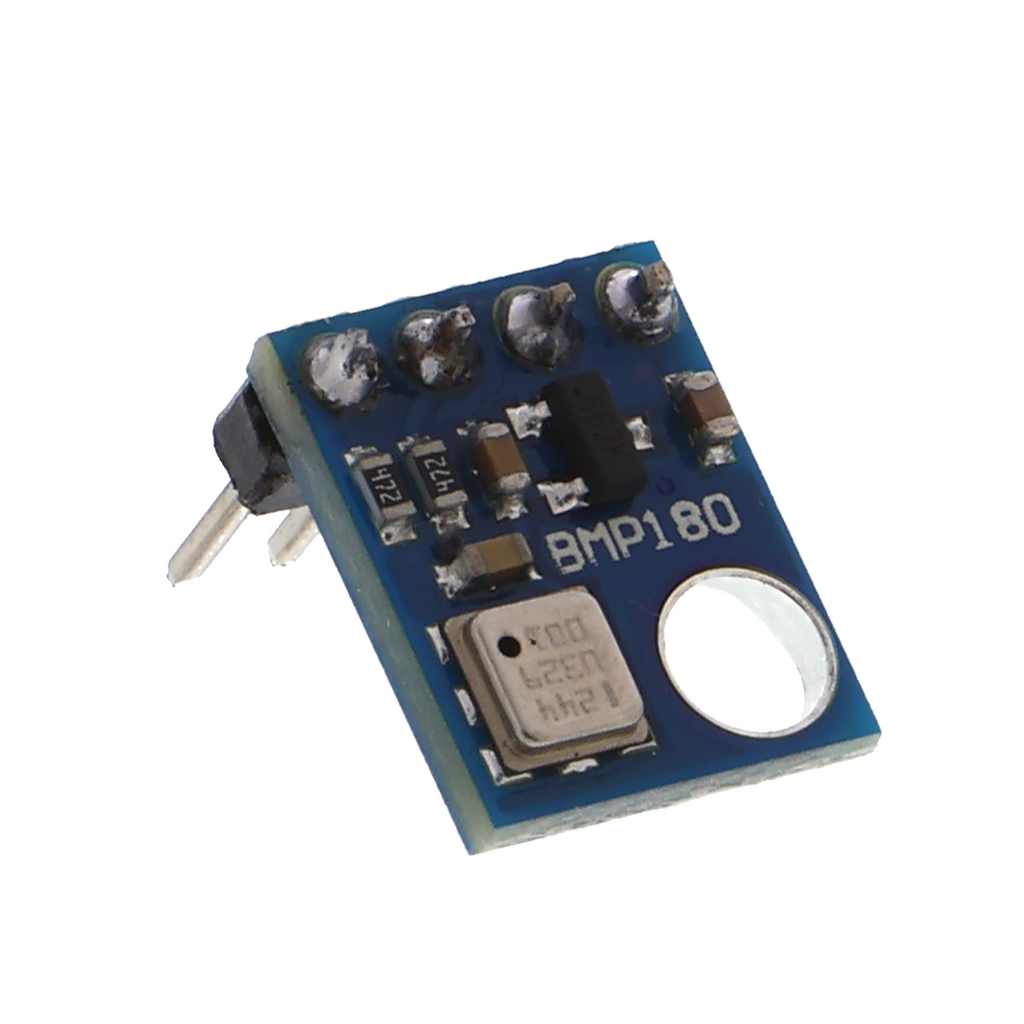

• 1x Air pressure / temperature / altitude sensor BMP180 GY-68 - 5V
