Description

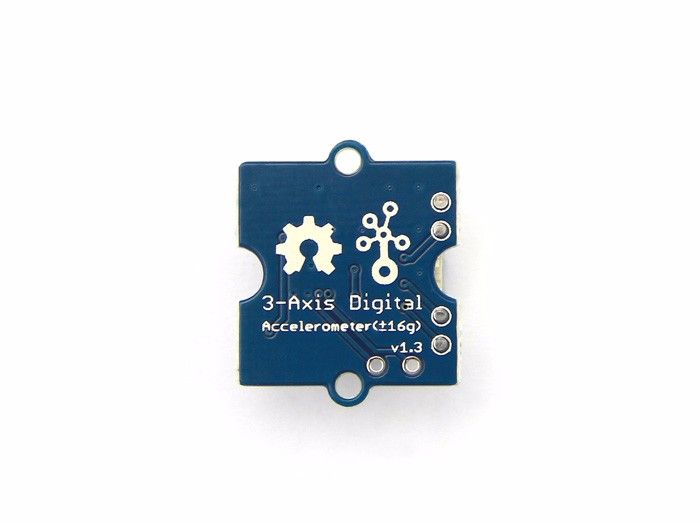

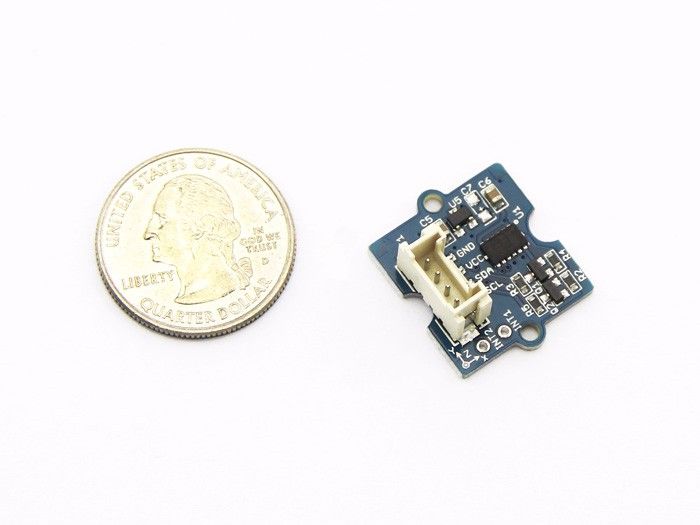

Grove - ADXL345 - 3-axis accelerometer
Description
Grove - ADXL345 is a small, thin 3-axis accelerometer with extremely low power consumption that enables high-resolution (13-bit) measurements of up to ±16 g. It measures static gravitational acceleration in tilt-sensing applications as well as dynamic acceleration resulting from motion or shock. Its high resolution (3.9 mg/LSB) enables measurement of tilt changes of less than 1.0°.
Power consumption is only 23 μA in measurement mode and 0.1 μA in standby mode. The low-power modes enable intelligent motion-based power management with threshold detection and active acceleration measurement at extremely low power consumption.
Several special sensor functions are available: Activity and inactivity detection detects the presence or absence of motion by comparing acceleration on any axis with user-defined thresholds. The tap-sensing function detects single and double taps in any direction. Free-fall detection determines whether the device is falling.
Based on the ADXL-345, this digital 3-axis accelerometer features excellent EMI protection.
Features
- 3-axis detection: activity and inactivity detection, tap detection, free-fall detection
- Extremely low power consumption: 23 μA in measurement mode, 0.1 μA in standby mode
- Output options: Grove I2C interface, SPI interface
- High impact resistance: survives shocks of up to 10,000 g
- Integrated 4-pin Grove interface (3-5 VDC) for easy (plug-and-play) connection to Arduino and Seeeduino boards.
Applications
- Hard drive shock protection
- Vibration sensor
- Game controller input
- Robotics
- Smart vehicles
- Anywhere you need motion detection and orientation information
Specifications
- Dimensions: 130 mm x 90 mm x 10 mm
- Weight: 9 g
What is Grove?
Grove makes connecting and experimenting easier and simplifies the prototyping process. No jumpers or soldering are required. More than 300 Grove modules have been developed, covering a wide range of applications and meeting a variety of requirements. Not only is the hardware open source, but the software is as well. We offer various Grove shields to enable connection to the Grove system with a range of microcontrollers.
Bill of materials

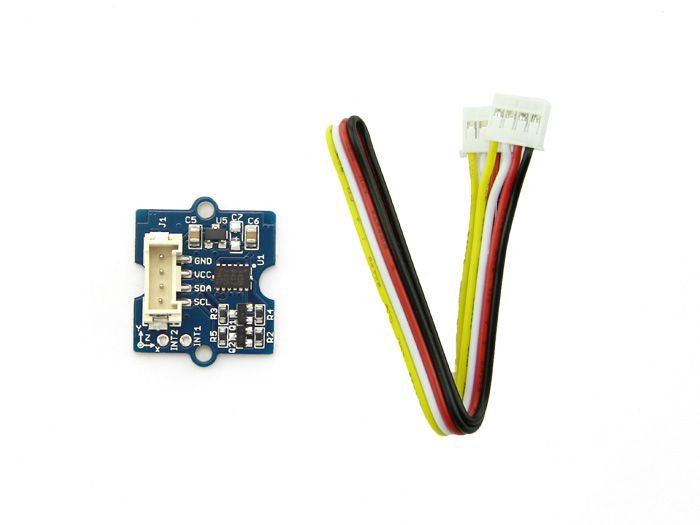

- 1x Grove - 3-axis digital accelerometer (±16 g)
- 1x Grove cable
