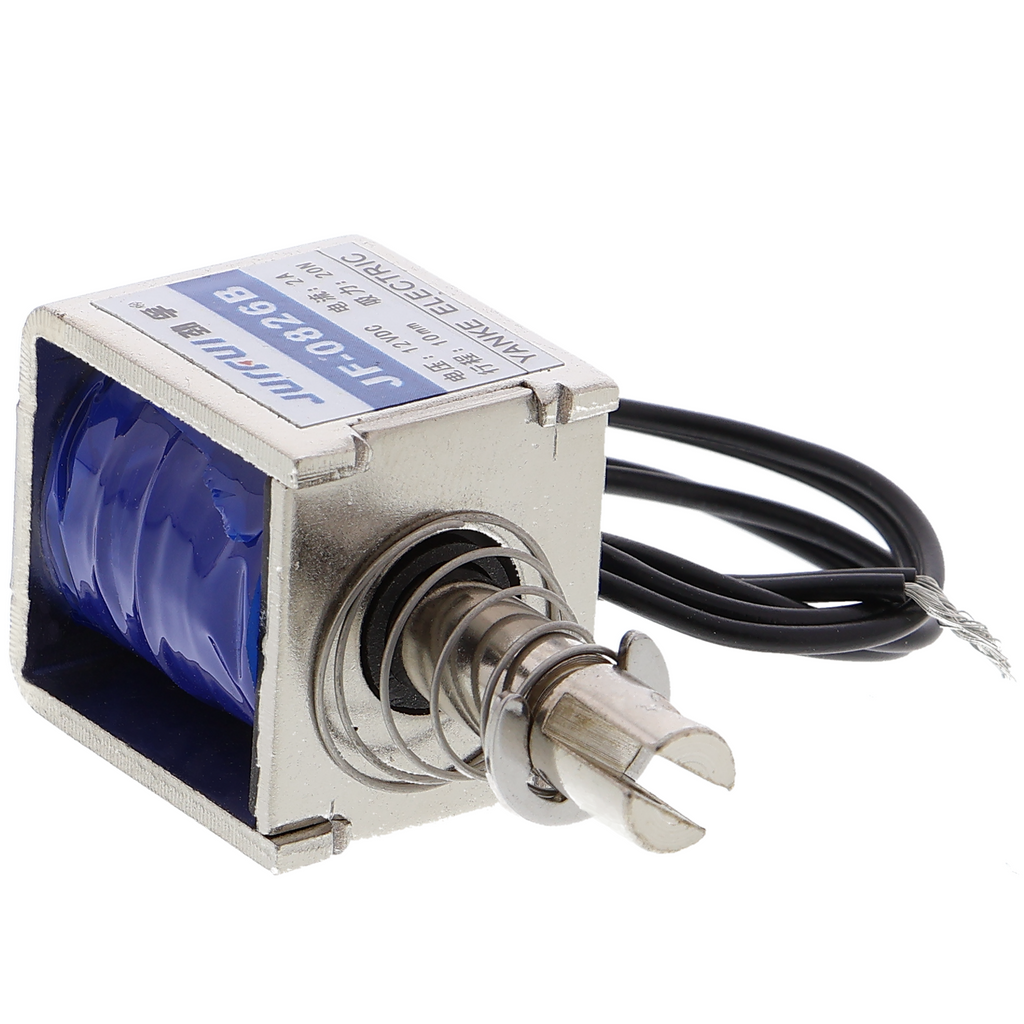

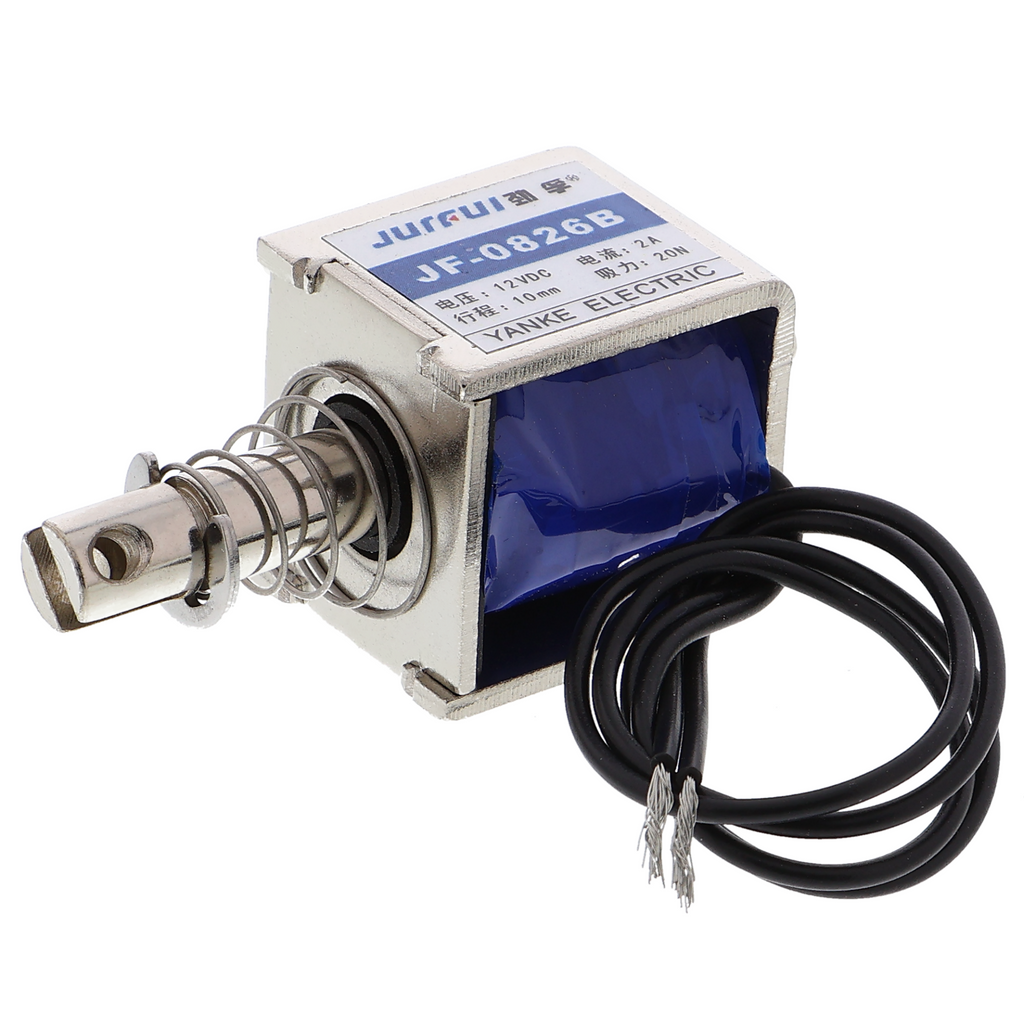

Electromagnet JF-0826B - 10 mm stroke, 12 V / 2 A
This goes with it
Pay in 30 days
Pay in 30 days
Description
Product overview
- Solenoid for opening and closing with 10 mm stroke
- Operating voltage: 12 V DC
- Pulling force in both pull and push directions
- Compact design, can be screwed directly into place
- Control via a relay or transistor required
Product description
This solenoid with a 10 mm stroke operates in both pull and push directions and is suitable for automated opening and closing tasks. It must be controlled via a relay or a suitable transistor, as the coil cannot be powered directly from microcontroller pins. With an operating voltage of 12 V DC, locks, locking mechanisms, or holding devices can be activated selectively.
The compact design allows it to be screwed into existing constructions without major modifications. The pulling force acts in both directions, allowing the solenoid armature to move against springs or its own weight. The 10 mm stroke is sufficient for many mechanical applications, such as door openers, locks, or pulling mechanisms.
Typical applications include automated doors or covers in DIY projects, lock applications without contactless activation, and experimental setups that need to selectively secure or release components. For continuous operation, adequate heat dissipation must be ensured, as the coil heats up when continuously powered.
Operation requires a 12 V DC power source and a switching module. The mechanism should be designed so that the solenoid can handle the required load when closing and the armature returns to its original position when opening if no spring is installed.
Safety information
The solenoid must not be connected to the household electrical circuit and is intended exclusively for building prototypes and for testing and development purposes. The coil generates heat during operation; ensure adequate heat dissipation and avoid touching it while in operation. If you have questions about the power supply or circuit, consult a qualified electrician.
