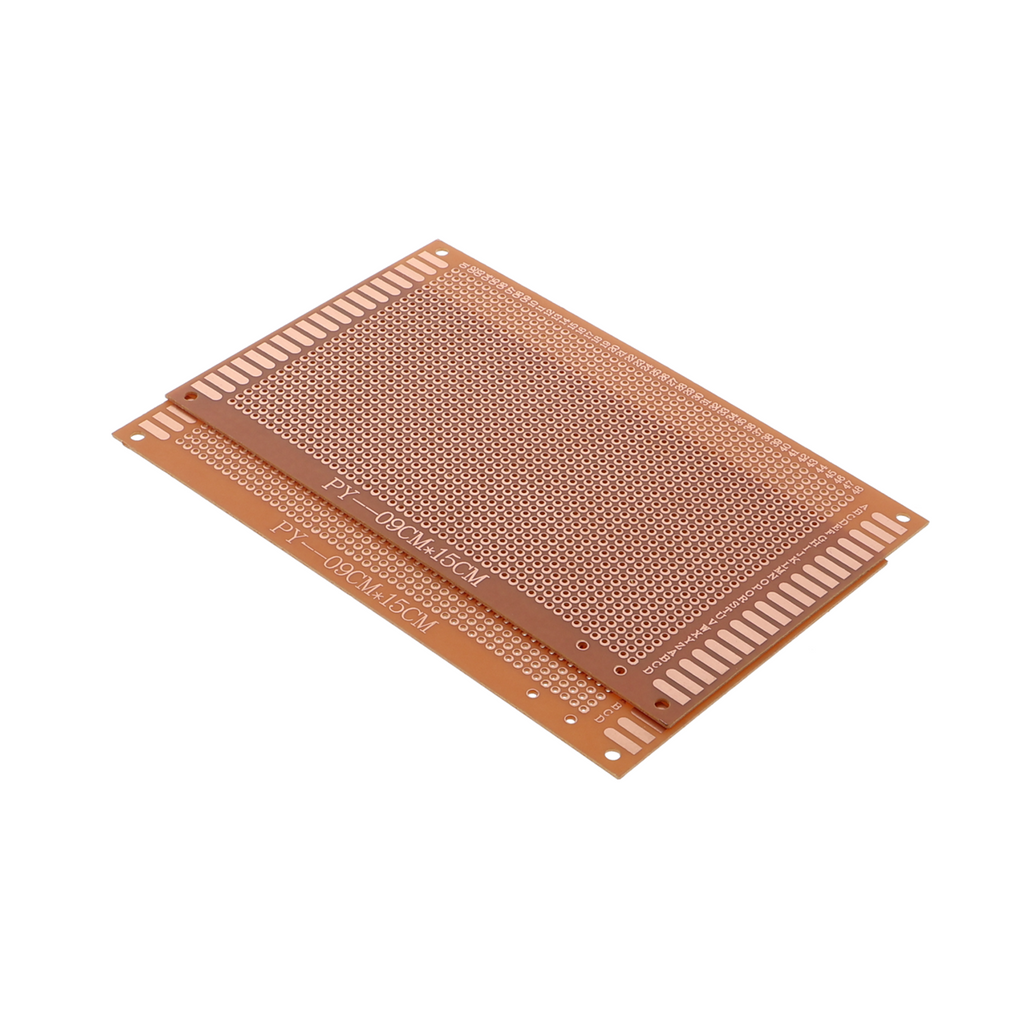

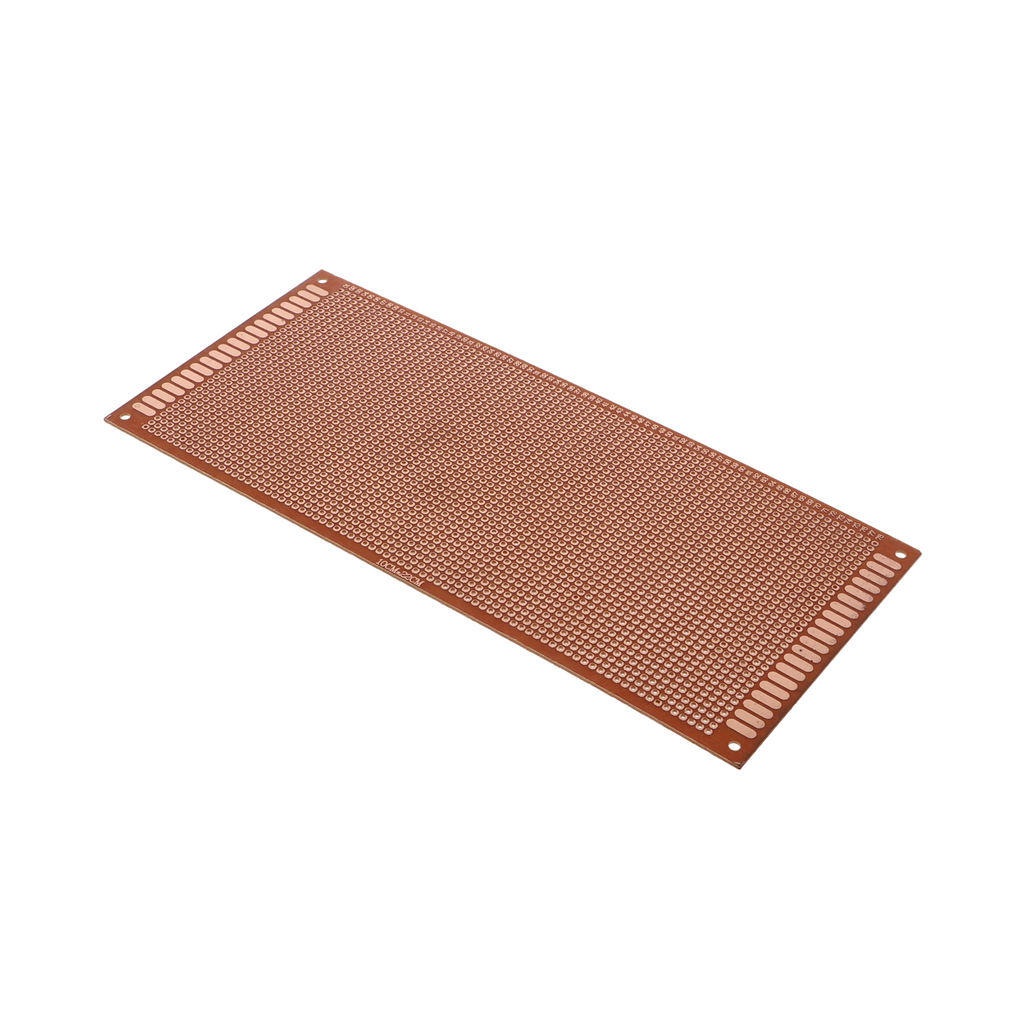

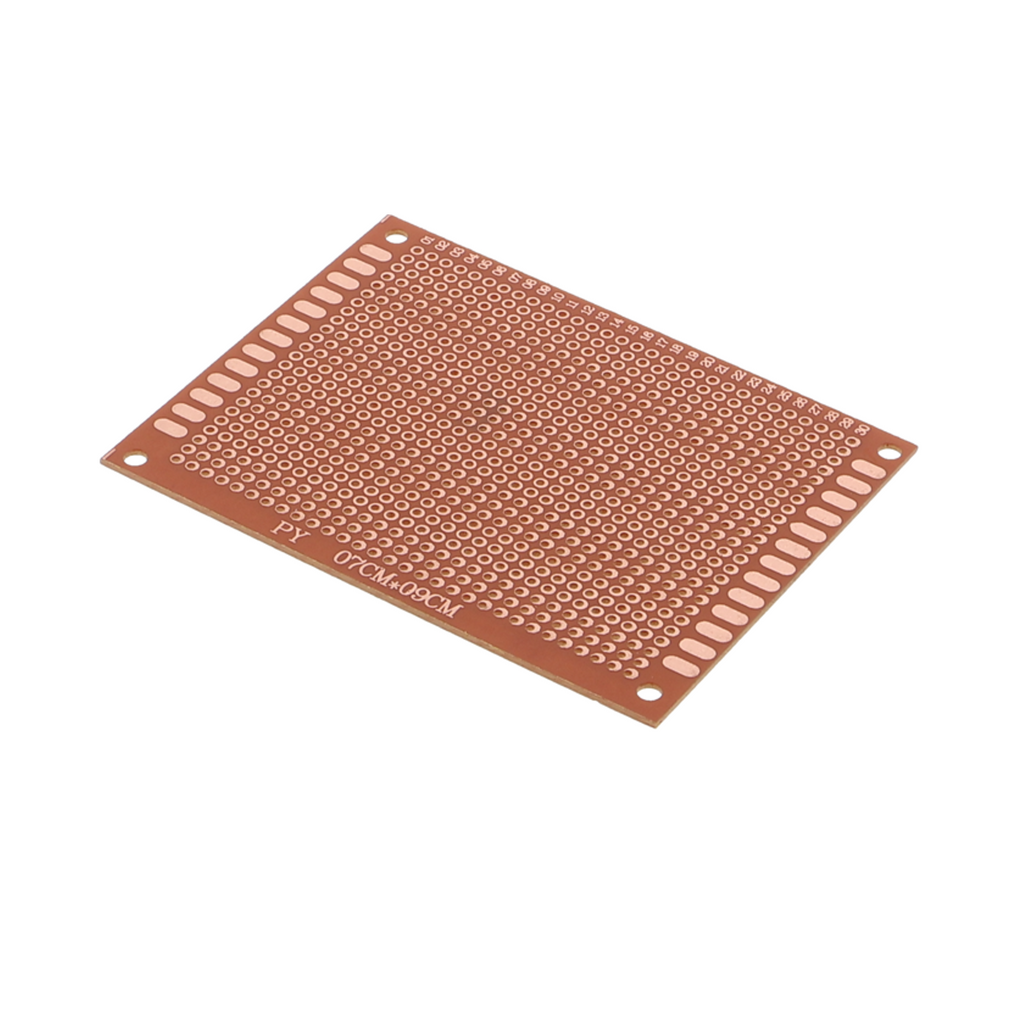

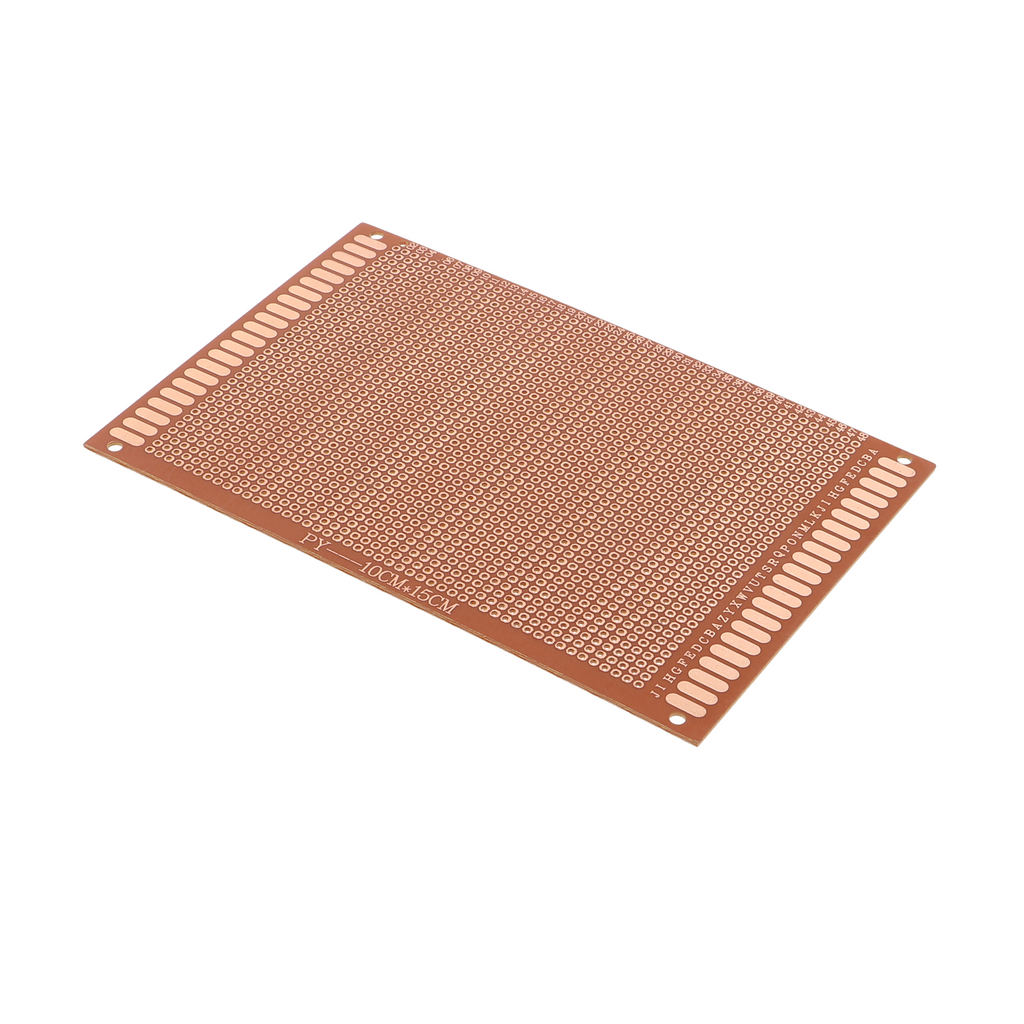

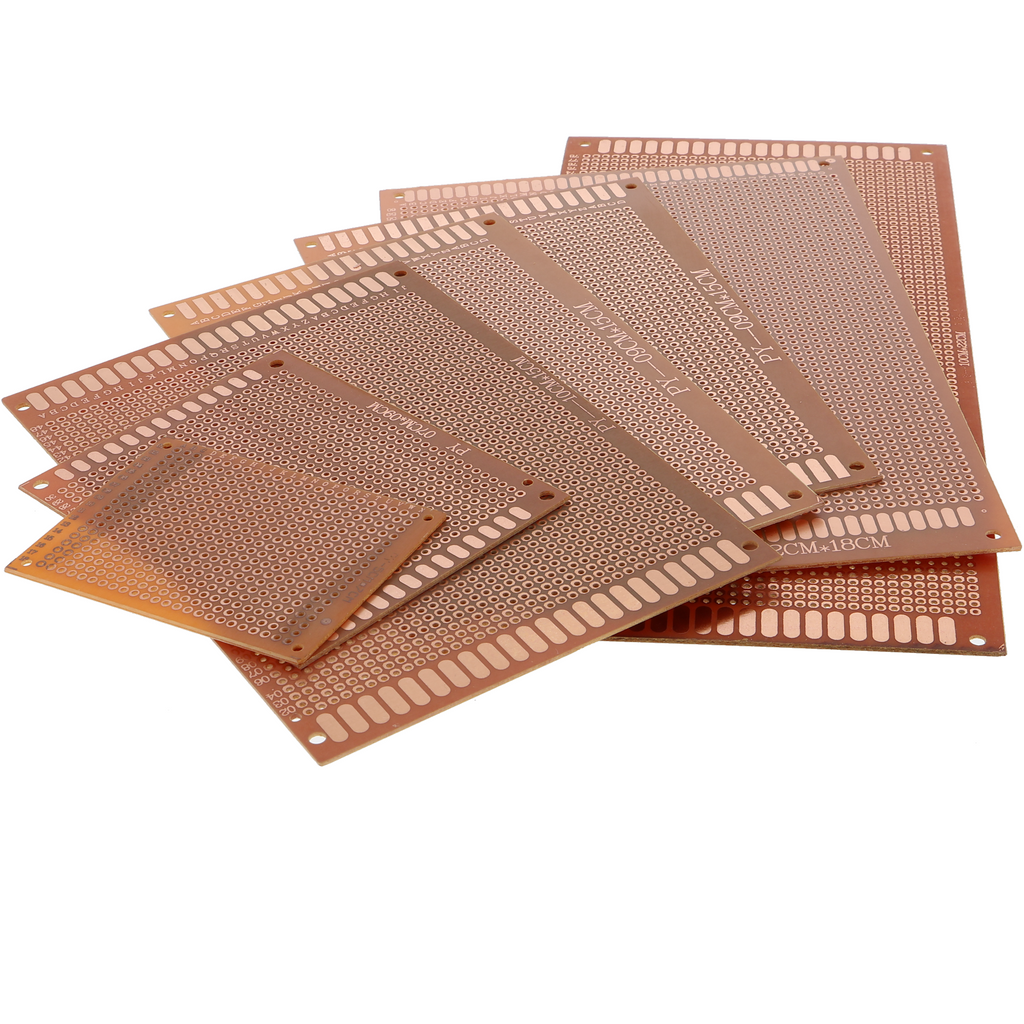

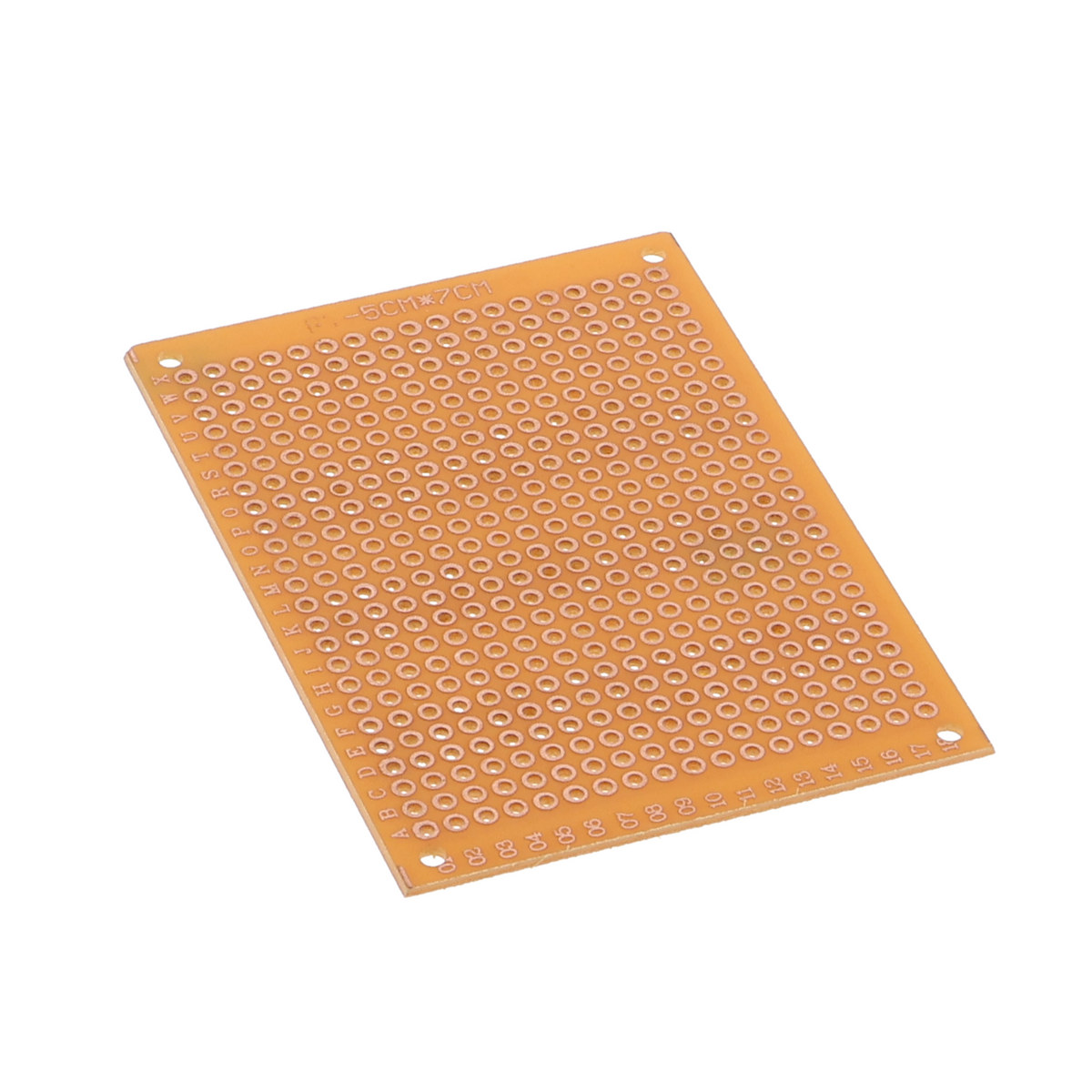

Brown perfboard set - 3 sizes, 2.54 mm pitch
This goes with it
Pay in 30 days
Pay in 30 days
Description
Product overview
- Phenolic resin perfboards, brown, 2.54 mm pitch
- set with three different board sizes
- printed with copper tracks on one side
- soldered connections can be made directly on the board
- suitable for prototypes and permanent circuit assemblies
Product description
Perfboards are used to build circuits without special manufacturing equipment. The brown set contains three boards in different formats, with copper tracks corresponding to the standard 2.54 mm pitch. This allows standard components such as resistors, capacitors and semiconductors to be inserted directly into the holes without preparation.
The single-sided copper tracks are already structured and follow proven routing patterns. This eliminates the need to create etching patterns or design complex circuit layouts. Components are placed from the top and soldered from below through the open hole contacts. The phenolic resin base provides mechanical strength and temperature resistance up to the operating range of common electronic assemblies.
The set is suitable for beginners and advanced users who want to build stable prototypes. Typical applications include sensor circuits, small amplifiers, LED drivers or control logic using a small number of components. These boards can also be used to create final modules that remain installed in devices over the long term. Independent circuit development remains possible without having to commission manufacturing.
Assembly requires a soldering iron, solder and side cutters. The exact board size depends on the board selected from the set. Unused holes allow adjustments for individual circuits, while the prefabricated copper tracks reduce the circuit assembly effort.
Safety information
Soldering requires good ventilation due to the formation of solder fumes. These perfboards are intended exclusively for building prototypes and for testing and development purposes. They are not suitable for installation in the household electrical circuit.
Scope of delivery
- 1x PCB perfboard set (brown) - 2.54 mm pitch
