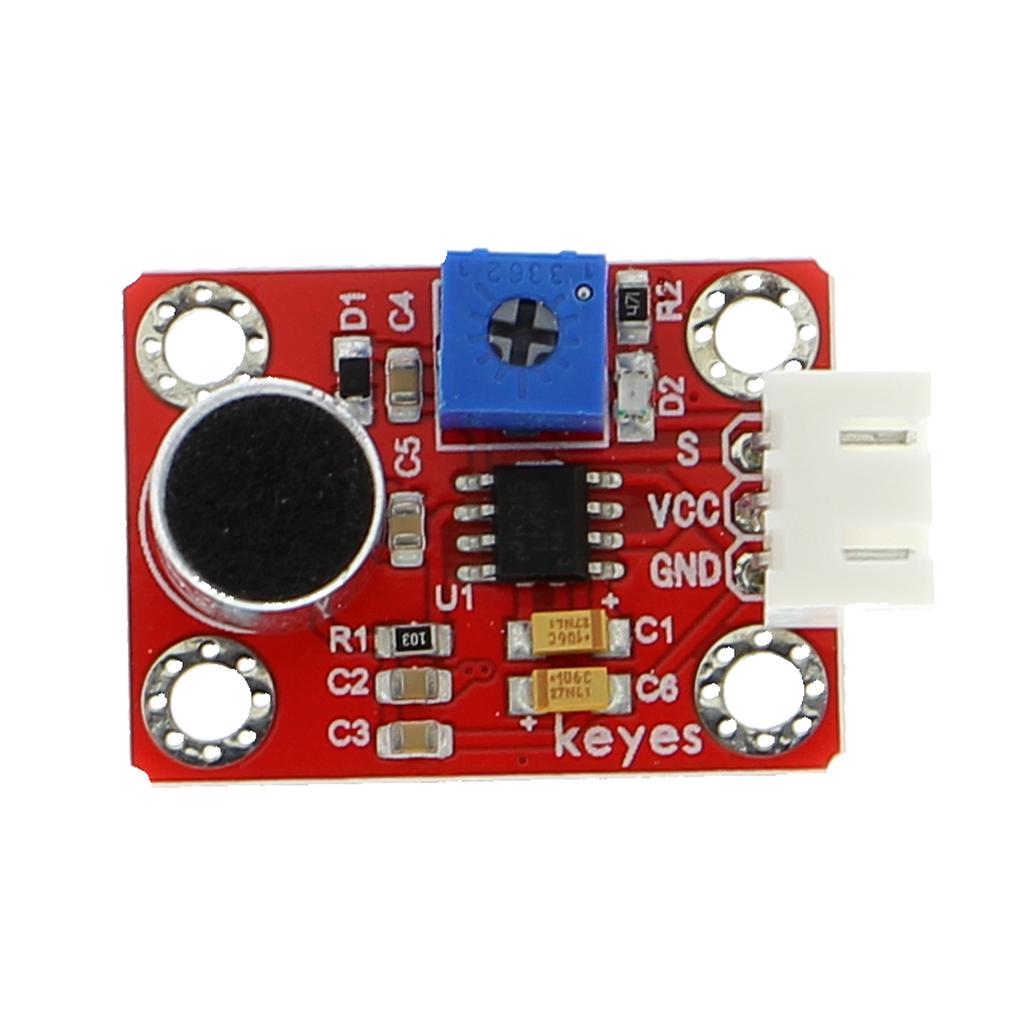

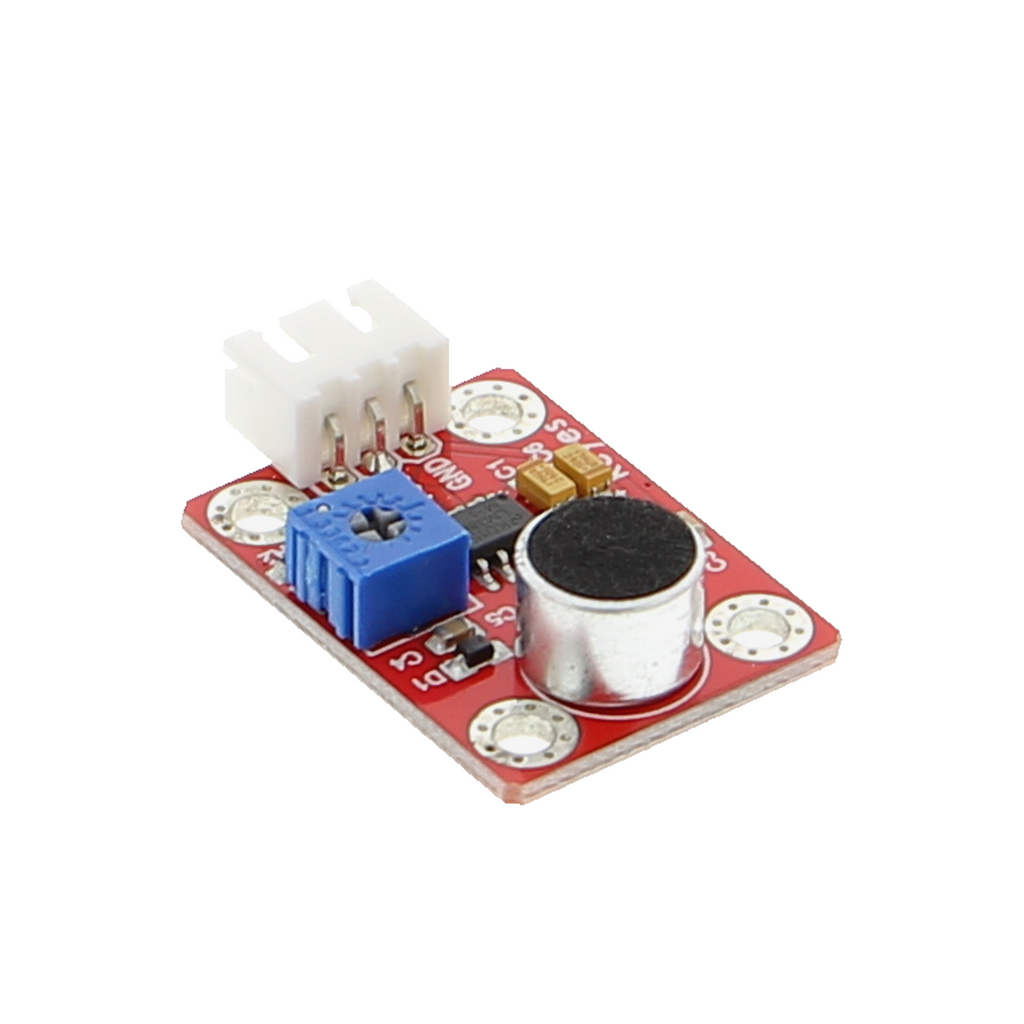

Microphone module - sound detection, 3-pin XH2.54

Product Overview

• Microphone module for sound detection with integrated microphone
• Output interface via XH2.54 connector (3-pin)
• Digital detection results provide signals for voice commands or feedback
• Low power consumption for battery-powered systems
• Compact design, directly integrable into prototypes

Product Description

A microphone tone detection module captures ambient sounds and converts them into usable signals. The integrated microphone feeds acoustic data into a detection process, while the digital output is available as a switching pulse or status message. The interface uses an XH2.54 connector, enabling direct connection to microcontroller boards with 3-pin headers.

The module is used in project-based applications for voice-controlled prototypes, acoustic warning systems, or sound-based triggering mechanisms. A common scenario is connecting it to a robot that responds to hand signals or a whistle. The module can also be integrated into IoT networks to detect acoustic events and relay them to other components.

Operation typically requires a 5 V power supply unless the connection system specifies a different voltage. Detection reliability depends on ambient volume and filter settings, so practical setups require optimization for the specific operating conditions. As a development module only, it is not designed for continuous operation under adverse environmental conditions.

Safety Notice

This module is intended exclusively for building prototypes and for testing and development purposes; it is not suitable for installation in household electrical circuits. Before commissioning, consult a qualified electrician when connecting it to more complex systems or if you are uncertain about the power supply. Observe the polarity of the XH2.54 connector to prevent damage.

Scope of Delivery

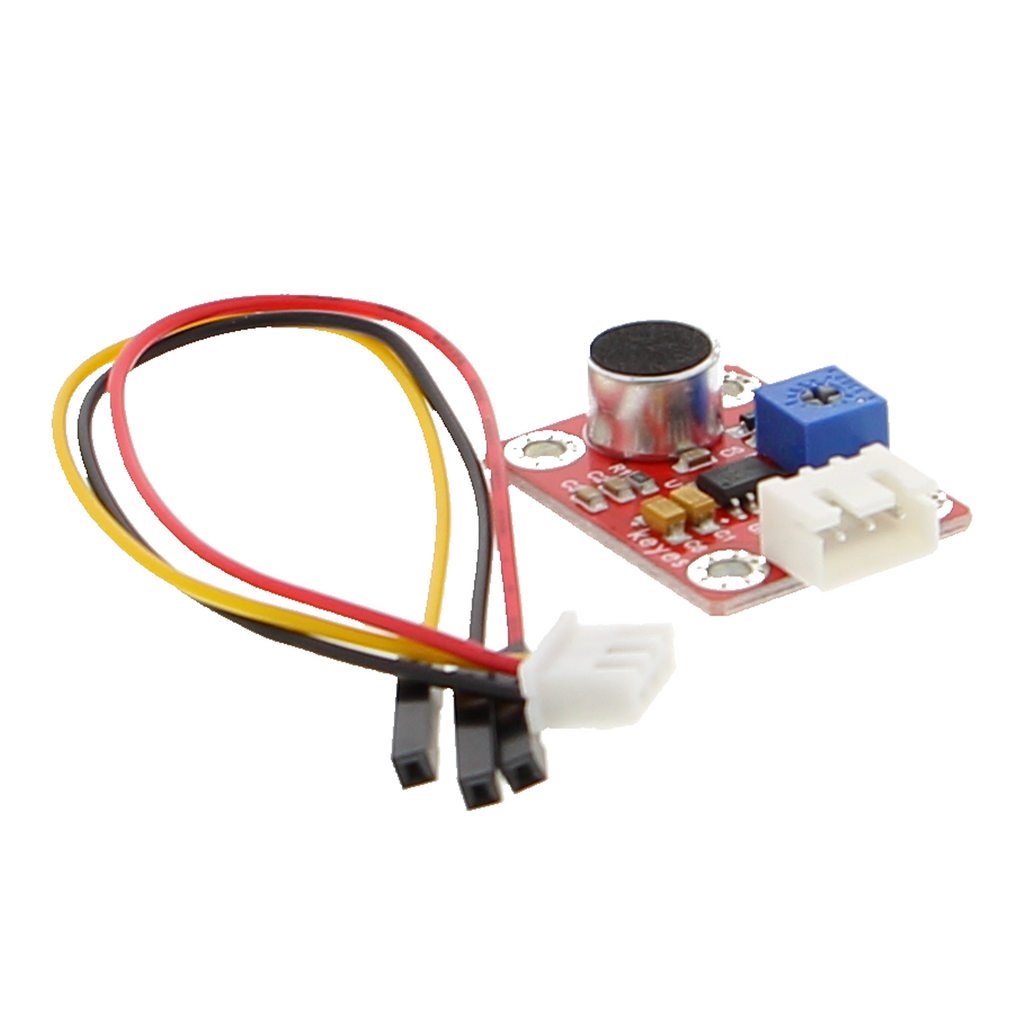

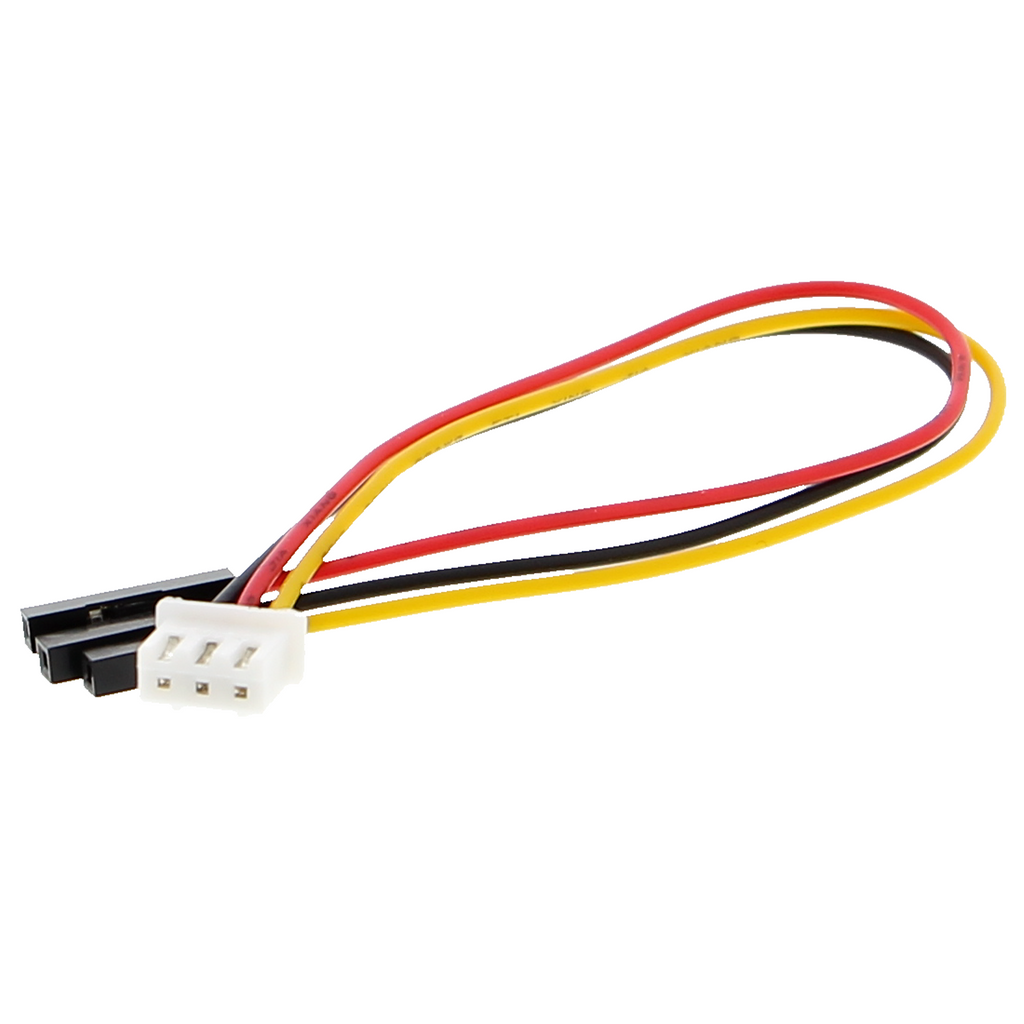

• 1* Microphone, tone detection module - with XH2.54 3P socket
