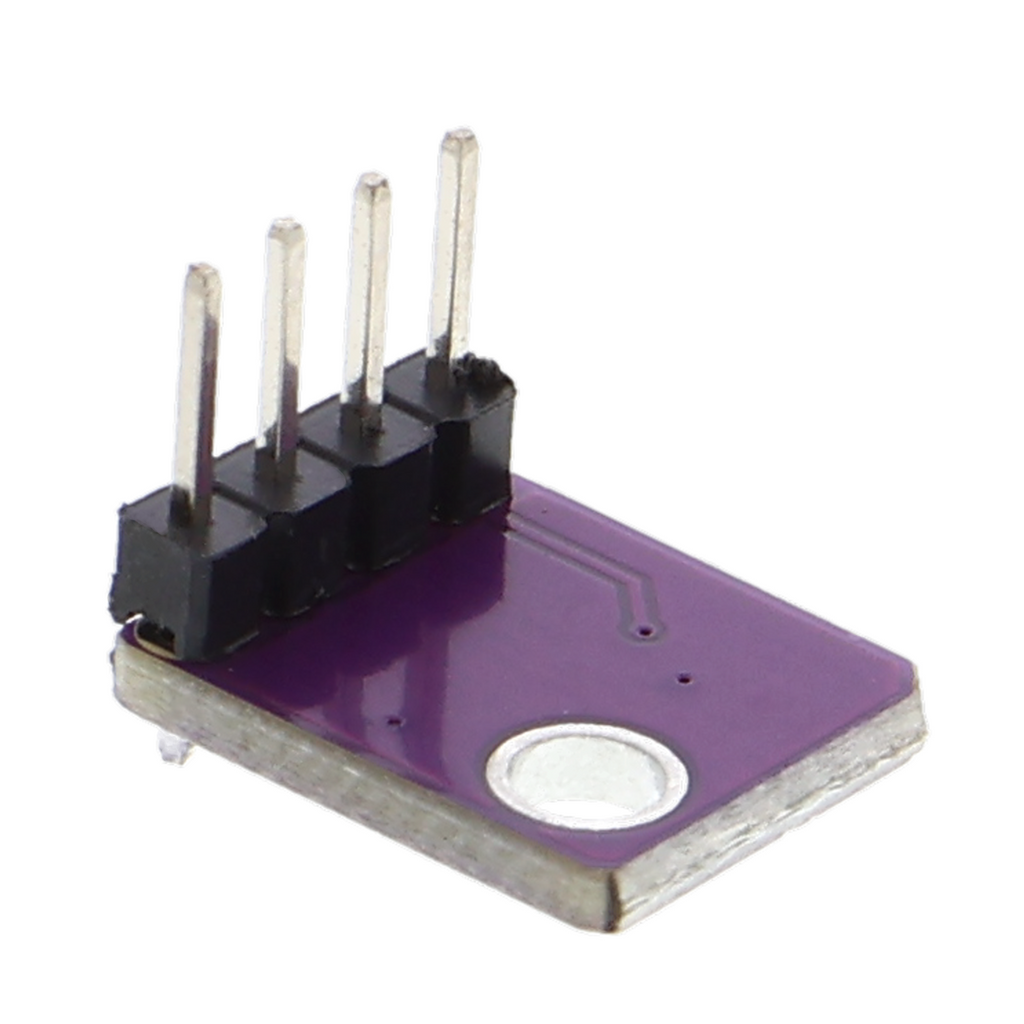

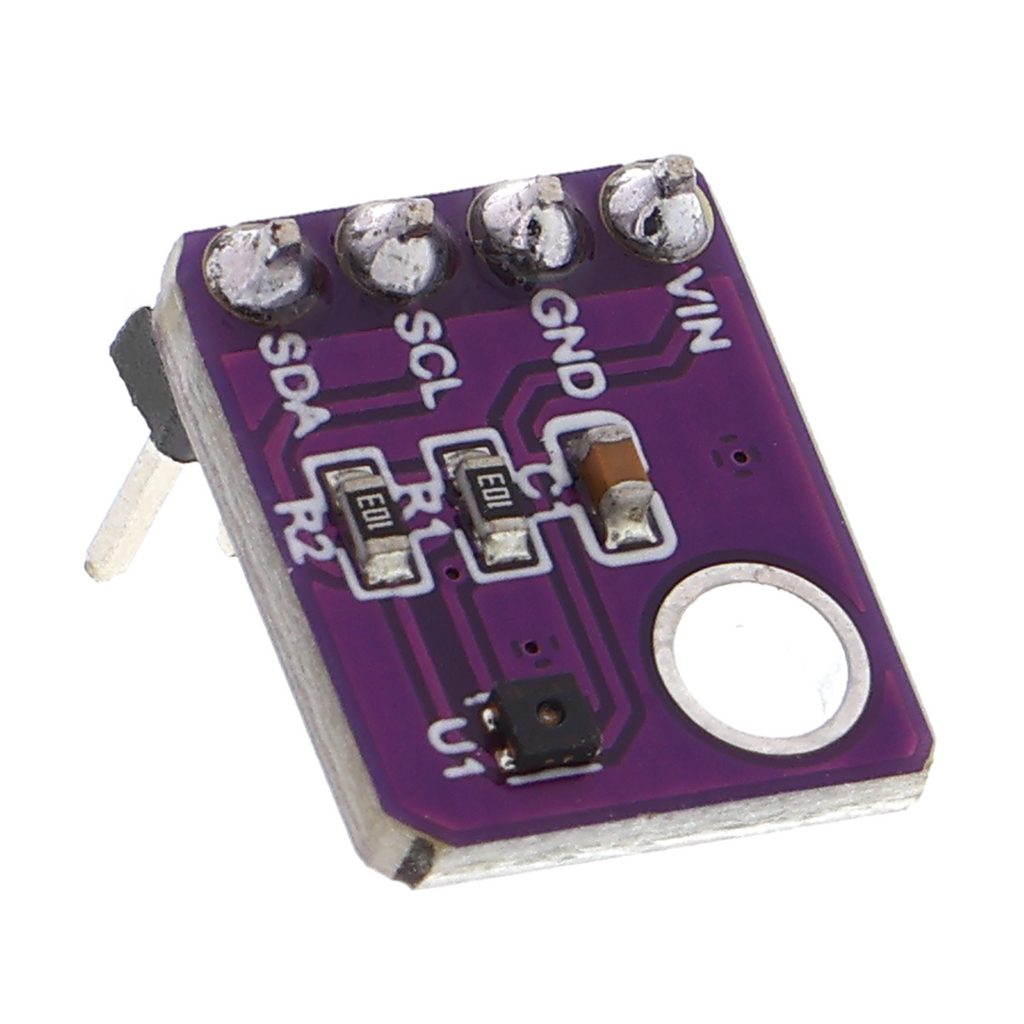

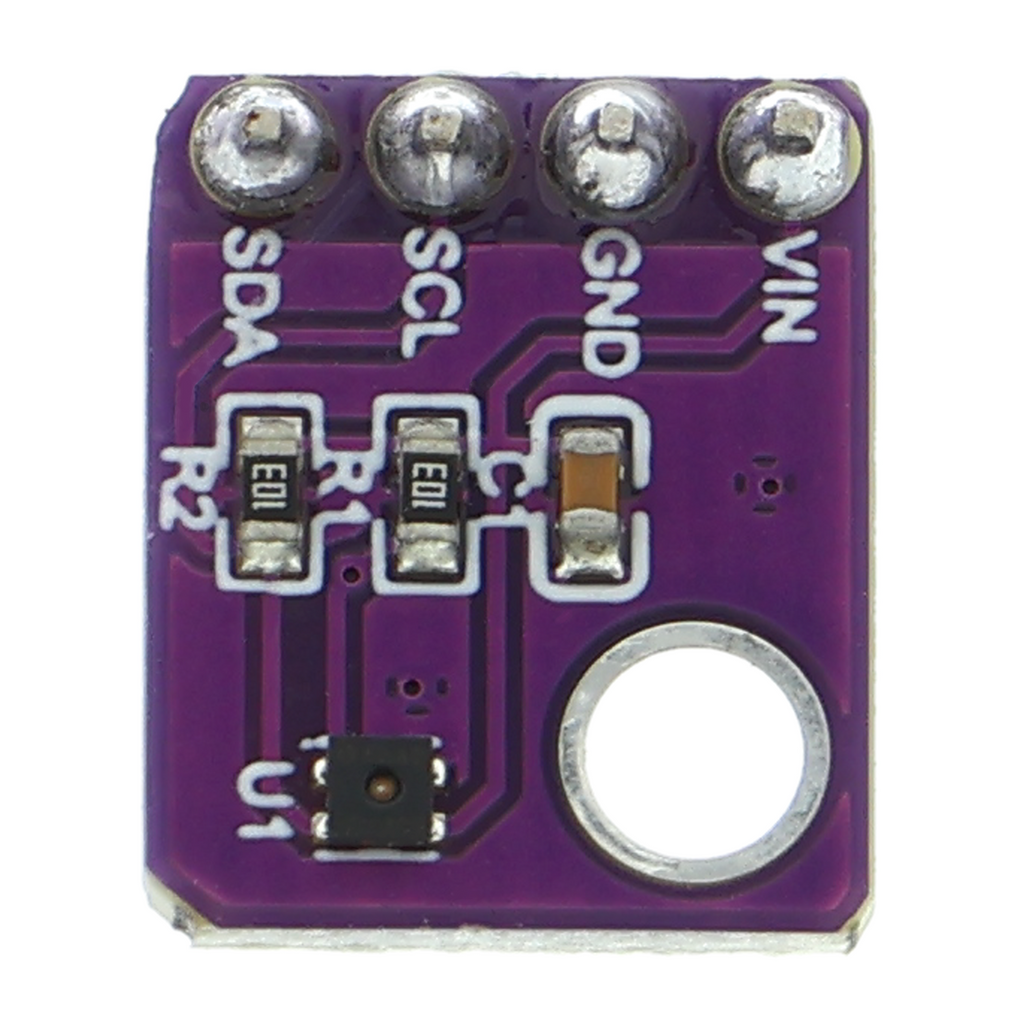

GY-SHT4x temperature and humidity sensor - I2C, -40 to +125 °C, 2 versions
GY-SHT4x temperature and humidity sensor - I2C, -40 to +125 °C, 2 versions
This goes with it
Pay in 30 days
Pay in 30 days
Description
Product Overview
- Digital sensor measures temperature and relative humidity simultaneously
- Temperature measurement range −40 to +125 °C, humidity 0 to 100% RH
- Accuracy of ±1.5 °C and ±3% RH across typical operating ranges
- I2C interface with addressable communication
- Operating voltage 1.08 to 3.6 V
- Four-pin SMD package
- Factory calibrated, no adjustment required
Product Description
The sensor measures temperature and humidity via a digital I2C interface and outputs the measured values directly to a microcontroller board for further processing. The sensor pair operates with low power consumption from approximately 1.1 V; to operate it with 5 V boards, use a level shifter for the digital line.
The two versions differ in accuracy and measurement speed. Under typical ambient conditions, both achieve single-digit accuracy, and calibration after installation is not required. The I2C address can be selected through external circuitry, allowing multiple modules to operate on the same bus.
Power consumption is minimal during operation; the measurement frequency can be configured via the datasheet or firmware settings. Typical applications include monitoring room climate, storage conditions, or machine enclosures. In mobile projects, a small battery is sufficient to provide power for several days of operation.
The sensor requires a microcontroller board with I2C master support and a power supply within the specified range. The measured values are available via the digital interface; there is no analog output. The SMD design requires a breakout board or careful soldering onto a circuit board during assembly.
Safety Information
The sensor is intended exclusively for prototyping and testing and development purposes. Use as part of a household electrical installation is not permitted. If you have questions about integration into existing electrical systems, consult a qualified electrician before commissioning.
Scope of Delivery
- 1x Digital temperature and humidity sensor - GY-SHT40-D / GY-SHT41-D
