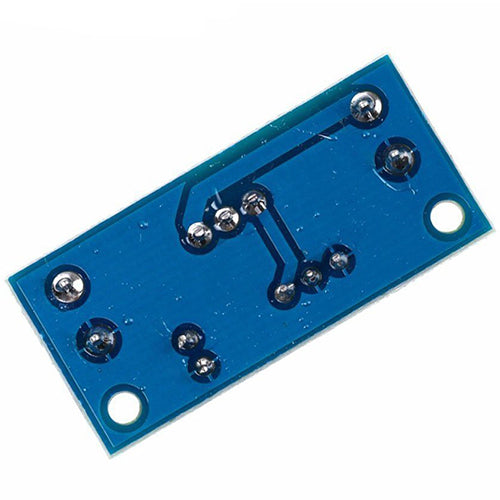

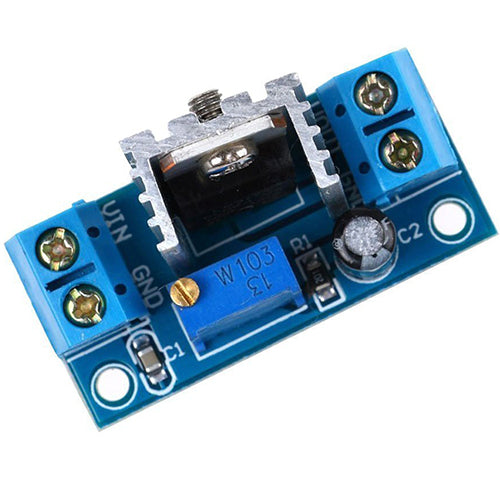

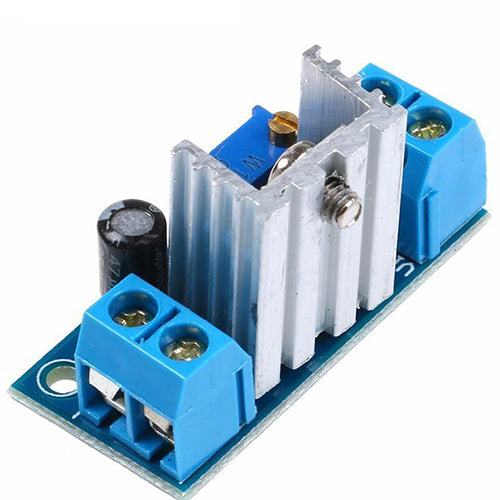

LM317 Voltage Regulator - adjustable 1.2-37 V, 1.5 A
Pay in 30 days
Pay in 30 days
Description
Product overview
- Linear voltage regulator with an output current of up to 1.5 A
- Output voltage adjustable from 1.2 V to 37 V
- Input voltage of up to 40 V
- Internal current limiting and thermal protection
- Three connections, through-hole package for stripboards
Product description

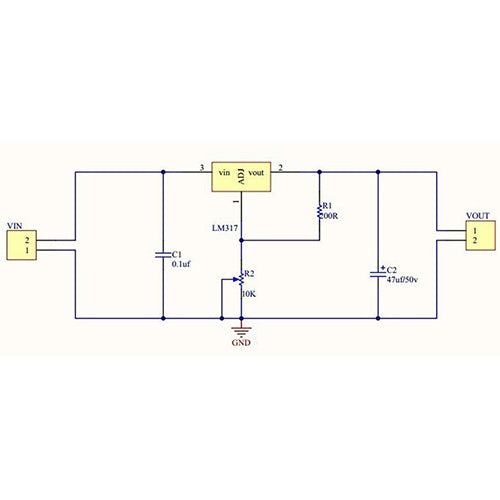

The LM317 is an adjustable linear voltage regulator that generates stable, lower output voltages from higher input voltages. With two external resistors, the output voltage can be adjusted from 1.2 V to 37 V, making it suitable for a wide range of applications.
The regulator operates on the principle of series regulation. An internal transistor limits the voltage drop between the input and output. In the event of an overload or heat buildup, the regulator switches off automatically to protect the component. Calibration is not required. However, the input voltage must be at least 2.5 V higher than the desired output voltage, and the full current delivery of 1.5 A is only possible if the heat loss is dissipated using a heat sink.
Typical applications include laboratory power supplies with adjustable outputs, power supplies for analog circuits with different voltage requirements, and charging circuits for batteries with a defined charging current. The LM317 is also frequently used as a voltage reference in measurement chains.
An input voltage between 3 V and 40 V is required for operation. A heat sink is required when supplying higher currents or operating close to the maximum input voltage. Discharge resistors at the output protect the regulator when switching off inductive loads.
Safety information
The LM317 is intended exclusively for building prototypes and for testing and development purposes. The component generates heat under load and may require a heat sink. Work on or near electrical installations must be carried out by qualified electricians; if in doubt, consult a qualified electrician before commissioning.
Scope of delivery
- 1x LM317 - Linear voltage regulator, 1.5A, 4.2-40V
