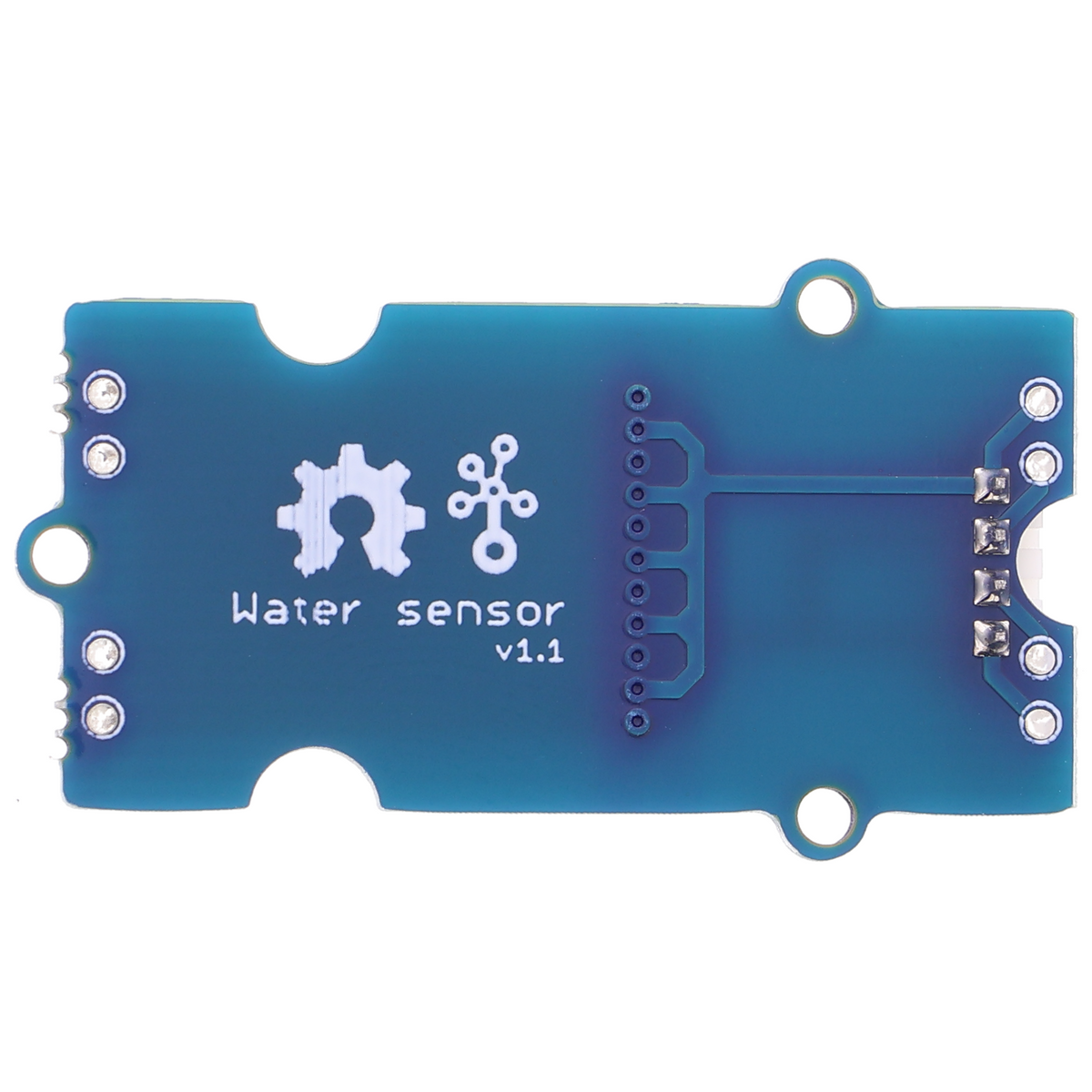

Grove Water Sensor RC0603JR - water leak detector, digital and analog

Grove – Water Sensor (RC0603JR) – Moisture Sensor

The sensor module can detect the presence of water using exposed traces on the circuit board. By measuring conductivity, it indicates whether the sensor is dry, damp, or fully immersed in water.

The sensor traces have a weak 1 MΩ pull-up resistor. The resistor raises the value of the sensor trace until a water droplet short-circuits the sensor trace to the grounded trace. The module works with the digital I/O pins of your Arduino, or you can use it with the analog pins to detect the contact caused by water between the grounded traces and the sensor traces.

Applications

• Rainfall detection
• Liquid leakage
• Tank overflow detector

Features

• Precise measurement: The sensor measures the number of water droplets or the water flow through a series of exposed parallel traces to determine the water level
• Digital output: It is easier to read the water/no-water status by evaluating the high and low levels
• Grove-compatible interface: The product ensures “plug and play” functionality and can be used flexibly for various Grove applications

Specifications

• Voltage: 4,75 - 5.25 V
• Operating voltage: 5,0 V
• Current: < 20 mA
• Operating temperature: 10 - 30 ℃
• Operating humidity (non-condensing): 10 - 90 %
• Dimensions: 40x20x12mm

What is Grove?

Grove makes it easier to connect and experiment while simplifying the prototyping process. No jumpers or soldering are required. More than 300 Grove modules have been developed, covering a wide range of applications and meeting a variety of requirements. Not only the hardware is open source, but also the software.

We offer various Grove Shields to enable connections to the Grove system with various microcontrollers.

Package contents:

• 1x Grove – Water Sensor (RC0603JR) – Water Leak Detector
• 1x Grove cable
