Description

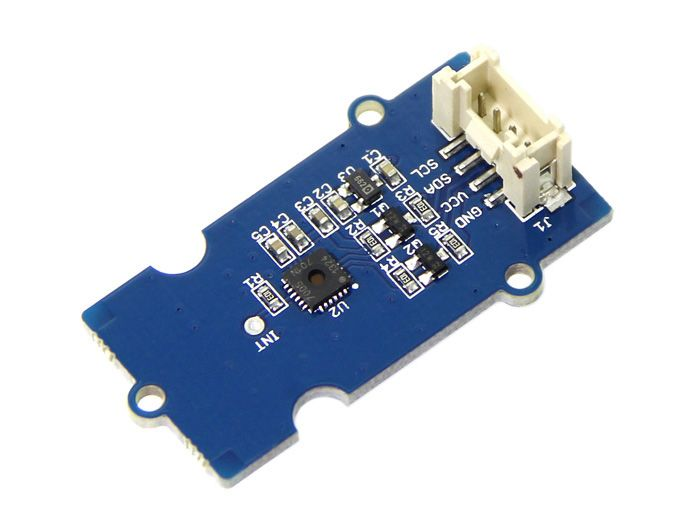

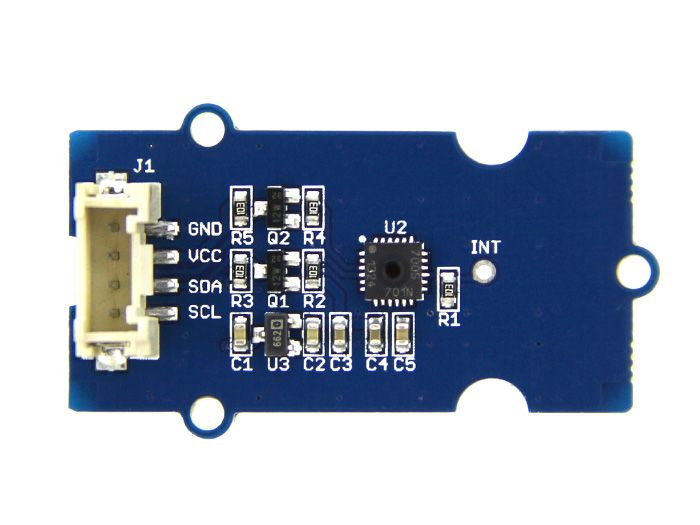

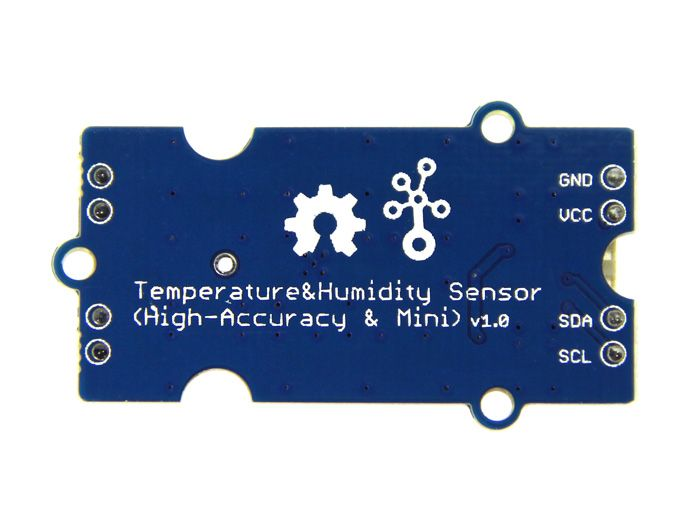

Grove - Temperature and Humidity Sensor (High Accuracy and Small Size) v1.0

The Grove temperature and humidity sensor is based on the TH02, which is characterized by high accuracy and compact size. This multifunctional sensor provides temperature and relative humidity information.

Features

  • Low power consumption: 350 µA during RH conversion
  • High accuracy: Humidity: ±4.5% RH and temperature: ±0.5°C
  • Grove unit socket: The product provides "plug and play" functionality and can be used flexibly for various applications.

Applications

  • Industrial HVAC/R
  • Thermostats/humidistats
  • Microenvironments/data centers
  • Weather stations
  • Automatic control
  • Test and inspection equipment

Specifications

Specification

Value

Operating voltage range

3.3 V ~ 5 V

Power consumption

350 µA during RH conversion

RH operating range

0 to 100%

Humidity measurement range

0% - 80% relative humidity

Temperature

0 ~ 70°C

Humidity accuracy

±4.5% relative humidity

Temperature accuracy

±0.5°C

Technical details

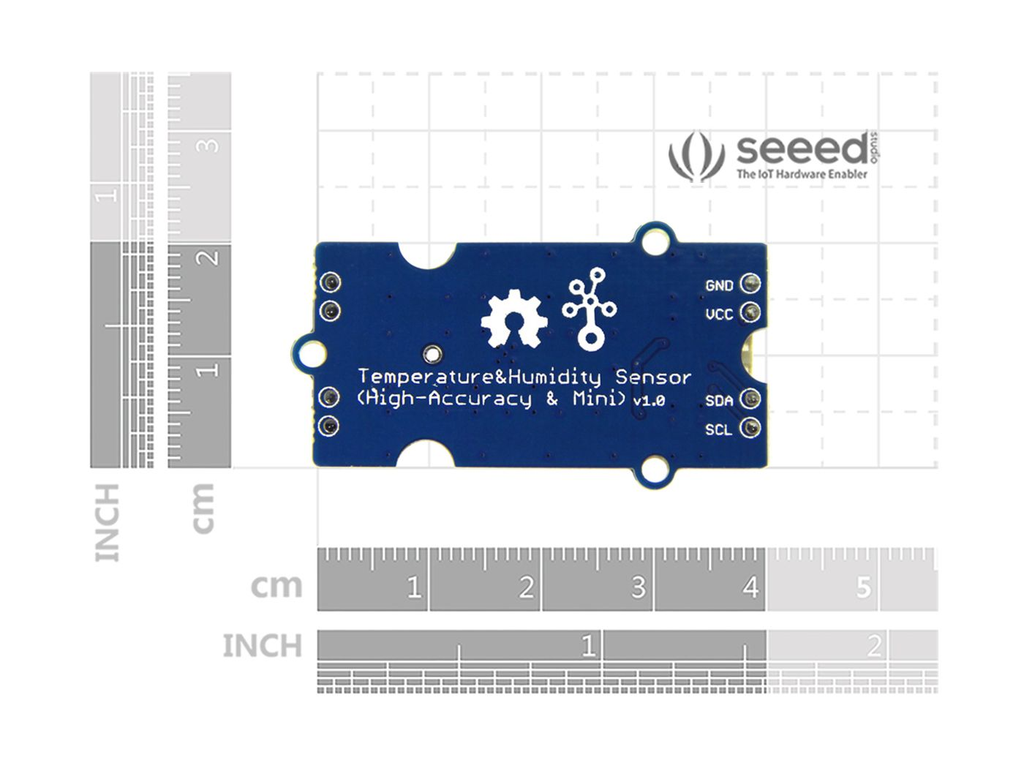

  • Package dimensions: 90 mm x 60 mm x 10 mm
  • Size: 40 mm x 20 mm
  • Weight: 9g

What is Grove?

Grove makes connecting and experimenting easier and simplifies the prototyping process. No jumpers or soldering are required. More than 300 Grove modules have been developed, covering a wide range of applications and meeting a variety of requirements. Not only the hardware but also the software is open source. For Grove users (especially beginners), instructional PDF documents and a wiki are provided.

We offer various Grove Shields to enable connections to the Grove system with various microcontrollers.

Bill of materials

  • 1x Grove - Temperature and Humidity Sensor v1.0
  • 1x Grove Cable

Technical data

Base 5 Angaben
Produktart
Temperature and humidity sensor
Hersteller
Seeedstudio
Länge (mm)
40
Breite (mm)
20
Gewicht (g)
9
Advanced 12 Angaben
min. Versorgungsspannung (V)
2,1
max. Versorgungsspannung (V)
3,6
Anschluss
Connectors
I2C-Adresse
0*40
Anzahl I2C-Schnittstellen
1
Steckertyp A
Grove
Anzahl Kontakte
5
Sensoren
Temperature; humidity
Messbereich Temperatur
0 to 70 °C
Messbereich Luftfeuchtigkeit
0 to 80% RH
Rastermaß (mm)
2
Farbe
Blue
