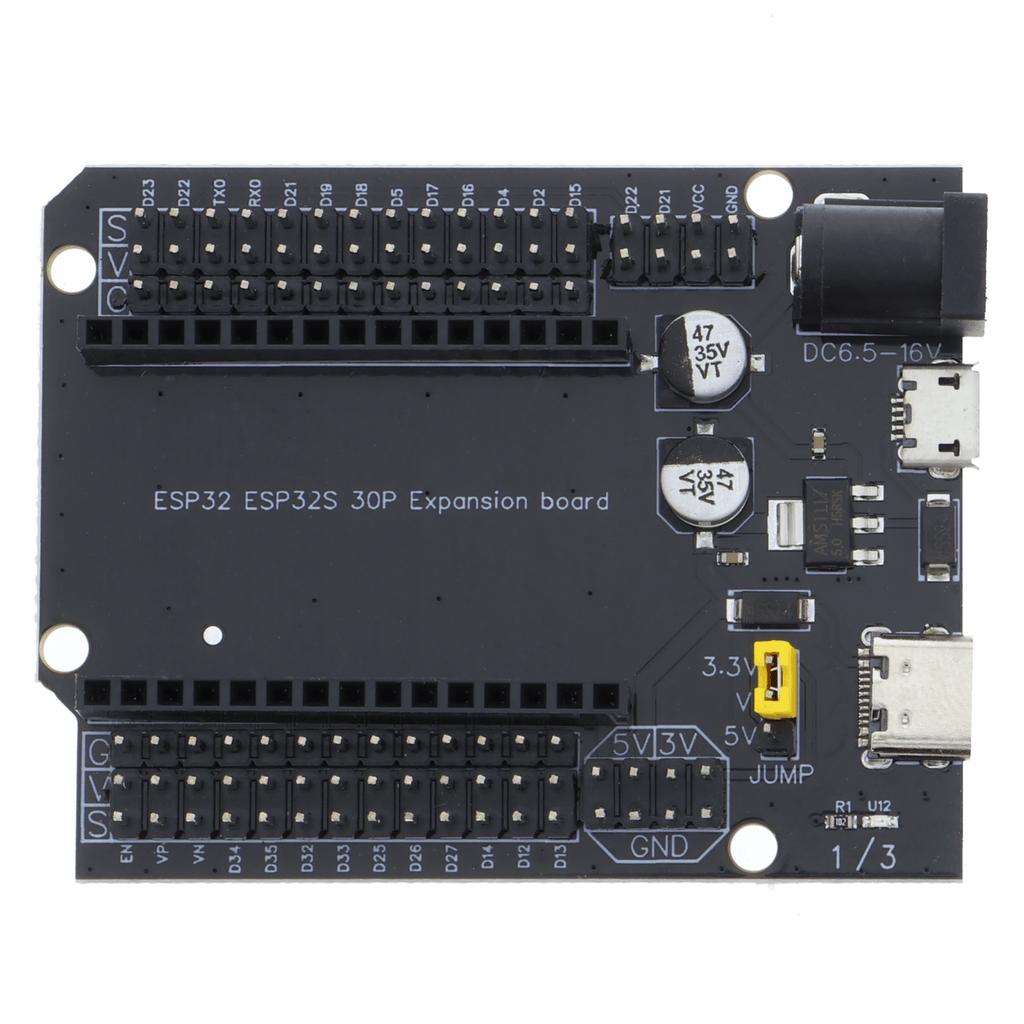

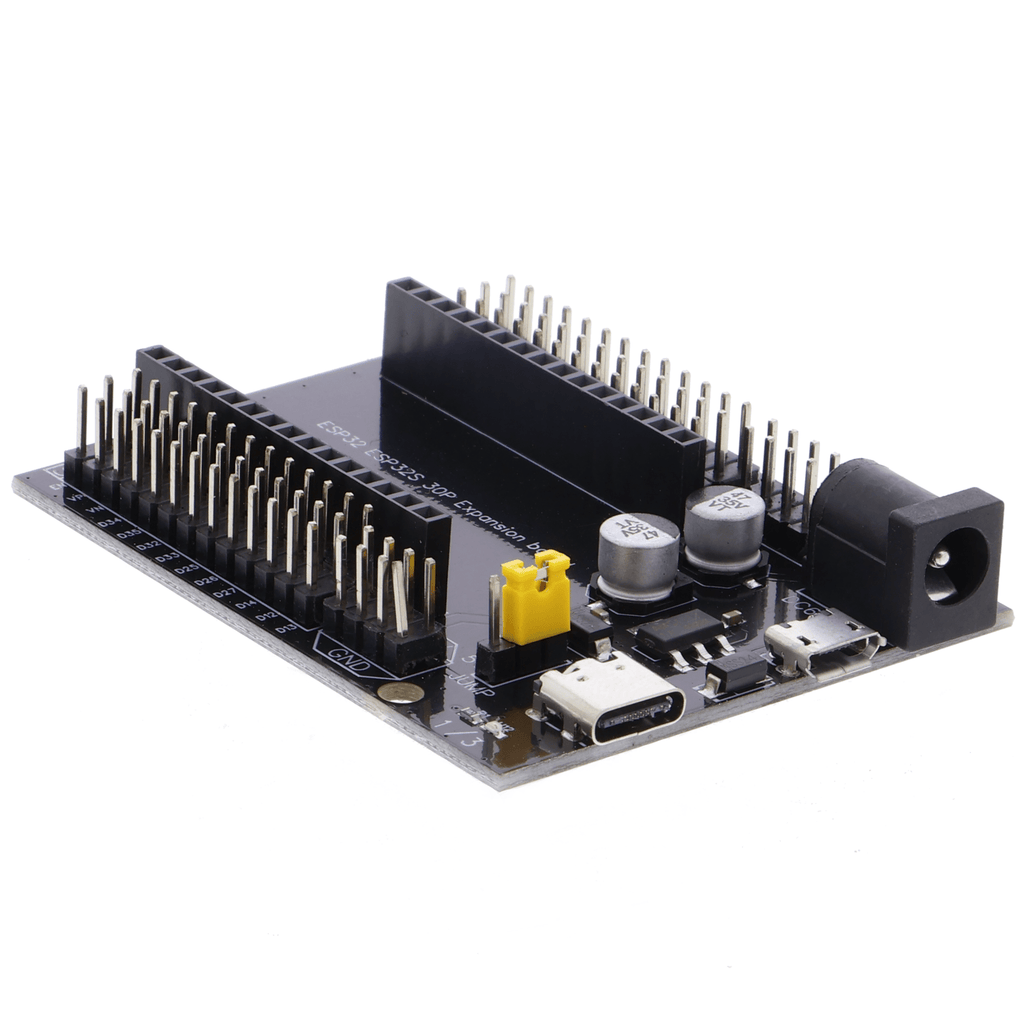

Expansion Board for ESP32 DevKit V1 - 30-Pin, with DC Jack

ESP32 expansion board for 30-pin DevKit V1

The ESP32 expansion board is an adapter board for 30-pin ESP32 DevKit V1 development boards. It is designed to conveniently expose the ESP32 connections and make project construction easier.

The board is suitable for prototypes, IoT projects, sensor setups, actuator control, and experimental setups with multiple connected modules. The exposed GPIO pins allow connections to other components to be set up more quickly and neatly.

The board features female headers for the ESP32 development board, additional male headers, a DC barrel jack connector, and USB ports. An ESP32 development board is not included.

Features and technical specifications:

• Product type: ESP32 expansion board
• Compatibility: 30-pin ESP32 DevKit V1 development boards
• Supply voltage: DC 6.5-16V via DC barrel jack, 5V via USB
• Output voltage: 5V or 3.3V
• Connectors: DC barrel jack, USB-C, Micro-USB, female headers, male headers
• Interfaces: exposed GPIO connections
• Buttons: Reset button, Boot button
• Material / design: PCB module
• Mounting holes: available
• Applications: ESP32 prototyping, IoT projects, sensor setups, test circuits, educational projects
• Length: 6.5cm
• Width: 5.1cm
• Height: 1cm
• Weight: 25g

Scope of delivery:

1x ESP32 expansion board for 30-pin DevKit V1
