Wemos D1 mini Pro sensor kit - 15 sensors, Wi-Fi, 16 MB flash

Product Overview

• Compact board with WiFi and 16 MB of flash memory for IoT projects
• Integrated antenna PCB, 11 digital and analog pins
• 15 sensors in the kit, including temperature, humidity, pressure, motion, distance, light, and more
• 5 V operating voltage via Micro-USB, with 3.3 V logic also possible
• Arduino-compatible programming with the Arduino IDE or MicroPython
• Sensors connected via plugs, with no soldering required

Product Description

This microcontroller board with an integrated WiFi module combines a Wemos D1 Mini processor with an extensive sensor set for networked measurement tasks. The kit contains 15 different modules for measuring temperature, air humidity, air pressure, motion, distances, light intensity, soil moisture, gas concentration, and other parameters.

The microcontroller communicates via WiFi with local networks or cloud services and stores data in its 16 MB memory. The sensors connect to the board's pin headers via plugs, so no soldering is required. A 5 V power supply is required for operation and is provided via the Micro-USB port.

Typical applications include automated weather stations with local data collection, smart room monitoring for checking temperature and air quality, or prototypes for IoT sensor networks that centrally record multiple measurement points via WiFi. The limited storage capacity is better suited to continuous measurement series with data transmission to the network than to long-term local buffering.

A USB power supply is required. The Arduino IDE or a MicroPython environment must be installed on the development computer. Assembling the sensors requires no special tools, but basic knowledge of plug connections and the Arduino IDE or an equivalent development environment is necessary.

Safety Information

This product is not intended for installation in the household electrical circuit and is suitable exclusively for building prototypes and for testing and development purposes. Before commissioning, consult a qualified electrician if connecting it to the household electrical installation or if you are unsure about safe power supply.

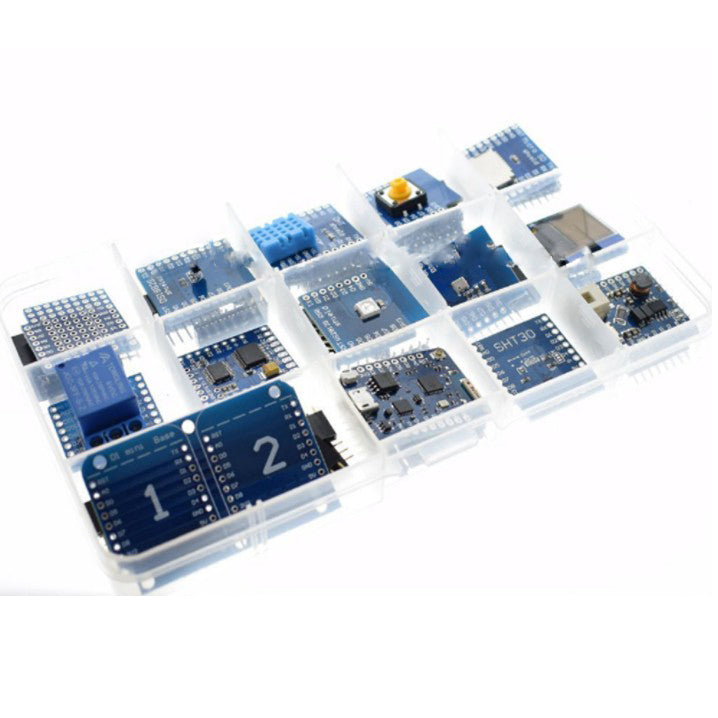

Scope of Delivery

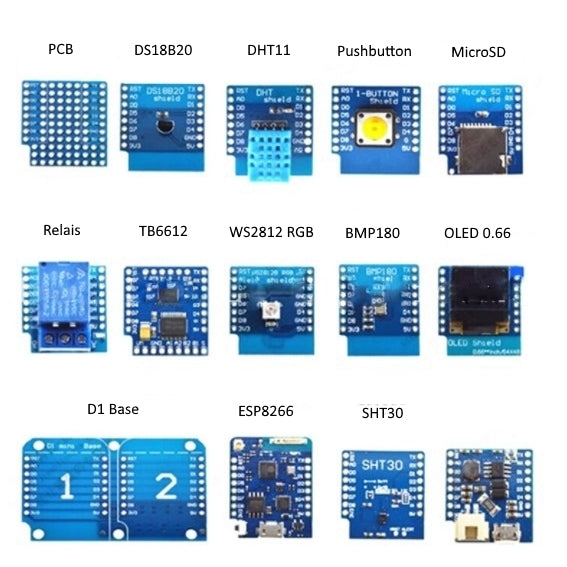

• 1x perforated prototyping board
• 1x DS18B20 - temperature sensor
• 1x DHT11 - temperature and humidity sensor
• 1x Push Button - push-button switch
• 1x MicroSD - card reader
• 1x relay
• 1x RB6612 - motor driver
• 1x WS2812 RGB LED
• 1x BMP180 - air pressure sensor
• 1x OLED 0.66 - display
• 1x ESP8266 - microcontroller
• 1x SHT30 - digital humidity and temperature sensor
• 1x battery shield
• 1x dual breakout board
• 1x plastic sorting case
