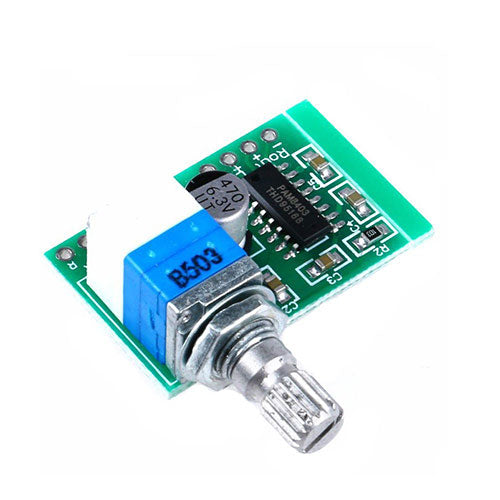

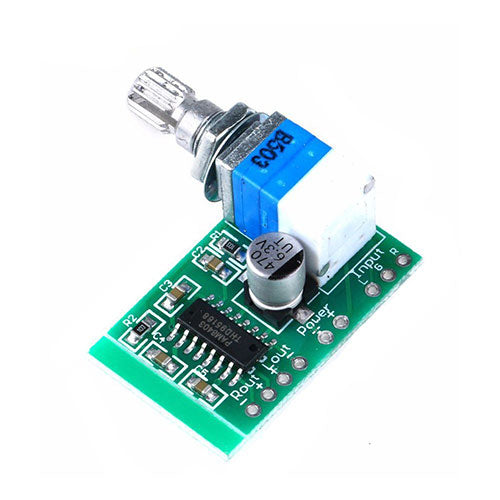

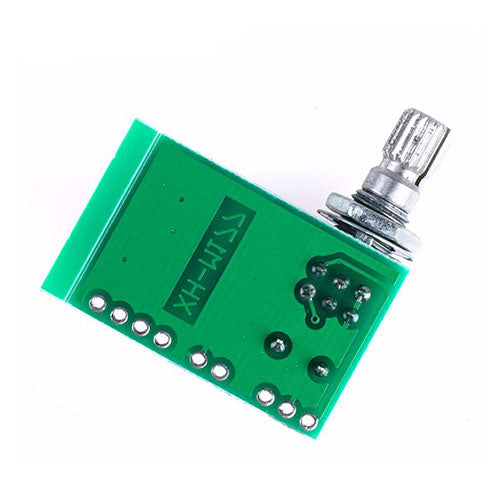

PAM8403 Audio Amplifier Module - 2x 3 W Stereo, 2,5-5,5 V, Potentiometer

Product overview

• Digital audio amplifier module for low-power applications
• Amplification of stereo audio signals up to 5 W per channel
• Operating voltage of 2.5 to 5.5 V, can be powered directly via USB or battery
• Connection via stereo RCA, 3.5 mm jack, or logic level
• Integrated potentiometer for volume control without external controls
• Compact format with SMD components, requiring only a few external components

Product description

The PAM8403 audio amplifier module with potentiometer transmits amplified stereo audio signals from microcontrollers or mobile devices to speakers. The integrated amplifier circuit operates according to the Class-D principle and delivers the input signal at up to 5 W per channel at full power, while keeping power consumption low.

It can be powered by sources between 2.5 and 5.5 volts, making it suitable for direct connection to USB ports as well as 4-cell AA battery packs or LiPo batteries. The integrated potentiometer enables manual volume control at any time. The input impedance is designed for low-impedance signals, allowing clean audio signals at low levels to be transmitted over cable lengths of several meters.

Applications include portable radio systems with audio playback from microcontrollers, battery-powered toys with sound output, voice modules for robotics projects, and Bluetooth amplifiers using single-board computers. It can also be used as an amplification stage for alarm sirens in automated models or for real-time audio feedback during sensor tests.

A power source within the specified voltage range is required for operation. The output power depends on the load, and typical 4-ohm or 8-ohm speakers are suitable. The module is not intended for expanding household power grids and cannot process continuous high-level audio sources without going into saturation.

Safety information

The module operates with low DC voltage and is intended exclusively for building prototypes and for testing and development purposes. For applications involving increased audio power (over 5 W) or connection to power grids, consult a qualified electrician before commissioning.

Scope of delivery

• 1x PAM8403 audio amplifier module with potentiometer, 2x 3W stereo
