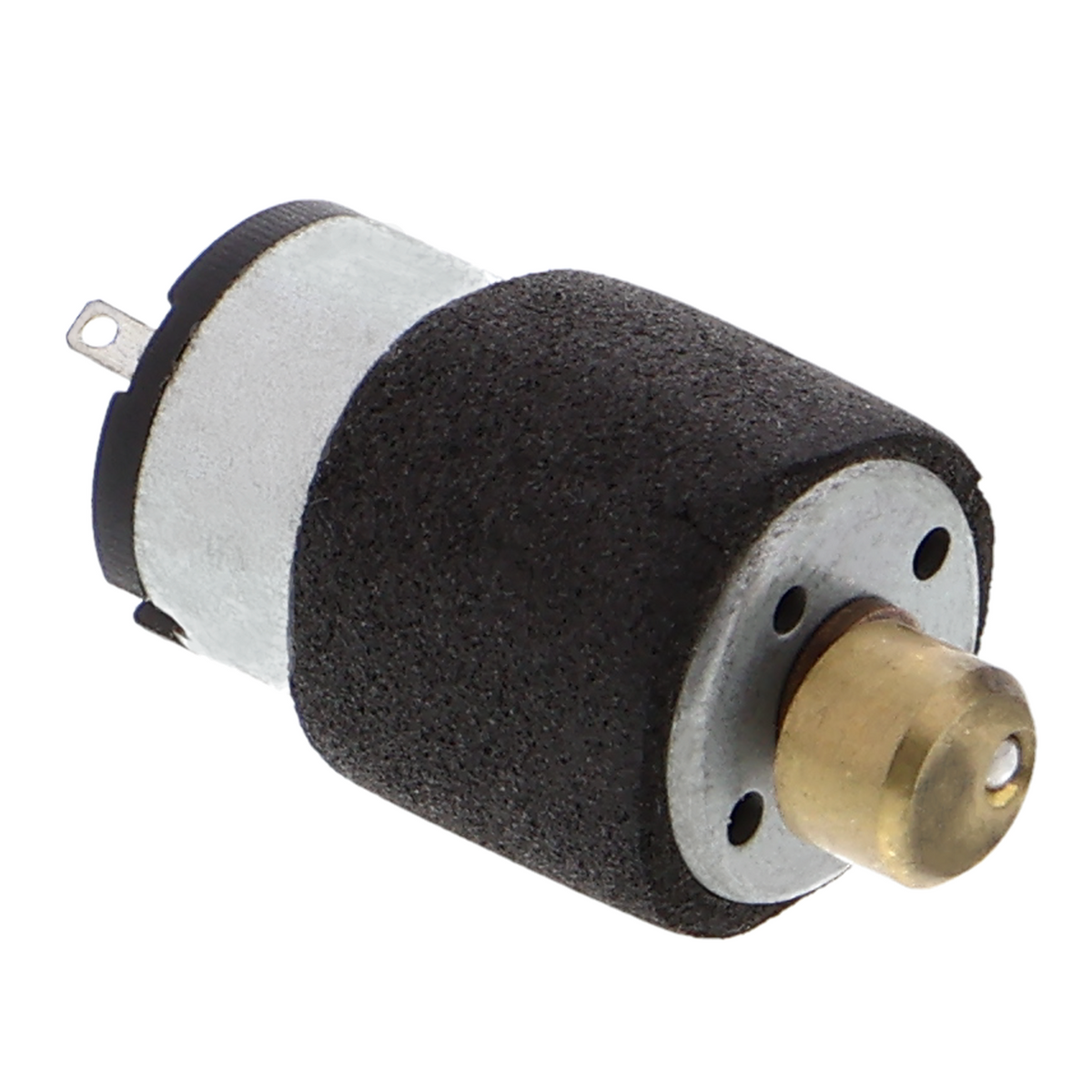

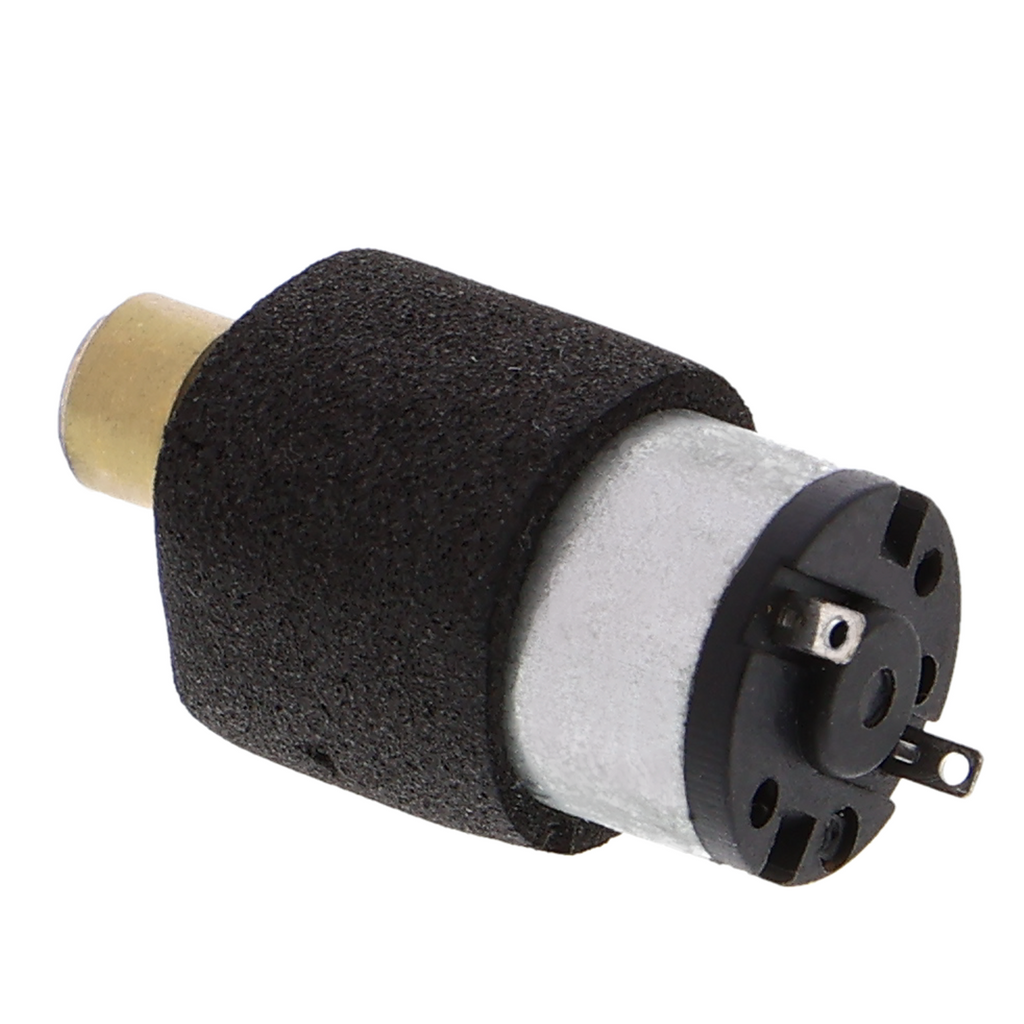

20 mm vibration motor - mini DC motor, 3-6 V
This goes with it
Pay in 30 days
Pay in 30 days
Description
Product overview
- Mini DC motor with an eccentric brass wheel for generating vibrations
- Operating voltage: 3 to 6 V DC
- Connection via two solder tabs
- Foam casing for reducing noise and vibration
- Dimensions: 20 mm length and 12 mm diameter (without foam)
- Weight: 9 g
- Use in small devices, toys, and model making
Product description
The vibration motor is a DC motor with an offset brass wheel mounted on its shaft. This imbalance generates a vibration during rotation, which is transferred to the entire motor housing and its mounting.
The motor is connected via two solder tabs at the rear end of the housing and operated with a DC voltage between 3 and 6 V. Since it draws more current than a microcontroller output can provide, control requires a transistor or driver stage as an intermediate interface. The direction of rotation depends on the polarity, but this does not affect the vibration.
The foam casing dampens operating noise and reduces the transmission of vibrations to unwanted areas. With a length of 20 mm, a diameter of 12 mm (without foam), and a weight of just 9 g, the motor fits into tightly dimensioned housings. This makes it suitable for toys, model making, portable small devices, or massage devices - anywhere tactile feedback is required.
An external power source is required for the power supply, as is a driver circuit for control from the microcontroller.
Safety information
The motor is not intended for installation in household electrical wiring. The module is intended exclusively for building prototypes and for testing and development purposes. Work on or near electrical installations must be carried out by a qualified electrician; if you are unsure, consult a qualified electrician before commissioning.
Scope of delivery
- 1x Micro Vibration Motor DC 3V-6V - 20mm
