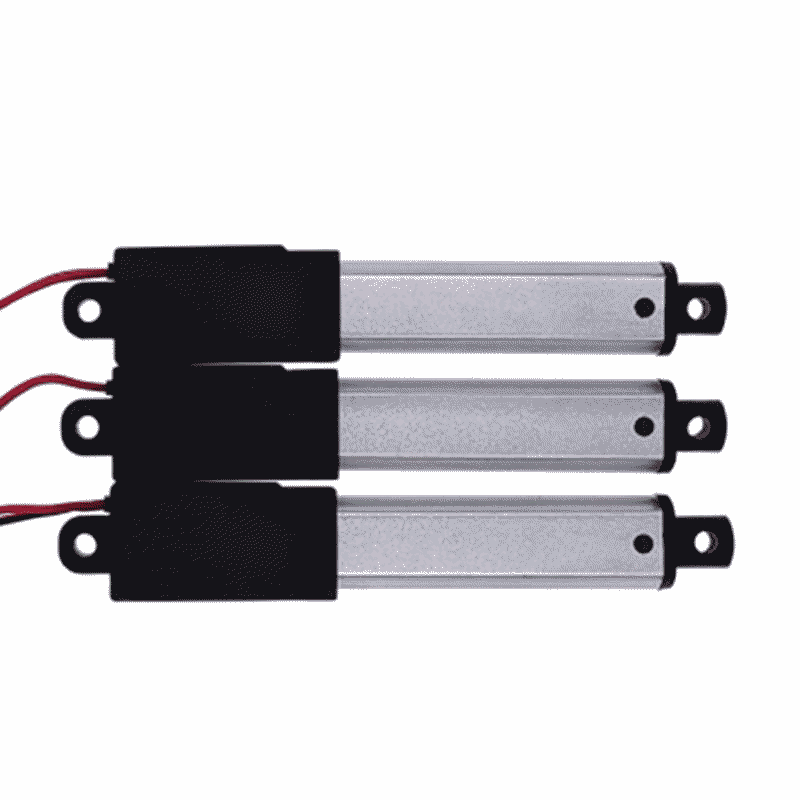

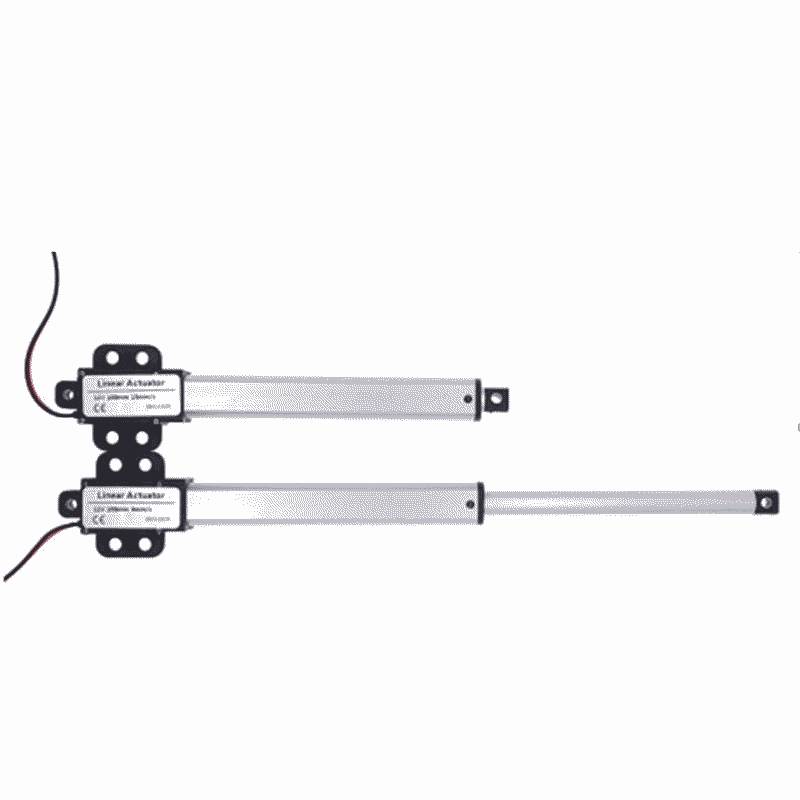

12 V Linear Actuator - 150 mm Stroke, IP54, 20-120 N
This goes with it
Pay in 30 days
Pay in 30 days
Description
Product overview
- Electric linear actuator, 12 V DC
- Stroke ranges and force vary depending on the variant
- DC motor with threaded drive
- IP54 protection against dust and splashing water
- Selectable fast-stroke mode for increased speed
- Integrated limit switches
Product description
The linear actuator moves loads in a straight line via an electrically driven lead screw. Its design follows the operating principle of a hydraulic cylinder, but it uses 12 V DC instead of hydraulic fluid. A three-phase brake secures the end position without a power supply.
When current flows, a DC motor rotates the threaded nut while the rod can extend and retract linearly. Limit switches automatically interrupt the power supply when the maximum stroke is reached. Depending on the version, the stroke length and available force vary; choosing the right variant is particularly important for heavy loads.
The actuator is suitable for lifting tables, adjustable chairs and beds, storage management systems with access to multiple levels, or workshop carts with height-adjustable work surfaces. Such drives are also used in the manufacture of prostheses or medical devices.
Power consumption depends on the load and stroke speed. In fast-stroke mode, the available force is reduced. Operation requires a 12 V power source with sufficient current capacity and a control relay or contactor to switch the motor and direction. The IP54 protection rating has limitations in cases of direct exposure to water or in dusty environments.
Safety information
This linear actuator is intended exclusively for use in laboratory setups, prototypes, and testing and development projects. The component is not intended for operation in stationary systems or continuous production use and is not suitable for integration into household electrical installations. When working on the power supply or if you are unsure about the correct control method, consult a qualified electrician.
Scope of delivery
- 1x linear actuator / lift rod, depending on the variant
