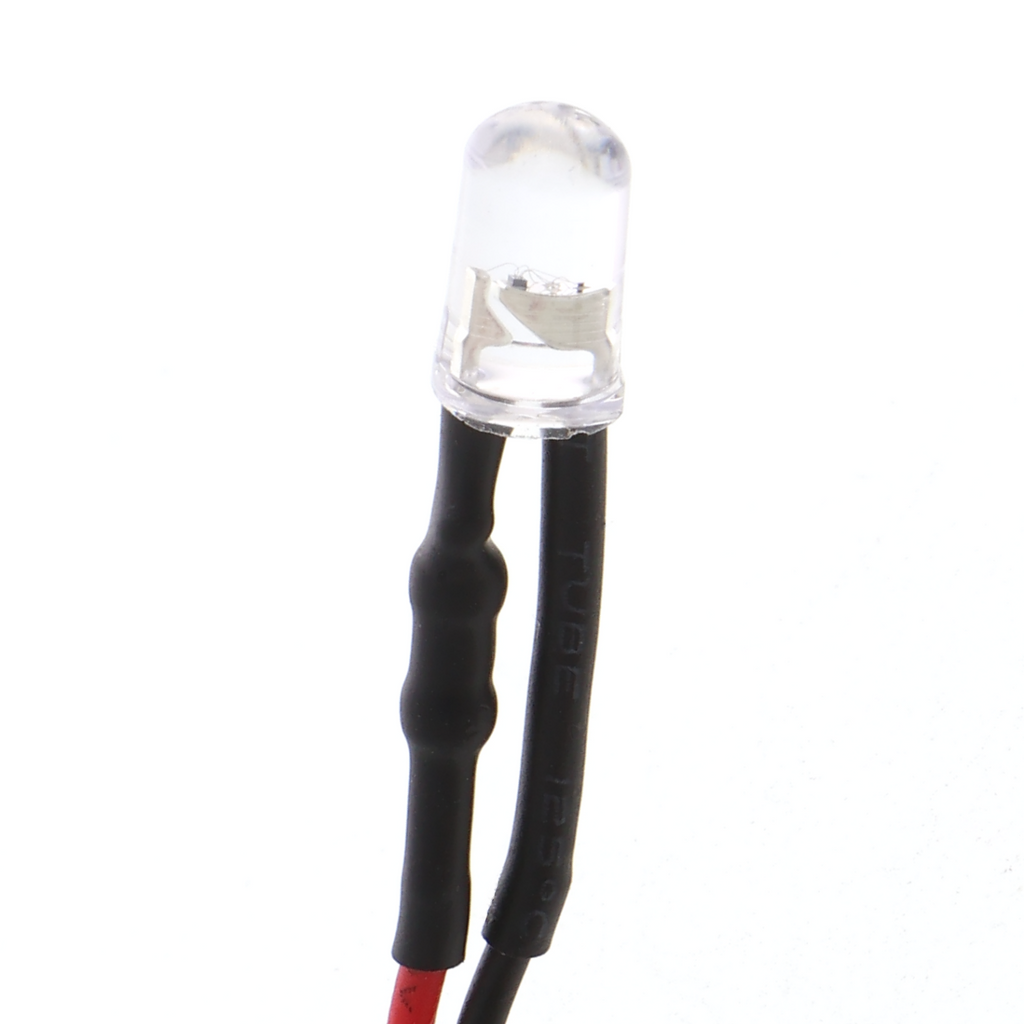

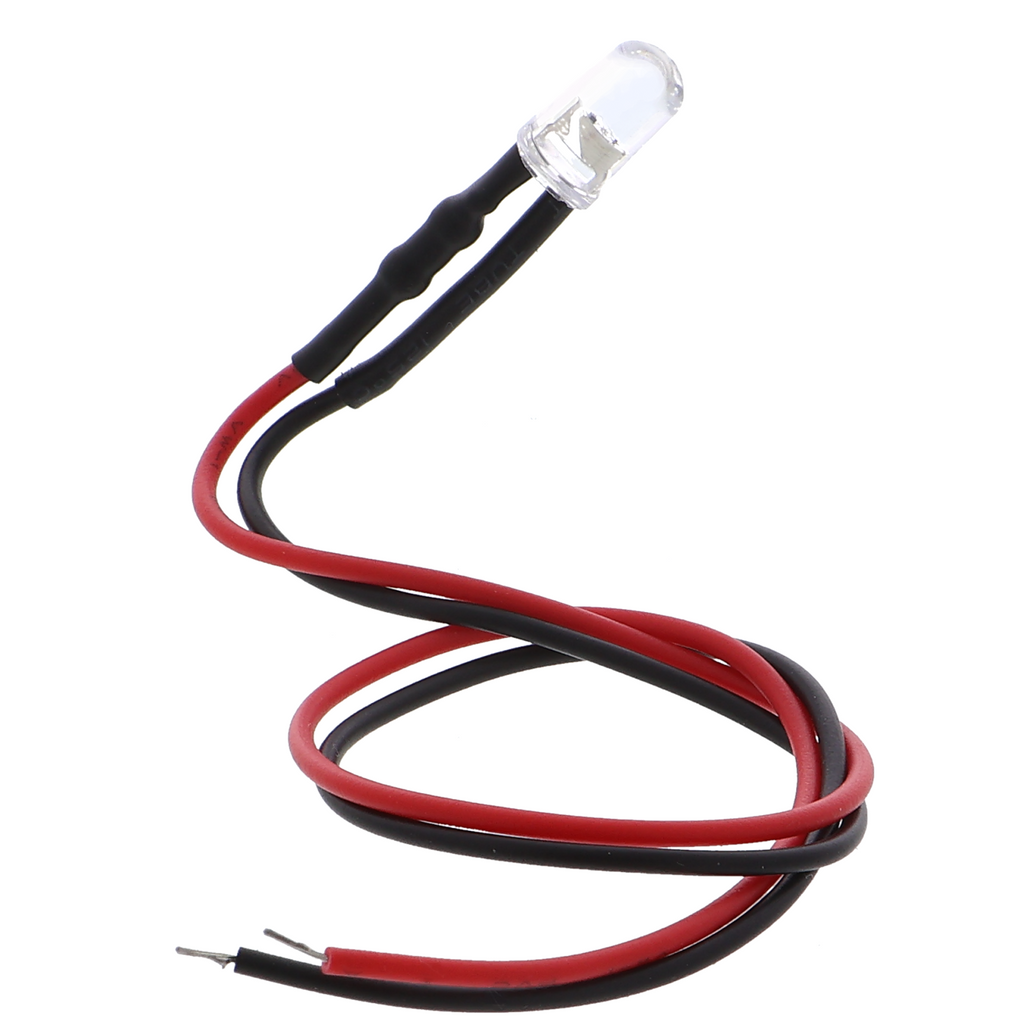

5 mm LED with series resistor - 12 V, 20 cm cable, various colors
5 mm LED with series resistor - 12 V, 20 cm cable, various colors
This goes with it
Pay in 30 days
Pay in 30 days
Description
Product overview
- LED with integrated series resistor and 20 cm connection cable
- Operating voltage 12 V
- Available in several colors
- Ready for immediate use without additional resistors
Product description
This LED with a series resistor is suitable for direct connection to 12 V power sources. The integrated resistor automatically limits the current, eliminating the need for additional protective measures. The 20 cm cable allows flexible placement without additional wiring.
The LED is simply connected to the 12 V power supply, observing the polarity. No calibration or initialization is required. Different colors enable visual identification in various application scenarios.
Typical applications include status indication in automation projects, signaling in model railway or robotics applications, and indication in control system prototypes. The LED can also be easily installed in housings or panels using the preconfigured cable.
A stabilized 12 V power supply is required. The connection cable should not exceed three meters in length to prevent voltage drops. For longer distances, an additional power supply is required closer to the LED.
Safety information
Ensure the correct polarity when connecting, as the LED and resistor function in only one direction. This product is intended exclusively for building prototypes and for testing and development purposes and is not suitable for installation in the household electrical circuit.
Scope of delivery
- 1x 5mm LED with series resistor and 20cm cable, 12V - various colors
