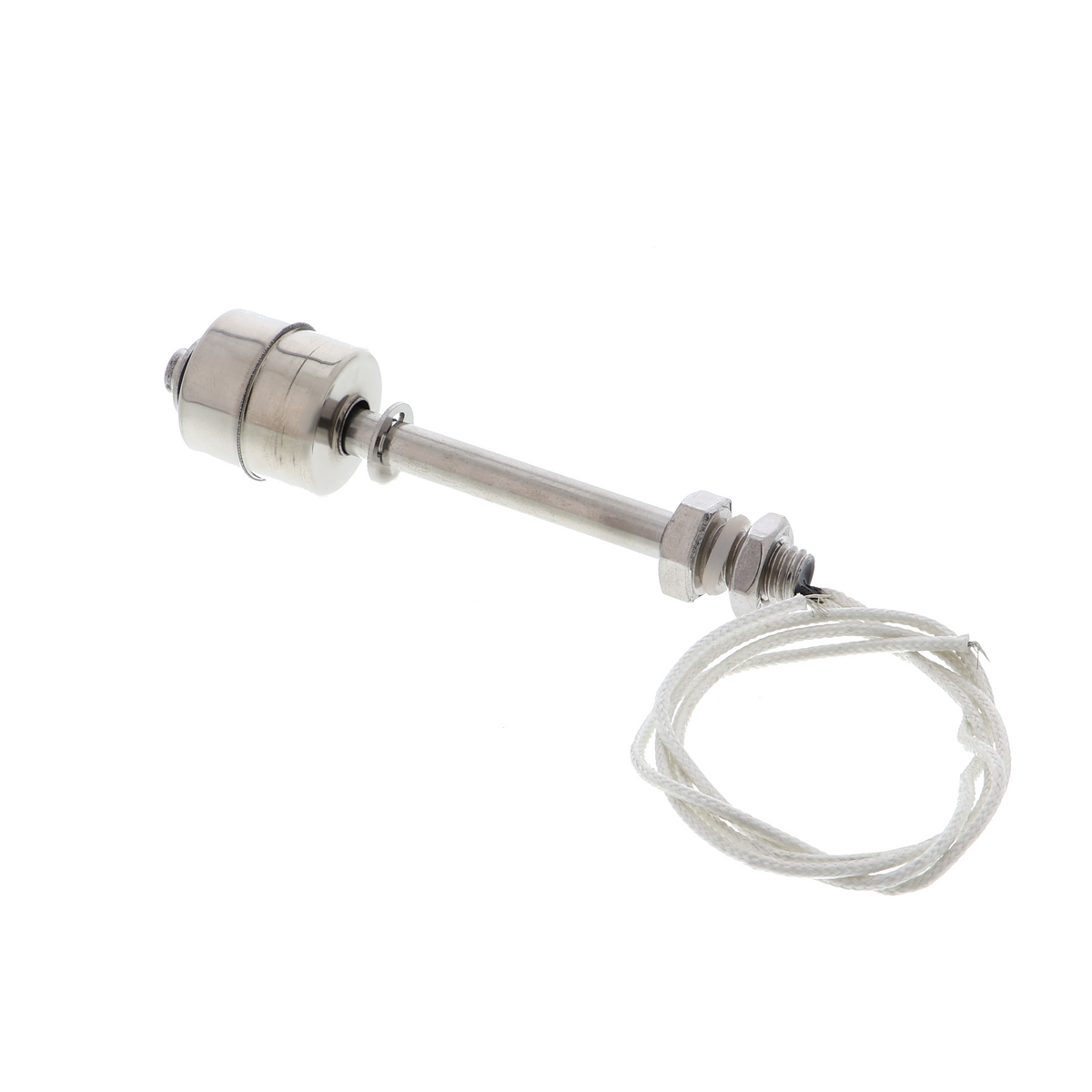

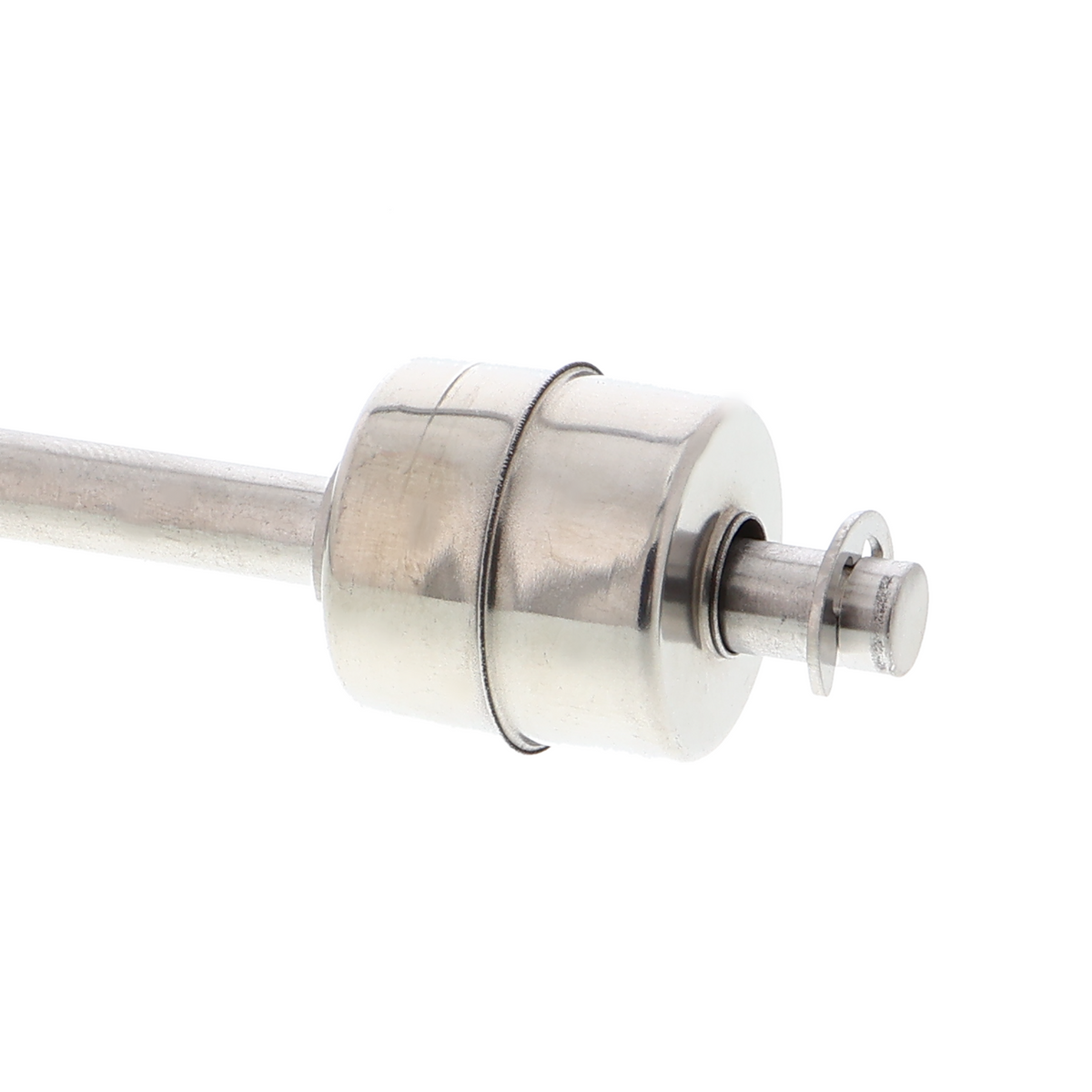

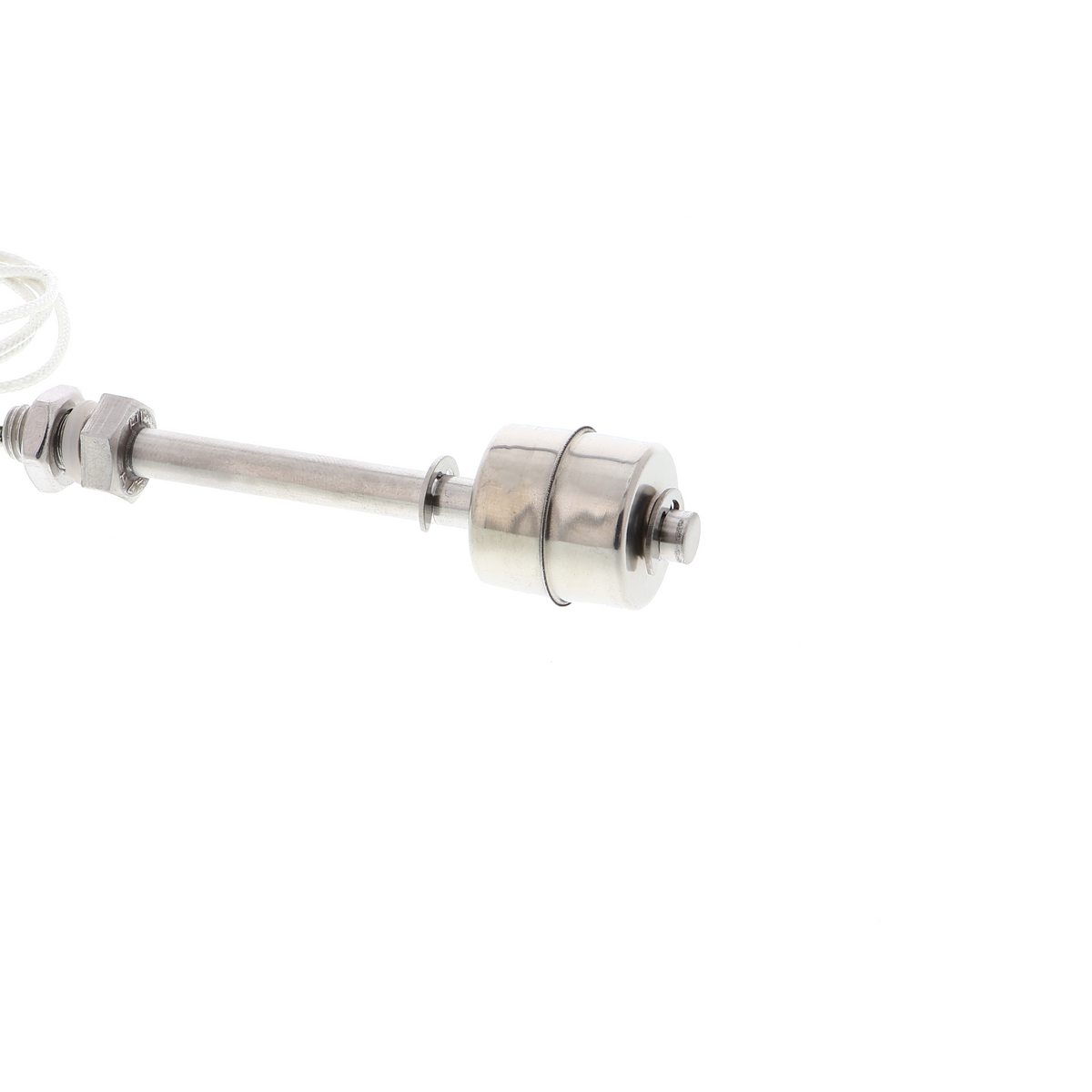

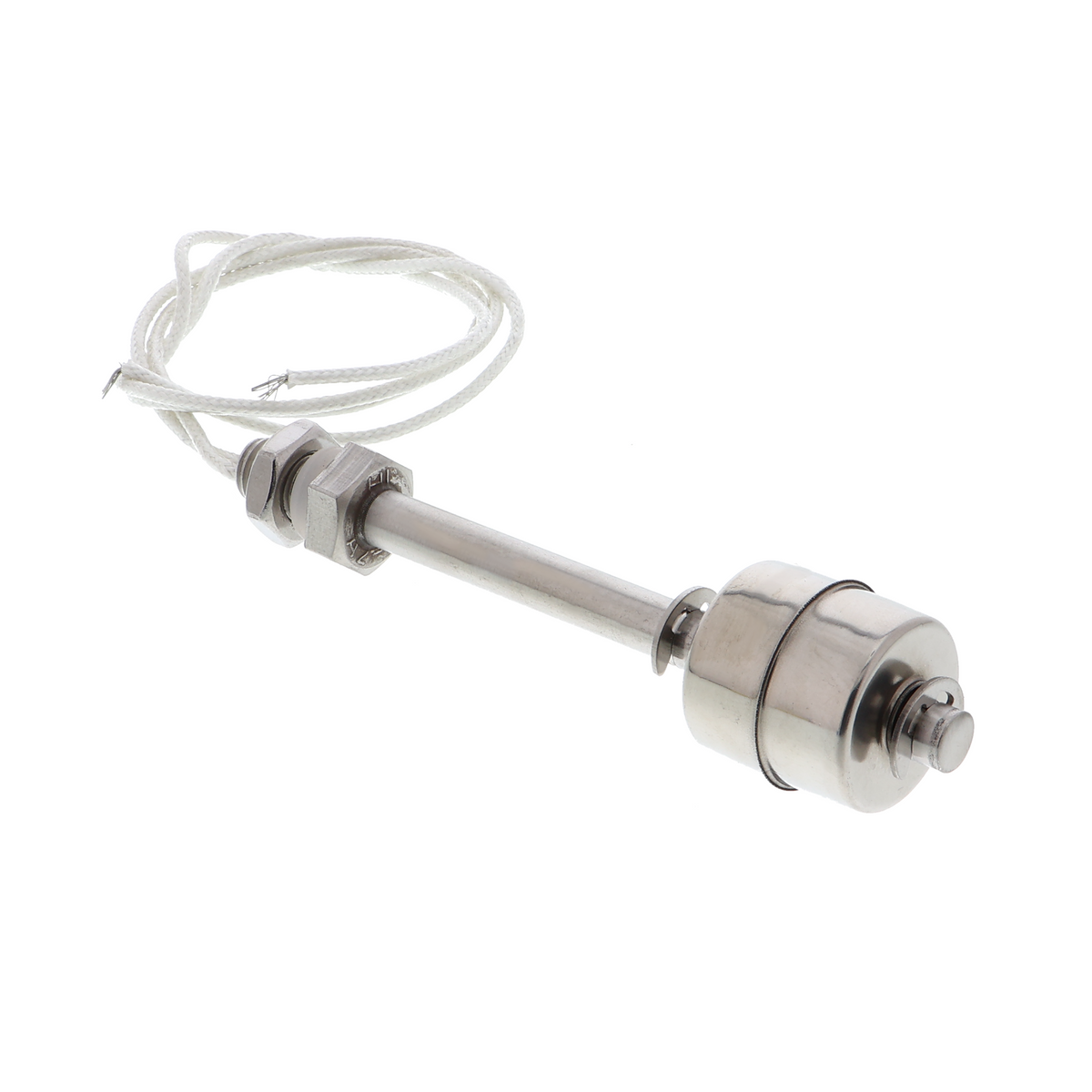

Stainless Steel Level Sensor - 0-1 m Measuring Range, Analog
This goes with it
Pay in 30 days
Pay in 30 days
Description
Product overview
- Flow-independent stainless steel level sensor for liquids
- Measuring range from 0 to 1 m liquid level
- Analog voltage-based output signal
- 4-20-mA signal output available for remote transmission
- High-quality stainless steel immersion tube for resistance to chemicals and seawater
- Pressure equalization via integrated capillary
Product description
This level sensor continuously measures the liquid level in containers and tanks. The measuring principle is based on the hydrostatic pressure of the liquid surrounding the sensor's immersion tube. The resulting voltage change is converted into a proportional output signal, allowing the current liquid level to be digitally recorded.
With a measuring range from 0 to 1 m, the sensor is suitable for tanks and containers with low to medium filling depths. If you need to monitor greater liquid levels, a different device is required. The stainless steel design enables use in corrosive environments, such as saltwater applications or containers with aggressive chemicals. An internal capillary provides the necessary pressure equalization, ensuring that changes in air pressure do not distort the measurement.
The sensor can be used in supply and drainage systems for aquariums or garden ponds, in stationary tanks for fuel or heating oil, and in smaller water tanks on boats and motorhomes. It is also suitable for filling and dosing systems in laboratory applications.
The connection type varies depending on the output signal version. When choosing the analog voltage output, an analog-to-digital converter is required for digitization. Those using the 4-20-mA version need a suitable signal converter or a compatible receiver device. The sensor requires a separate power supply in accordance with the manufacturer's specifications.
Safety information
The sensor is not intended for installation in household mains circuits and may be used exclusively for building prototypes and for testing and development purposes. Work on or near electrical installations is reserved for qualified electricians. If you are unsure about the power supply or signal processing, consult a qualified electrician before commissioning.
Scope of delivery
- 1x liquid level sensor, stainless steel, 0 - 110V
