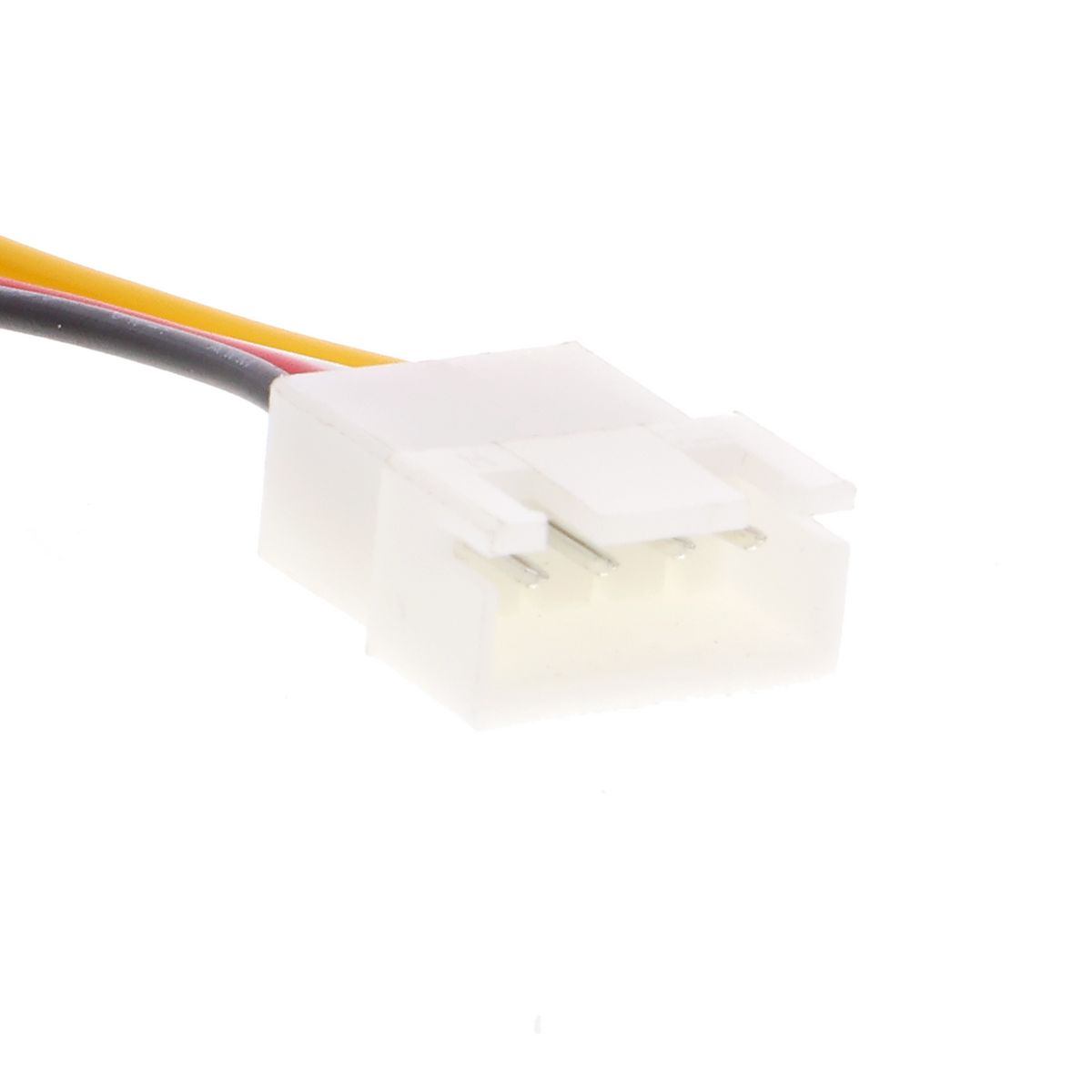

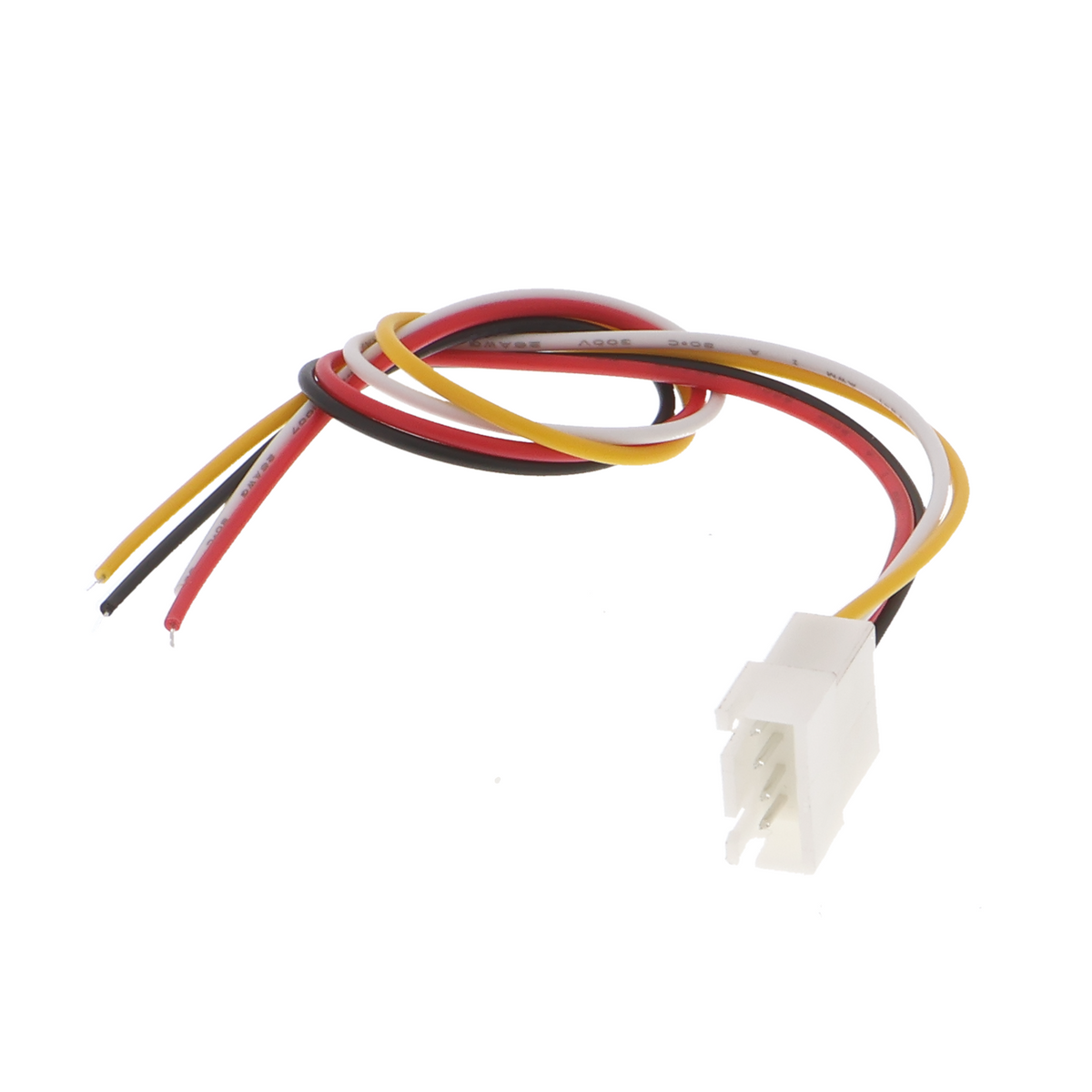

JST XH connector cable 2.54 mm - 4-pin, female, 20 cm
This goes with it
Pay in 30 days
Pay in 30 days
Description
Product Overview
- JST-XH2 connector cable, 4-pin, female
- Cable length: 20 cm
- Contacts for 2.5 mm pitch
- Conductor cross-section: 0.08 to 0.2 mm²
- Suitable for connecting sensors and actuators with compatible connectors
Product Description
This connecting cable with a female JST-XH2 connector connects sensor and actuator modules with a 4-pin connection. The 20 cm cable fits standard male counterparts with a 2.5 mm pitch and accommodates conductors from 0.08 to 0.2 mm².
In prototype setups, the connector eliminates the need to solder individual connections and enables quick reconfiguration. The standardized connector design according to the JST standard ensures reliable contact without the risk of confusion, provided the target system's pin assignment is known.
The cable is used to connect battery management modules to charging electronics, transmit signals between controller boards and multi-channel sensor arrays, or connect multi-channel LED drivers to RGB modules. It is also commonly used to connect LiPo batteries to balancer boards, where the 4-pin version monitors individual cell voltages.
A compatible male JST-XH2 connector is required on the target side. Different connectors are required for other pin counts or pitches.
Safety Information
This connecting cable is intended exclusively for prototyping, testing, and development purposes. When working with batteries or rechargeable batteries, correct polarity must be observed to prevent short circuits and damage.
Scope of Delivery
- 1* JST XH 2.54 mm connector cable - 4P – Female - 20 cm
