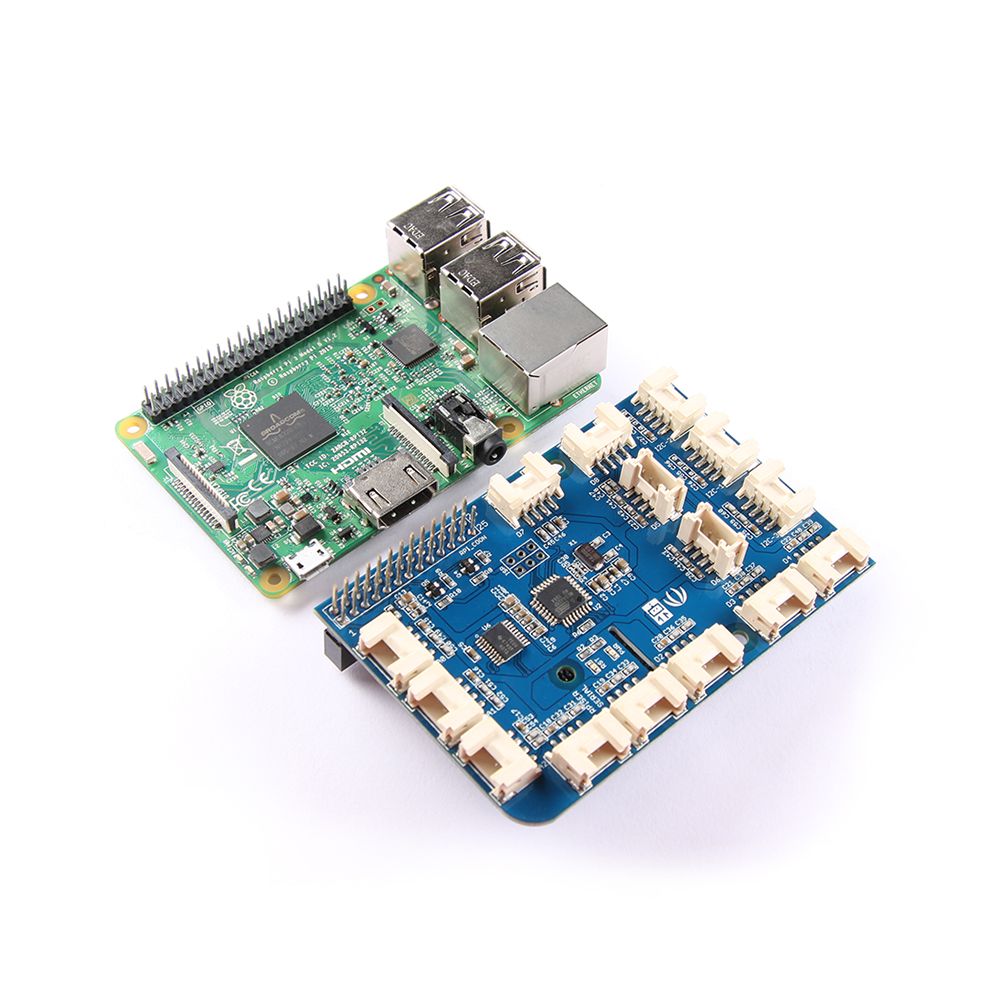

GrovePi+ – Raspberry Pi expansion board
GrovePi+ is an expansion board with 15 4-pin Grove interfaces that brings Grove sensors to the Raspberry Pi. It is the latest version, compatible with Raspberry Pi Model B/B+/A+/2/3/4.
This board enables the user-friendly and modular Grove system for the Raspberry Pi, eliminating the need for soldering or breadboards: connect your Grove sensors and start programming immediately. Grove is a user-friendly collection of hundreds of affordable plug-and-play modules that sense and control the physical world. Connecting Grove sensors to the Raspberry Pi brings your Pi into the physical world. With hundreds of sensors from the Grove families, the possibilities for interaction are endless.

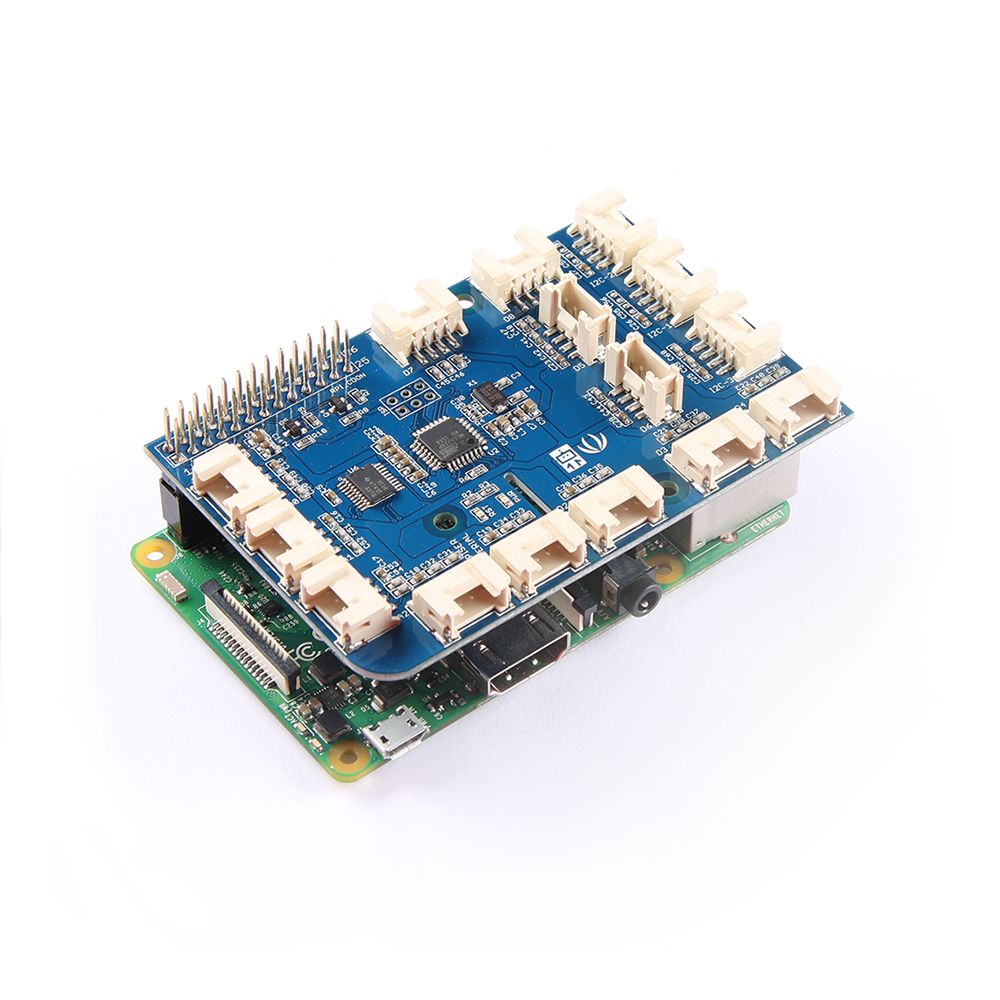

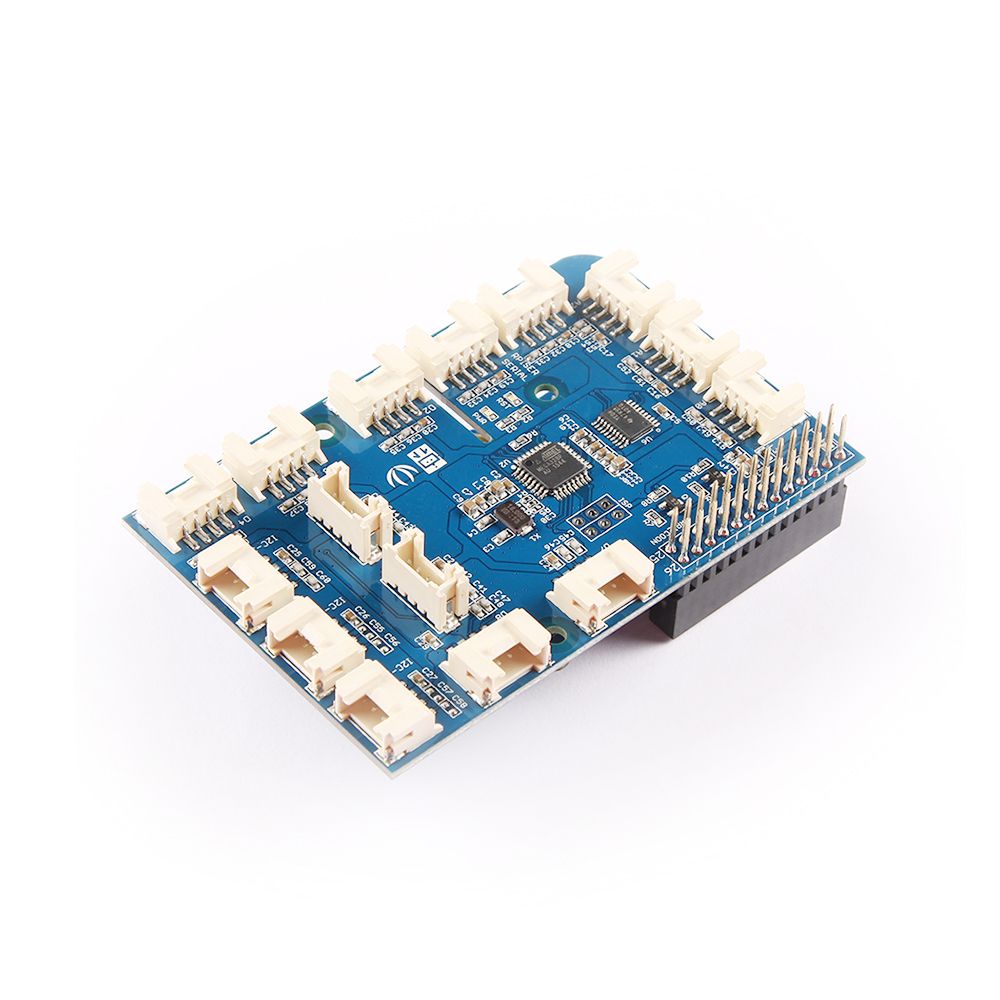

There are three mounting holes that fit all versions of the Raspberry Pi perfectly.
Note: Raspberry Pi board not included.
Features
- Compatible with many development boards: Including Raspberry Pi Model B/B+/A+/2/3/4
- Faster SPI and UART connections with higher reliability
- Easier installation of camera cables and LCD cables
- Simplified firmware update procedures
Grove expansion for Raspberry Pi: Grove Base Hat vs. GrovePi+
| Parameters | Grove Base Hat for Raspberry Pi | GrovePi+ |
|---|---|---|
| Operating voltage | 3.3 V | 5V |
| MCU | STM32F030F4P6 | ATMEGA328P |
| Grove ports | 6 Digital (3.3 V) 4 Analog (3.3 V) 3 I2C (3.3 V) 1 PWM (3.3 V) 1 RPISER (UART) connection to Raspberry Pi (3.3 V) 1 SWD | 7 Digital (5 V) 3 Analog (5 V) 3 I2C (5 V) 1 SERIAL: Connection to ATMEGA328P D0/1 (5 V) 1 RPISER: Connection to Raspberry Pi (3.3 V) 1 ISP |
| Grove-Digital | Direct connection to the Raspberry Pi | Connect to the digital pins of the ATMEGA328P and transfer to the I2C signal, then via the level shifter to the Raspberry Pi |
| Grove-Analog | Connect to STM32F030F4P6 (12-bit ADC), then transfer to the I2C signal and route it directly to the Raspberry Pi | Connect to the analog pins of the ATMEGA328P (10-bit ADC), then transfer to the I2C signal and then via the level shifter to the Raspberry Pi |
| Grove-I2C | Direct connection to the Raspberry Pi | Connect to the Raspberry Pi via the level shifter |
| Grove-PWM | Direct connection to the Raspberry Pi | N / A |
| RPISER | Direct connection to the Raspberry Pi | Direct connection to the Raspberry Pi |
| SERIAL | N / A | Connect to the digital pins D0/D1 of the ATMEGA328P and transfer to the I2C signal, then via the level shifter to the Raspberry Pi |
| SWD | Burn the firmware to STM32F030F4P6 | N / A |
| ISP | N / A | Burn firmware to ATMEGA328P |
| Raspberry Pi connection pins | 40 | 26 |

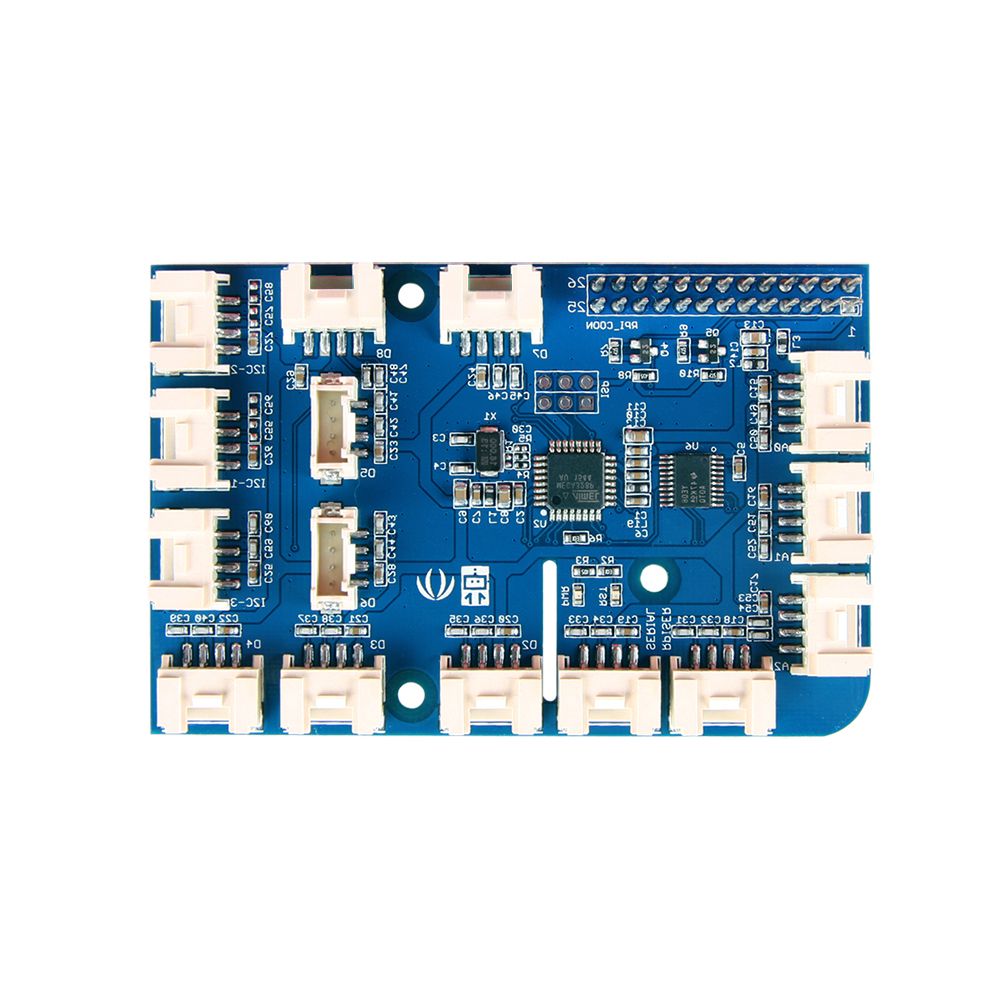

Specifications

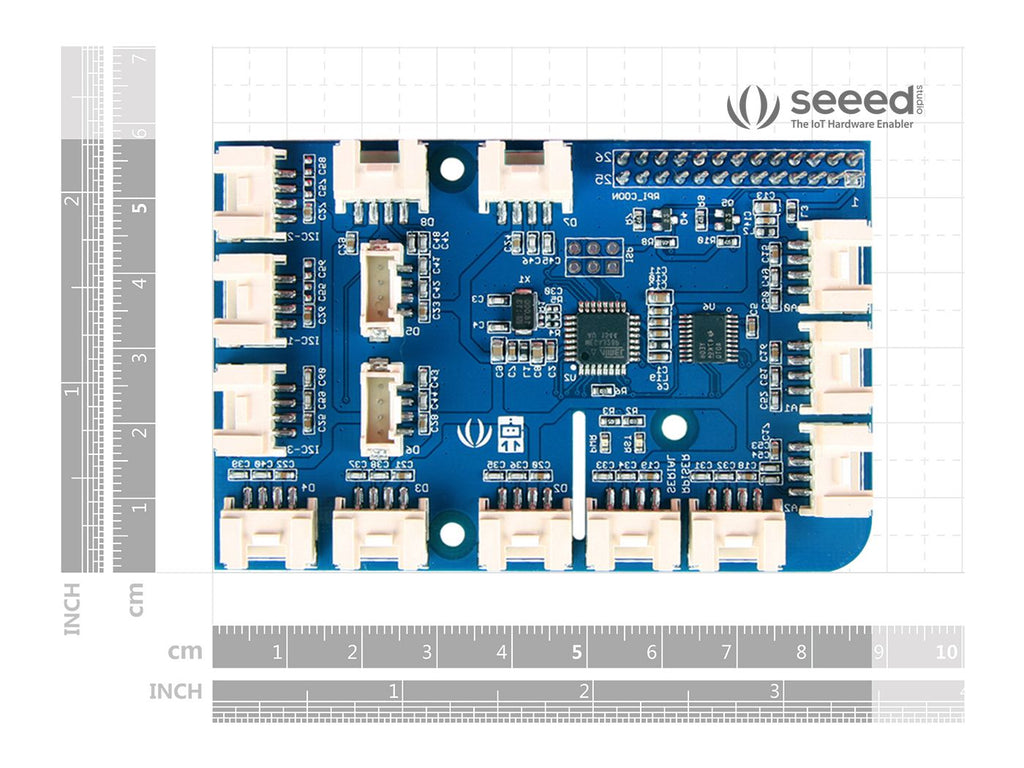

- Dimensions: 88mm x 58mm x 23mm
- Weight: 51g
- Grove header Vcc output voltage: 5Vdc
- Digital connections: 7
- Analog ports: 3
- I2C ports: 3
- Serial interface for connection to GrovePi: 1
- Serial interface for connection to Raspberry Pi: 1
Bill of materials
1x GrovePi+ - Raspberry Pi expansion board
Raspberry Pi and Grove cable not included!
