Description
Product overview
- 3D-printed frame for the DOBOT Magician robotic arm and DOBOT vacuum pump
- Snap-fit fixation on the Funduino Workspace pegboard, tool-free installation
- Repeatable positioning after disassembly and reassembly
- X/Y-axis markings to visualize the arm movements
- Flexible placement at various positions on the pegboard
Product description

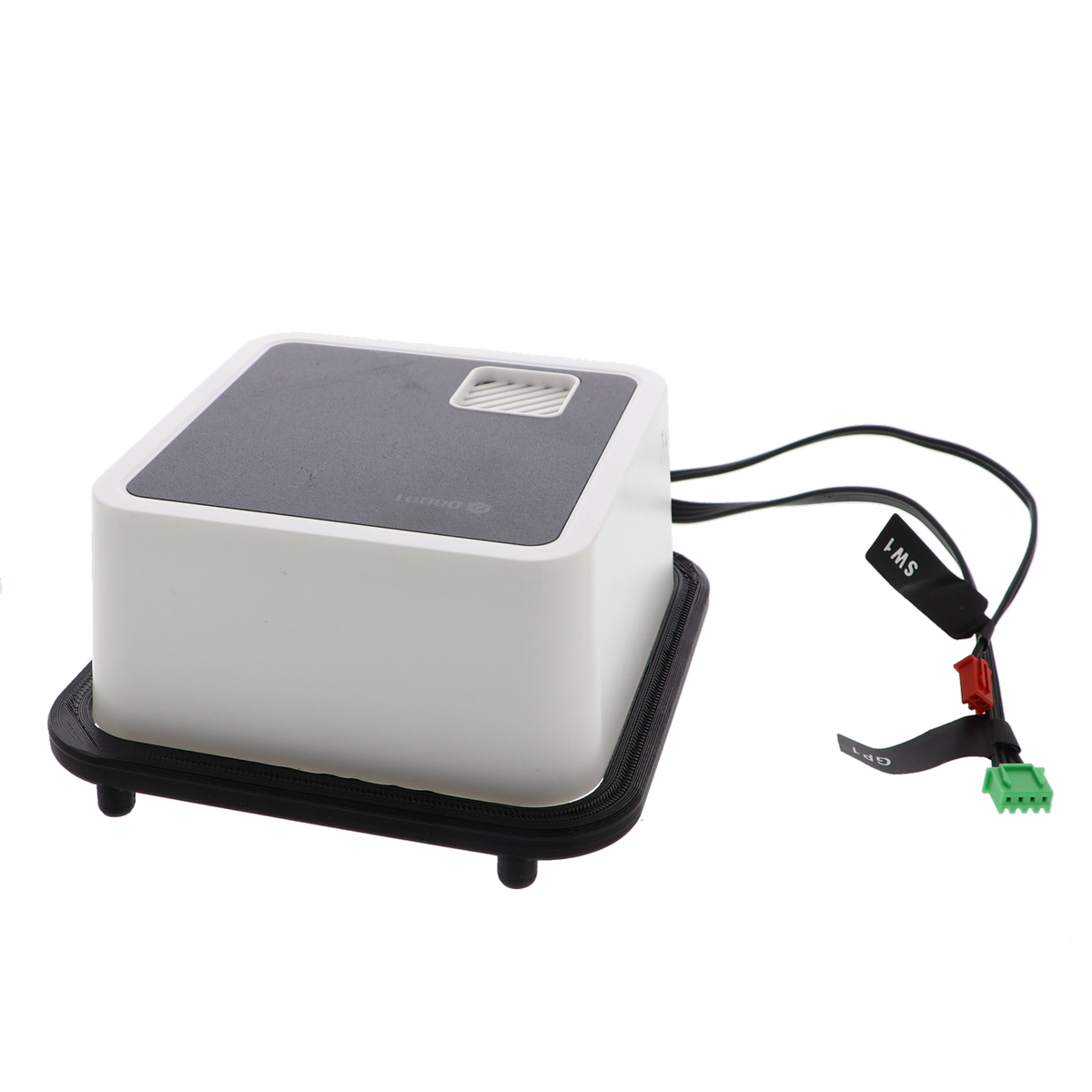

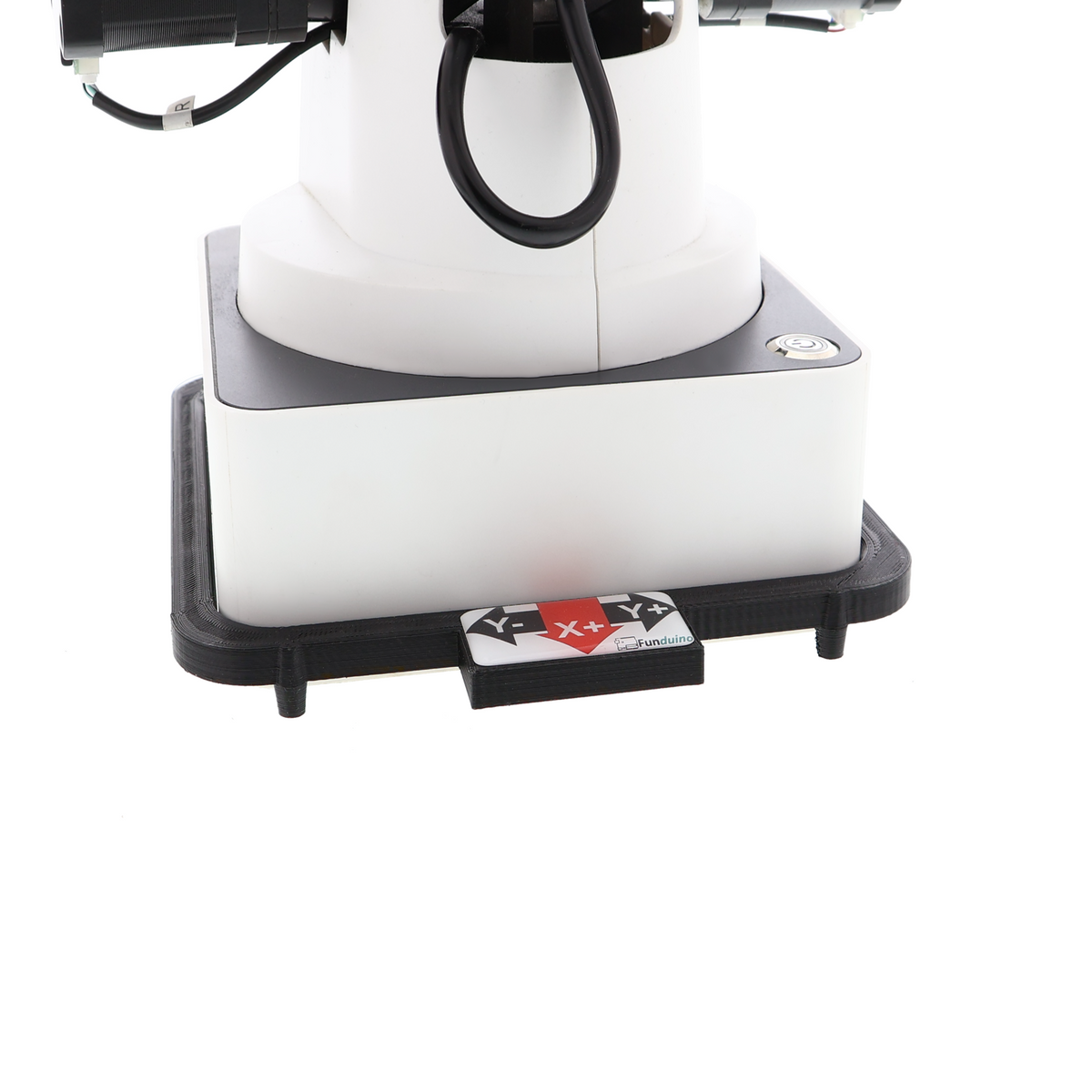

This 3D-printed frame secures the DOBOT Magician robotic arm together with the DOBOT vacuum pump on the pegboard of the Funduino Workspace. Small pins on the underside snap tool-free into the holes of the base plate, preventing movement during operation.

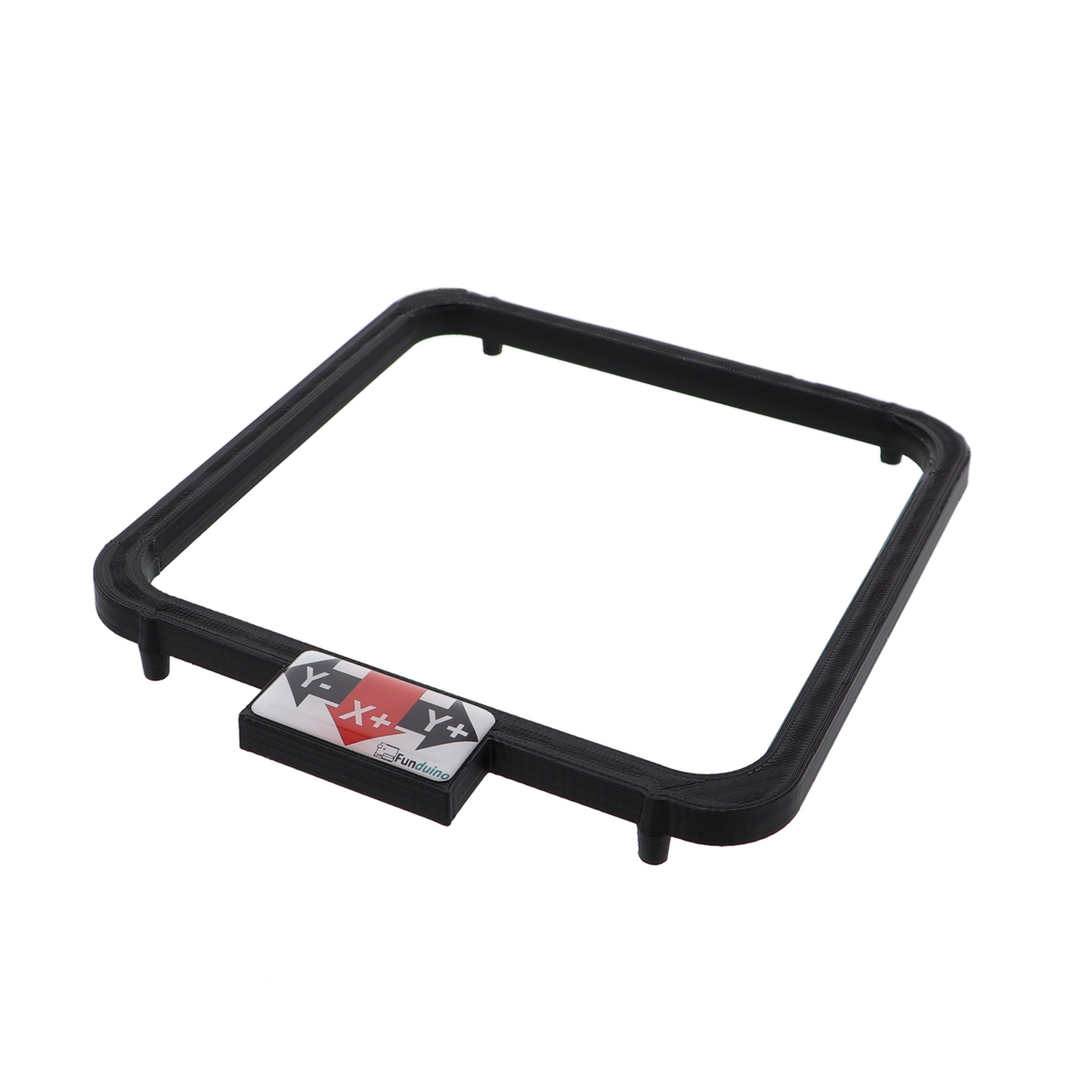

The snap-fit fixation makes it possible to restore the workspace to exactly the same position after assembly and modification. This means that previously programmed motion sequences remain valid without requiring recalibration. An additional element features a sticker with arrows for the X and Y axes, illustrating the arm's directions of movement.
The frame can be attached at various points on the pegboard, allowing it to be adapted flexibly to different tasks. This is particularly helpful when used in classroom instruction or educational demonstrations, where students are learning how robotic arms work. The axis markings provide additional visual support for this learning process.
The frame requires the DOBOT Magician and the vacuum pump to be available, as well as the Funduino Workspace base plate.
Safety information
This expansion module is intended exclusively for building prototypes and for testing and development purposes. It is not suitable for connection to the household power supply. When working on the robotic arm or vacuum pump, observe the safety instructions provided by the DOBOT manufacturer.
Scope of delivery

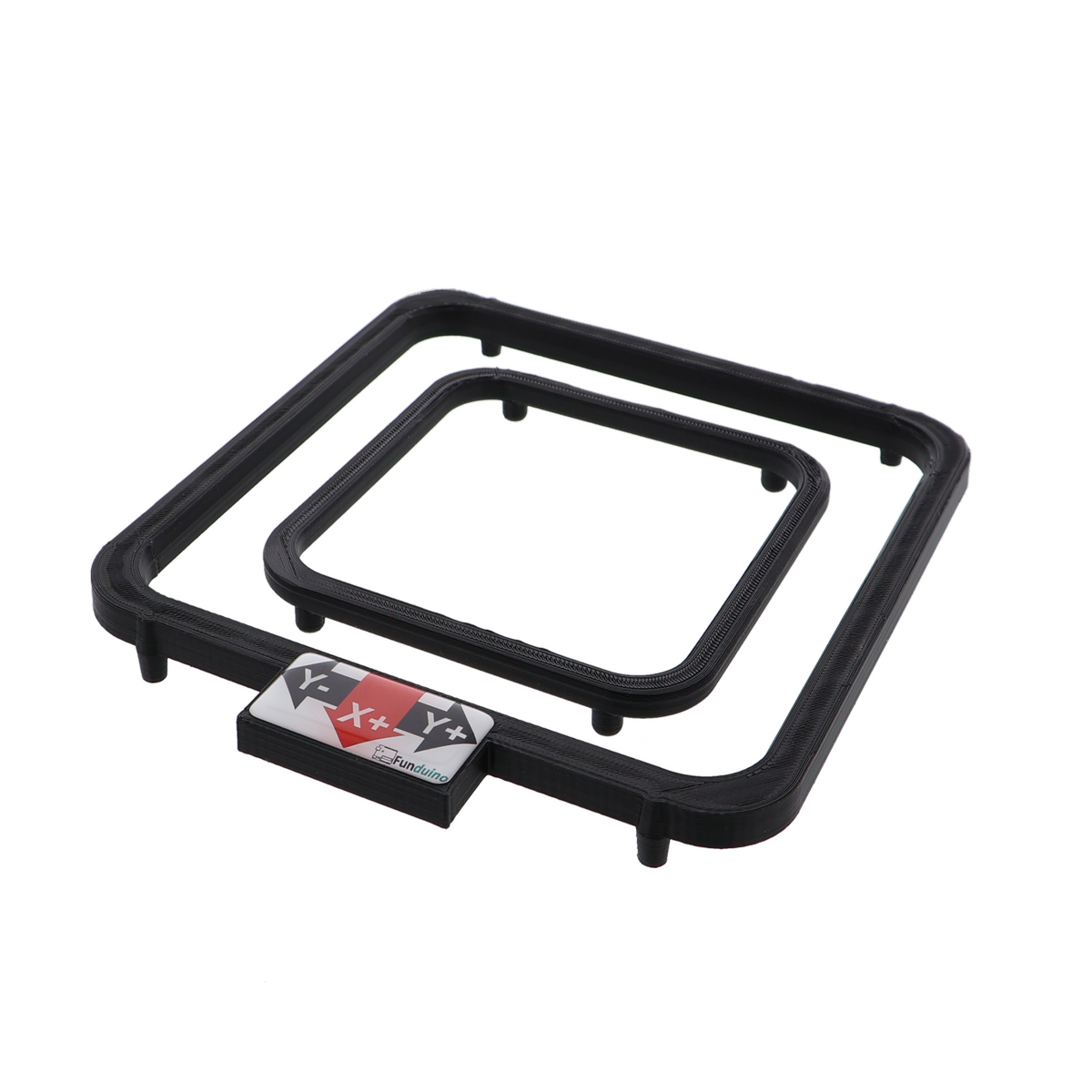

- 1* Funduino Workspace frame for the DOBOT Magician

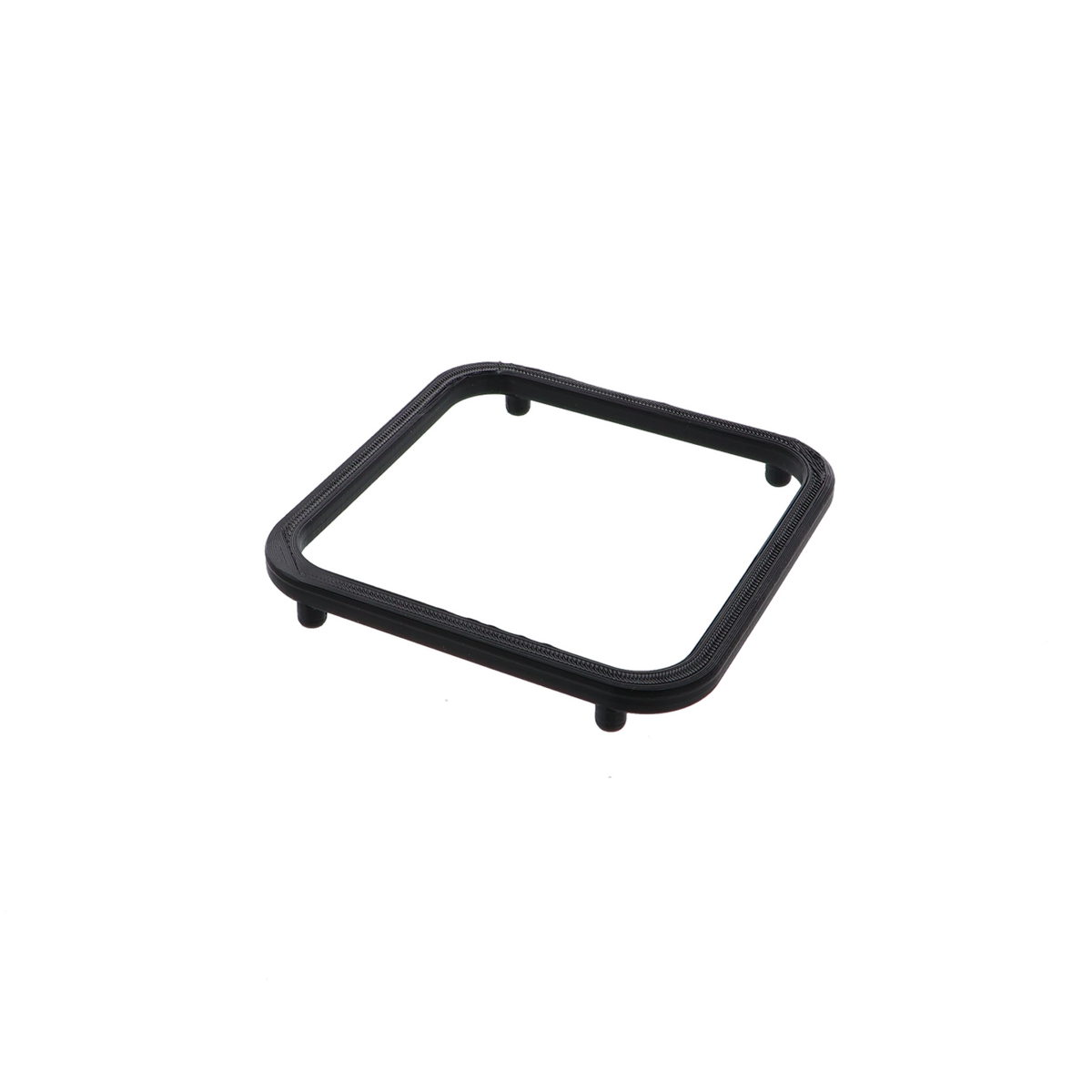

- 1* Funduino Workspace frame for the vacuum pump of the DOBOT Magician
