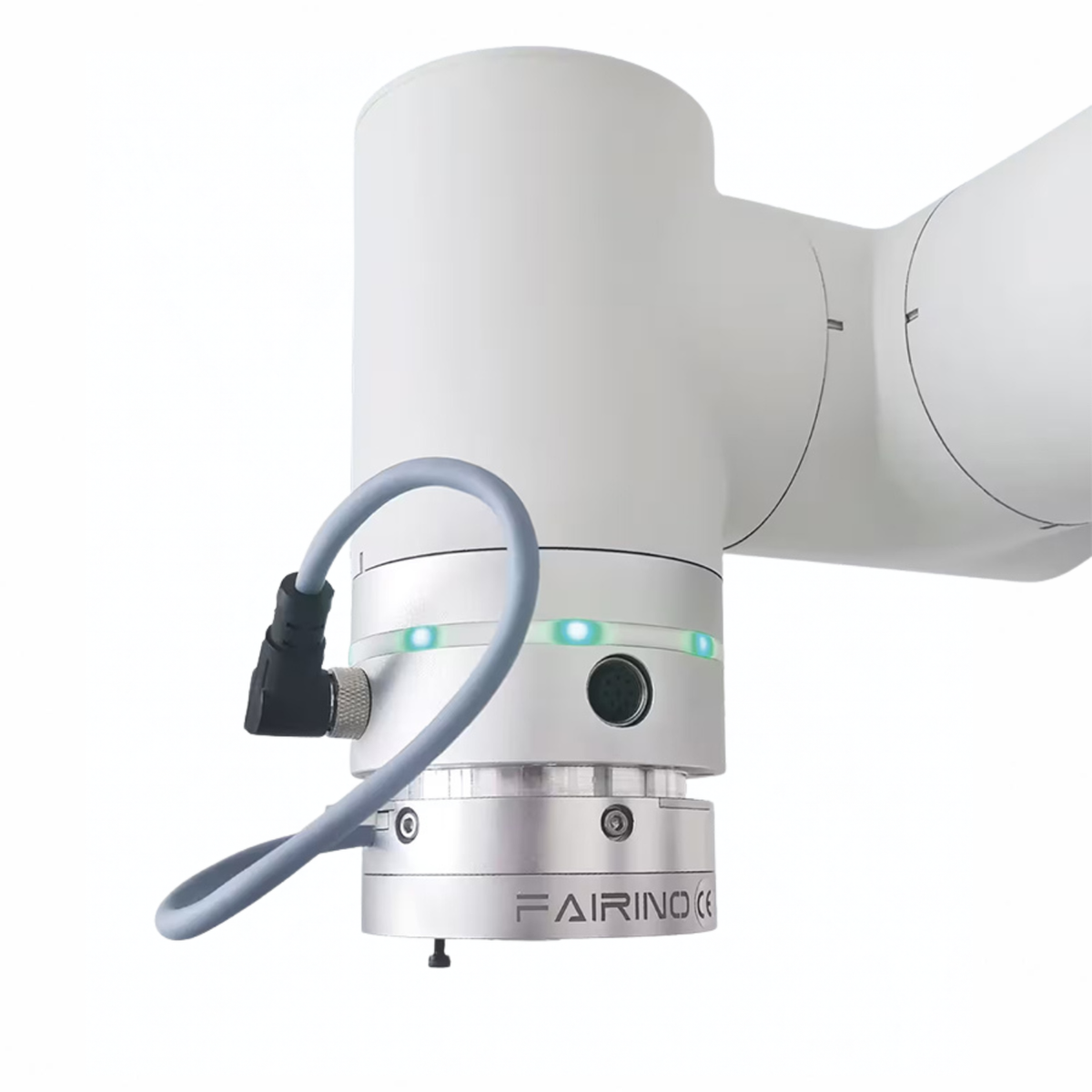

Fairino Force Sensor GZCX-6F-75 A - 6 axes, RS485

GZCX-6F-75A 6-axis force sensor for robots

The GZCX-6F-75A is a compact six-dimensional force and torque sensor for robotics, research, and automation applications. By simultaneously measuring forces and torques along multiple axes, the sensor is particularly suitable for mounting at the end of collaborative robots.

Measurement is based on electrical strain measurement combined with multi-axis calibration. An integrated signal acquisition and communication module processes the measurement data and provides force and torque values directly via an RS485 interface.

Highlights and benefits

• Six-dimensional measurement of forces and torques
• Compact design for robotics and automation applications
• Multi-axis joint calibration to improve measurement accuracy
• Integrated signal acquisition and data processing
• Direct output of force and torque values
• RS485 interface for communication with control and evaluation systems
• Robust aluminum alloy housing
• Easy integration at the robot end

Applications

• Collaborative robotics and cobots
• Force-controlled robotic applications
• Assembly and joining processes
• Robotics research and development
• Automation and testing applications
• Measurement of contact forces and torques
• Development of force-sensitive robotic applications

Technical specifications
