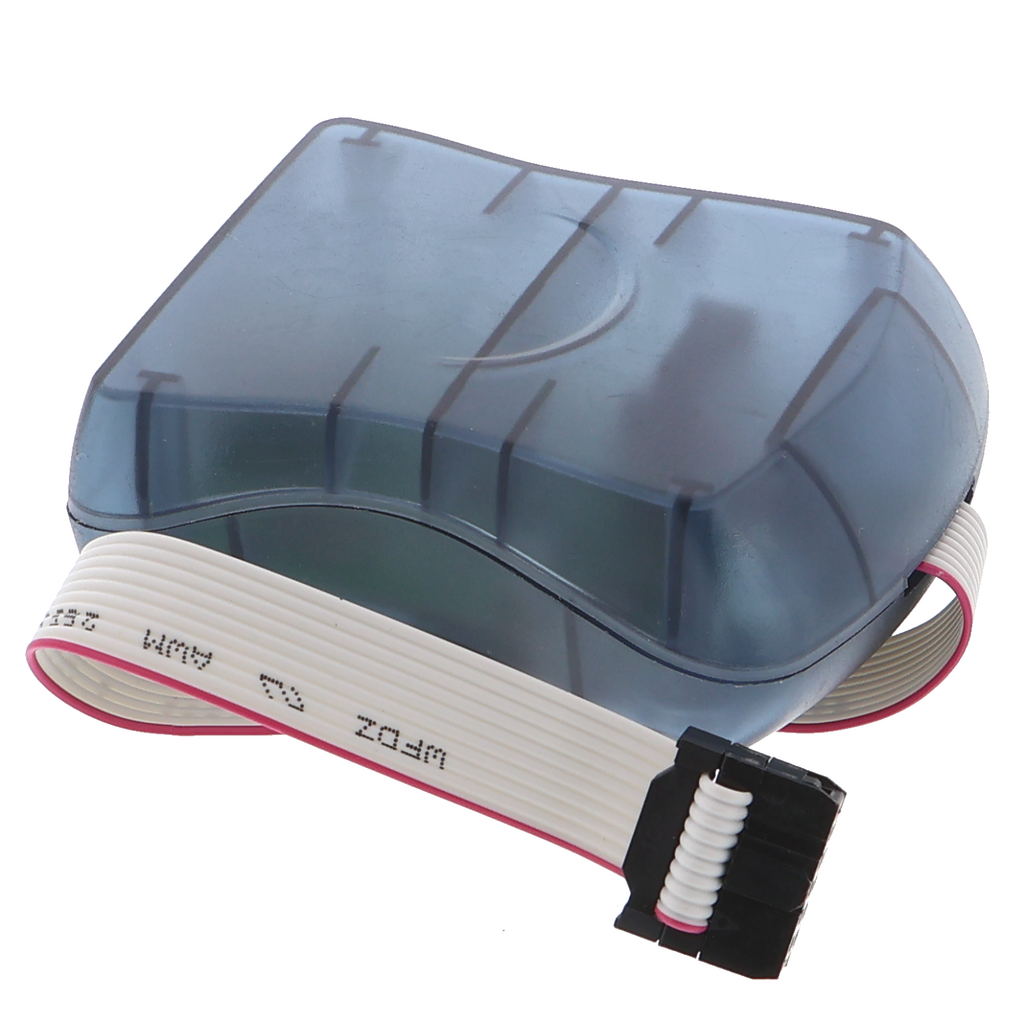

AVRISP STK500 V2 programmer - USB, ISP for ATmega and ATtiny

Product overview

• Programmer for AVR microcontrollers in the ATmega and ATtiny series
• Compatible with Atmel STK500 V2

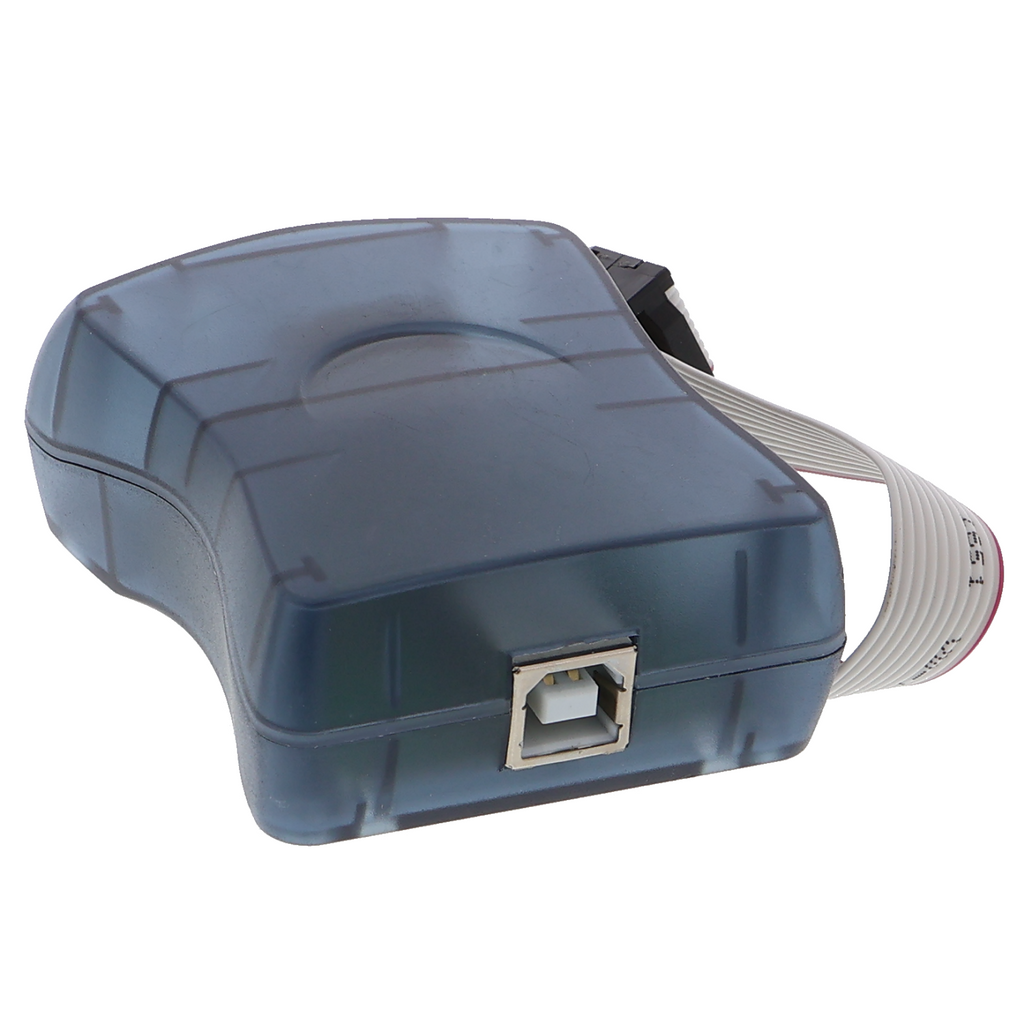

• Programming via USB connection
• In-system programming (ISP) supported
• 5 V power supply via USB
• Integrated target voltage detection

Product description

This programmer is used to upload firmware to AVR microcontrollers from the popular ATmega and ATtiny families. It emulates the proven STK500 V2 protocol and works with established development environments as well as standard flash tools. The USB interface simplifies connection to the computer without requiring an additional power supply.

The programmer uses the ISP method (in-system programming), in which the chip remains on the circuit board. The integrated safety functions automatically detect the target voltage and prevent damage caused by a voltage mismatch. This allows both development boards and controllers already soldered into circuits to be programmed without removing them.

Typical applications include firmware development for sensor and control applications, flashing bootloaders, and programming microcontrollers in automated manufacturing processes. The device is equally suitable for individual projects and repeated programming cycles.

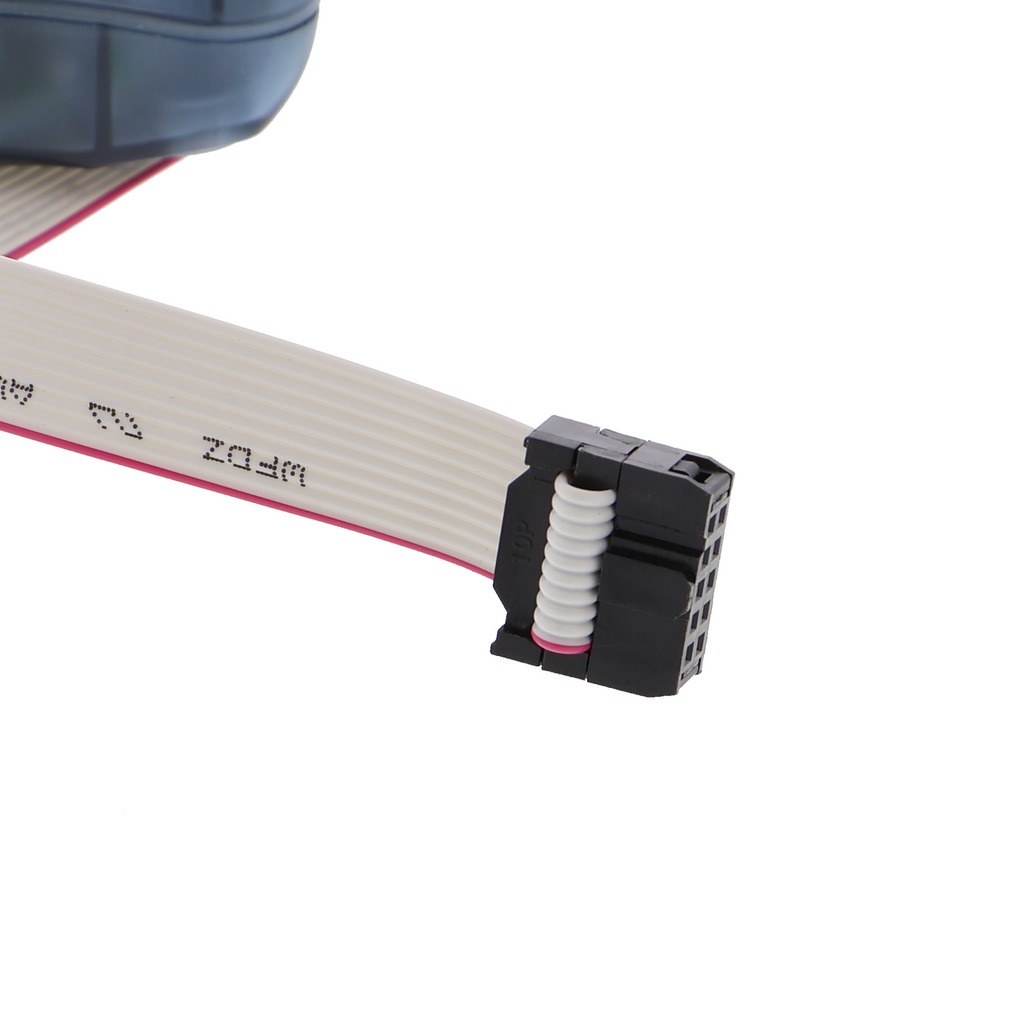

A computer with a USB port and compatible programming software (AVR Studio, WinAVR, or similar tools) are required. The ISP connection is made via a standard 6-pin or 10-pin connector to the target device. A level shifter is required for microcontrollers with different voltage levels.

Safety information

This programmer is not intended for installation in the household power circuit. It is intended exclusively for prototyping, testing, and development purposes. Work on or near electrical installations must be carried out by qualified electricians. If you are unsure, consult a qualified electrician before commissioning.

Scope of delivery

• 1x AVRISP STK500 V2.0-compatible programmer for Atmel ICs
