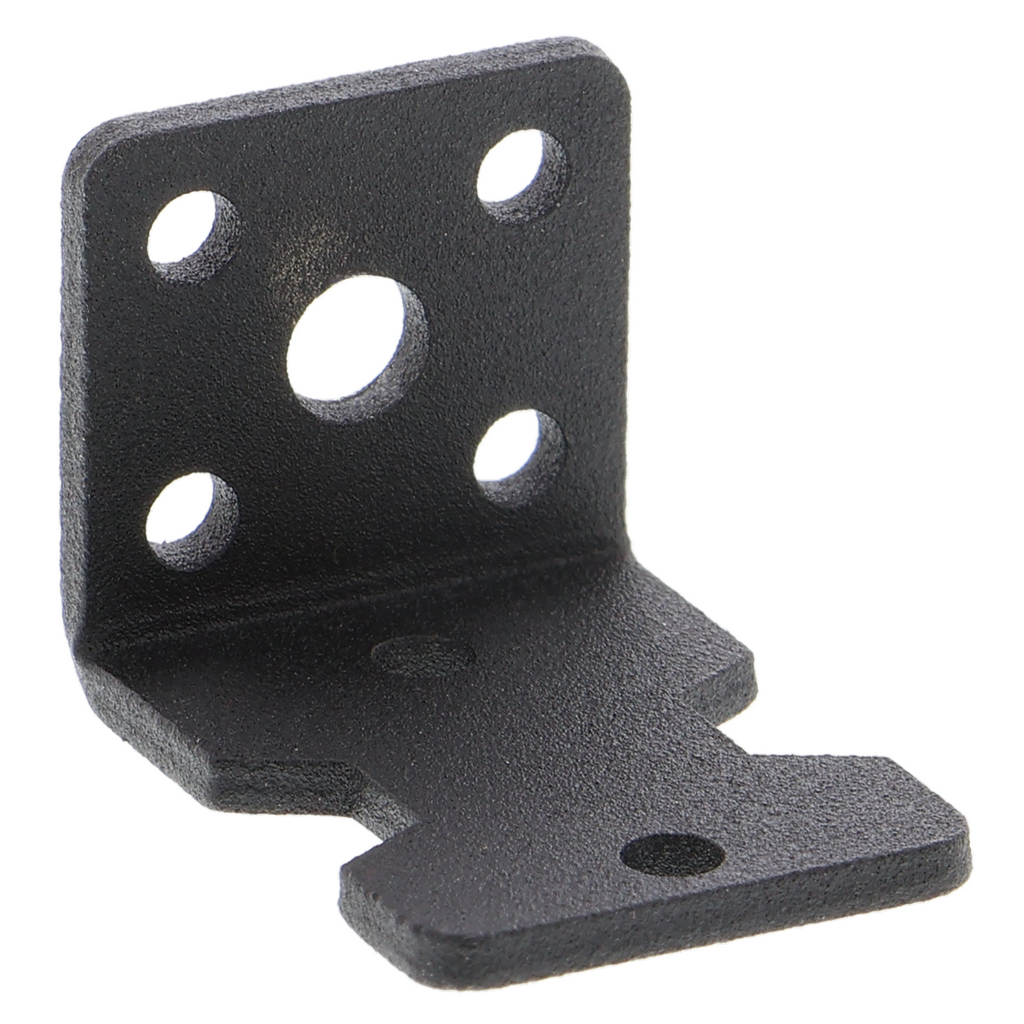

Motor Mount for TT Gear Motor - Aluminum, with mounting hardware

Product overview

• Aluminum bracket for TT gear motors with mounting holes
• Broad compatibility with standard TT motor dimensions
• Robust and rigid thanks to the aluminum profile
• Two mounting options on robot frames or chassis
• Pre-assembled mounting hardware

Product description

This aluminum bracket securely mounts TT gear motors to robot chassis or frames. The profile provides high rigidity and prevents vibrations during operation that could otherwise cause sensor measurement errors or interfere with bearing detection.

The bracket uses standard mounting holes compatible with M3 or M4 screws, depending on the version. This makes it suitable for common robot platforms and allows it to be retrofitted into existing designs. The low weight of the aluminum does not put unnecessary strain on the available motor power.

Applications include wheeled robots, walking machines, and automated guided vehicles, where reliable drive mounting is essential. Particularly in projects with multiple motors, the uniform bracket ensures symmetrical positioning and therefore precise driving behavior.

All that is needed for use is the TT motor itself and suitable mounting screws. A mounting drawing with hole spacing is included or can be found in the manufacturer's datasheet.

Safety information

This bracket is intended exclusively for building prototypes and for testing and development purposes. Not suitable for operation on household mains circuits. There is a risk of crushing when working on rotating motor shafts; connect the motor terminals only after assembly is complete.

Scope of delivery

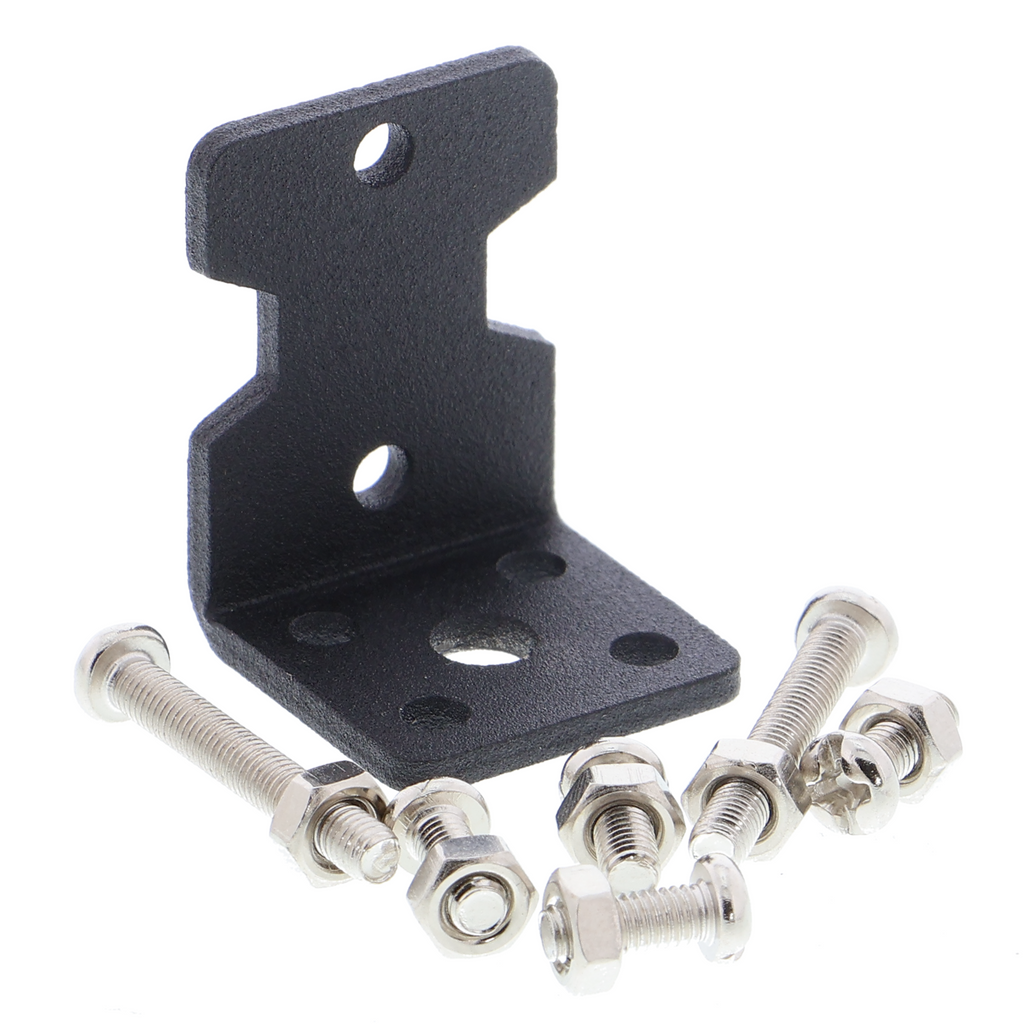

• 1x metal bracket for TT gear motors with mounting hardware for chassis
