Motor Mount for Geared Motors - Aluminum, M3, Ø 6 mm Shaft

Product overview

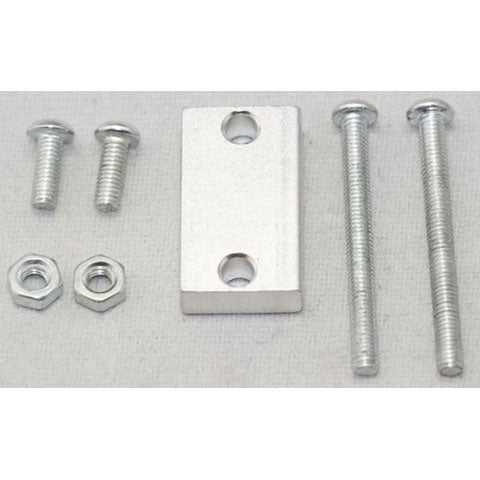

• Aluminum mounting bracket for gear motors
• M3 threaded connection for motor shaft and mounting plate
• Fits standard gear motors with a Ø 6 mm shaft output
• Aluminum material with a plastic buffer between the motor and bracket
• Screw connection with four M3 threaded holes for mounting

Product description

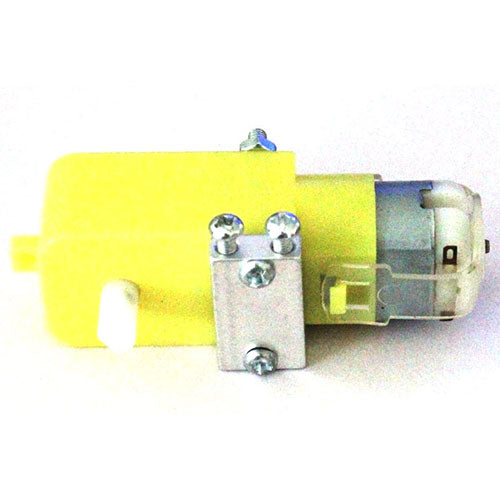

This aluminum bracket enables secure, vibration-dampening mounting of gear motors. The material combines low weight with sufficient rigidity. A plastic buffer between the motor and bracket reduces vibrations when the drive is running.

The bracket connects to the motor shaft via an M3 threaded hole and is screwed to the target assembly using four additional M3 threaded holes. It is designed for gear motors with a Ø 6 mm shaft output, as commonly used in robotics and mechanical engineering. The motor type and mounting surface must meet these dimensions.

Applications include mounting in mobile robots, model vehicles, and lightweight drive mechanisms. One specific example is the wheel hub of a wheeled robot, where four identical brackets hold the motors in a stable position.

In addition to this bracket, a motor-specific power supply is required for operation. Mounting hardware such as screws (M3) and, if necessary, washers must be purchased separately.

Safety information

This bracket is intended exclusively for building prototypes and for testing and development purposes. It is not intended for installation in household electrical circuits. For static or dynamic loads exceeding the weight range of lightweight applications, mechanical strength must be checked before commissioning.

Scope of delivery

• 1x Aluminum bracket for gear motors
