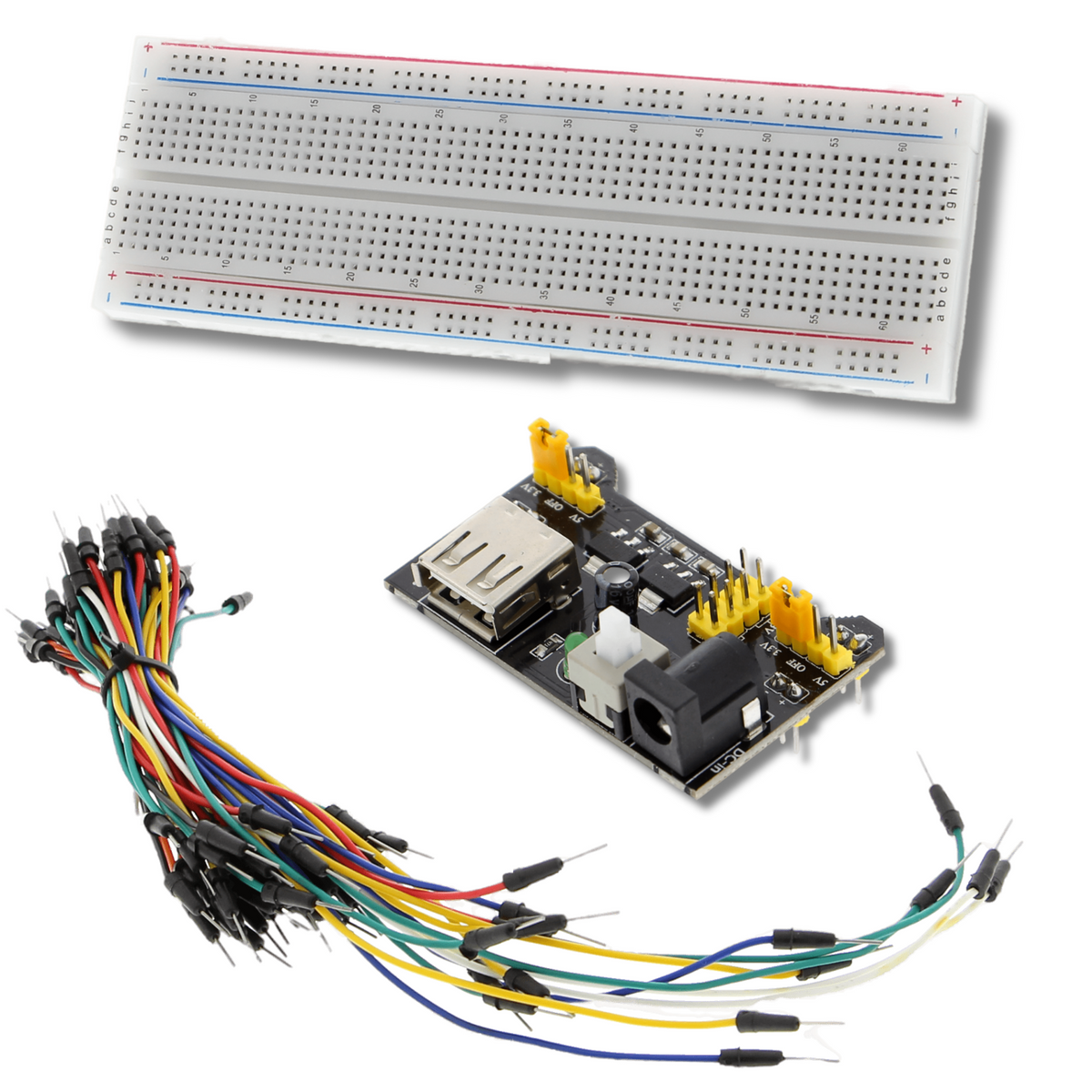

Breadboard Bundle - 830 Contacts, 65 M/M Wires, MB102 Power Supply Module
Breadboard Bundle - 830 Contacts, 65 M/M Wires, MB102 Power Supply Module
Pay in 30 days
Pay in 30 days
Description
Product overview
- Breadboard with 830 contact points for prototype circuits
- MB102 power supply module with dual output
- 65 connecting wires in various lengths included
- Selectable operating voltages of 3.3 V and 5 V
- AC/DC power supply required
- Solderless assembly, with changes implemented immediately
Product description
The breadboard with 830 contact points is used to quickly build test circuits without soldering. The 65 connecting wires in different lengths enable flexible connections between the components. The included MB102 power supply module provides both operating voltages commonly used in microcontroller projects.
The power supply module has two independent outputs and provides selectable 3.3 V and 5 V logic levels. The power regulation adapts to the actual requirements, ensuring that even sensitive modules are supplied safely. Calibration is not required. A separate AC/DC power supply with a suitable plug is required for operation.
The combination is suitable for development with common development boards such as Arduino or Raspberry Pi, for sensor and actuator experiments, and for teaching and learning the basics of electrical engineering. A typical scenario is building alarm or measurement circuits with several sensors operating in parallel at different voltage levels.
Requirements include a suitable power supply and knowledge of the correct pin assignment on the target board. The module's maximum current should provide sufficient reserves for your own setup. Contacts that are repeatedly reconnected will wear out over time, so the contacts should be checked occasionally.
Safety information
The power supply module is intended exclusively for building prototypes and for testing and development purposes; it is not suitable for installation in household power circuits. Work on or in the immediate vicinity of electrical installations is reserved for qualified electricians; if you are unsure about safe power supply, consult a qualified electrician before commissioning. Check the polarity and voltage levels carefully before operation.
Scope of delivery
- 1* 830P breadboard
- 65* jumper wires / breadboard wires male/male
- 1* MB102 power supply module
