XTool P2 honeycomb panel 2.0 - 22 mm high, load capacity up to 5 kg
XTool P2 honeycomb panel 2.0 - 22 mm high, load capacity up to 5 kg
Pay in 30 days
Pay in 30 days
Description

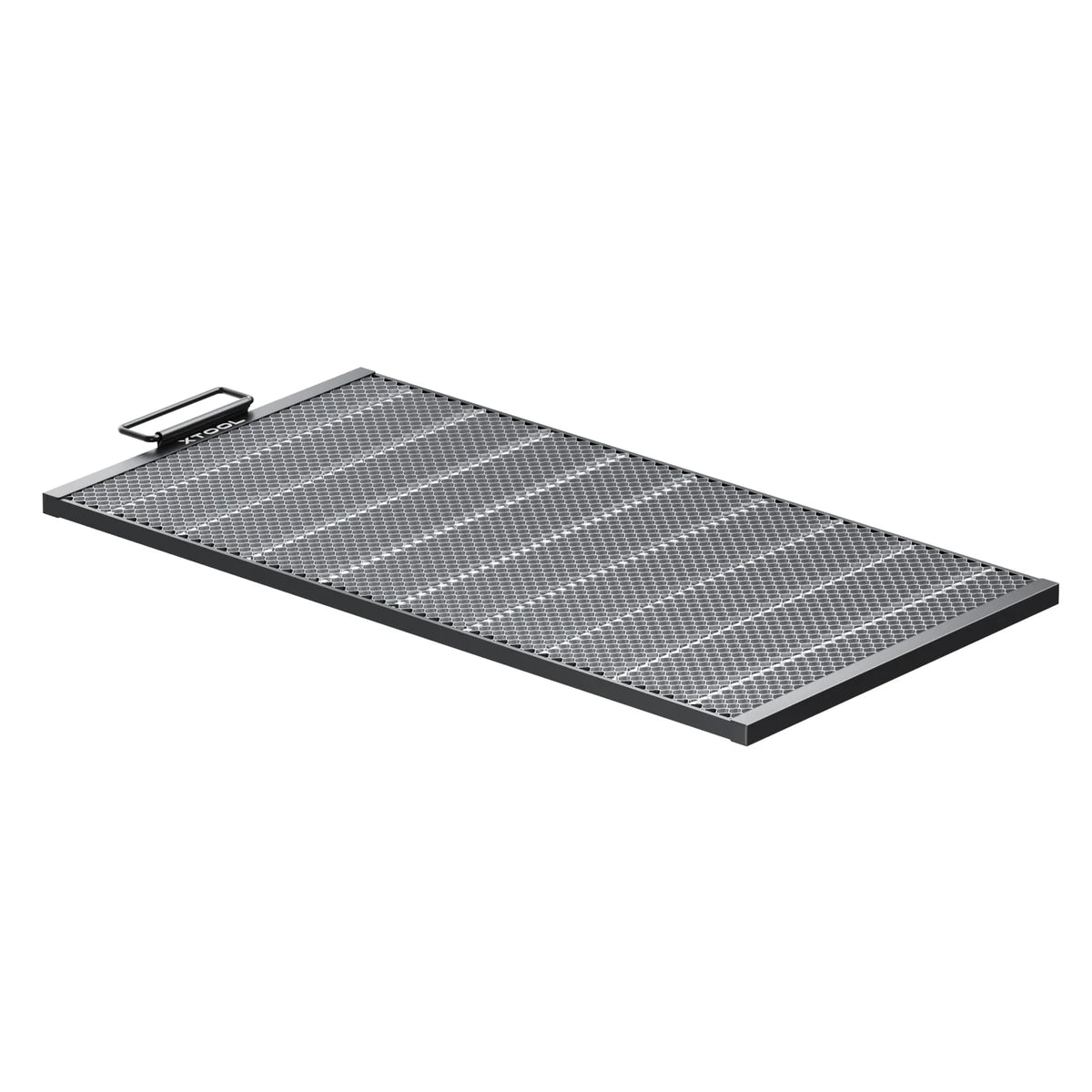

xTool P2 Honeycomb Plate 2.0
Anyone who cuts on the standard slats knows the problem: Small parts tip between the supports, while larger workpieces develop burn marks where they rest. The honeycomb plate replaces this support with a continuous honeycomb structure.
The result: Cut-out parts no longer fall through, but remain in place. The back stays cleaner because the heat is distributed through the honeycomb instead of building up on a slat. And because the material lies flat, you can place multiple workpieces side by side and process them in a single pass.
Version 2.0 is reinforced: 5 mm steel rods and a 22 mm high plate support up to 5 kg. Four magnetic material pins hold thin material flat, while non-slip foot pads keep the plate in place.
Highlights
- Prevents cut parts from falling through
- Fewer burn marks on the back of the material than with slat supports
- Reinforced 2.0 construction with 5 mm steel rods and a load capacity of up to 5 kg
- Four magnetic material pins for securing the workpiece
- Non-slip foot pads for a secure stand
- Cleaning brush included
- Original xTool accessory for the P2
Applications
- Small-part cutting jobs that produce many individual pieces
- Batch cutting with multiple workpieces side by side
- Work where the back must remain visible and clean
- Thin materials such as veneer, cardboard, or paper that need to be held flat
- Schools and workshops with rotating users and frequent material changes
Technical specifications
| Feature | Value |
|---|---|
| Product type | Honeycomb plate, version 2.0 |
| Manufacturer | xTool |
| Compatibility | xTool P2 |
| Working area | 556 x 280 mm |
| Product dimensions | 586 x 310 x 22 mm |
| Product weight | 2.06 kg |
| Maximum load capacity | Under 5 kg |
| Maximum workpiece height | 22 mm, 176 mm with riser |
| Steel rod thickness | 5 mm |
| Plate height | 22 mm |
Scope of delivery
- 1 x Honeycomb plate
- 4 x Magnetic material pins
- 1 x Cleaning brush
- 1 x User manual
Notes
- The honeycomb plate adds height. The usable workpiece height is reduced accordingly; with a riser, up to 176 mm is possible.
- The usable working area is smaller than the P2's full work surface. For large workpieces, check in advance whether they fit inside.
- After inserting it, check the material thickness measured by the software and correct it manually if necessary.
- Regularly remove residue from the honeycomb using the included brush. This keeps the support surface level and reduces contamination of the workpiece.
- Designed exclusively for the xTool P2.
Further information
You can also find additional accessories and replacement parts for the xTool P series, such as focus lenses, laser mirrors, and cleaning accessories for optical care.
