xTool LM1 laminator
Pay in 30 days
Pay in 30 days
Description
xTool LM1 Laminator and RF1 Roll Feeder for the O1 Omni Printer

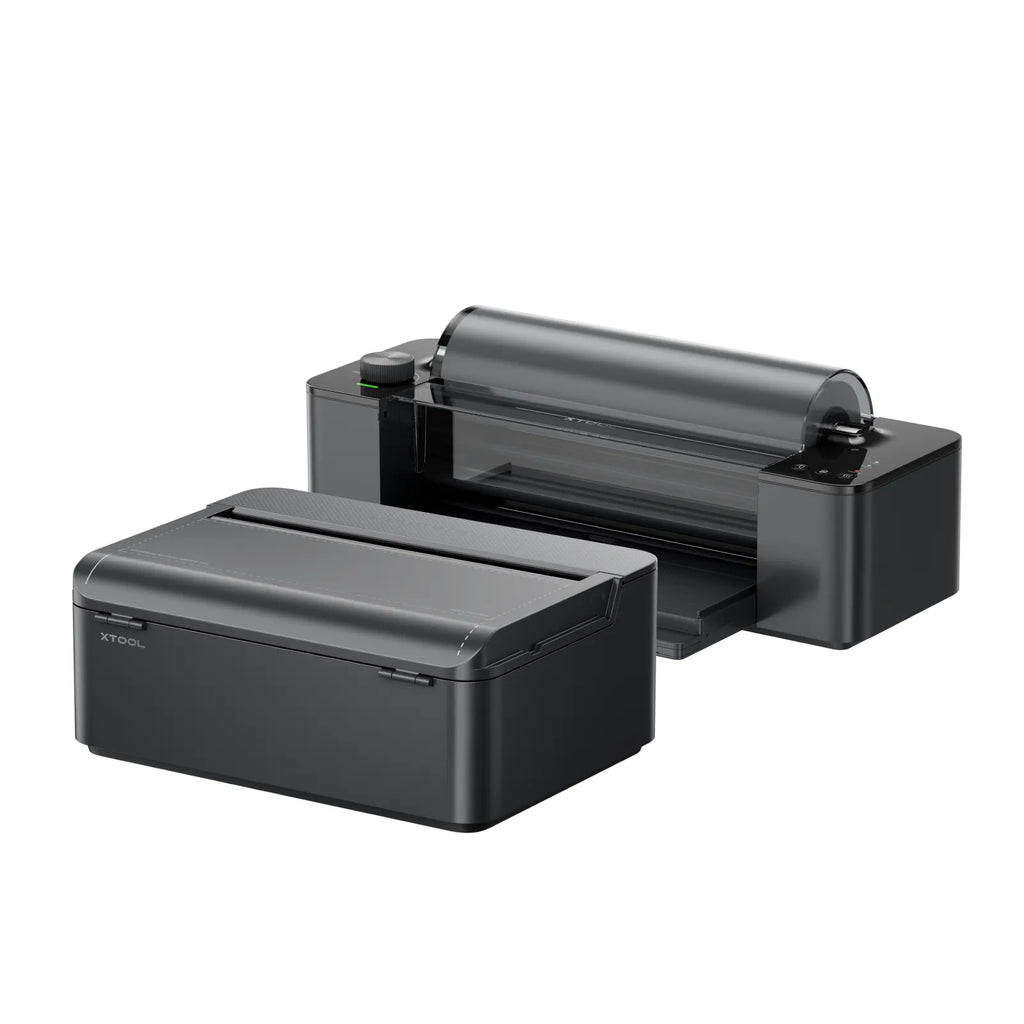

The LM1 Laminator and RF1 Roll Feeder expand the xTool O1 Omni Printer with two complementary modules. The LM1 finishes printed UV-DTF films into ready-to-use Crystal Decals and applies gold, silver, and holographic effects to flat materials. The RF1 feeds roll media and turns individual prints into long runs and series.
Use the LM1 alone for decals and foil finishing, or combine both modules for a continuous roll-to-finish workflow: load the roll, print long runs, and cut automatically. Select the appropriate version above in the product section.
Variant comparison
| Feature | LM1 Laminator | LM1 Laminator + RF1 Roll Feeder |
|---|---|---|
| Laminating UV-DTF decals | Yes | Yes |
| Foil finishing for materials up to 8 mm thick | Yes | Yes |
| Roll feeder for roll media | No | Yes |
| UV-DTF roll production | No | Print lengths of up to 15 m |
| Long-format printing on canvas and vinyl | No | Printable lengths of up to 11.8 m |
| Automatic layout and automatic cutting | No | Yes |
| Typical user | Getting started with UV-DTF decals and foil effects | Small batches, batch production, and long-format printing |
This selection is for displaying technical product information only. Select the purchasable product variant above in the product section.
xTool LM1 Laminator for the O1 Omni Printer
Laminator for ready-to-use UV-DTF decals and foil effects up to 8 mm thick
The LM1 turns printed UV-DTF films into finished Crystal Decals that you can apply directly. The crystal-clear finish withstands water and scratches, even on irregular shapes and large, non-printable objects. The laminator is required for standard UV-DTF decal finishing, but it can also be used independently after printing.
Key facts
- Finishing accessory for the xTool O1 Omni Printer
- Crystal-clear finish, water- and scratch-resistant
- Foil finishing in gold, silver, and holographic effects for materials up to 8 mm thick
- Ready to use independently after printing
Benefits
- Decals adhere even to curved and irregular surfaces
- Supports standard decals, Color-White-Color decals, foil decals, holographic decals, and waste-removal decals
- High-quality metallic look without an additional machine
- Can later be expanded with the RF1 roll feeder to create a roll-to-finish workflow
Applications
- Stickers and decals for cups, bottles, cans, and other curved objects
- Product labels and packaging labels for small batches
- Branding on tool cases, equipment, and workshop furnishings
- Finished signs, cards, and name badges with a gold, silver, or holographic effect
- Design, printing, and finishing lessons and makerspace projects
LM1 technical specifications
| Feature | Value |
|---|---|
| Product type | Laminator and finishing accessories |
| Model | xTool LM1 |
| Compatibility | xTool O1 Omni Printer |
| Applications | UV DTF decal finishing, film finishing |
| Supported decal types | Standard decals, color-white-color decals, film decals, holographic decals, waste-removal decals |
| Foil effects | Gold, silver, holographic |
| Maximum material thickness for film finishing | 8 mm (flat materials) |
| Standalone operation | Yes, usable without a printer after printing |
Compatible materials for film finishing
- Coated metal
- Acrylic
- Leather
- Sealed wood
- PVC sheets
- Composite stone and resin stone
- Cards and signs
The material must lie flat during lamination and be no more than 8 mm thick.
Information about this version
- This version contains only the LM1 laminator, not the RF1 roll feeder
- An xTool O1 Omni Printer is required to produce UV DTF decals
- For long UV DTF roll prints and batch production, the manufacturer recommends combining it with the RF1
General information
- Both versions are accessories for the xTool O1 Omni Printer and do not replace a printer
- The LM1 is essential for standard finishing of UV DTF decals
- Further manufacturer information: Official xTool product page
