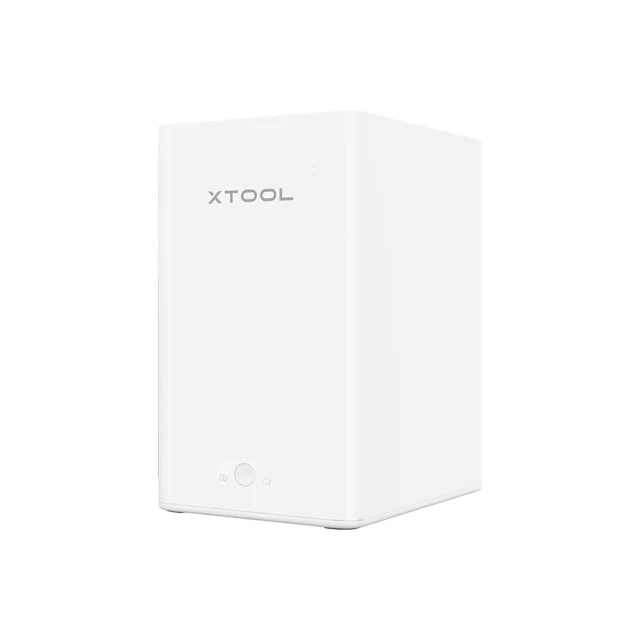

XTool fume purifier - H13 HEPA, activated carbon, for F2 and F1

The xTool Smoke Purifier for F2 & F1 Series is designed to extract and filter smoke, particles, and odors generated during laser processing. This compact desktop device uses 3-stage filtration consisting of a pre-filter, H13 HEPA filter, and activated carbon filter. This makes it particularly suitable for workstations where direct exhaust ventilation to the outside is not possible or is only possible to a limited extent.

Highlights

• Compatible with xTool F2, xTool F1, and xTool F1 Lite
• 3-stage filtration with pre-filter, H13 HEPA filter, and activated carbon
• Filters 99.97% of particles down to 0.3 µm according to the manufacturer
• Pre-filter captures visible particles from 5 µm in size
• Activated carbon filter for absorbing gases and unpleasant odors
• 3 adjustable power levels
• Noise level of up to 55 dB according to xTool
• Additional exhaust hose and 2 replacement pre-filters included
• Compact design for use on or next to the workstation

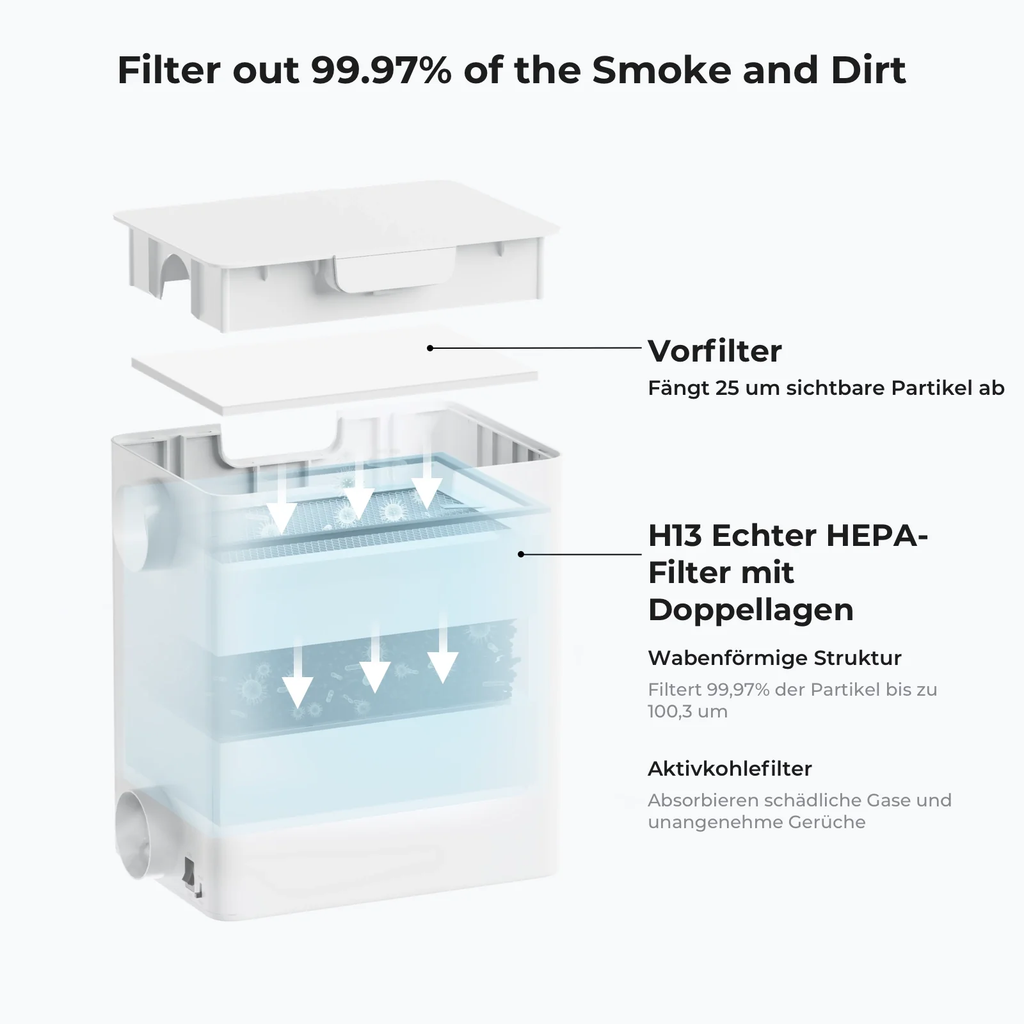

Filter structure

• Pre-filter: Captures visible particles from 5 µm in size.
• H13 HEPA filter: According to xTool, filters 99.97% of particles down to a size of 0.3 µm.
• Activated carbon filter: Absorbs harmful gases and unpleasant odors.

Typical applications

• Laser engraving with xTool F2, F1, or F1 Lite
• Reducing smoke and particles in the workplace
• Filterung unangenehmer Gerüche während der Laserbearbeitung
• Filtering unpleasant odors during laser processing
• Schools, makerspaces, workshops, and creative work areas

Workstations without a permanently available exhaust route to the outside

Scope of delivery

• xTool desktop air purifier
• Filter pack
• Pre-filter
• Exhaust hose
• Additional exhaust hose
• 2 replacement pre-filters
• Tube adapter
• USB cable (Type-C)
• Power supply and power cable
• User manual

Notes on operation and filter replacement

• For infrared laser applications, xTool recommends the low or medium power setting, and for diode laser applications, the highest power setting.
• According to xTool, the pre-filter should be checked after approximately 7 to 15 days, depending on contamination, and replaced when heavily loaded.
• For the HEPA filter, xTool specifies an approximate guideline of 3 to 6 months. The actual replacement time depends on use and contamination.
• For the main filter, xTool specifies an approximate guideline of 2 to 3 months or replacement when suction power decreases.

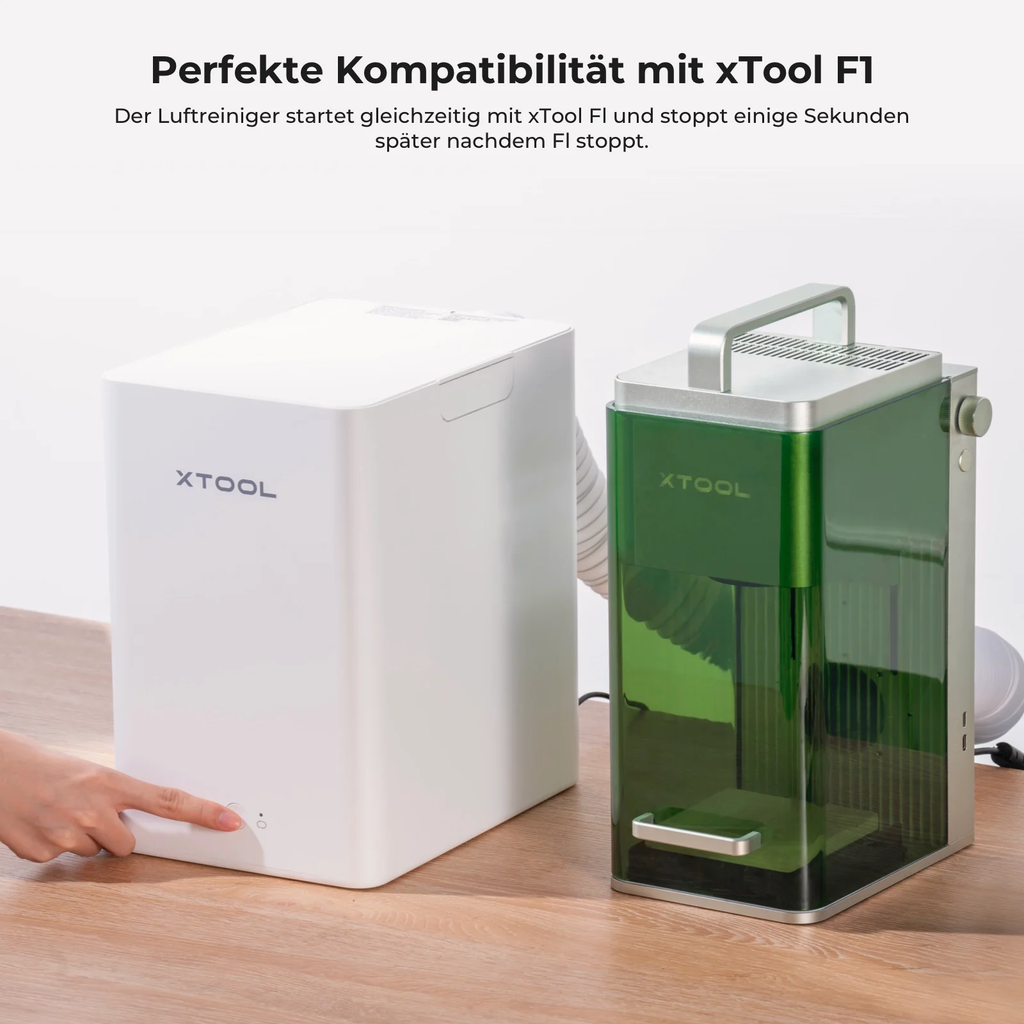

• The automatic synchronization and 10-second run-on time are explicitly described on the product page for the xTool F1.
• The actual filter service life depends on the material, type of processing, duration of use, and smoke generation.
