Description
Product overview
- Anemometer for measuring wind speed with analog 0–5-V output
- Measuring range from 0 to 30 m/s
- Accuracy ±3 percent of the measured value
- Operating voltage 12 V DC
- 3-pin M12 connector
- Robust cup anemometer design
Product description
The anemometer measures wind speeds using a rotating cup system and outputs the result as an analog voltage signal between 0 and 5 V. This makes it suitable for direct connection to analog inputs of common microcontrollers and data acquisition systems without additional signal conditioning.
The device requires a 12 V DC operating voltage for measurement, which must be provided separately. The current wind speed can be calculated directly from the 0–5-V output voltage. With a measuring range of up to 30 m/s, the anemometer is suitable for measurements in open areas such as open spaces, rooftops, and exposed locations, but does not meet the requirements of altitude measurements or particularly extreme wind conditions beyond this range.
Typical applications include wind turbine monitoring, weather monitoring systems, and anemometric data loggers designed to continuously record wind speed. In projects, it can be used to build wind speed measurement stations that transmit their data to a controller for analysis.
A separate 12 V power supply is required for operation. The M12 connection requires compatible cables. The device should be mounted in a freely exposed location to avoid turbulence and measurement errors caused by nearby obstacles.
Safety notice
The anemometer is not intended for installation in household electrical circuits and is exclusively designed for measurement tasks, prototyping, and development purposes. It operates at 12 V; the power supply must come from an isolated source. Work on or near electrical installations must be carried out by qualified electricians. If you have questions about the power supply, consult a qualified electrician before commissioning.
Scope of delivery
- 1x Wind force measuring device anemometer 0-5 V

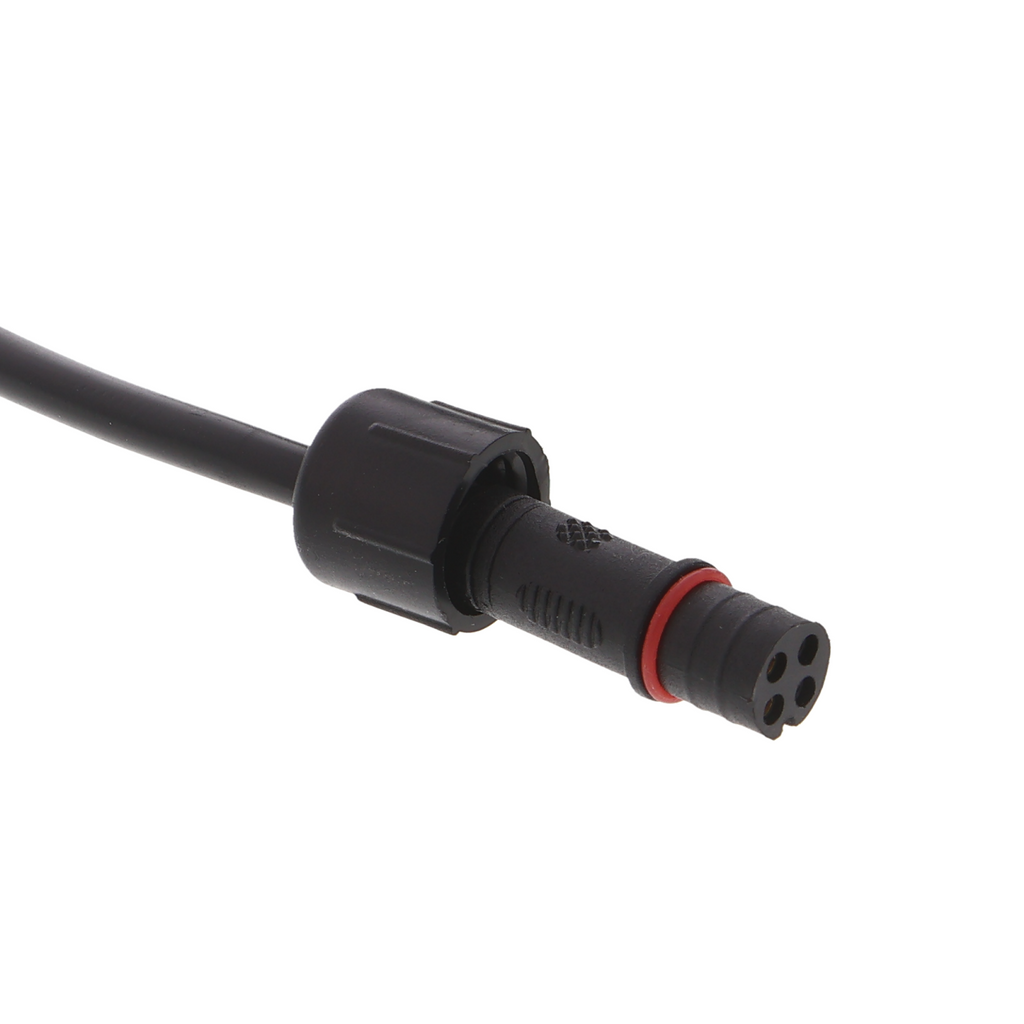

- Connection cable (socket for the plug shown in the product image, including cable with open end)
