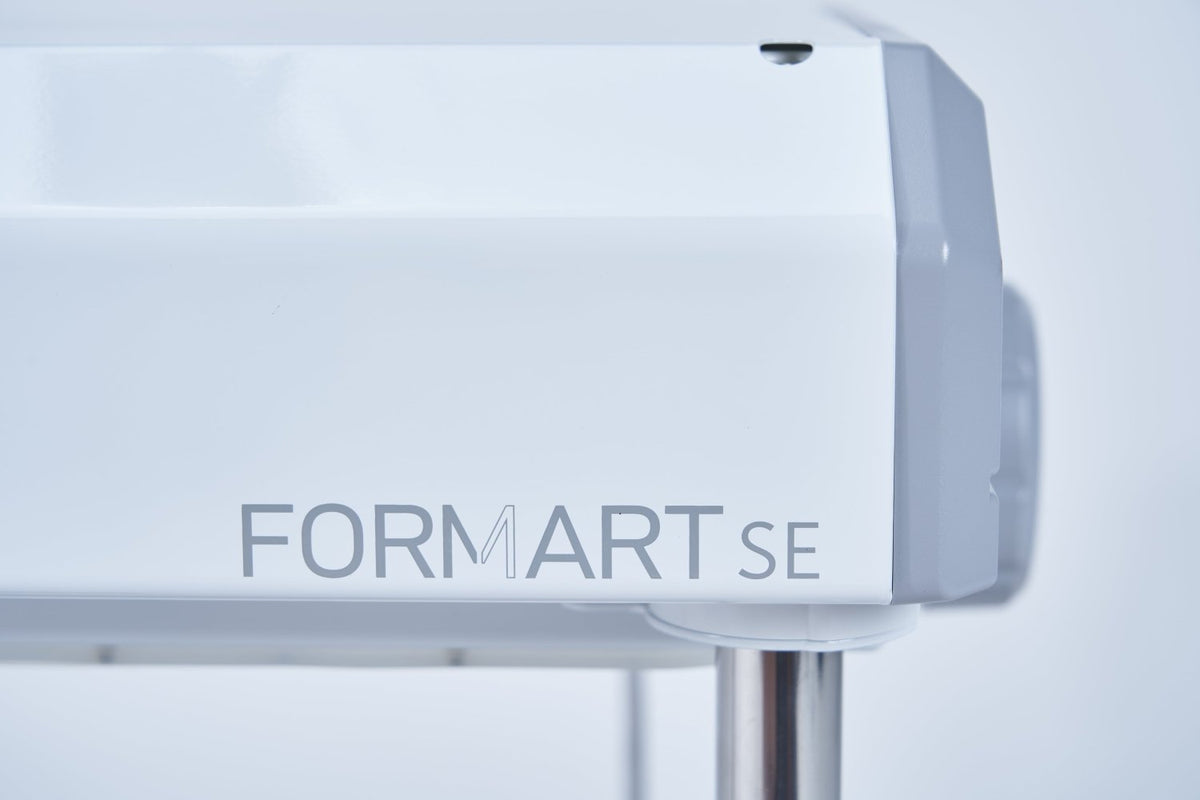

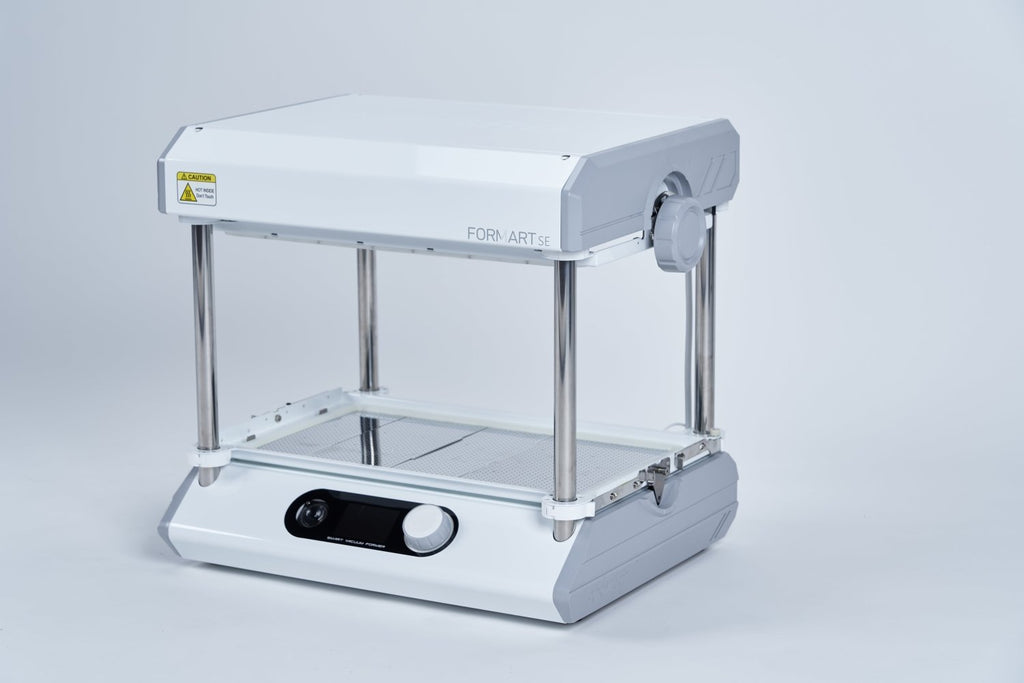

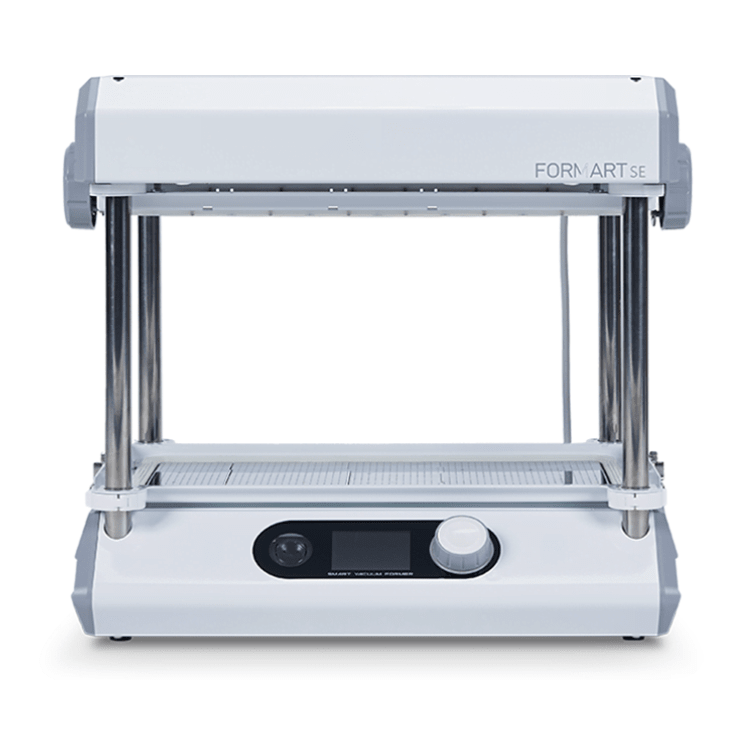

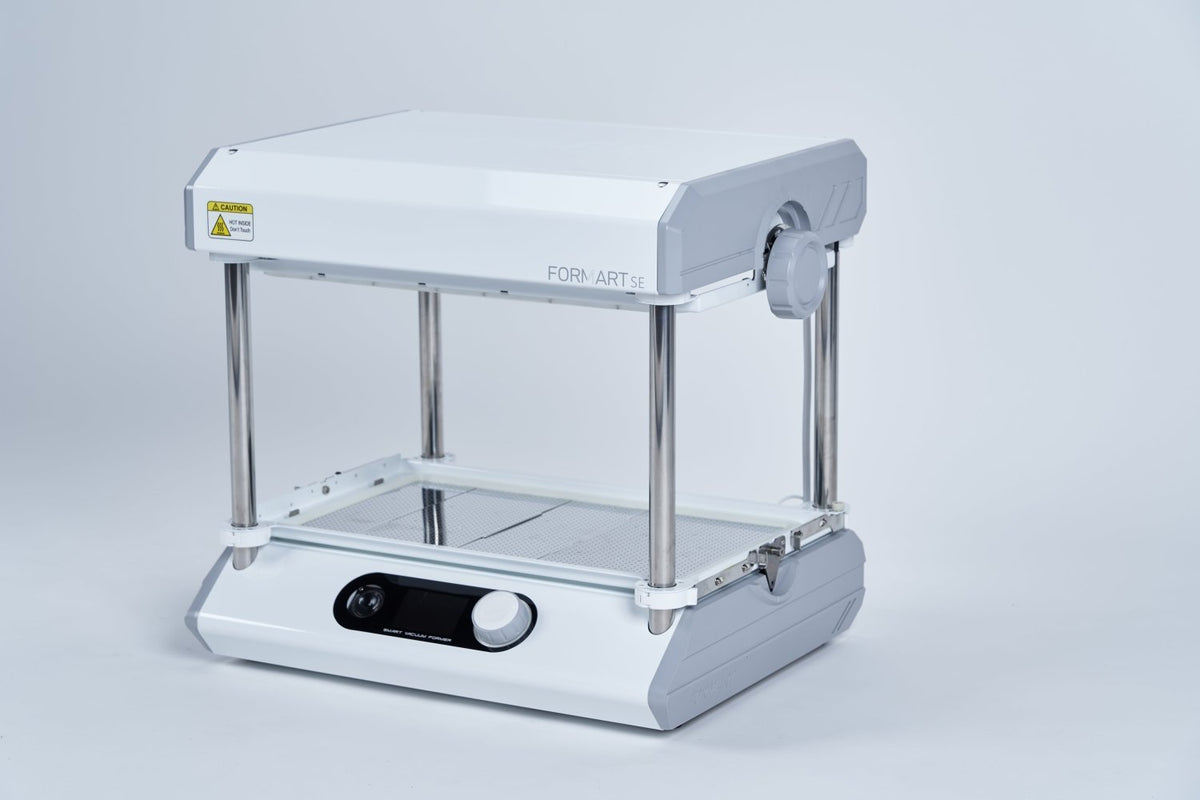

MY YARD FORMART SE - Vacuum former

The FORMART SE is an all-in-one vacuum former suitable for both beginners and professionals. Thanks to its integrated heating element and vacuum pump, it is everything you need to get started with vacuum forming at home or in the office.

FORMART SE features:

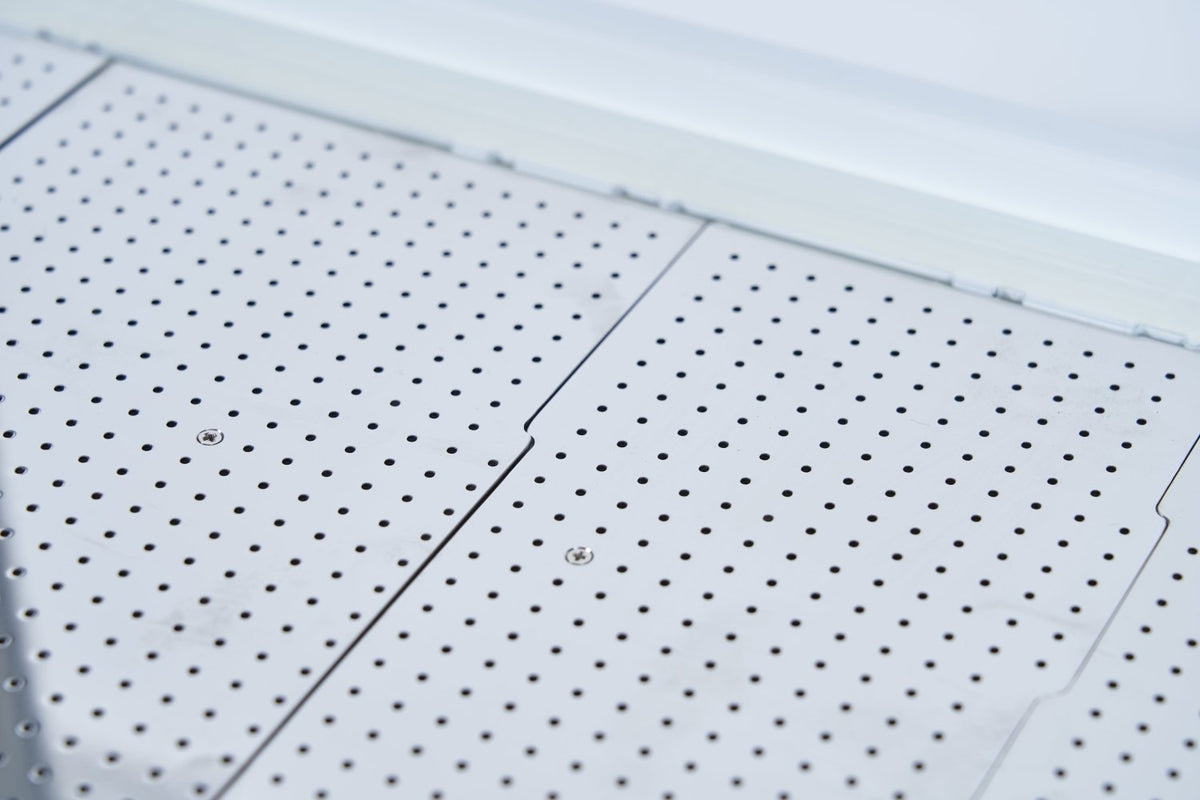

Large working area (470 mm x 270 mm)

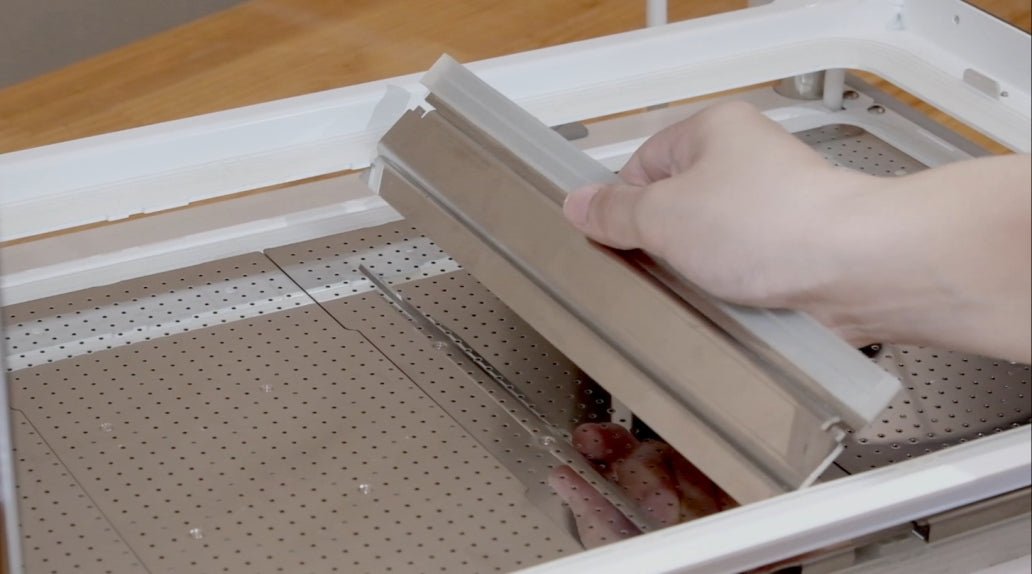

This vacuum forming machine features a large working area and a unique size adjustment function. You can adjust the size of the working area to minimize unnecessary waste.
The 470 x 270 mm working area gives you plenty of creative freedom - from delicate earrings to large lampshades.

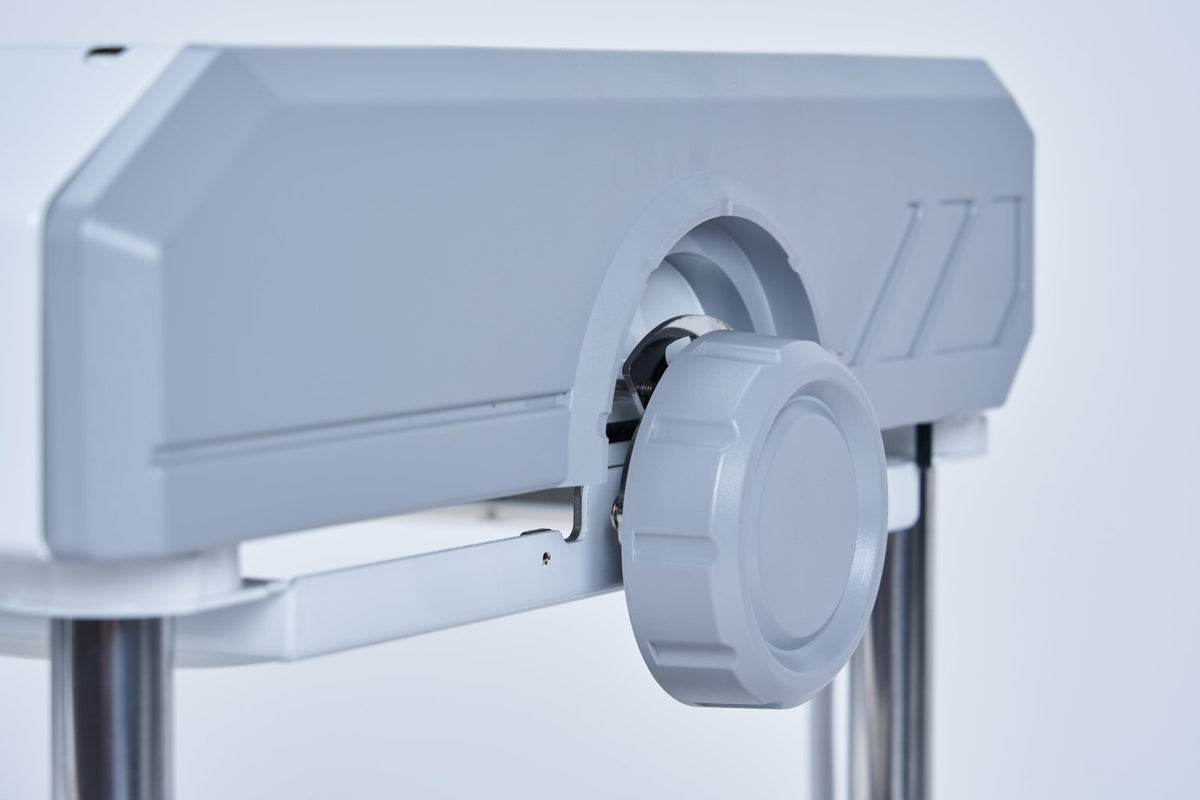

Quick locking and stopping at any height

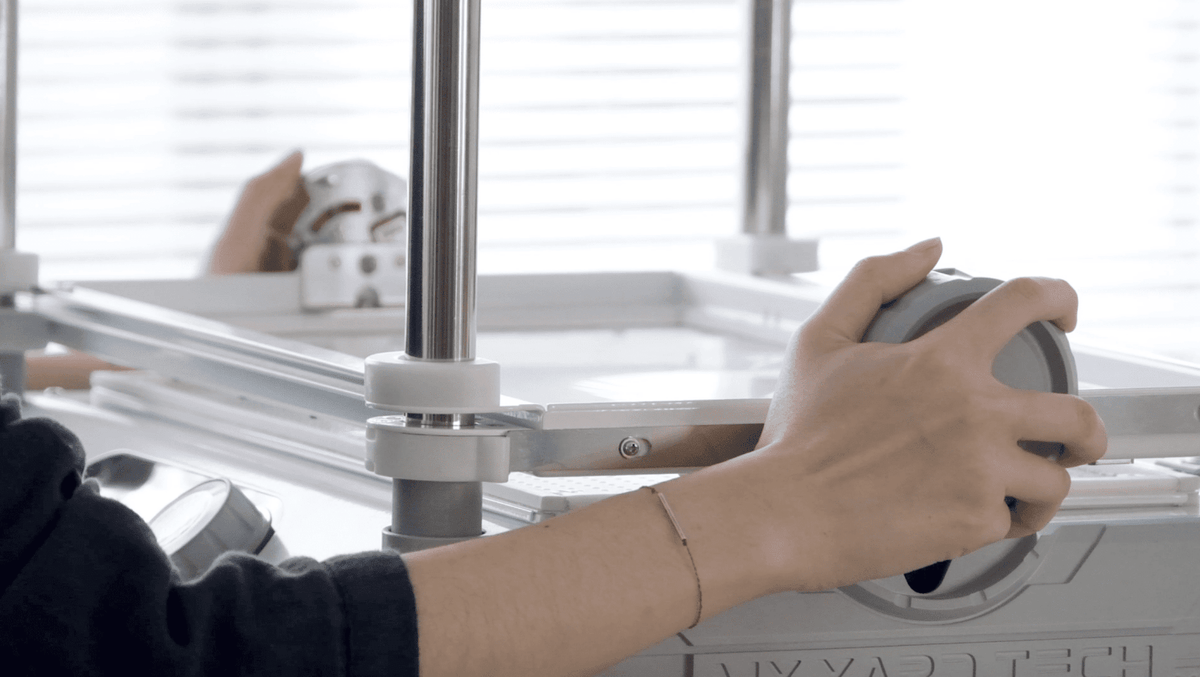

With the patented quick-release frame, you can lock the plastic sheet in place instantly by turning the handle.
In addition, the frame can be stopped at any height, allowing you to quickly insert the next sheet without having to remove your mold.

Unique suction control technology
The FORMART SE not only offers excellent suction power, but also lets you regulate the vacuum level.
The FORMART SE offers three intelligent suction modes, even for beginners. Simply press the button, and the vacuum forming machine will handle the complicated parameters for you.

Fast heating speed

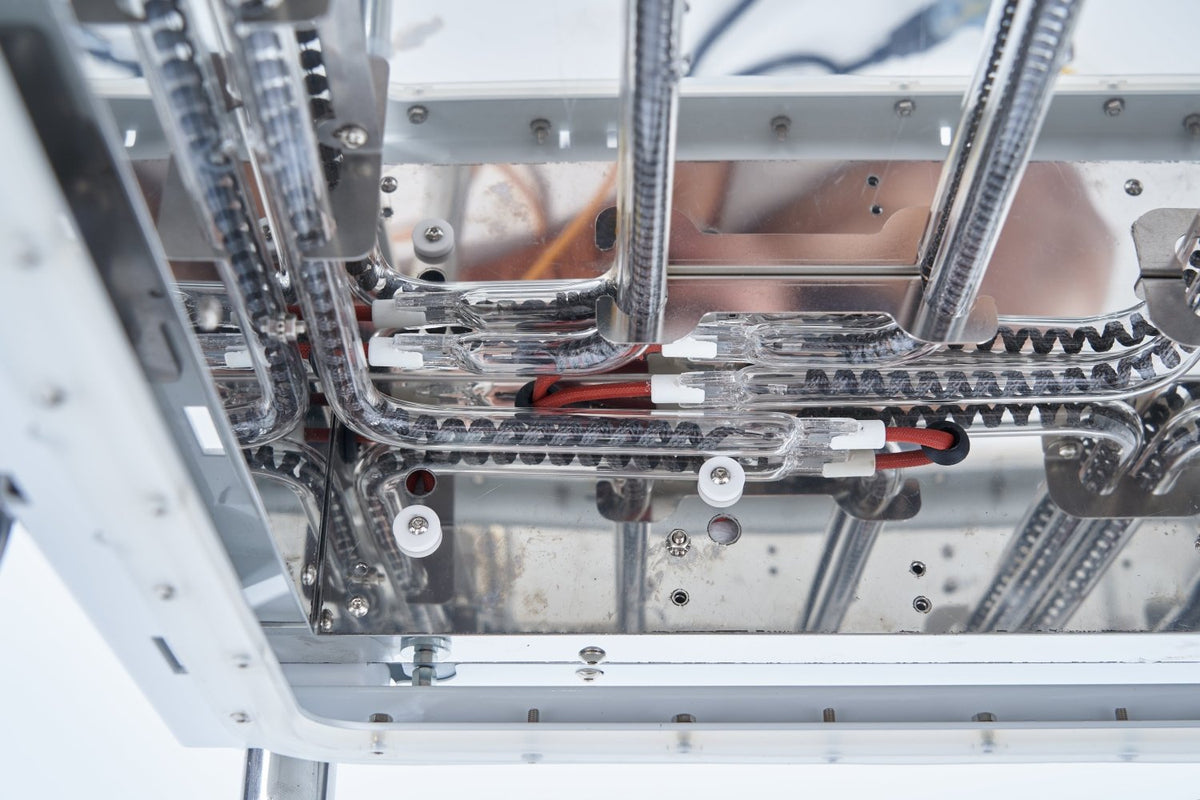

Thanks to its industrial-grade carbon fiber quartz heating tube, the vacuum former heats up to three times faster than competing models. The even heating ensures a forming quality that is on par with professional machines.

Complete material database
The FORMART SE features a fully integrated material database. Whether you use original or third-party sheets, the FORMART SE can handle them. You can also save up to five user settings, allowing you to customize your working parameters.

Unique plastic dehumidifying sheet
FORMART SE is the world's only vacuum forming machine with an integrated sheet dehumidification function. It automatically removes moisture from your sheet, preventing air bubbles from forming during molding.

Specifications:

Package contents:

Box 2

5. Stainless steel tubes
6. Attachment

Included accessories:

• 30 HIPS sheets, 50 cm x 30 cm
• Cat bowl mold set
• Plastic plate size change kit
• Strap removal set
• USB cable
• Heat-resistant gloves
• Basic tool set



FORMART S  vs  FORMART SE  vs  FORMART 2
FORMART S	FORMART SE	FORMART 2
Dimensions
50 x 46 x 31 cm	63 x 53 x 48 cm	63 x 53 x 48 cm
Working area
260 x 168 mm	470 x 270 mm Adjustable	470 x 270 mm Adjustable
Max. object height
160 mm	160 mm	160 mm
Weight
12.8 kg	24 kg	25 kg
Plate thickness
0,3 - 3,0 mm	0,3 - 3,0 mm	0,3 - 3,0 mm
Plate size / sheet size
1 size 30 x 20,5 cm	4 sizes 50 x 30 cm 42 x 30 cm 30 x 30 cm 30 x 20,5 cm	4 sizes 50 x 30 cm 42 x 30 cm 30 x 30 cm 30 x 20,5 cm
Pump type
AC induction pump	Brushless DC pump + AC induction pump	Brushless DC pump + AC induction pump
Display
3.5-inch full-color LCD (480 x 320)	3.5-inch full-color LCD (480 x 320)	3.5-inch full-color LCD (480 x 320)
Heating type
Quartz heating tubes, Temperature range 90 - 230 °C	Quartz heating tubes, Temperature range 90 - 230 °C	Quartz heating tubes, Temperature range 90 - 230 °C
Suction mode
-90 kPA Adjustable flow rate	-90 kPA 3 selectable levels	-90 kPA Adjustable pressure
Power supply
100–120 V AC at 800 W, 220–240 V AC at 800 W	100–120 V AC at 1500 W, 220–240 V AC at 1700 W	100–120 V AC at 1500 W, 220–240 V AC at 1700 W
Other features
CNC wooden forming bed	Alarm speaker	Automatic sheet detector Automatic mold separation Built-in pressure sensor Dual cooling fans Alarm speaker
