SSOP32 and QFP32 to DIP32 adapter board - 0.8 mm pitch, 32 pins
SSOP32 and QFP32 to DIP32 adapter board - 0.8 mm pitch, 32 pins
This goes with it
Pay in 30 days
Pay in 30 days
Description
Product overview
- Adapter board for converting SSOP32 or QFP32 SMD packages to a DIP32 footprint
- Two package sides with a 0.8-mm pitch each, usable as needed
- 32 plated-through holes on a 2.54-mm pitch for breadboards and perfboards
- Purely mechanical component without any electronics of its own
- The SMD IC and DIP pin headers are soldered on by the user
Product description

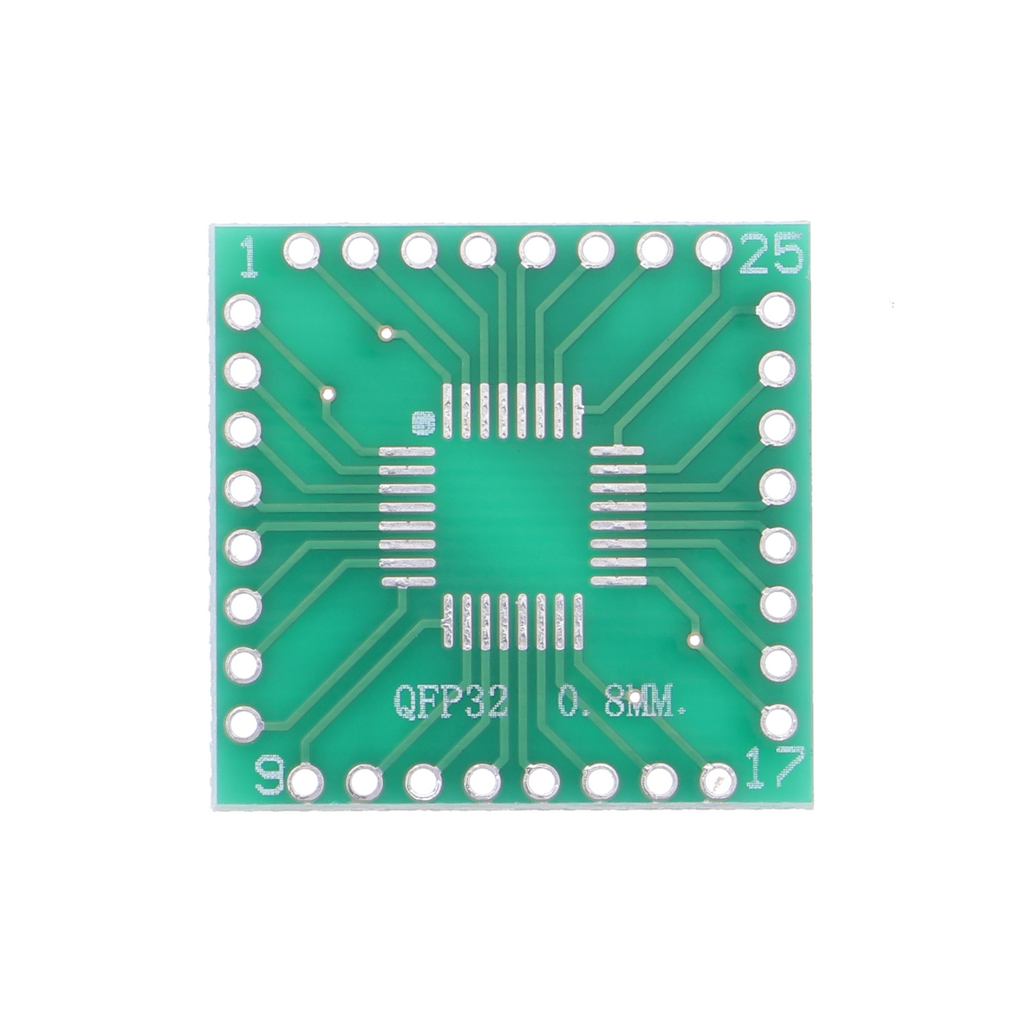

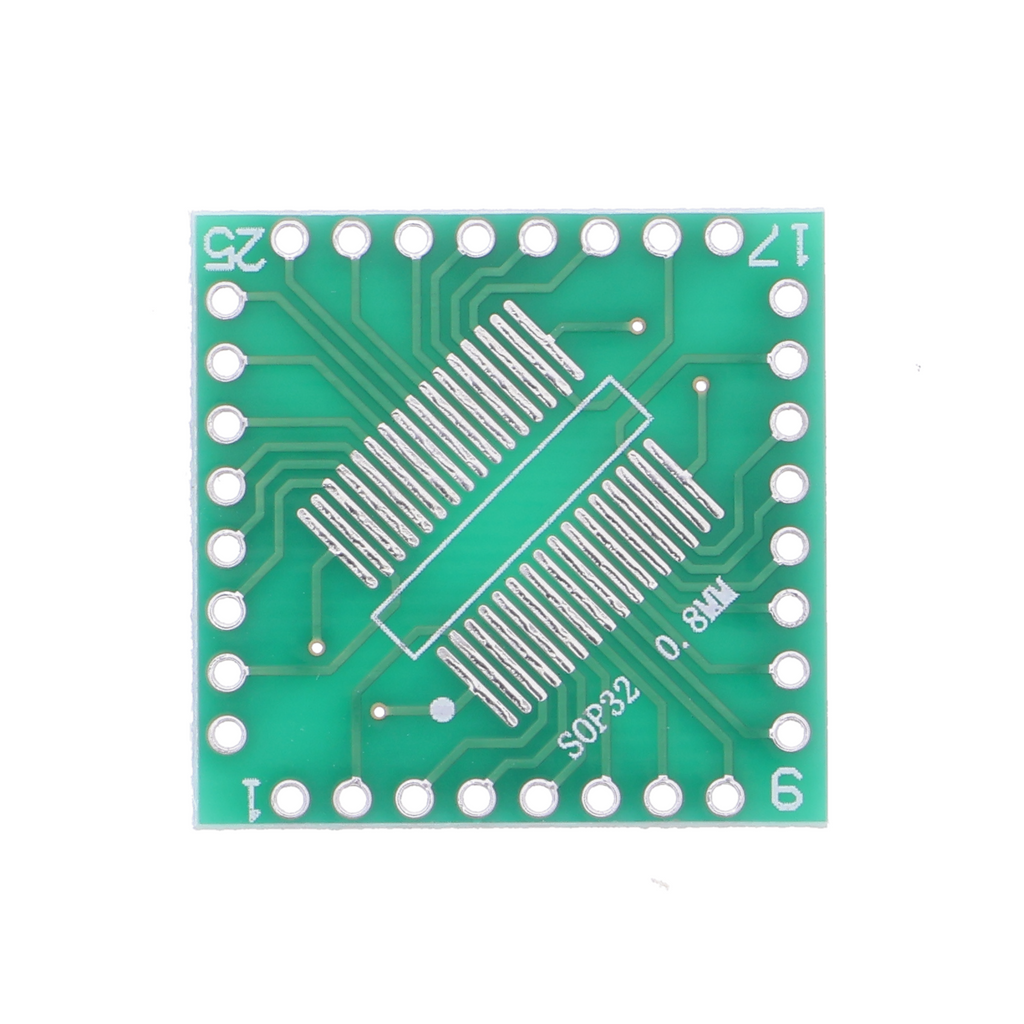

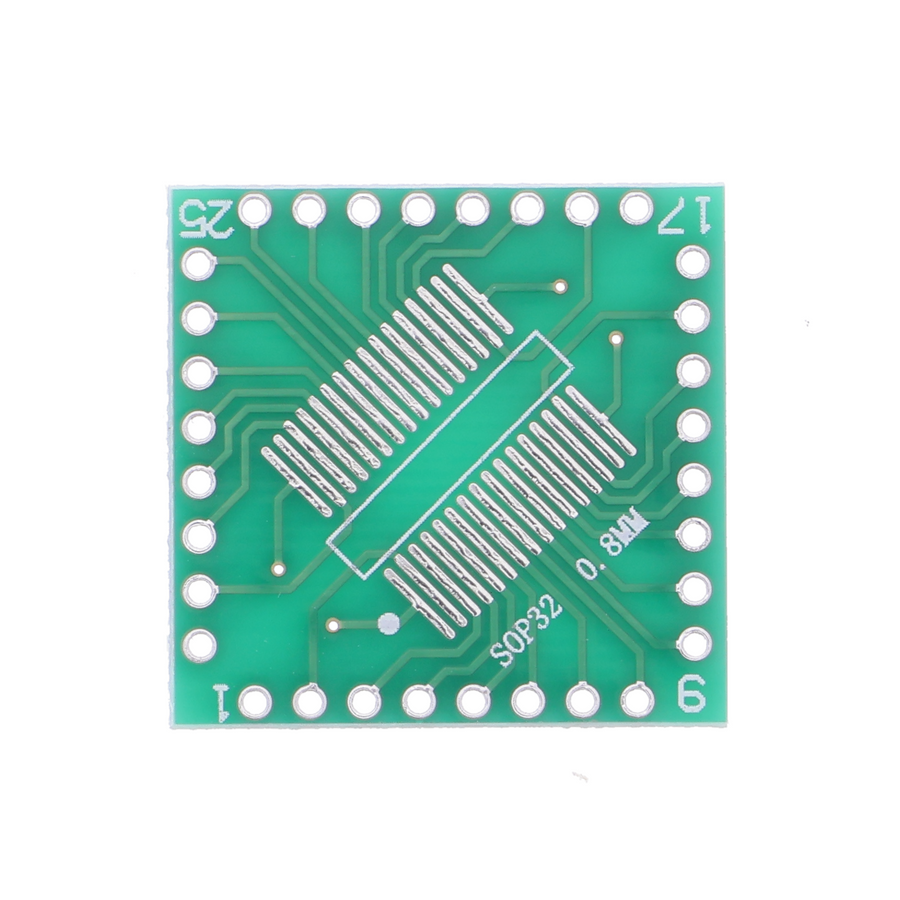

This adapter breakout board bridges the gap between modern SMD packages and the classic breadboard footprint. It provides solder pads on both sides for different package types: one side for QFP32 and the other for SSOP32 or SOP32. This allows either of the two package types to be mounted and soldered, depending on the component available. The fine SMD solder pads with a 0.8-mm pitch are connected via internal traces to 32 plated-through holes arranged on the standard 2.54-mm DIP pitch.
Pin headers or short wire bridges are soldered into these outer holes to make the SMD connections pluggable. The principle is simple: each pin of the soldered IC is connected directly via a trace to its corresponding hole on the outer footprint. Since the board itself contains no components or circuit functionality, the soldered chip alone determines the function of each connection.
Typical applications include testing SMD components on breadboards, integrating them into existing perfboard assemblies with DIP sockets, or connecting them to programming devices designed for DIP packages. The board is also useful for reverse engineering or analyzing SMD components by providing convenient wiring options.
Soldering experience with SMD components is required to mount the IC. The quality of the SMD solder joints determines reliability. Pin headers and their attachment must be checked for correct installation before the circuit is put into operation.
Safety information
This adapter board is intended exclusively for building prototypes and for testing and development purposes. When soldering SMD components and handling the board, observe normal precautions regarding solder and hot tools. Work on or near electrical installations must be carried out by qualified electricians; if anything is unclear, consult a qualified electrician before commissioning a complete circuit.
Scope of delivery
- 1x SSOP32 / QFP32 to DIP32 adapter board - SMD-to-DIP breakout for breadboard & prototyping
