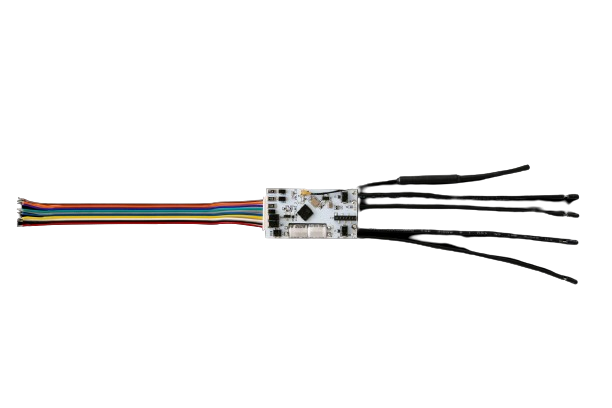

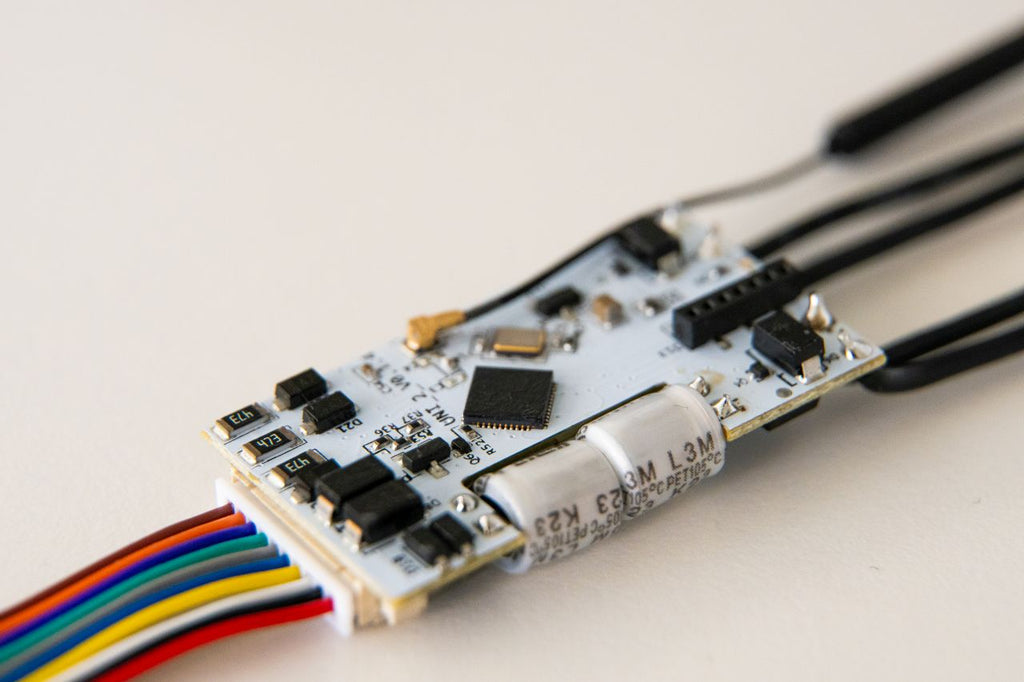

Shelly Plus Uni universal module - flush-mounted, Wi-Fi, 8-24 V AC, 9-28 V DC
Shelly Plus Uni universal module - flush-mounted, Wi-Fi, 8-24 V AC, 9-28 V DC
This goes with it
Pay in 30 days
Pay in 30 days
Description
Smart Wi-Fi-controlled module
This small device was designed for low-voltage systems and offers advanced automation and insightful monitoring. Shelly Plus Uni is ideal for a wide range of households and opens up a range of smart possibilities for your household appliances.
- No hub required! Easy control via the Shelly Smart Control app, most platforms and protocols, and voice assistants. Use it with Alexa, Home Assistant, or your preferred automation platform
- Suitable for small devices with low-voltage AC and DC applications (8-24 VAC, 9-28 VDC, and 5 VDC)
- Features two digital and 1 analog input
- Supports 1-Wire sensors (one DHT22 and up to 5 DS18B20s)
- Compatible with most Arduino sensors! Use the digital or analog inputs to measure your desired parameters and create complex automation scenes based on sensor data
- Receive precise measurement data from your electricity, gas, or water meter (or any other meter that supports pulse counting via external sensors)
- Wi-Fi range extender & BLE gateway
- Extremely fast processor for instant response - ESP32
- Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS, and custom certificates
WHY SHELLY PLUS UNI?
Small device, big capabilities
The Shelly Plus Uni is suitable for low-voltage applications and brings smart features to your old devices. With its new pulse counter function, you can not only automate but also accurately monitor consumption in your home. Designed for durability, the transparent cover provides comprehensive protection, keeping both the device and your household appliances safe at all times. With its powerful functionality and adaptability to any environment, Shelly Plus Uni blends seamlessly into your home and opens up endless possibilities for smart innovation.
Features
Wi-Fi-powered and Bluetooth connectivity
Connect to your Wi-Fi network. No HUB required! Quick setup via Bluetooth or use it as a Bluetooth gateway.
Pulse counting
Receive precise readings from your electricity/gas/water meter
Sensor interface
Works with various analog and digital sensors
Dry contacts
Two potential-free outputs that can switch up to 28VDC and 24VAC.
Precise voltmeter
Precise voltage measurement in 2 ranges (0-15 VDC, 0-30VDC).
Scripting
Shelly Plus Uni fully supports scripting, enabling local control and custom functions.
Endless application possibilities
From manual to smart
Shelly Plus Uni has the unique ability to replace conventional buttons, allowing you to control old devices remotely without replacing them. Now you can easily make your intercom or alarm system smart. Receive instant notifications when someone is at the door and easily arm or disarm your security system remotely.
Advanced sensor interface
Shelly Plus Uni is not just a device, but a tool for understanding your surroundings better. Use it to measure temperature and humidity with its 1-Wire input, or connect it to a wide variety of analog and digital sensors. Depending on which sensors you choose, the device's possibilities are highly versatile.
Healthy garden
Make sure you only water your plants when necessary by connecting a soil moisture sensor.
Water heaters and pipes
Monitor water level, flow, pressure, and temperature to prevent problems and create ideal conditions.
Pool automation
With sensors for monitoring water flow, water level, pH value, chlorine, and temperature, you can maintain your pool's health and ensure a safe and enjoyable swimming experience.
Motion-activated lights
When connected to a PIR sensor, Shelly Plus Uni can trigger a relay that switches on the lights as soon as you enter the room.
Stay connected to your gate and garage
Whether you are at home or away, you can effortlessly operate your gate or garage with your phone. But that's not all: the reed switch provides real-time updates, so you always know whether the gate is safely closed or open. This setup simplifies your daily routine, whether you're closing the garage from the office or welcoming guests without leaving the house.
Use your meter data to save
Shelly Plus Uni's new pulse counting function adds an intelligent twist to your home utilities. When you connect the device to your electricity or water meter, you get a clear overview of your electricity and water consumption. Create an automation and reduce your monthly costs based on the measurement data from your electricity, water, or gas meter.
Full compatibility
Shelly devices are compatible with Alexa, Google Home, Android, and iOS. Together with the voice assistant, you can control Shelly devices with your voice!
Technical specifications
| Dimensions (LxWxH) | 37x42x16 mm / 1.46x1.65x0.63 in (without cable) |
|---|---|
| Weight | 8.5 g / 0.3 oz |
| Ambient temperature | -20 °C to 40 °C / -4 °F to 104 °F |
| Humidity | 30% to 70% RH |
| Power supply | 8-24 VAC / 9-28 VDC / 5 VDC (stabilized, via +5 VDC and GND) |
| Power consumption | < 1 W |
| Digital input resistance | 50 kΩ |
| Digital input trigger voltage | 1.5 V (active low level) |
| Maximum switching voltage | 30 V |
| Maximum switching current | 250 mA |
| Voltmeter | 0-15 VDC / 0-30 VDC (two ranges) |
| Pulse counter input trigger voltage | 1.5 V (active low level) |
| Pulse counter maximum frequency | 1 kHz |
| Supported external sensors | One DHT22 or up to five DS18B20 |
| Frequency band | 2400 - 2495 MHz |
| Maximum transmission power in frequency band | <20 dBm |
| Wi-Fi protocol | 802.11 b/g/n |
| WI-FI RANGE (DEPENDING ON LOCAL CONDITIONS): | |
| up to 50 m / 160 ft | outdoors |
| up to 30 m / 100 ft | indoors"" |
| Bluetooth protocol | 4.2 |
| BLUETOOTH RANGE (DEPENDING ON LOCAL CONDITIONS): | |
| up to 30 m / 100 ft | outdoors |
| up to 10 m / 33 ft | indoors |
| CPU | ESP32 |
| Flash | 4 MB |
| Schedules | 20 |
| Webhooks (URL actions) | 20 with 5 URLs per webhook |
| Scripting | Yes |
| MQTT | Yes |
