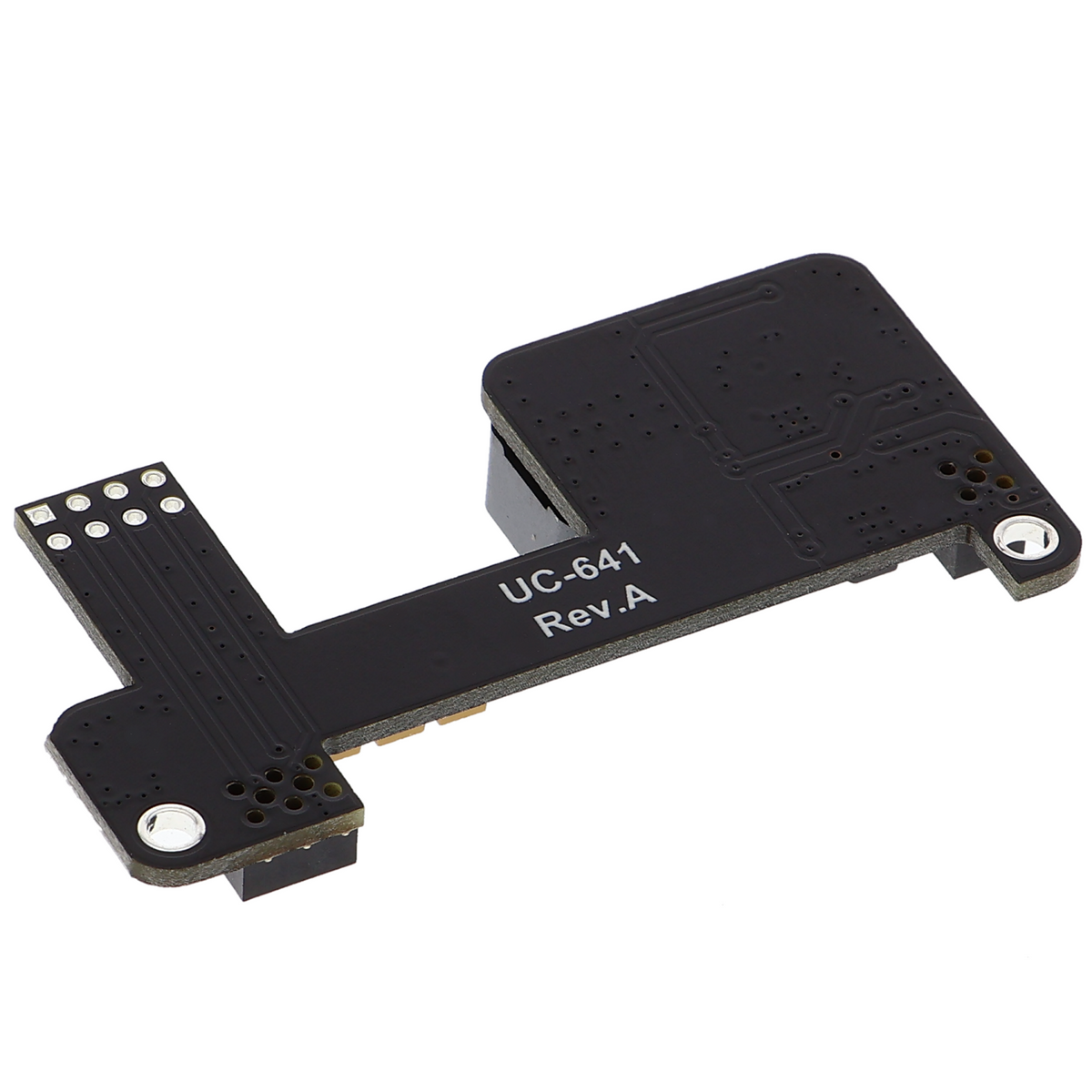

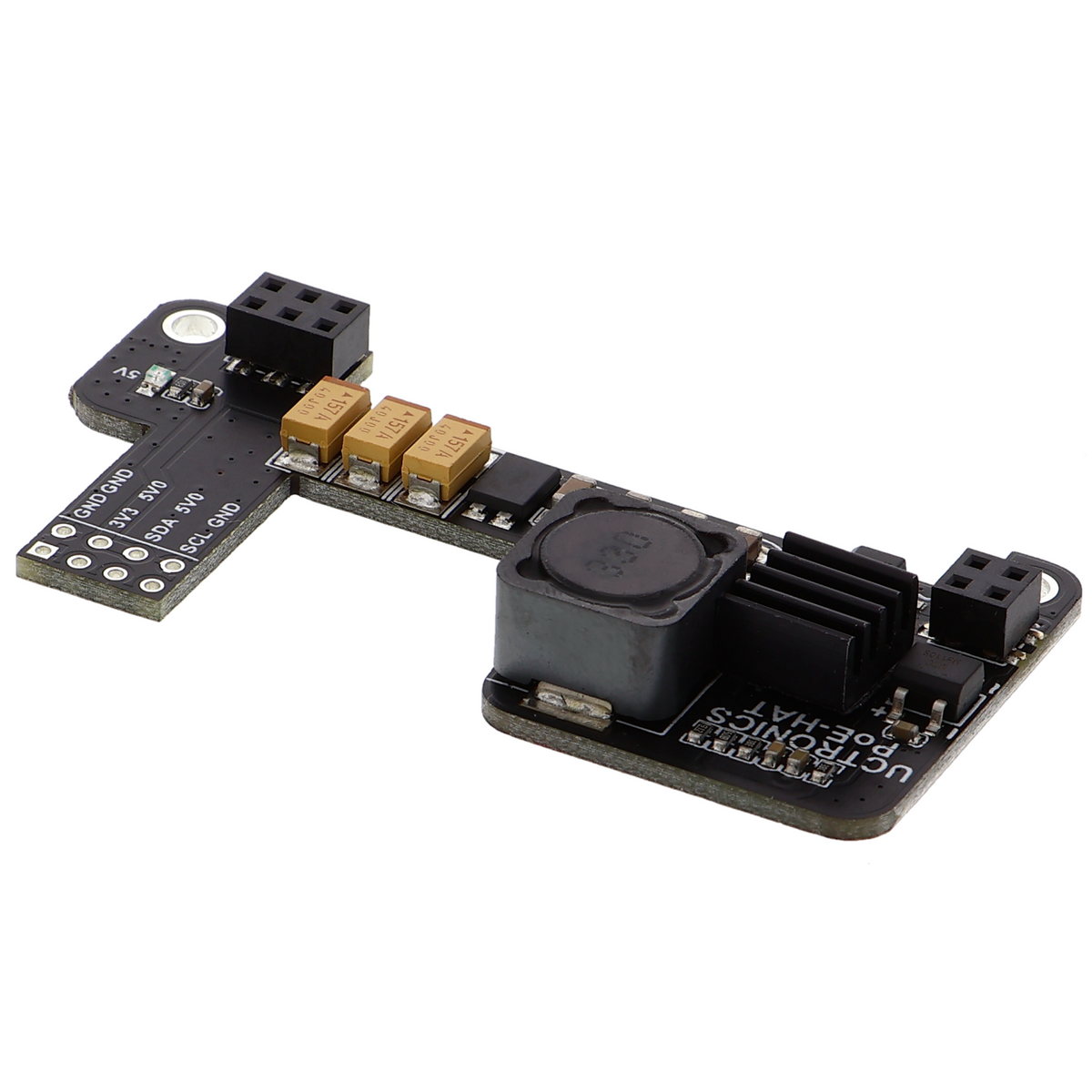

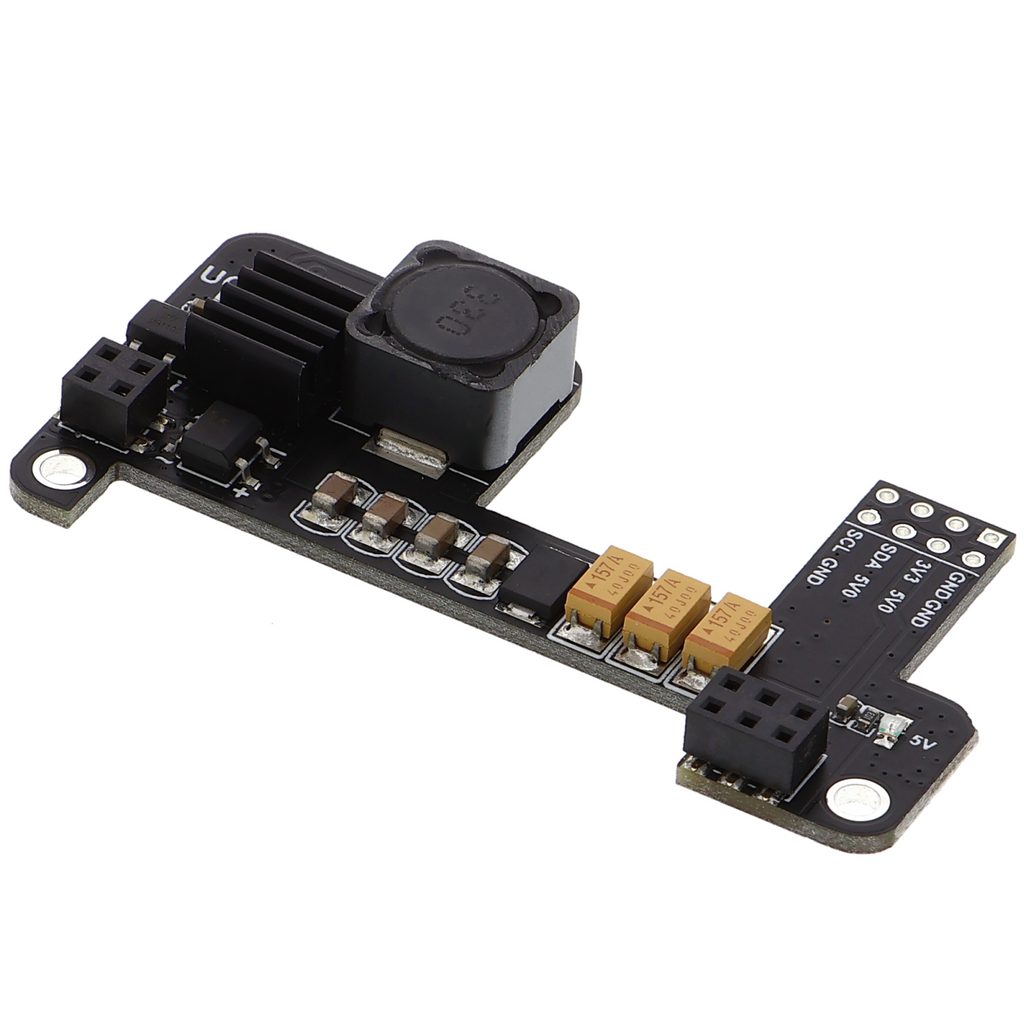

UCTRONICS UC-641 PoE HAT - shield for Raspberry Pi 4B and 3B+

The UCTRONICS shield is suitable for use with a Raspberry Pi model with PoE pins (such as the Raspberry Pi 3 Model B+ and Raspberry Pi 4 Model B) to provide clean and reliable power via an Ethernet cable.

A router or switch with PoE power supply is also required. Due to its small size (approximately half that of its predecessor), no GPIO pins of the Raspberry Pi are occupied, leaving more space for other components, and it fits most Raspberry Pi cases.

Note:

• Cooling and ventilation of the module are recommended to ensure stable operation.
• New, without original packaging. The switch was installed in a system but never used there. The switch was removed again and tested. The statutory warranty applies.

Overview:

• Type: Power overlay
• Model: Uctronics U6241
• Compatible with: Raspberry Pi 4B and Raspberry Pi 3B+
• Input voltage range: 40 V to 57 V
• Output voltage: 5V / 2.5A max.
• Total power: 12.5 W
• Standard: IEEE 802.3af
• Soldered: yes
• Dimensions: 65x40x8mm
• Weight: 10 g

Scope of delivery:

• 1x Mini PoE HAT
