Item no.: F25111349

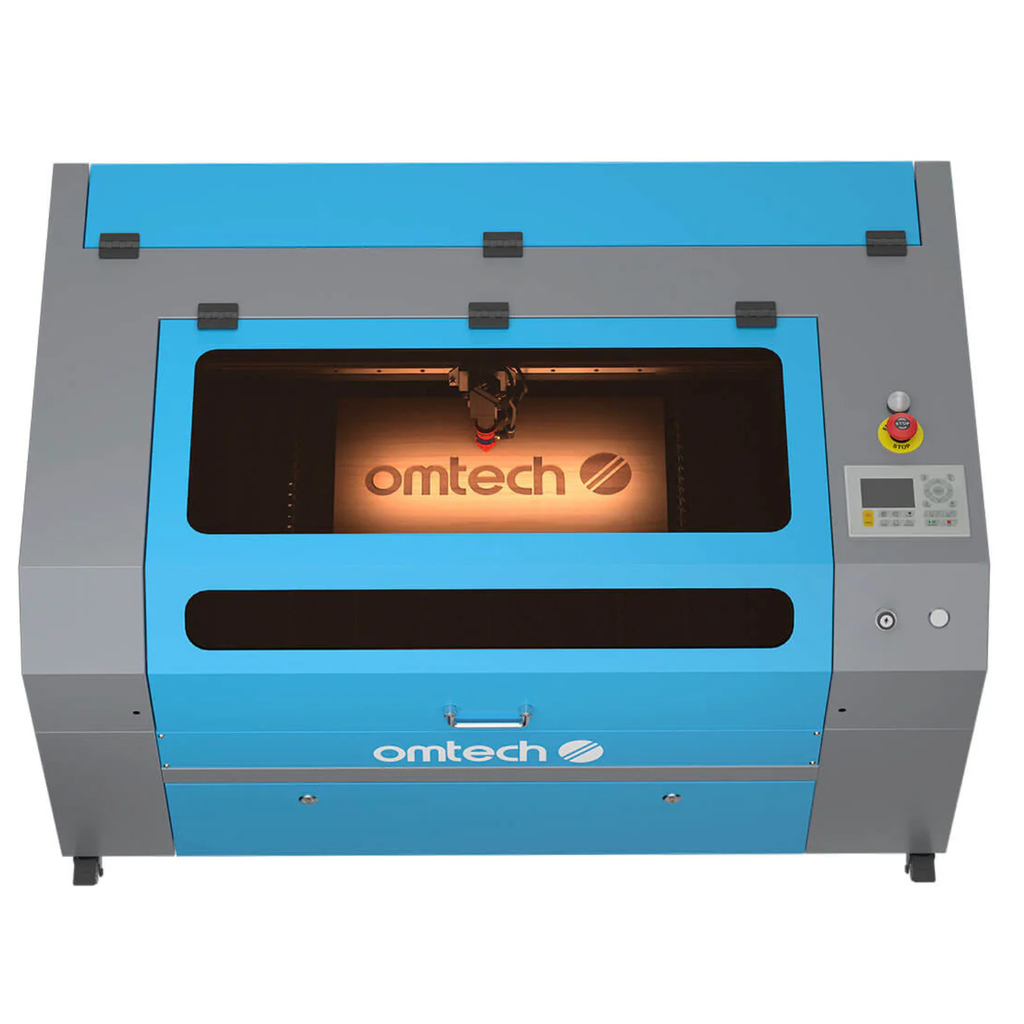

OMTech Turbo-747 - 70 W CO2 laser cutter, 750 x 400 mm
Regular price Sale price 3.049,99 €
Available to order – with you in 7–10 Werktagen.
Lieferzeit: 7–10 Werktage
Lightning-fast shippingfrom Germany
100,000+satisfied customers
Since 2014from a specialist retailer
30 daysRight of return
30-day return policy
12+ years of experience
Lightning-fast shipping from Germany
Pay in 30 days
Pay in 30 days
Pay in 30 days
Pay in 30 days
Description
OMTech Turbo-747 70W CO2 Laser Engraving Machine & Cutter with 750 x 400 mm engraving area
The OMTech Turbo-747 combines 70 W of CO2 laser power with a 750 x 400 mm working area, 795 x 515 mm loading area and engraving speeds of up to 600 mm/s. The autofocus works with motorized height-adjustable worktables and enables focusing at the touch of a button.
Honeycomb and aluminum slat cutting tables are included. The Ruida digital controller is compatible with LightBurn and processes files up to 256 MB. Rotary-Roller GL49 and Rotary-Chuck KP58 can be added separately.
Highlights
- 70 W CO2 laser: For engraving and cutting projects with suitable materials
- Up to 600 mm/s: High maximum engraving speed
- 750 x 400 mm working area: For larger workpieces and multiple parts
- Autofocus: One-touch focusing with motorized height adjustment
- Up to 230 mm workpiece height: Flexible for objects of different heights
- Two worktables: Honeycomb and aluminum slat cutting tables included
- Rotary-axis compatible: Rotary-Roller GL49 and Rotary-Chuck KP58 available separately
Product images
Materials and applications
- Engraving and cutting: Wood, acrylic, plastic, MDF, leather, paper, rubber, foam, cardboard and textiles
- Engraving only: Glass, stone and suitable metal coatings
- Uncoated stainless steel, gold, silver, aluminum and titanium are not suitable according to the material matrix
Safety and operation
- Laser Class 1: Enclosed design with interlock system, emergency stop and key switch
- Optional pass-through: laser class 4 when used, according to the product data
- SGS safety relay: ISO 13849-1:2023, PL e, category 4
- PC cover: fire protection class V-2
- Water cooling: for dissipating heat from the CO2 laser tube
Technical data
| Specification | Turbo-747 |
|---|---|
| Laser type / power | CO2 / 70 W |
| Working area | 750 x 400 mm |
| Loading area | 795 x 515 mm |
| Maximum engraving speed | 600 mm/s |
| Focus / height adjustment | Autofocus / automatic |
| Maximum workpiece height | 230 mm |
| Work tables | Honeycomb and aluminum slat cutting table |
| Processing accuracy | 0.01 mm |
| Laser precision | Up to 1000 dpi |
| Laser wavelength | 10.6 μm |
| Laser tube | 1100 x 50 mm |
| Tube service life | 1,000 hrs. >70%, 1,500 hrs. 40-70%, 2,000 hrs. <40% power |
| Cooling | Water cooling |
| Exhaust fan | 326 m³/h |
| Air compressor | 30 L/min |
| Laser head flow rate | 15 L/min |
| Power supply | 220-240 V, 50 Hz |
| Laser class | Class 1; class 4 with the optional pass-through |
| Product size | 125 x 77 x 67 cm |
| Package size | 138 x 97 x 89 cm |
| Net weight | 102 kg |
Software and connectivity
RDWorks for Windows is included. Compatible software includes CorelLaser, LightBurn for Windows and macOS, CorelDRAW, and AutoCAD. Raster, vector, and combined modes are supported, as are USB flash drives, USB cables, and Ethernet.
Scope of delivery
- 1 x 70W laser engraving machine
- 1 x exhaust fan
- 1 x water pump
- 2 x water pipes
- 1 x exhaust pipe
- 1 x USB flash drive
- 1 x USB cable
- 1 x Ethernet cable
- 1 x wrench set
- 2 x laser keys
- 2 x access keys
- 1 x user manual
Warranty
- 2-year parts warranty
- 6-month warranty on laser tube and power supply
Notes
- Rotary Roller GL49 and Rotary Chuck KP58 are available separately.
- The actual cutting performance depends on the material, thickness, focus, and process parameters.
- With the optional pass-through, the product data indicates laser class 4.
