Description

OMTech Pronto-35X 100W CO2 Laser Cutter & Engraving Machine with 700 x 500 mm engraving area

The OMTech Pronto-35X is a 100 W CO2 laser cutter and engraver with a 700 x 500 mm engraving area, an engraving speed of up to 1000 mm/s and autofocus with red light. Workpieces up to 220 mm high can be processed.

The motion system combines V-wheel guidance, precision belts and a ball screw drive. The Ruida digital controller is compatible with LightBurn. According to the product specifications, a separately available CW-5200 water chiller is required for operation.

Highlights

  • 100 W CO2 laser: for demanding engraving and cutting projects
  • Up to 1000 mm/s: high maximum engraving speed
  • 700 x 500 mm engraving area: for larger workpieces and production runs
  • Autofocus with red light: contactless focusing and visible alignment
  • Up to 220 mm workpiece height: flexible for objects of different heights
  • 35 mm acrylic: specified as the maximum cutting depth in the technical data
  • 540 m³/h exhaust air: for smoke and dust extraction
  • 125 L/min air assist: to support clean cut edges

Materials and applications

  • Wood, paper, leather, plastic and acrylic
  • Hardwood, glass, metal and stone according to the product page
  • Engraving and cutting projects with large-format workpieces
  • Round objects with optional Rotary-Roller GL49 or Rotary-Chuck KP58
  • Longer and bulky workpieces through the pass-through

Safety and monitoring

  • Laser class 1: enclosed design with interlock system, emergency stop and key switch
  • Open pass-through: laser class 4 according to the product specifications
  • SGS safety relay: ISO 13849-1:2023, PL e, Category 4
  • Pressure sensor: alarm when pressure drops
  • Temperature sensor: stops laser emission at 55 °C and triggers an alarm
  • Flame-retardant PC plate: additional protective function in the housing

Technical data

Specification Pronto-35X
Laser type / power CO2 / 100 W
Engraving area 700 x 500 mm
Max. engraving speed 1000 mm/s
Focus Autofocus with red light
Max. workpiece height 220 mm
Front/rear pass-through 836 x 97 mm
Max. cutting depth 35 mm (acrylic)
Processing accuracy 0.01 mm
Laser precision Up to 1000 dpi
Laser wavelength 10.6 μm
Laser lifespan 8,000 hrs. >70%, 10,000 hrs. 40-70%, 12,000 hrs. <40% power
Cooling Water cooling
Exhaust fan 540 m³/h
Air compressor 125 L/min
Laser safety class Class 1; class 4 with the pass-through open
Dimensions 171 x 101 x 82 cm
Net weight 223 kg

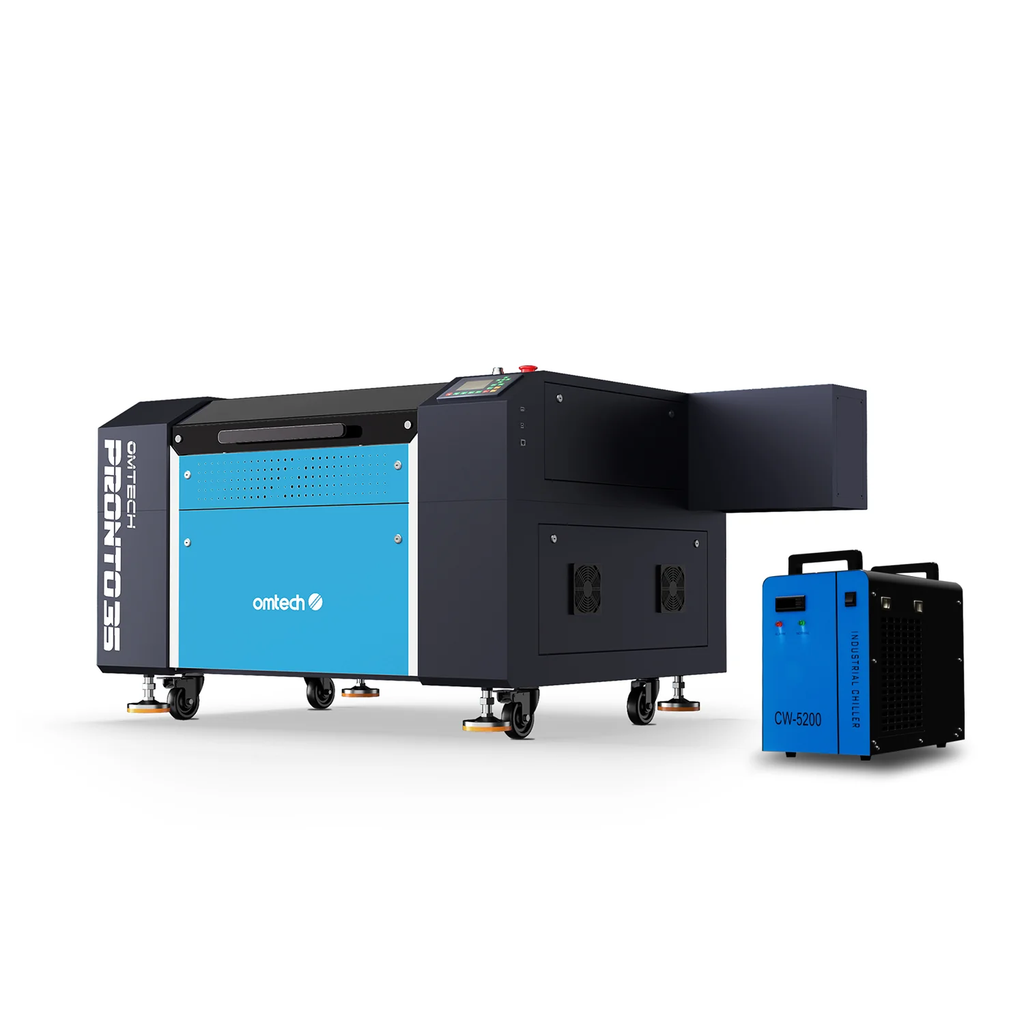

Required accessories CW-5200 water chiller

Software and connectivity

RDWorks for Windows is included. CorelLaser, LightBurn for Windows and macOS, CorelDRAW, and AutoCAD are also compatible. Raster, vector, and combined modes are supported, as is data transfer via USB stick, USB cable, or Ethernet.

Scope of delivery

  • 1 x 100W laser machine
  • 1 x Exhaust fan
  • 2 x Exhaust ducts
  • 1 x Power cable
  • 1 x USB cable
  • 1 x Ethernet cable
  • 3 x Tube clamps
  • 2 x Laser keys
  • 4 x Access keys
  • 1 x USB stick
  • 2 x Focusing lens repair tools
  • 1 x Set of Allen keys
  • 1 x Phillips screwdriver
  • 1 x Slotted screwdriver
  • 2 x Water hoses
  • 1 x Power cable for the water chiller
  • 1 x Rebate card
  • 1 x Toolbox
  • 1 x Air assist pump
  • 1 x Double-sided tape
  • 1 x Silicone sealant
  • 2 x Water hose clamps
  • 1 x Ceramic test resistor
  • 1 x Manual

Warranty

  • 2-year parts warranty
  • 1-year warranty on laser tube and power supply

Notes

  • According to the product specifications, a separately available CW-5200 water chiller is required for operation.
  • Rotary Roller GL49 and Rotary Chuck KP58 are available separately.
  • The actual cutting performance depends on the material, thickness, focus, and process parameters.
  • According to the product specifications, laser class 4 applies when the pass-through is open.
