Item no.: F25111366
OMTech M60C - 60 W MOPA Laser Engraver with Autofocus
Regular price Sale price 5.199,99 €
Available to order – with you in 7–10 Werktagen.
Lieferzeit: 7–10 Werktage
Lightning-fast shippingfrom Germany
100,000+satisfied customers
Since 2014from a specialist retailer
30 daysRight of return
30-day return policy
12+ years of experience
Lightning-fast shipping from Germany
Pay in 30 days
Pay in 30 days
Pay in 30 days
Pay in 30 days
Description
OMTech M60C 60W MOPA laser engraving machine with autofocus for metal engraving
The OMTech M60C is a 60 W MOPA laser engraving machine with autofocus for precise marking on metal and other suitable materials. It operates with a wavelength of 1064 nm, an engraving speed of up to 10,000 mm/s, and a marking accuracy of ±0.01 mm.
MOPA technology enables an adjustable pulse width of 2-500 ns and a frequency range of 1-4000 kHz. According to the product data, the M60C is suitable for color engraving on stainless steel, high-contrast plastic marking, as well as deep engraving and fast surface finishing on aluminum, steel, brass, and titanium.
Highlights
- 60 W MOPA laser: for powerful and flexible metal marking
- 2-500 ns pulse width: wide adjustment range for different engraving applications
- 1-4000 kHz frequency range: versatile parameterization

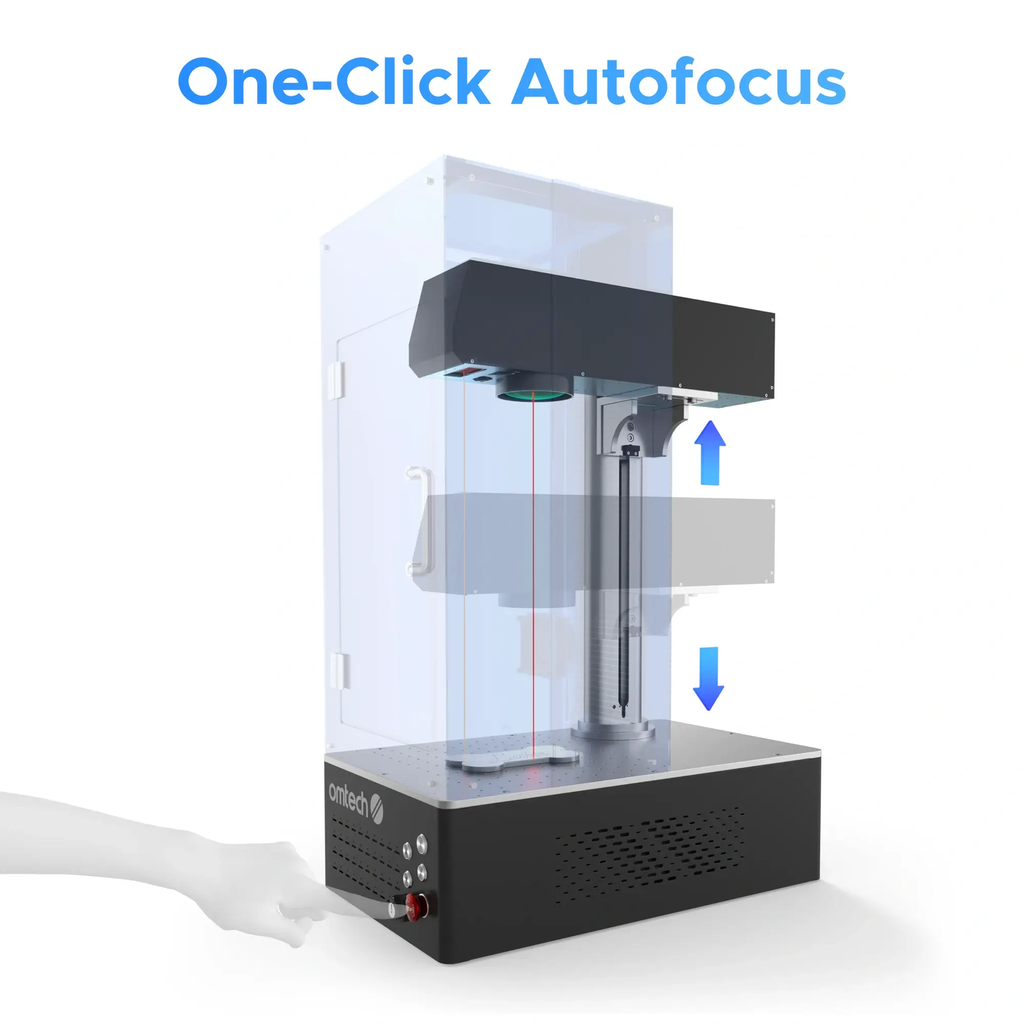

- One-click autofocus: convenient and fast focusing
- Up to 10,000 mm/s: high engraving speed for efficient workflows
- ±0.01 mm marking accuracy: for fine logos, barcodes, and serial numbers
- Red frame preview: supports design sizing and positioning
- Expandable for round engraving: with optional rotary axis attachment
Product images

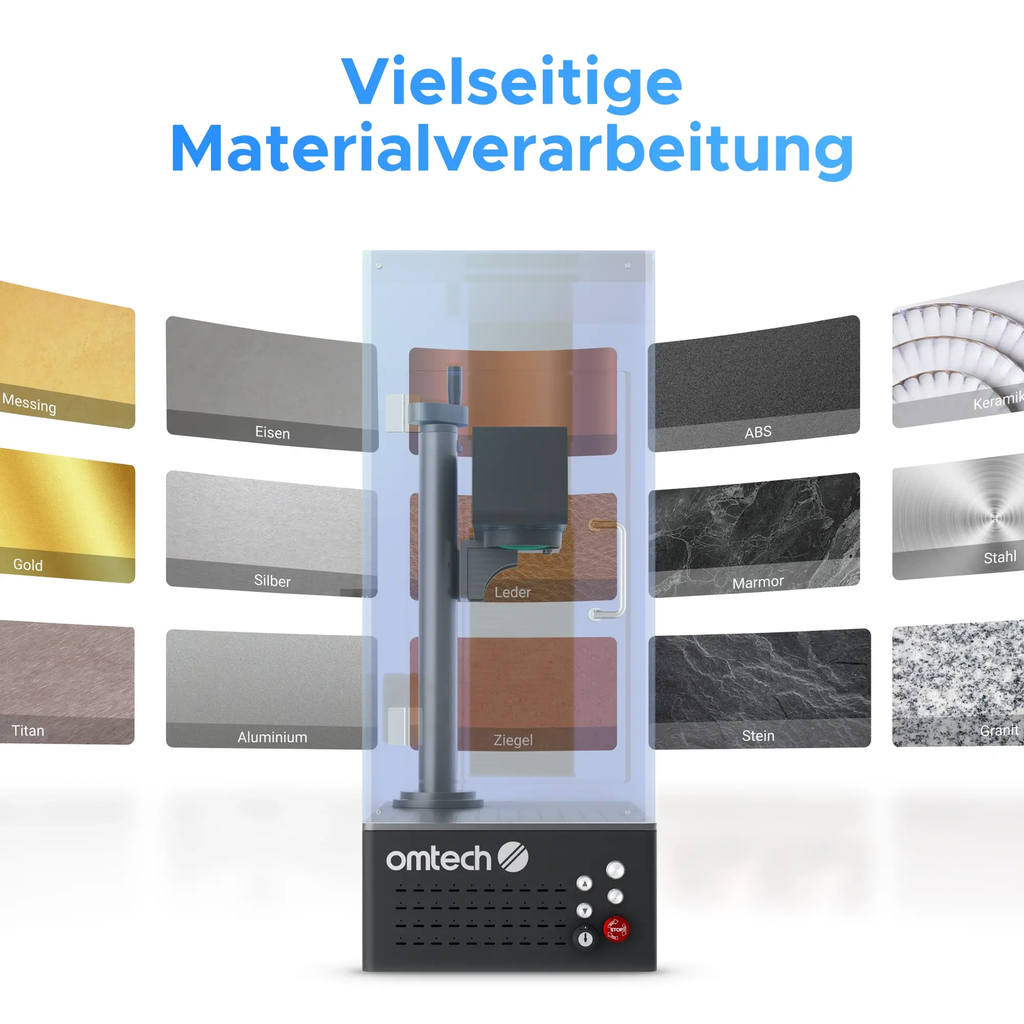

Materials and applications
- Stainless steel for color engraving
- Plastics for high-contrast markings
- Aluminum, steel, brass, and titanium
- Words, logos, images, and barcodes
- Precise markings and fast surface finishing
- Round engraving with optional rotary axis attachment
Technical data
| Specification | M60C |
|---|---|
| Laser type | MOPA laser |
| Laser power | 60 W |
| Laser wavelength | 1064 nm |
| Laser frequency | 1-4000 kHz |
| Pulse width | 2-500 ns |
| Field lens focal length | 210 mm |
| Processing area | 150 x 150 mm |
| Work area | 250 x 340 mm |
| Max. engraving speed | 10,000 mm/s |
| Max. engraving depth | 0.03 mm |
| Marking accuracy | ±0.01 mm |
| Positioning accuracy | ±1 mm |
| Laser operating life (MTTF) | 100,000 hours |
| Operating temperature | 0-40 °C |
| Software | EzCad2 for Windows 7, 8, 10 & 11 |
| Image formats | .ai, .bmp, .dx, .dxf, .gif, .jpg, .plt, .png, .tga, .tif |
| Overall dimensions | 68 x 34 x 71 cm |
| Net weight | 24.5 kg |

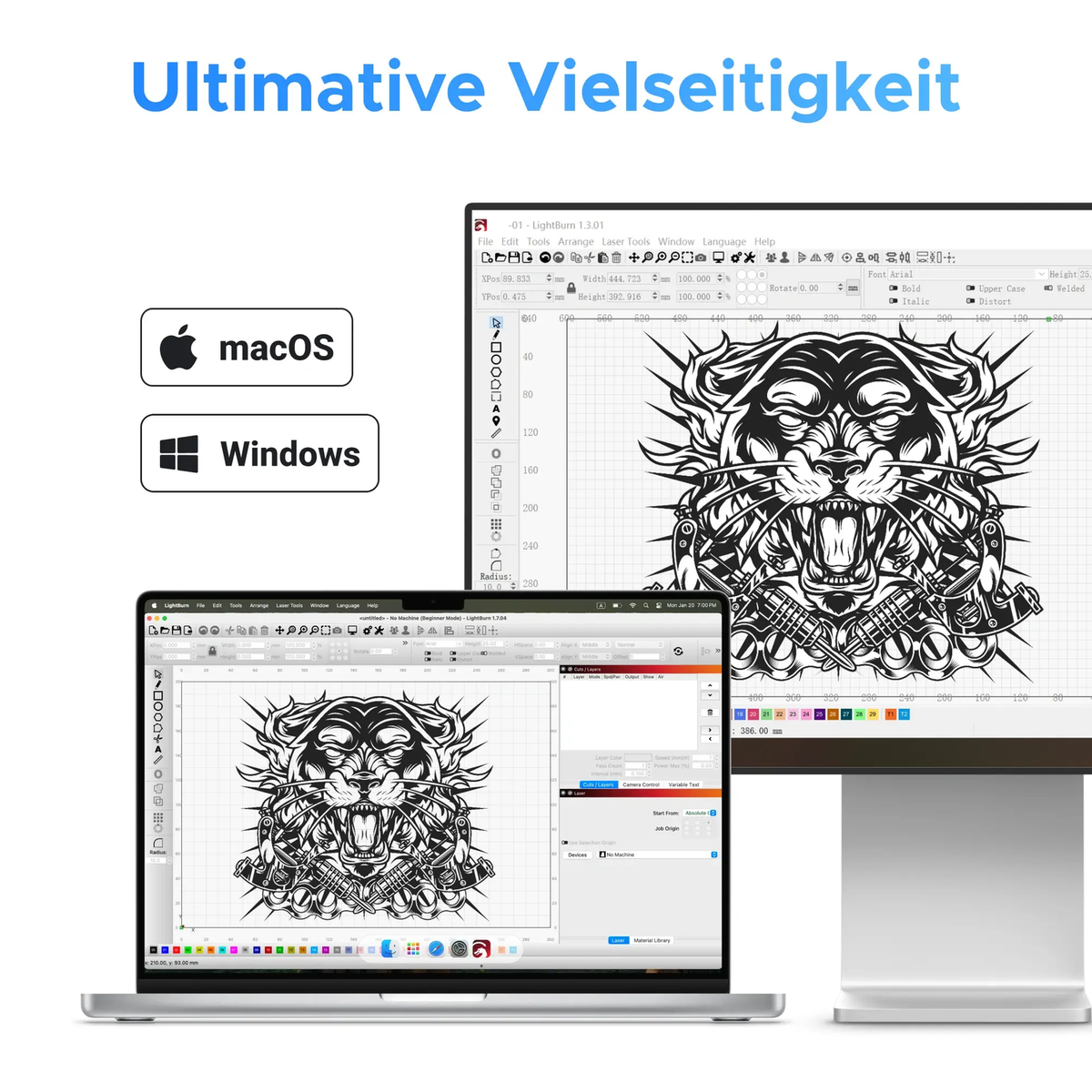

Software and compatibility
EzCad2 for Windows 7, 8, 10, and 11 is specified as the operating software. The page content additionally mentions LightBurn compatibility.
Scope of delivery
- 1 x Control cabinet with laser arm
- 1 x Support column
- 1 x Power cable
- 1 x USB cable
- 1 x USB flash drive
- 2 x Laser buttons
- 1 x Ruler
- 1 x Hex key set
- 2 x Position locking rods
- 1 x Installation screw set
- 1 x Safety goggles
- 1 x Screwdriver
- 1 x User manual
Notes
- The rotary axis attachment is not included in the standard scope of delivery.
- The suitability of the respective material and appropriate laser parameters must be checked before processing.
- Color marking, contrast, and engraving depth depend, among other things, on the material, surface, and selected laser parameters.
