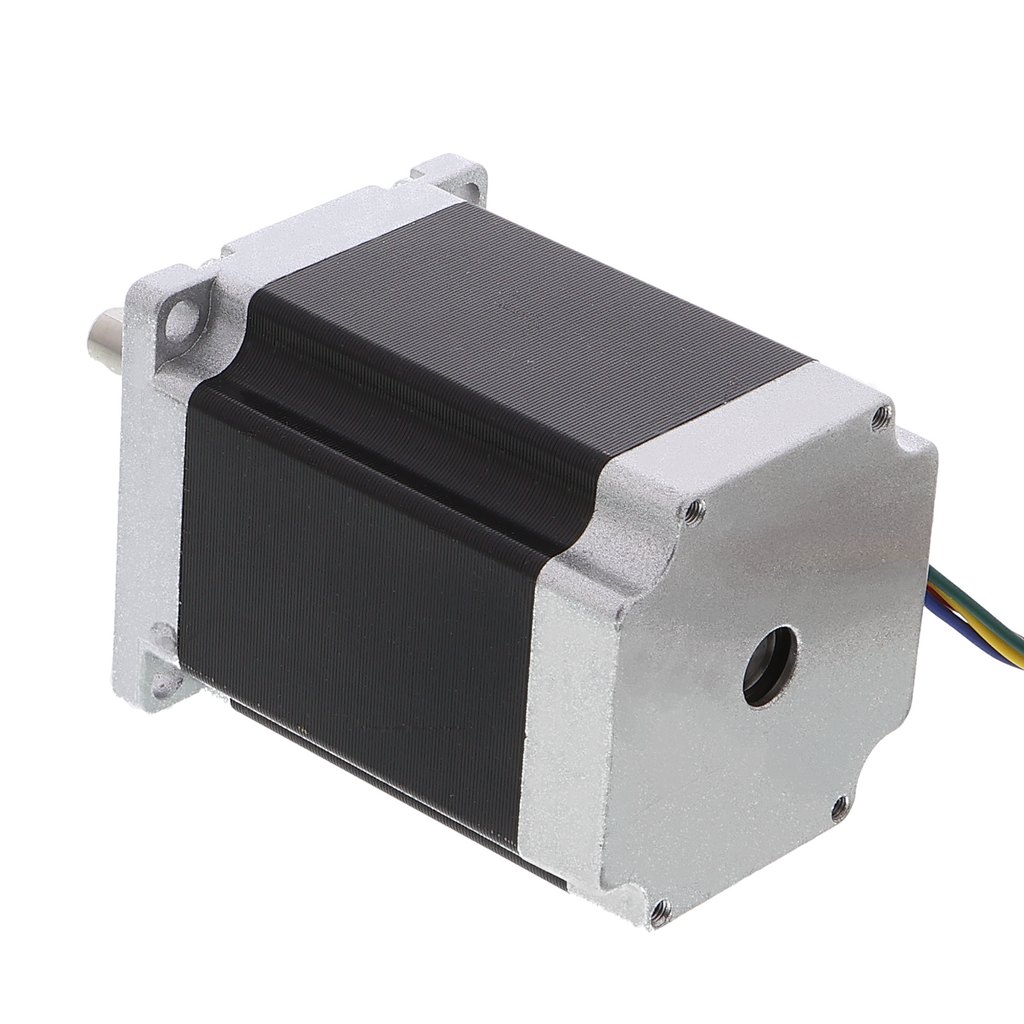

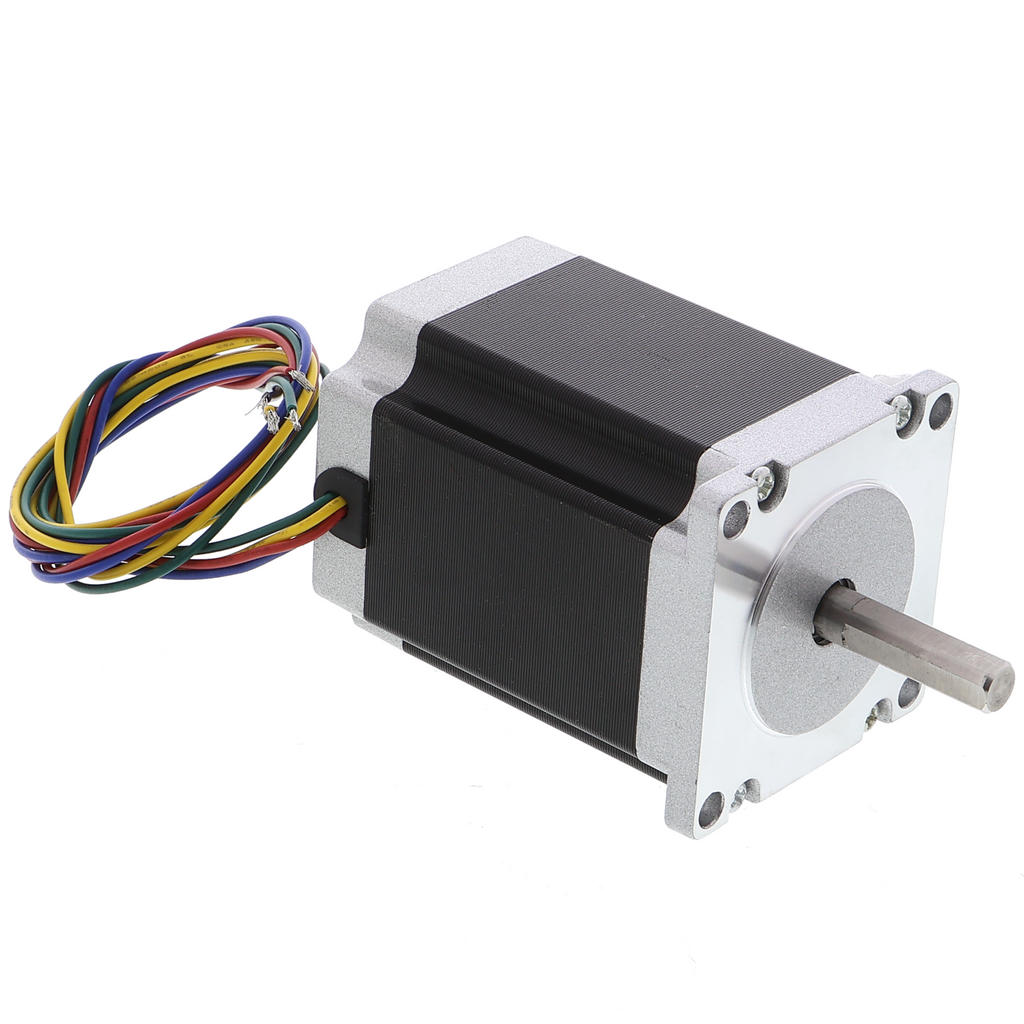

NEMA23 Stepper Motor - 1,8 Nm, 3 A, 76 mm Length
This goes with it
Pay in 30 days
Pay in 30 days
Description
Product Overview
- Stepper motor in NEMA23 format, 76 mm body length

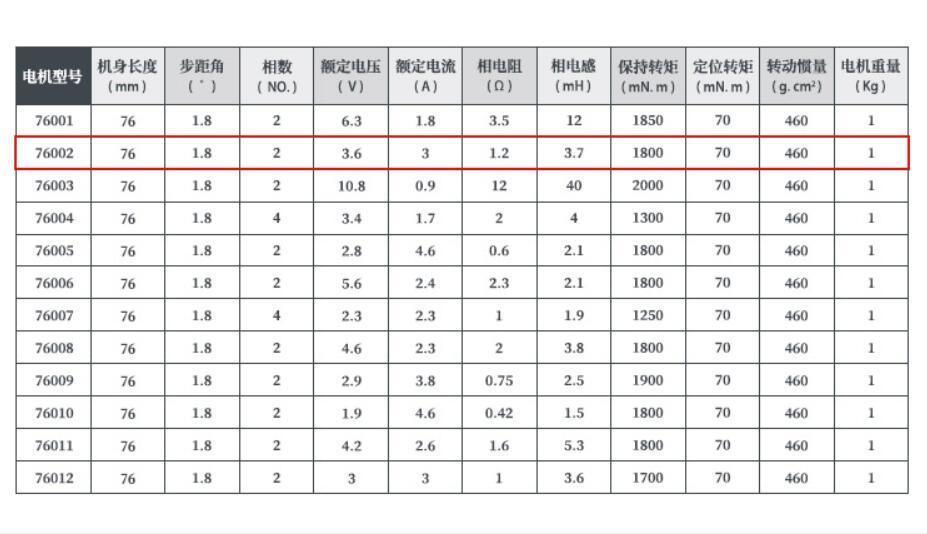

- Provides 1.8 Nm of torque and draws a rated current of 3 A
- 1/8-step resolution for precise positioning
- Standard M5 thread for flange mounting
- With parallel connections for stepper motor drivers
Product Description
A stepper motor conforming to the NEMA23 standard converts electrical pulses directly into rotary motion. With its four-phase design, it divides a complete revolution into more than 1500 steps when the 1/8-step resolution of the connected driver is used. This enables positioning without a gearbox or feedback.
The torque of 1.8 Nm is sufficient for medium loads; the rated current of 3 A per phase requires a driver with an adequate power supply. The compact body length of 76 mm also fits in confined installation spaces. Holding torque decreases as the speed increases, so fast and slow motion sequences must be calculated separately.
Motors like these are commonly used in gantry milling machines and for controlling linear stages, where three axes operate simultaneously. They are also found in labeling machines and automated dispensers, where an accurate step count ensures precise portioning. Laboratory automation systems for sample positioning and warehouse management systems likewise rely on this type of open-loop positioning control.

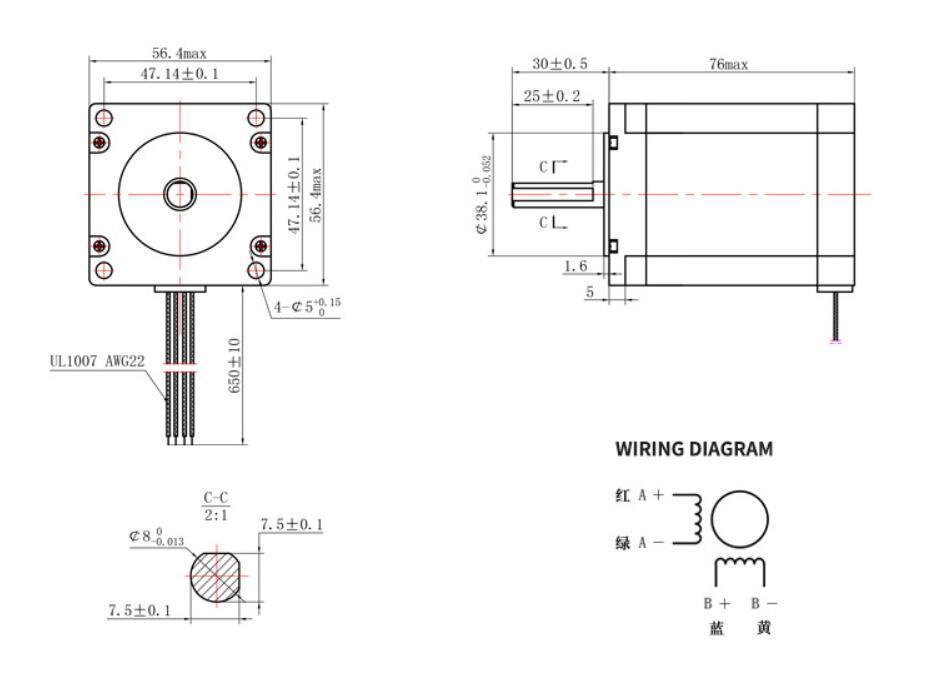

A suitable stepper motor driver, a power supply providing at least 24 V, and a control system (microcontroller or signal generator) are required. The parallel connection wires must be connected to the driver; reversing the polarity will immediately destroy both the motor and the driver stage.
Safety Notice
Reversing the power supply polarity will irreparably damage the motor and the driver. The device is intended exclusively for prototype development and laboratory setups and must not be integrated into industrial control systems. Qualified electricians should check the circuit and driver configuration before commissioning.
Scope of Delivery
- 1x NEMA23 stepper motor 1.8°/ 76mm /3A 1.8N.m
