SR602 motion detector - PIR sensor, 0-5 m, 3.3-15 V
This goes with it
Pay in 30 days
Pay in 30 days
Description
Product Overview
- PIR motion sensor for detecting body heat
- Digital output, high when motion is detected, low when idle
- Supply voltage 3.3 V to 15 V
- Very low quiescent current of 20 µA
- Three downward-facing pins for breadboard mounting
- Sensitivity and output time adjustable via solder resistors

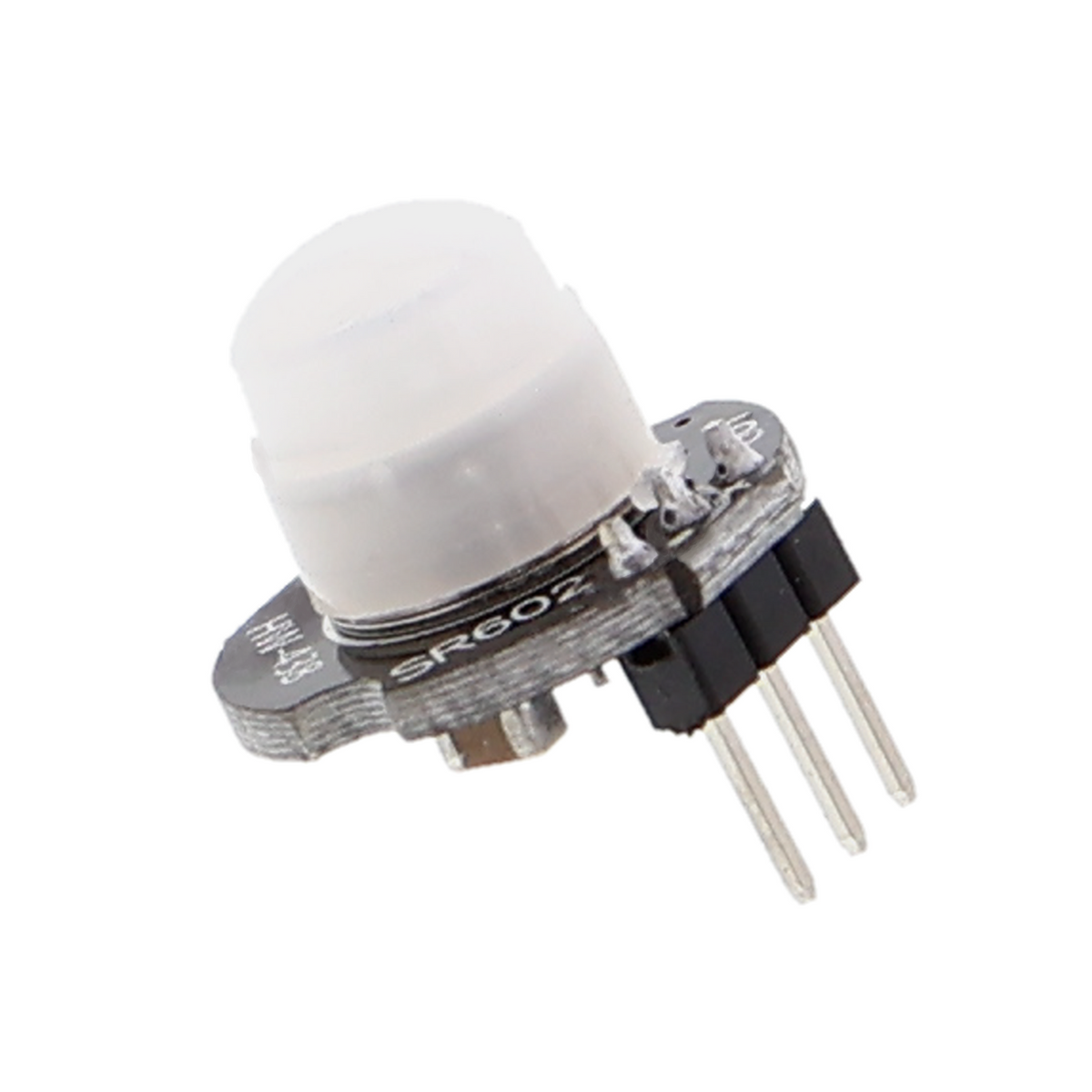

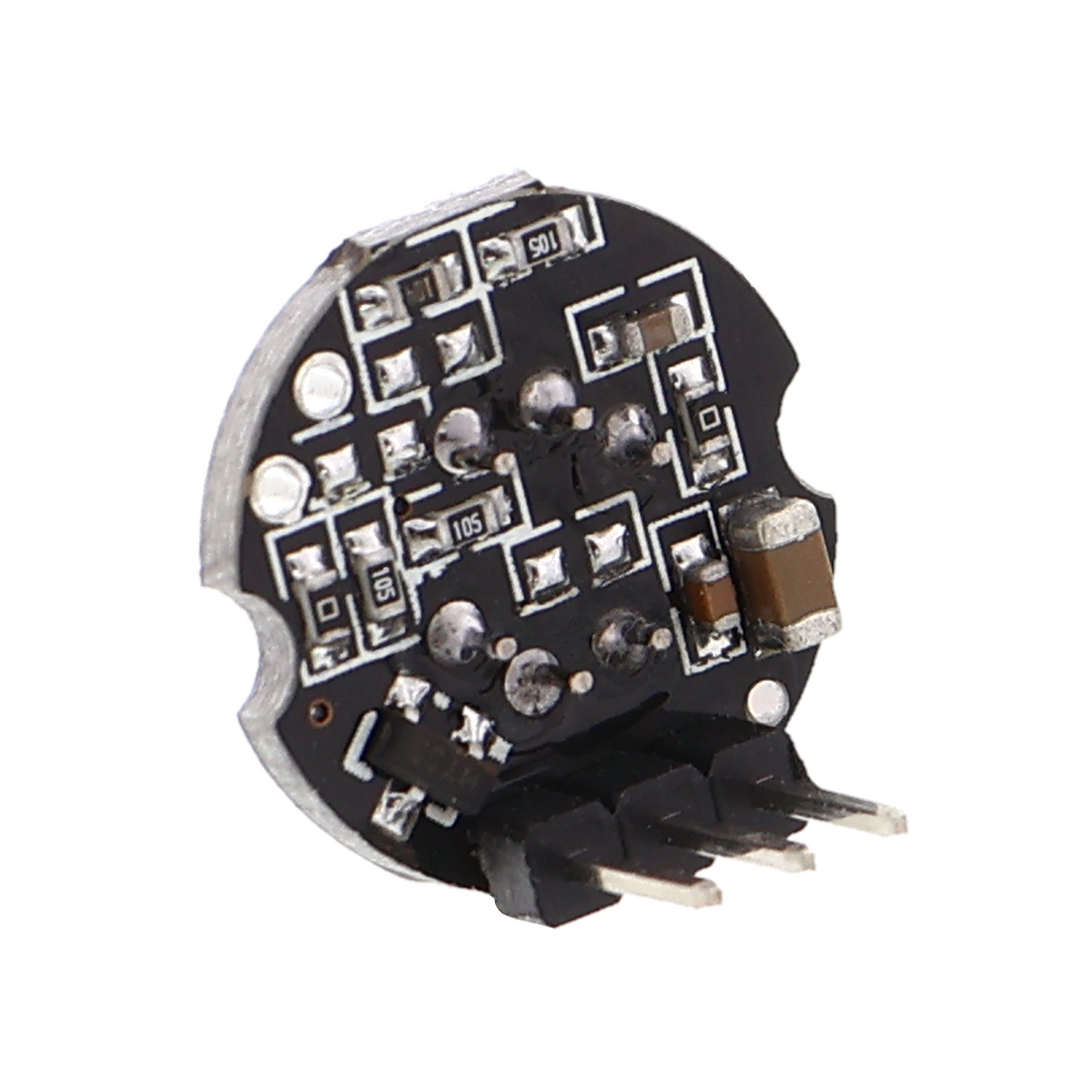

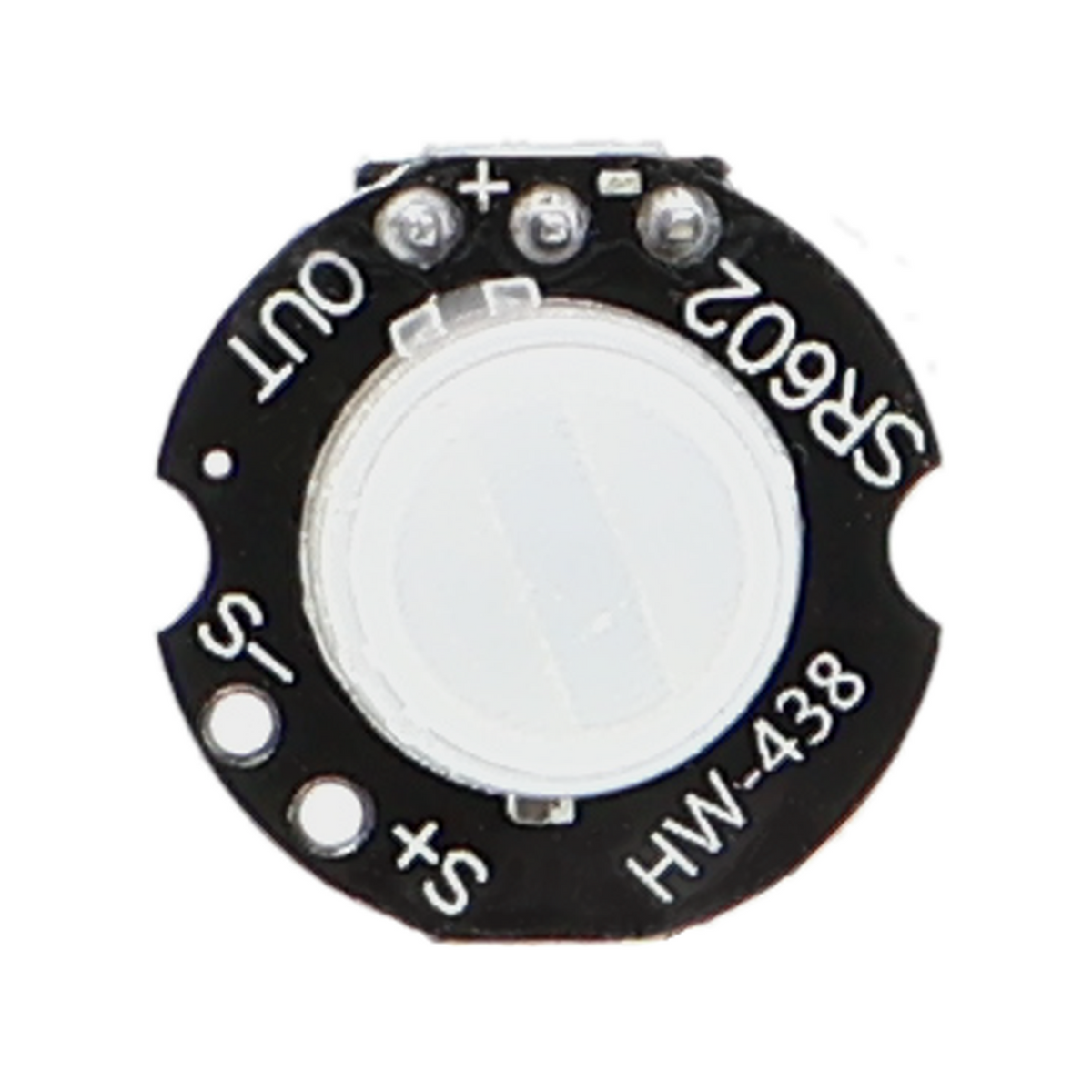

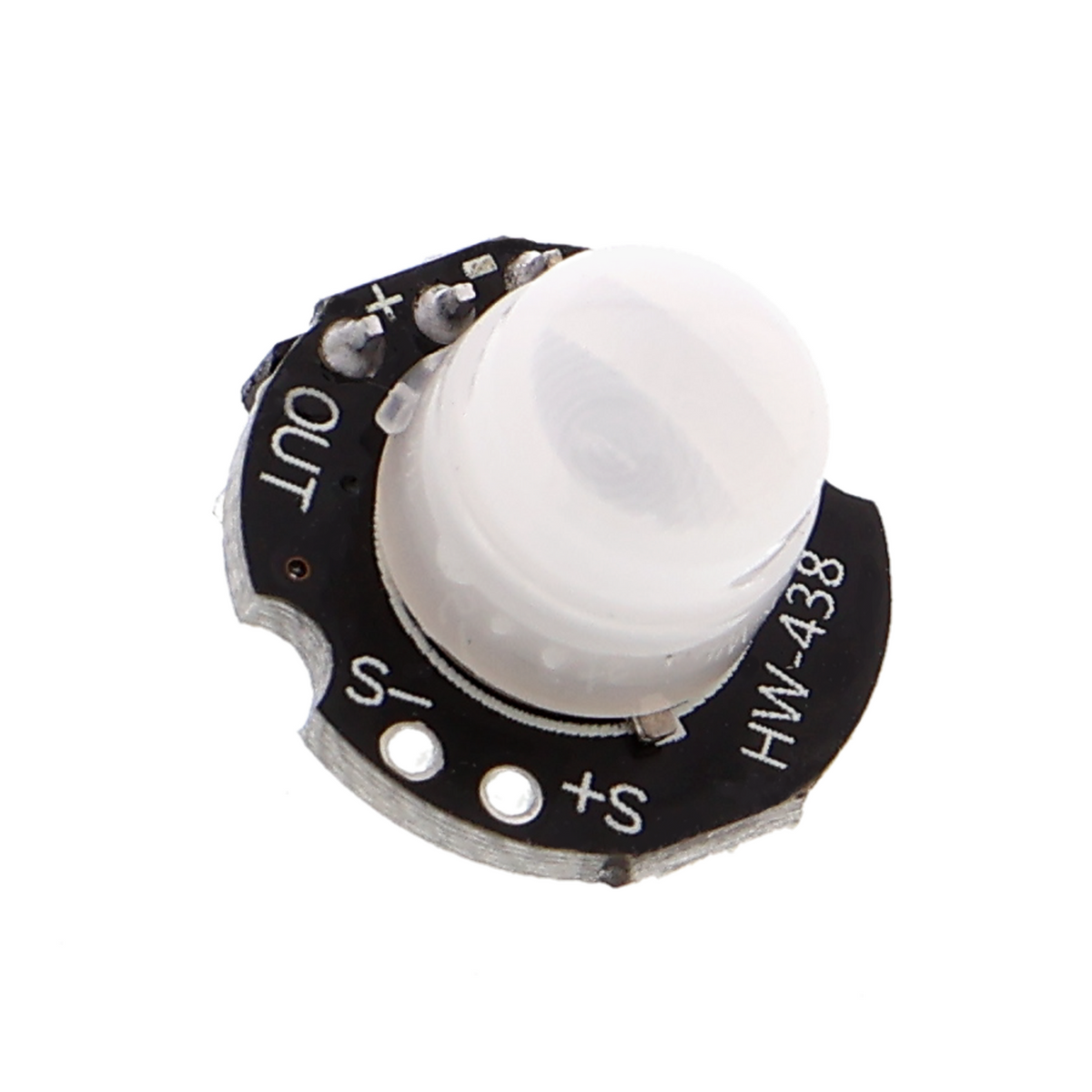

Product Description
The PIR motion sensor detects changes in infrared radiation caused by the body heat of humans or animals. A fitted plastic lens focuses the infrared radiation onto the sensor element, and circuitry on the board converts the analog signal into a digital signal that can be read directly by a microcontroller. This eliminates the need for any additional signal processing.
The operating voltage between 3.3 V and 15 V allows connection to nearly all common development boards without a level shifter. After being switched on, the module briefly outputs a high signal before entering monitoring mode. In the default state, the output remains high for a short time after motion is detected before returning low, but this can be adjusted using resistors on the board.
The extremely low quiescent current of 20 µA makes the module ideal for battery-powered projects and applications with limited space. It is typically used in automatic lighting, simple alarm and security systems, and access control systems. During installation, keep in mind that the module may also incorrectly interpret direct sunlight or warm air currents as motion, so it requires suitable positioning. The three pins can be connected directly to a breadboard or microcontroller.
Safety Notice
The module is intended exclusively for building prototypes and for testing and development purposes and is not suitable for installation in household mains circuits. The operating voltage must remain within the specified range of 3.3 V to 15 V to prevent damage. When working on or near electrical installations, consult a qualified electrician before commissioning.
Scope of Delivery
- 1x SR602 MINI Motion Sensor Detector Module
