Description
Product overview
- Adapter with USB-C socket and two-pin MX1.25 connector
- Connection between USB-C devices and MX1.25 connections
- Available in several versions
- Compact form factor for confined installation spaces
Product description

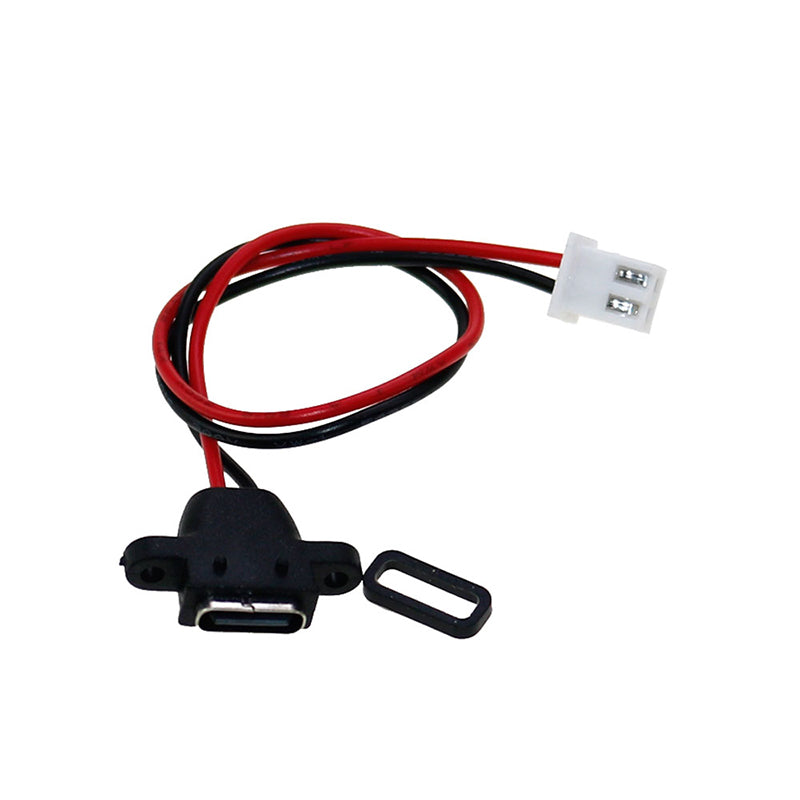

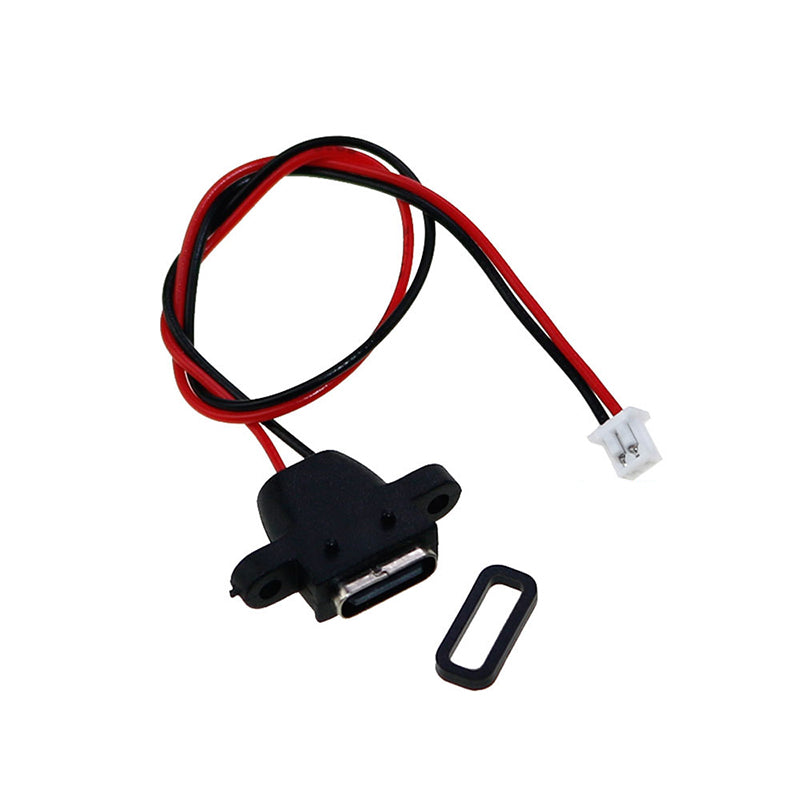

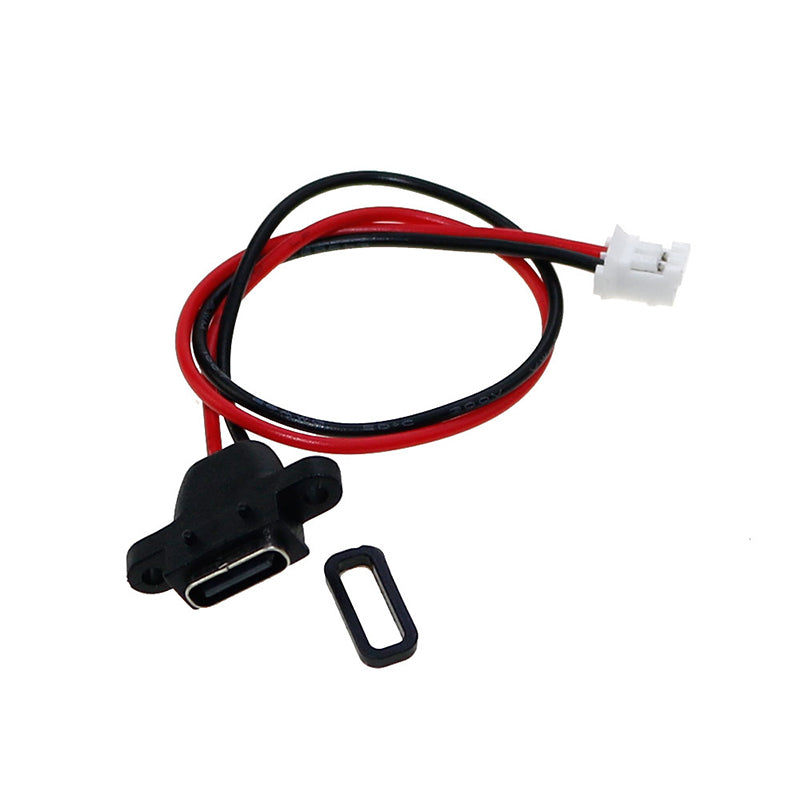

This adapter connects USB-C sockets to the two-pin MX1.25 PH2.0-X plug. The interface enables devices or modules with an MX1.25 connection to be connected to controller boards and power sources with a USB-C output.
The adapter transfers voltages and signals via the two wires of the MX1.25 plug. If you want to connect sensors or actuators with an MX1.25 connection to modern USB-C boards, it eliminates the need for soldering work and individual single-core cables. Typical applications include powering small modules via USB-C power supplies, connecting JST-PH-compatible sensor modules to USB-C computers, and quickly building prototypes with pre-connected wires.
Depending on the application, the pin assignment of the two wires must be matched to the requirements of the target device. The adapter is available in several variants to cover different pin configurations. Check the correct polarity before operation to prevent damage.
Safety information
Ensure correct polarity when connecting the adapter to prevent damage to connected modules. The adapter is intended exclusively for building prototypes and for testing and development purposes, and is not intended for use in household electrical circuits.
Scope of delivery
- 1x 16 cm adapter cable from USB-C socket to 2P plug, variant as selected
