ROBOTIQ EPick Vacuum Gripper for the DOBOT CR/CRA Series

The ROBOTIQ EPick is a compact, electrically powered vacuum gripper with an integrated vacuum pump. It requires no external compressed air supply and is designed for pick-and-place applications with flat, smooth, or slightly textured objects. According to the product page, it was specifically developed for use with collaborative robots.

Highlights

• Integrated electric vacuum pump; no external compressed air required
• Designed for collaborative robots
• Suitable for flat, smooth, or slightly textured objects
• Modular suction cup arrangement for adapting to different workpieces
• Drop detection for greater process safety
• Inlet filter to protect against dust particles larger than 200 µm
• Suitable for clean industrial and automation environments

Benefits / Applications

The system is intended for pick-and-place applications in industrial and automation environments. Thanks to its electric operation without an external compressed air supply, the gripper is suitable for applications requiring a compact, low-maintenance, and fast-reacting vacuum gripper on collaborative robots.

Technical Data

• Product type: Electric vacuum gripper
• Power source: Electric
• Variants: EPick, EPick-2, EPick-4
• Max. recommended payload: 16 kg
• Gripping time: 150 ms
• Weight including coupling: 710 g
• The EPick-2/4 variants are based on the standard EPick version and cannot be used without it

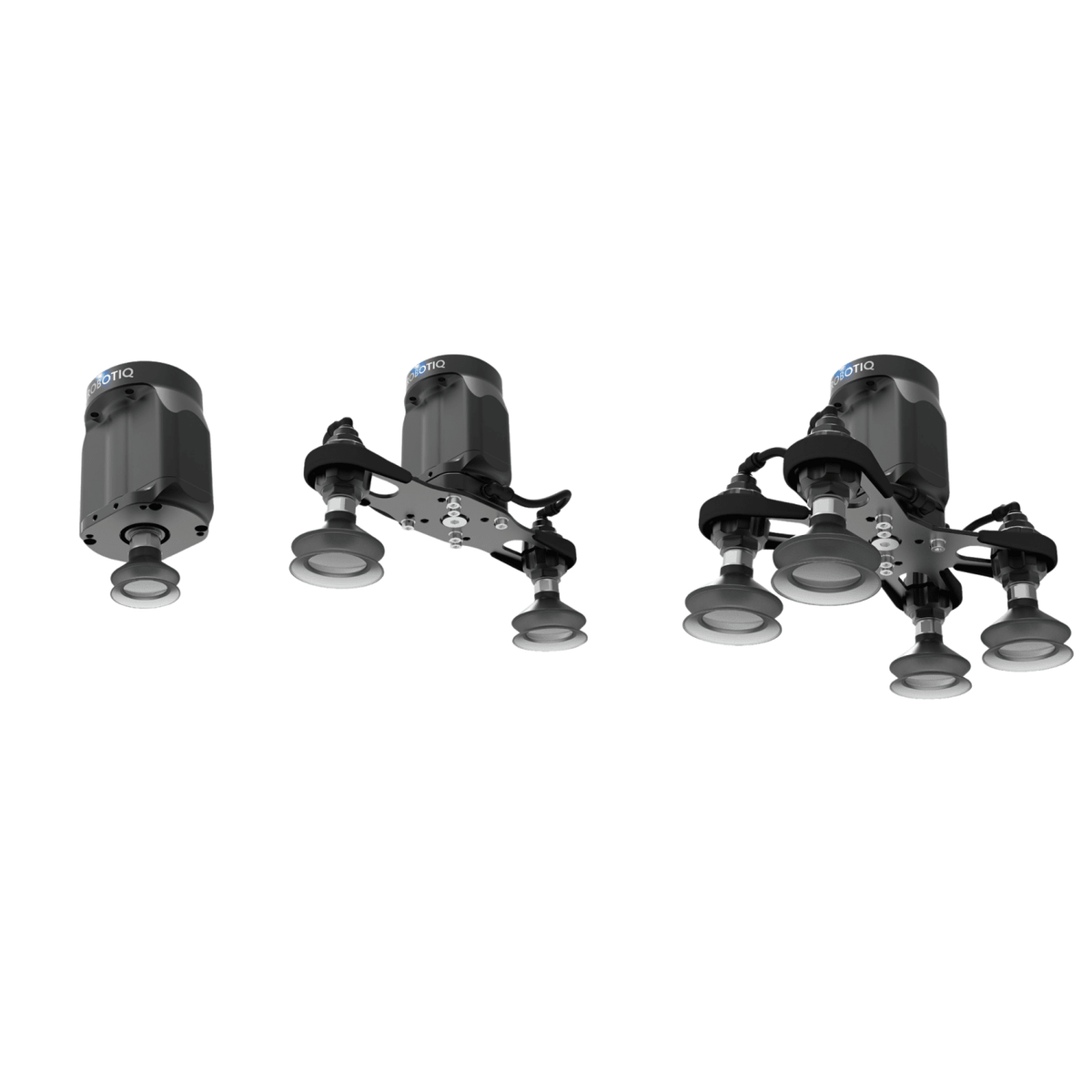

Variants

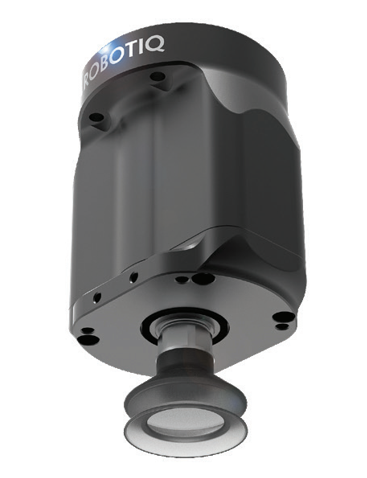

• EPick:  Electric suction gripper (single suction cup, compact, flexibly positionable) with one suction cup

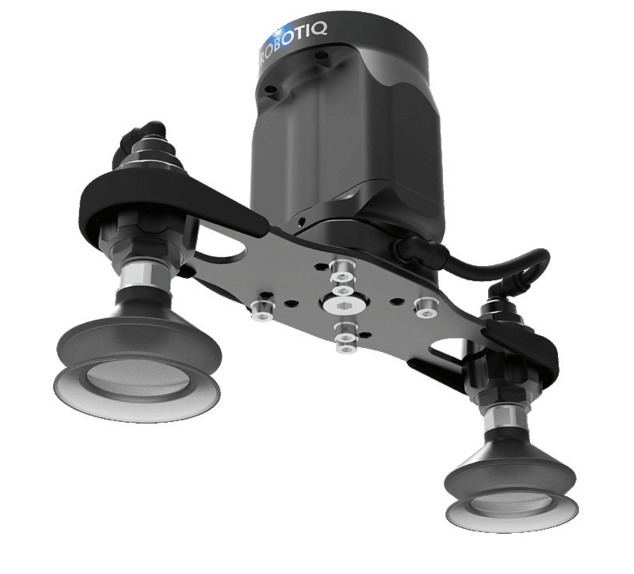

• EPick-2: Extension module for EPick - 2 suction cups, increased stability through dual suction (the extension module does not contain an electric suction gripper; it is an add-on module for the EPick suction gripper)

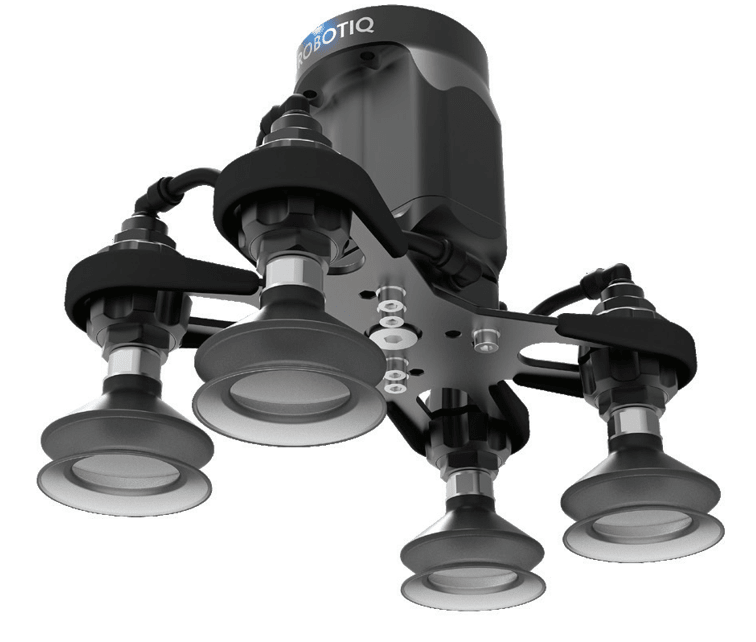

• EPick-4: Extension module for EPick - 4 suction cups, maximum surface coverage for larger workpieces (the extension module does not contain an electric suction gripper; it is an add-on module for the EPick suction gripper)

Scope of Delivery

• 1x ROBOTIQ EPick vacuum gripper for the DOBOT CR/CRA Series (depending on variant: EPick, EPick-2, and EPick-4)
