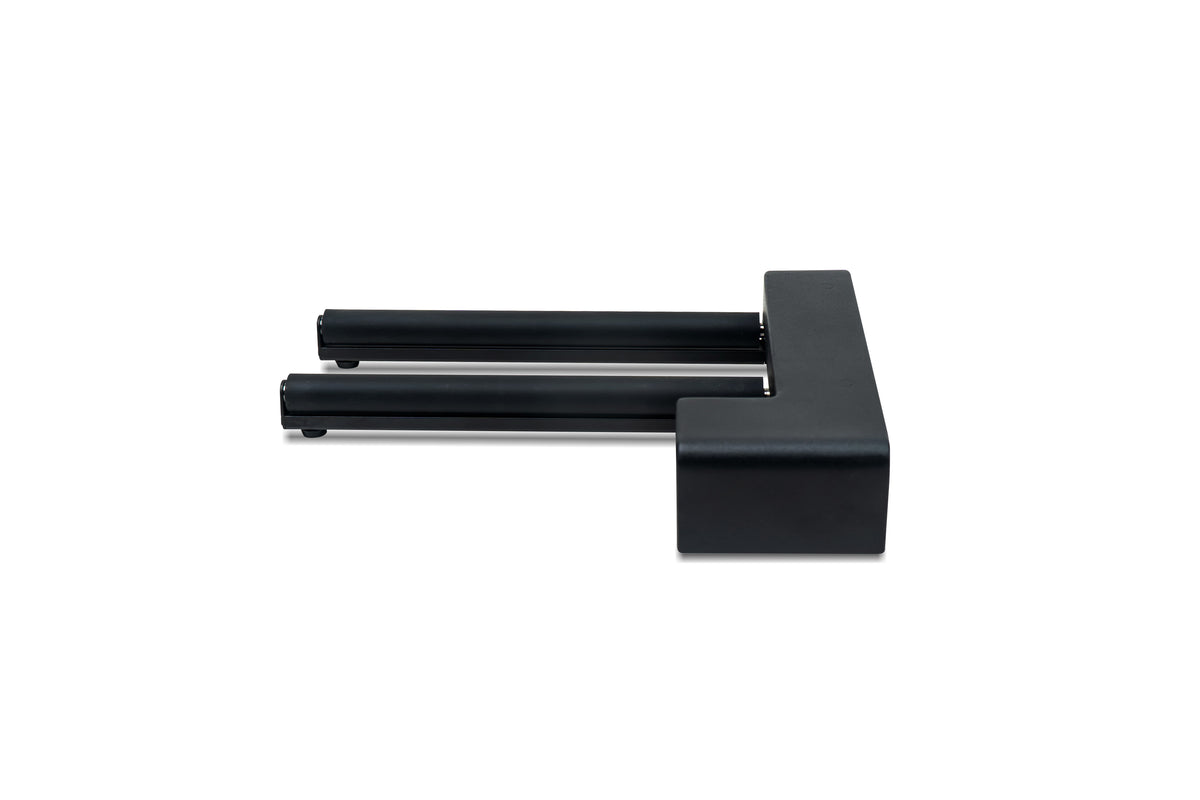

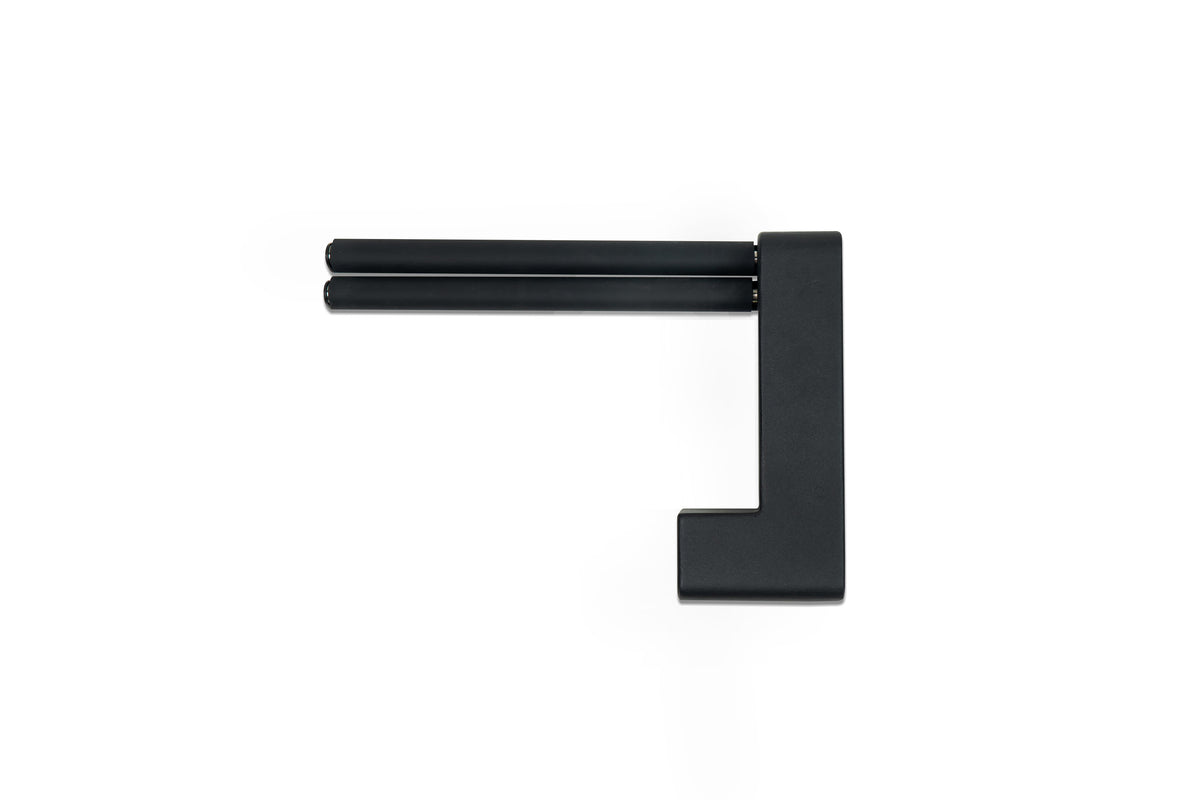

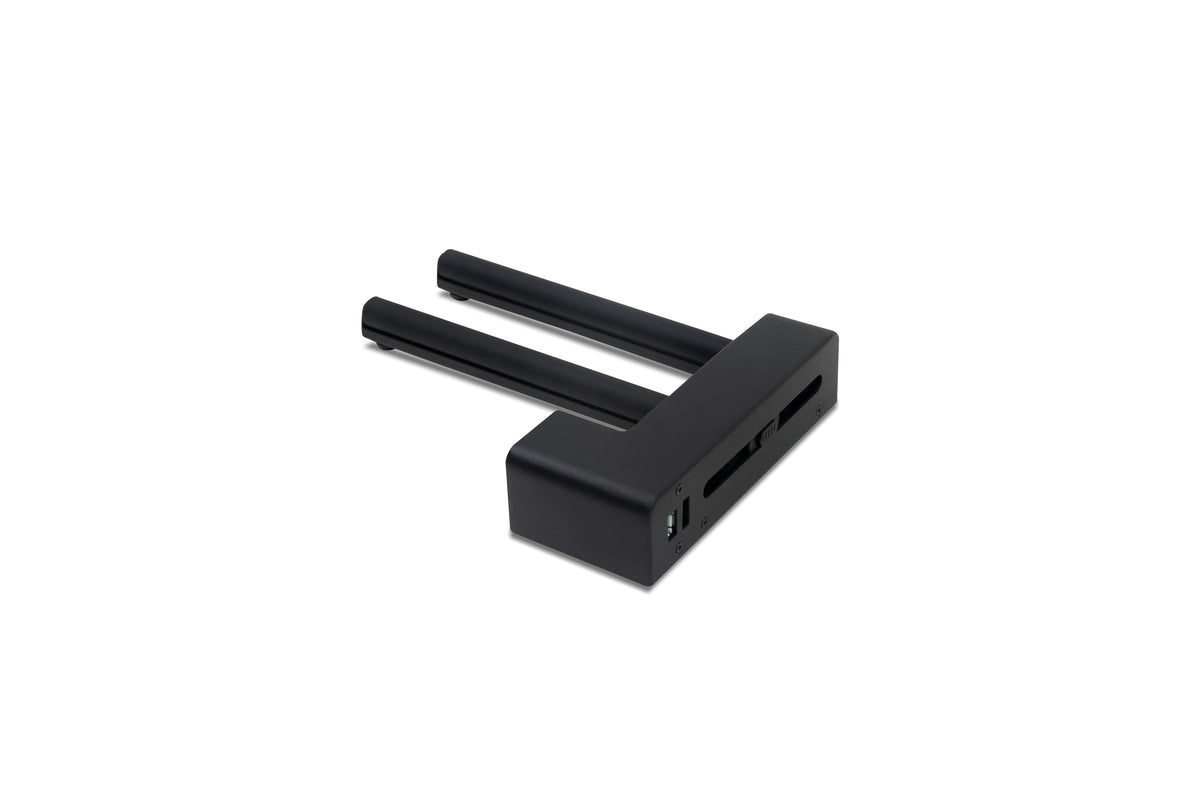

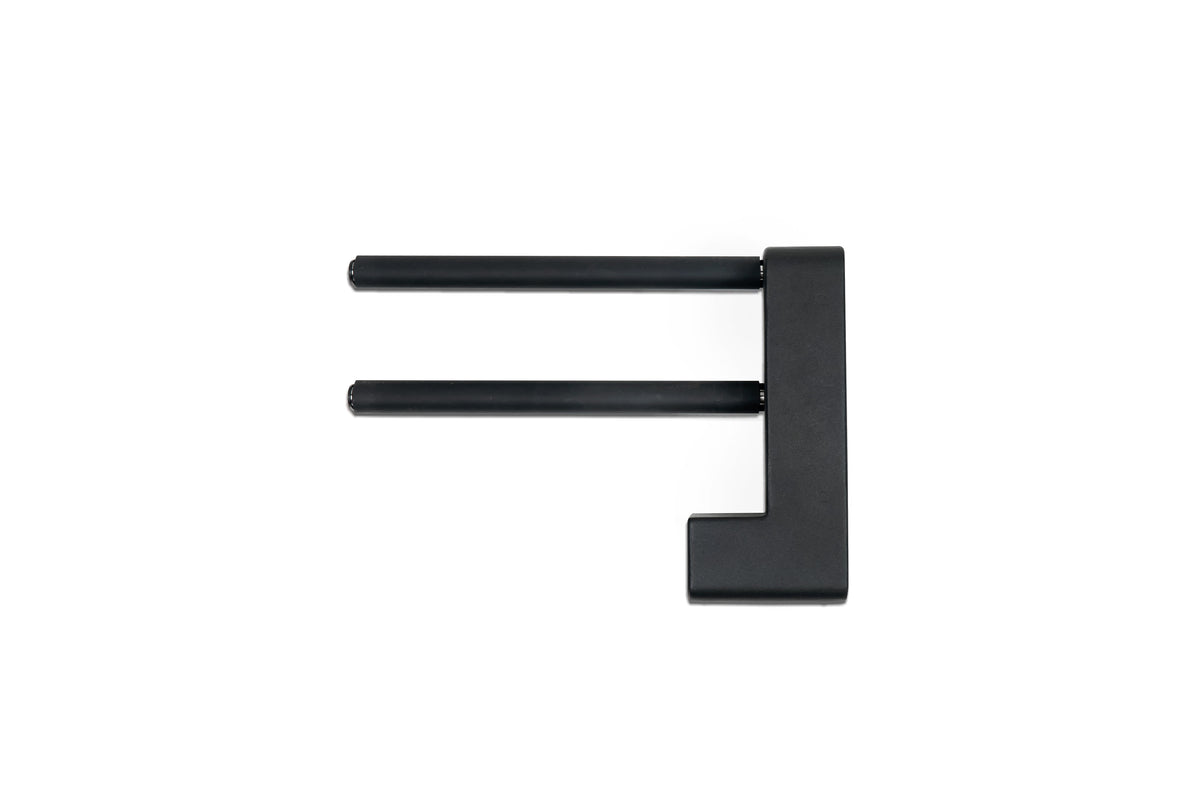

FLUX Rotary 2.0 Rotary Device - Rotation Module, Various Versions

FLUX Ador Rotary Module 2.0

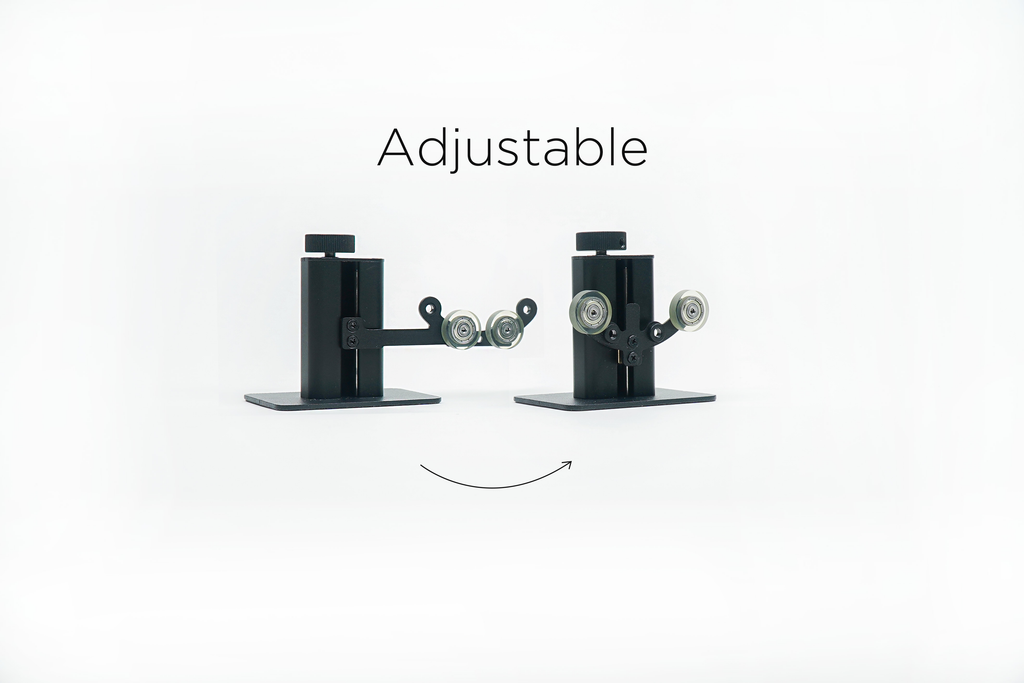

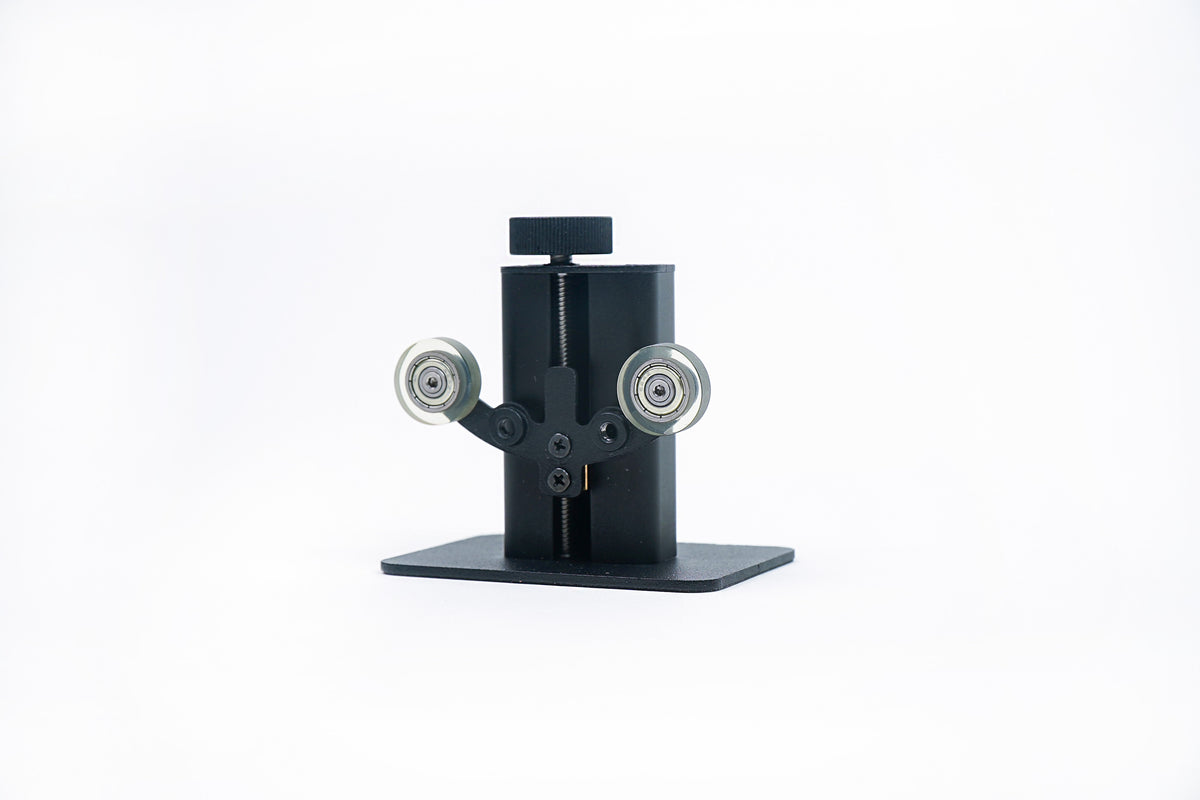

Advanced support module

You determine the angle; we provide the precision. The high-quality support module makes engraving on conical objects such as champagne glasses child's play.

The Ador expansion base is required to use the rotary table.

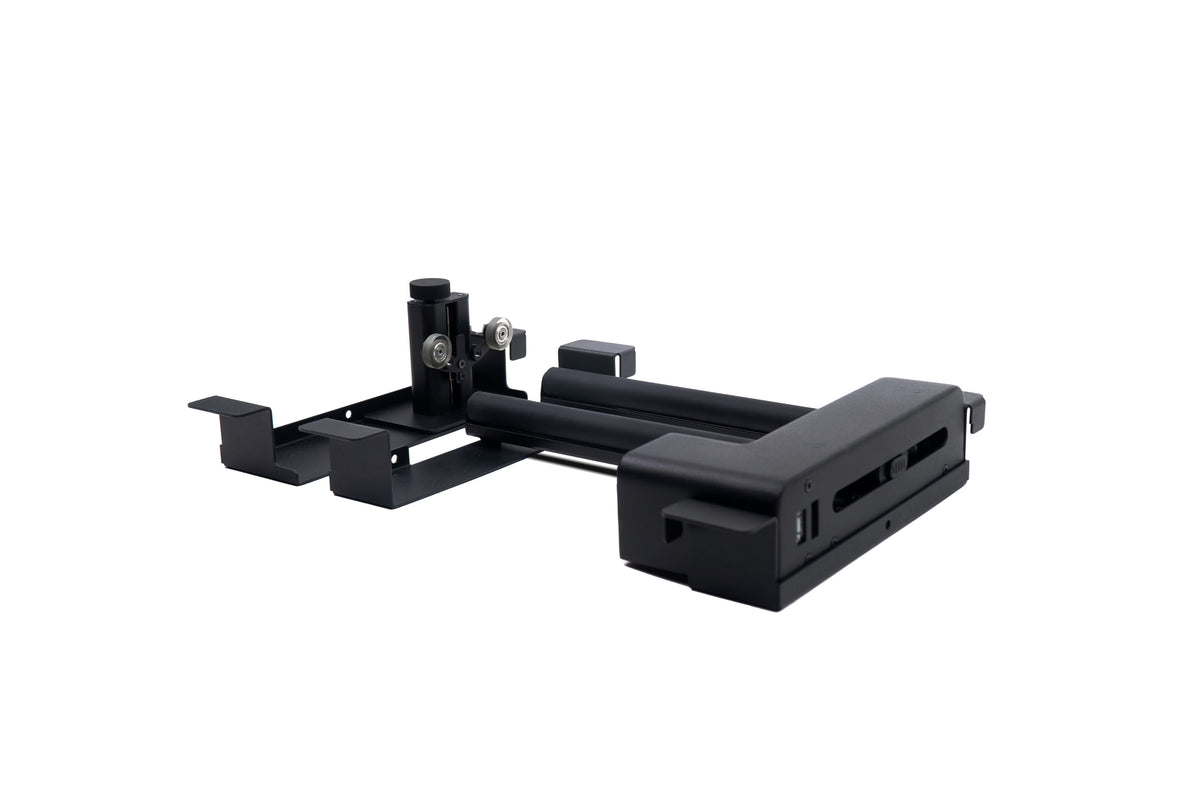

Rotary module for Ador: for large and small items
3 - 140 mm Diameter range	420 mm Max. material length

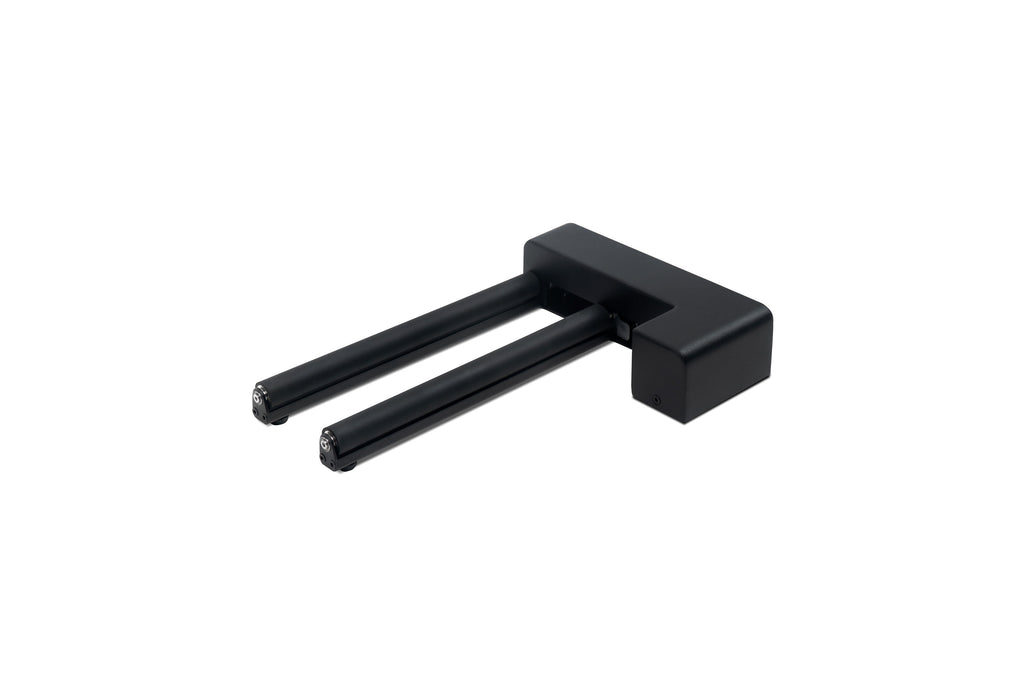

Non-slip rubber roller

The Rotary 2.0 is equipped with rubber rollers that significantly improve the stability of the object being engraved. This advancement ensures a firm grip and maximizes precision during the engraving process.

Specifications

Specifications (Beambox and Beambox Pro variants)

Minimum object diameter for engraving: 8mm (without touching the X-axis)
Maximum object diameter for engraving: 75mm
Maximum engraving length (Beambox): 370mm
Maximum engraving length (Beambox Pro): 570mm

Specifications (HEXA variant)

Minimum object diameter for engraving: 8mm (without touching the X-axis)
Maximum object diameter for engraving: 115mm
Maximum engraving length: 660mm

Specifications (Ador variant)

Diameter range: 3 - 140 mm
Maximum material length: 420 mm

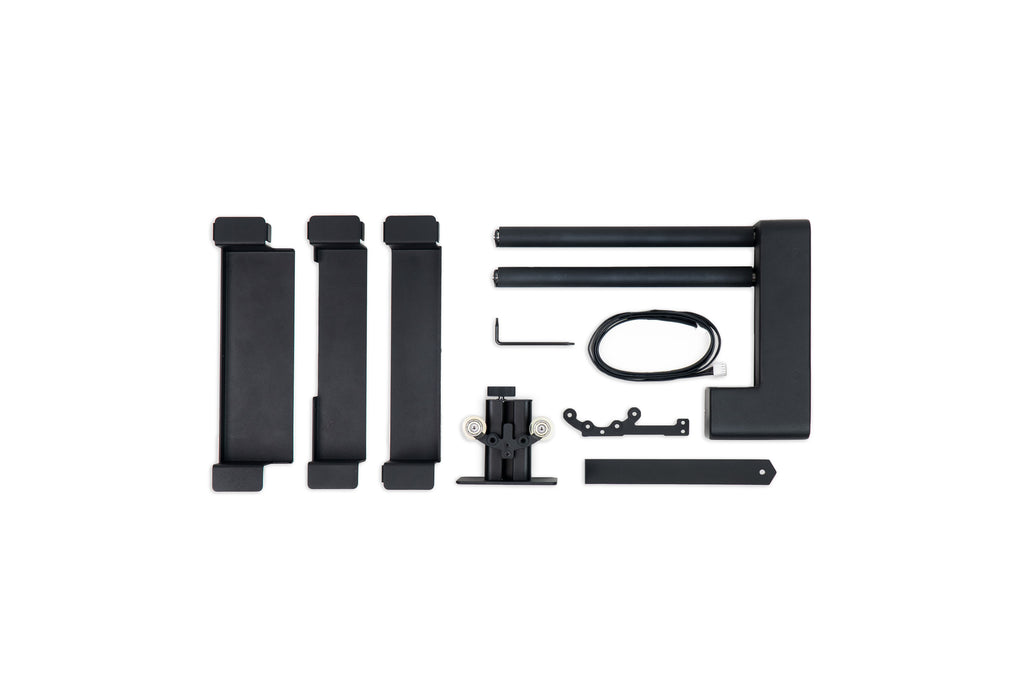

Scope of delivery

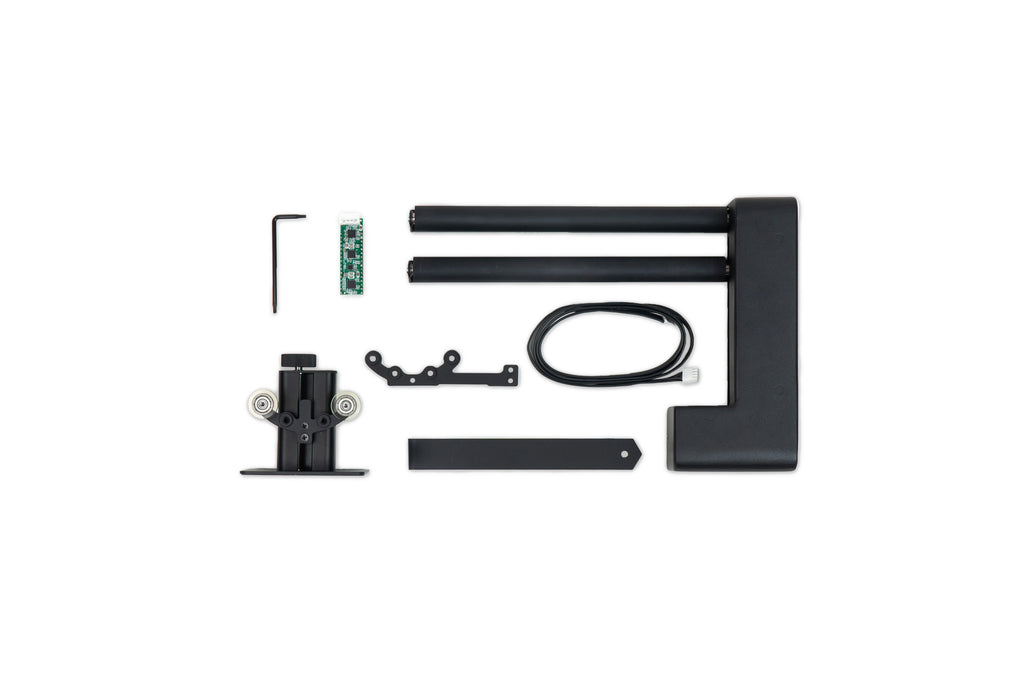

Scope of delivery (Beambox and Beambox Pro variants):

• 1* FLUX Rotary 2.0
• 1* Support module (with bracket)
• 1* Bracket extension
• 1* Limiting clip
• 1* 4-pin connection cable
• 1* Beambox connection board
• 1* Torx wrench

Scope of delivery (HEXA variant):

• 1* FLUX Rotary 2.0
• 1* Support module (with bracket)
• 1* Bracket extension
• 1* Limiting clip
• 1* 4-pin connection cable

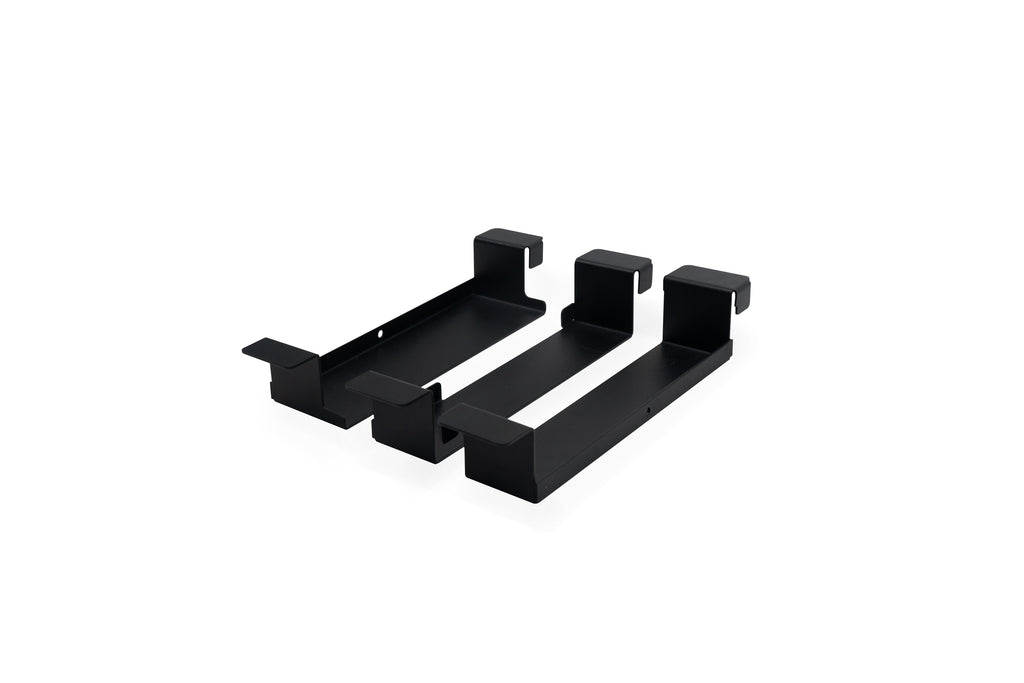

• 1* HEXA Rotary Stand A
• 1* HEXA Rotary Stand B
• 1* HEXA Rotary Stand C
• 1* Torx wrench

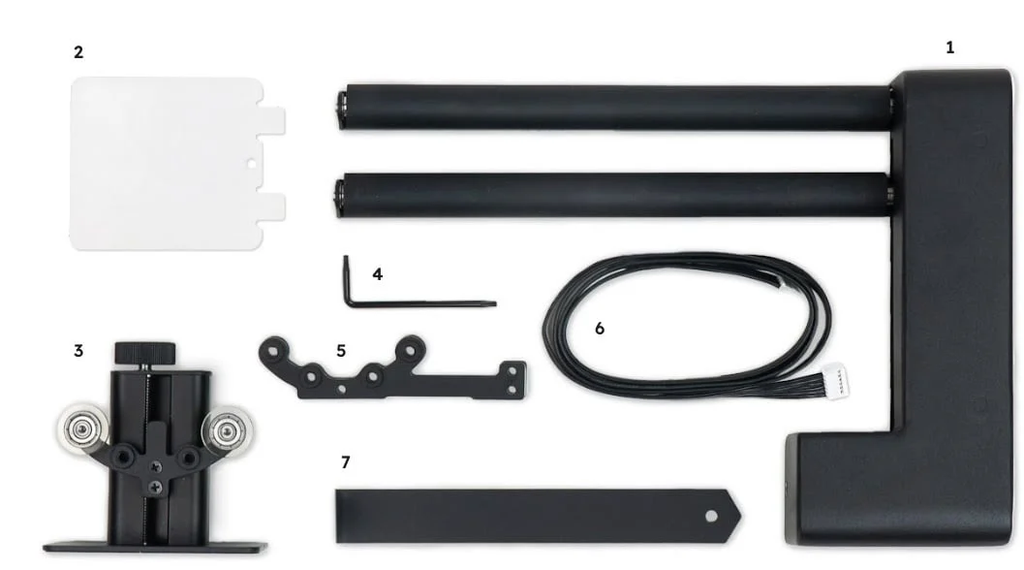

Scope of delivery (Ador variant):

• 1* FLUX Rotary 2.0
• 1* Pre-spray plate (for pressure module insert)
• 1* Support module (with bracket)
• 1* Extension bracket
• 1* 7-pin to 6-pin connection cable
• 1* Limiting clip
• 1* Torx wrench
