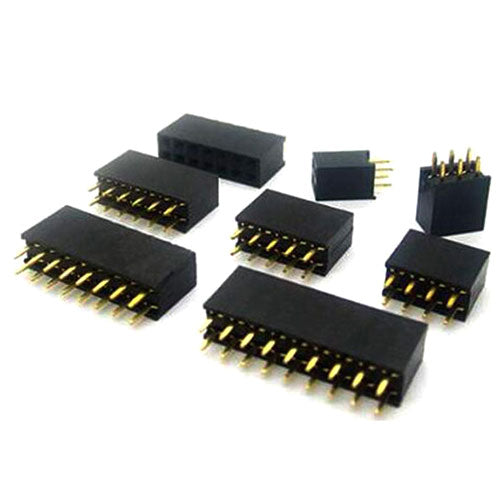

Female header 2.54 mm - 2-row, 3 mm pin length, 2- to 35-pin
Female header 2.54 mm - 2-row, 3 mm pin length, 2- to 35-pin
This goes with it
Pay in 30 days
Pay in 30 days
Description
Product overview
- Female header with a 2.54 mm pitch in a dual-row arrangement
- 3 mm pin length for mounting on perfboards and prototyping boards
- 13 different versions with varying numbers of contacts
- Plastic body with gold-plated contacts
- Through-hole mounting on the PCB
Product description
The female header connects external circuits to prototyping boards and prototype boards. With a 2.54 mm pitch, it fits standard perfboards and facilitates the replacement of modules without soldering.
The dual-row arrangement uses space efficiently. The 3 mm-long pins fit reliably into the standard holes of prototyping boards while providing sufficient contact length for a secure hold. Gold-plated contacts prevent oxidation and ensure reliable connections over many mating cycles.
The different versions with varying numbers of contacts enable flexible solutions, whether for narrow connections between two boards or for more extensive data buses. Typical applications include expanding microcontroller boards with sensors and modules, temporary wiring of prototypes, or quickly replacing assemblies in test setups.
No additional accessories are required for operation. The female header fits all common prototyping boards with a 2.54 mm pitch and is inserted through the PCB from the board side and soldered.
Safety information
This product is intended exclusively for building prototypes and for testing and development purposes and is not intended for installation in household electrical circuits. Work on or near electrical installations must be carried out by qualified electricians; if anything is unclear, consult a qualified electrician before commissioning.
Scope of delivery
- 1x female header 2.54, 2-row, 3 mm pin length – number of pins according to selection
