Item no.: F23105674

DOBOT Nova robotic arm - collaborative cobot, 2 versions

7.249,00 €
incl. VAT, plus shipping costs
Available to order – with you in 21 Werktagen.
Version
PayPalGoogle PayVISAMastercardAmazon PayApple PayKlarnaiDEALeps
Lightning-fast shippingfrom Germany
100,000+satisfied customers
Since 2014from a specialist retailer
30 daysRight of return
30-day return policy 12+ years of experience Lightning-fast shipping from Germany PayPal Pay in 30 days Klarna Pay in 30 days

Description

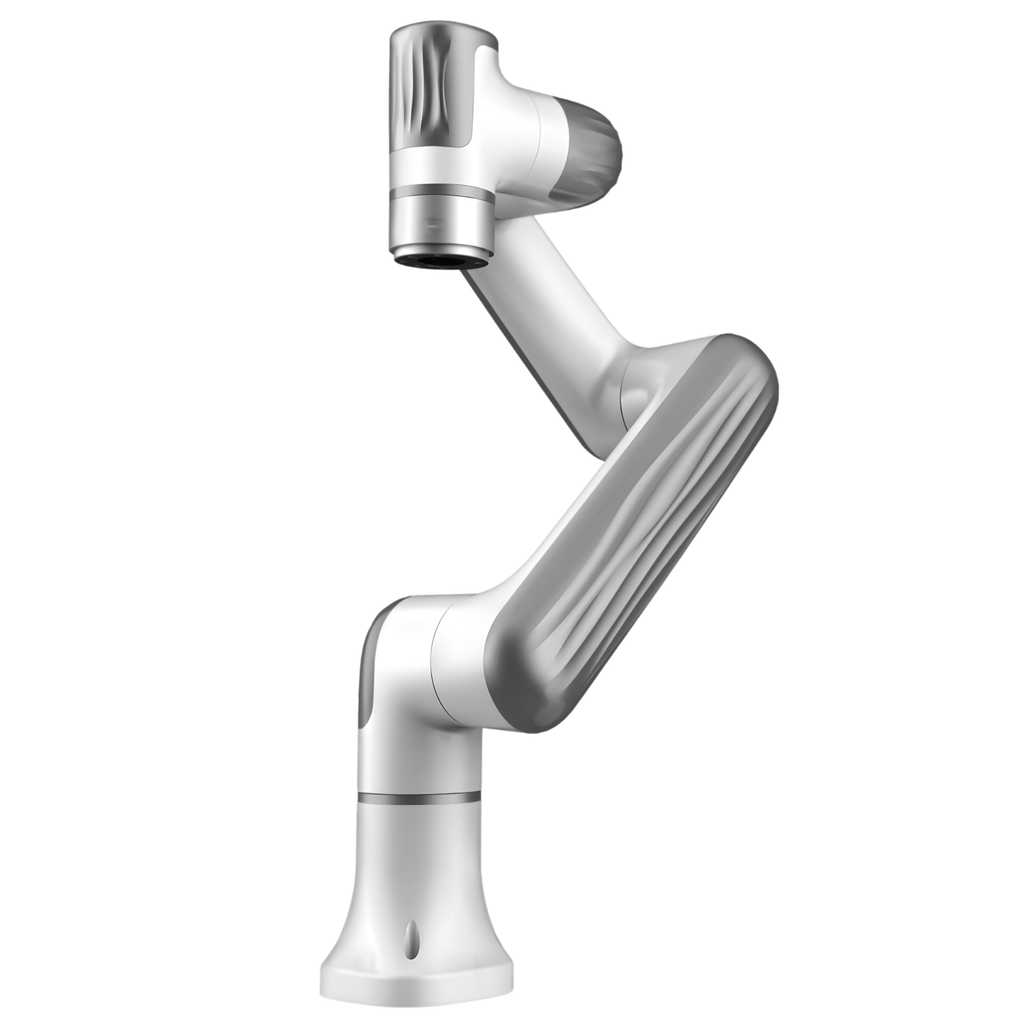

DOBOT Nova series – Compact collaborative robotic arms for industry and laboratories

The DOBOT Nova series comprises ultra-compact collaborative robotic arms for precise automation tasks in industry, laboratories and research. With the Nova 2 and Nova 5 variants, the series offers two particularly space-saving solutions for light handling, assembly and inspection processes.

Thanks to its compact design, low mass and easy integration, the Nova series is particularly suitable for confined workspaces, mobile workstations and existing production lines. The Nova series is designed for light industrial applications and supports quick commissioning via DobotStudio Pro.

Highlights

  • Ultra-compact cobot series for confined workspaces
  • Available as Nova 2 and Nova 5
  • Repeatability of ±0.05 mm
  • Easy integration into mobile workstations and existing production lines
  • Supports block-based programming and DobotStudio Pro
  • Open ecosystem with SDK support for C++, C#, Python, ROS1 and ROS2
  • 5-level collision detection for safe human-robot collaboration

Benefits / applications

The DOBOT Nova series is suitable for light automation tasks in electronics manufacturing, semiconductor environments, laboratory automation, healthcare applications and general industry. Typical applications include pick-and-place, assembly, machine tending, inspection processes and flexible handling tasks.

Technical specifications

Models
Nova 2
Nova 5
Weight
Nova 2: 11 kg
Nova 5: 14 kg
Payload
Nova 2: 2 kg
Nova 5: 5 kg
Working radius
Nova 2: 625 mm
Nova 5: 850 mm
Max. TCP speed
Nova 2: 1.6 m/s
Nova 5: 2.0 m/s
Repeatability
Nova 2: ±0.05 mm
Nova 5: ±0.05 mm
Protection rating
IP54
Noise level
Nova 2: 65 dB(A)
Nova 5: 70 dB(A)
Operating environment
0 to 50 °C
Power consumption
Nova 2: typically 100 W, max. 250 W
Nova 5: typically 230 W, max. 770 W
Mounting
Any mounting orientation
Cable length to controller
3 m
End-effector interfaces
2 DI
2 DO
RS485
Controller
200 × 120 × 55 mm
1.3 kg
Controller communication
2 network ports for TCP/IP and Modbus TCP
2 USB ports
1 × RS485 / Modbus RTU
Controller I/O
8 DI
8 DO
2 AI
2 AO

Software and integration

  • DobotStudio Pro 4.6.1 or higher
  • Block-based programming for a quick start
  • SDK support for C++, C#, Python, ROS1 and ROS2

Scope of delivery

  • DOBOT Nova robotic arm (Nova 2 or Nova 5 depending on variant)

Technical data

Base 3 Angaben
Produktart
Collaborative robot arm
Hersteller
DOBOT
Gewicht (g)
11000; 14000
Advanced 13 Angaben
min. Versorgungsspannung (V)
30
max. Versorgungsspannung (V)
60
Nennleistung (W)
2000
USB
2x USB
Digitale I/O-Pins
2 inputs; 2 outputs; 8 inputs; 8 outputs
Anzahl Kontakte
8
Freiheitsgrade
6
Traglast (kg)
5; 2
Material
ABS plastic
Farbe
White; Gray
Temperaturbereich
0 to 50 °C
Schutzart
IP54; IP20
Montage
Any mounting angle
