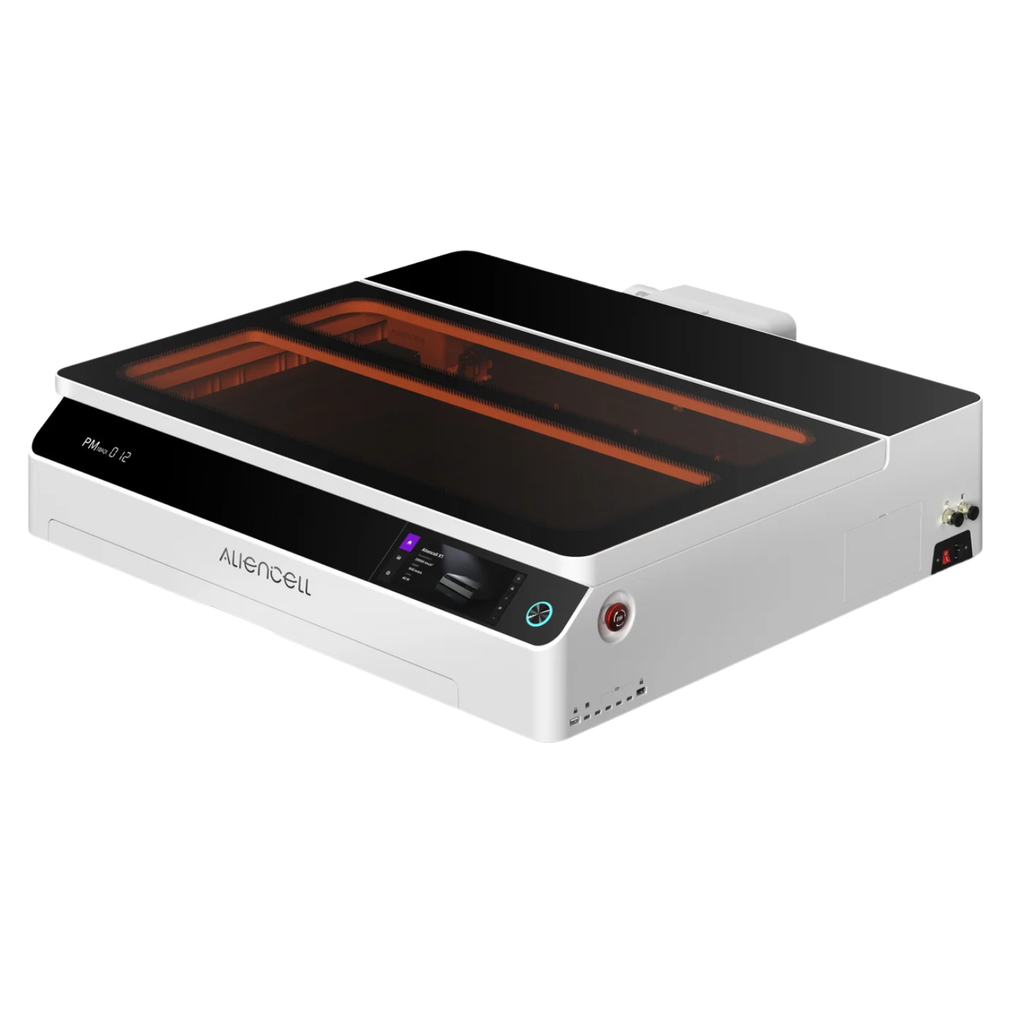

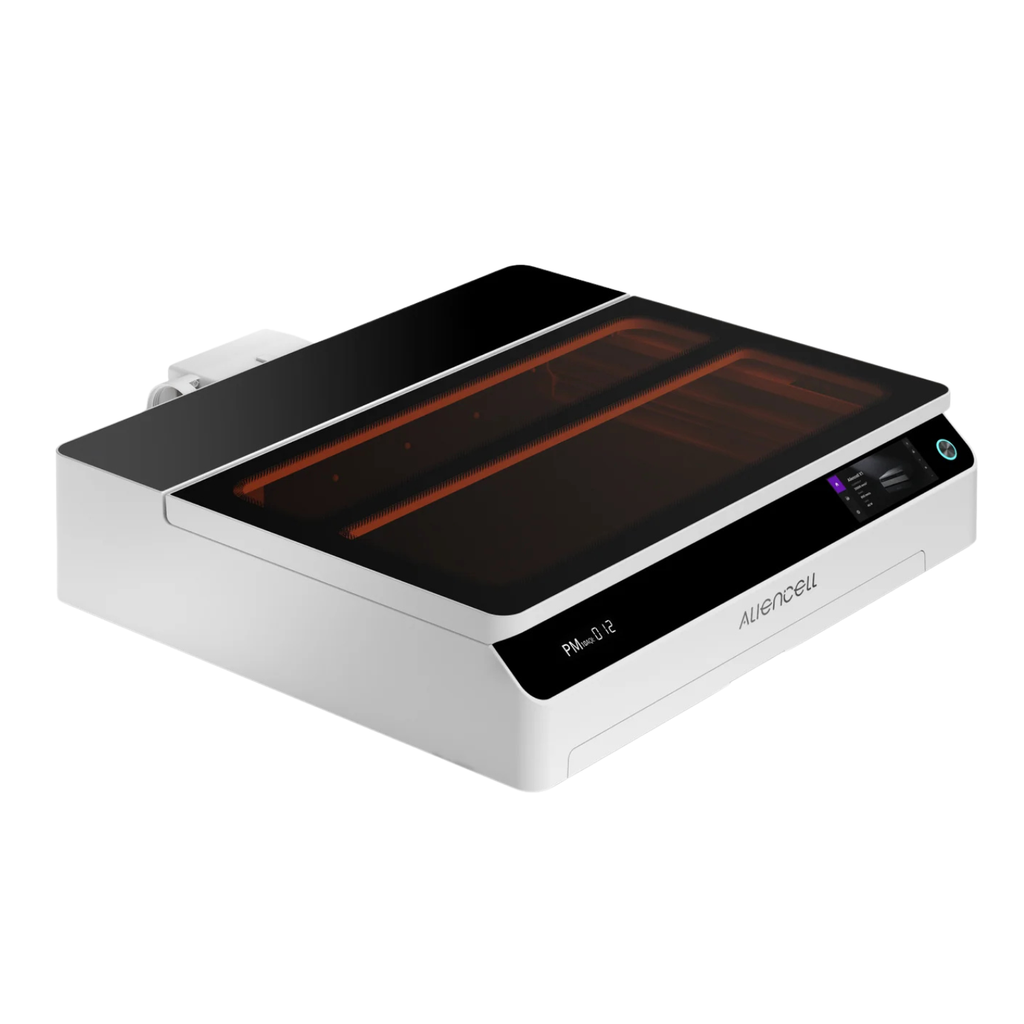

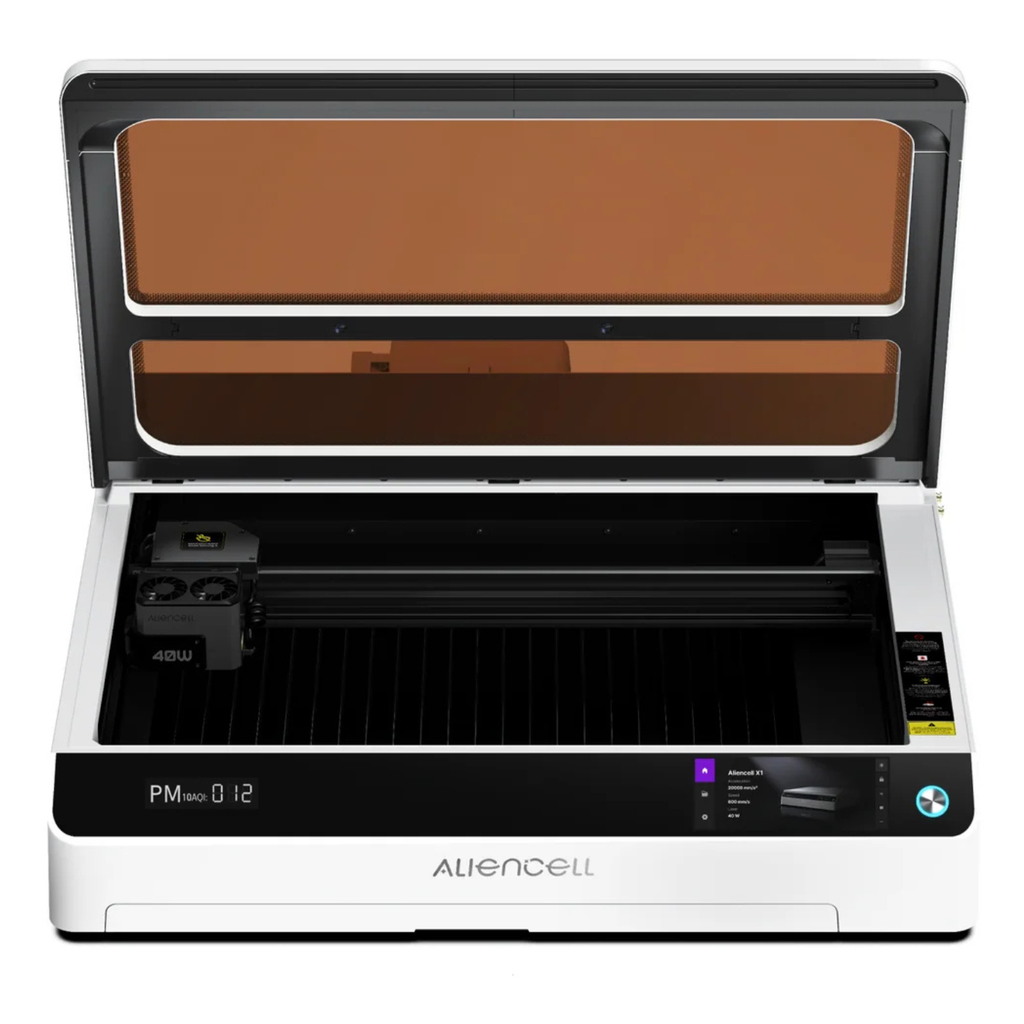

Aliencell X1 Laser Engraver - Diode Laser with Air Assist Pro, 20-60 W

Diode laser with camera positioning, autofocus, and Air Assist Pro

The Aliencell X1 is a diode laser for precise engraving and cutting applications. The system is available in 20 W, 40 W, and 60 W power options and is complemented by Air Assist Pro, which reduces smoke and cutting residue to support cleaner cuts.

Highlights

• Available with 20 W, 40 W, or 60 W machine power
• Fully automatic autofocus
• Camera positioning
• Crosshair laser for alignment
• Dual 8 MP cameras
• External touch-control display with integrated system and 8 GB storage
• Remote video monitoring
• Working speed up to max. 600 mm/s
• Acceleration up to max. 20,000 mm/s²
• Power Compensation when laser temperature rises
• Laser flame detection
• Vibration suppression
• Tilt alarm
• PM10 detection
• Laser impact alarm
• Open-flame alarm
• Resume engraving after a power failure
• Lid detection and tray detection
• Full-body self-test
• Machine OTA upgrade
• One-Click-Work function
• Machine Self-Maintenance
• Air Assist Pro with 40 L/min airflow
• Air Assist Pro with 14.5 psi pressure
• Auto mode and 3 adjustable airflow levels

Benefits / Applications

The Aliencell X1 is suitable for laser engraving, laser cutting, prototyping, model making, workshop tasks, and creative manufacturing processes. With a choice of 20 W, 40 W, and 60 W, the system can be adapted to different requirements. Air Assist Pro supports clean cuts by removing smoke and residue from the working area during processing.

Technical specifications

Product: Aliencell X1 with Air Assist Pro
Power options: 20 W, 40 W, 60 W
Laser type: Diode laser
Focus mode: Fully automatic autofocus
Positioning: Camera positioning, crosshair laser
Cameras: Dual 8 MP cameras
Working speed: Max. 600 mm/s
Acceleration: Max. 20,000 mm/s²
Touch-Control Display: External display with integrated system
Internal storage: 8 GB
Remote Monitoring: Remote video monitoring
Features: Power Compensation, laser flame detection, vibration suppression, tilt alarm, PM10 detection, laser impact alarm, open-flame alarm, lid detection, tray detection, full-body self-test, OTA upgrade, One-Click-Work, Machine Self-Maintenance

Variant-specific data

20 W variant
Spot size: 0.08 × 0.06 mm
Max. cutting speed, single pass in 3 mm basswood: 9 mm/s
Working area: 610 × 465 mm

40 W variant
Spot size: 0.08 × 0.10 mm
Max. cutting speed, single pass in 3 mm basswood: 16 mm/s
Working area: 610 × 465 mm

60 W variant
Spot size: 0.08 × 0.16 mm
Max. cutting speed, single pass in 3 mm basswood: 18 mm/s
Working area: 595 × 455 mm

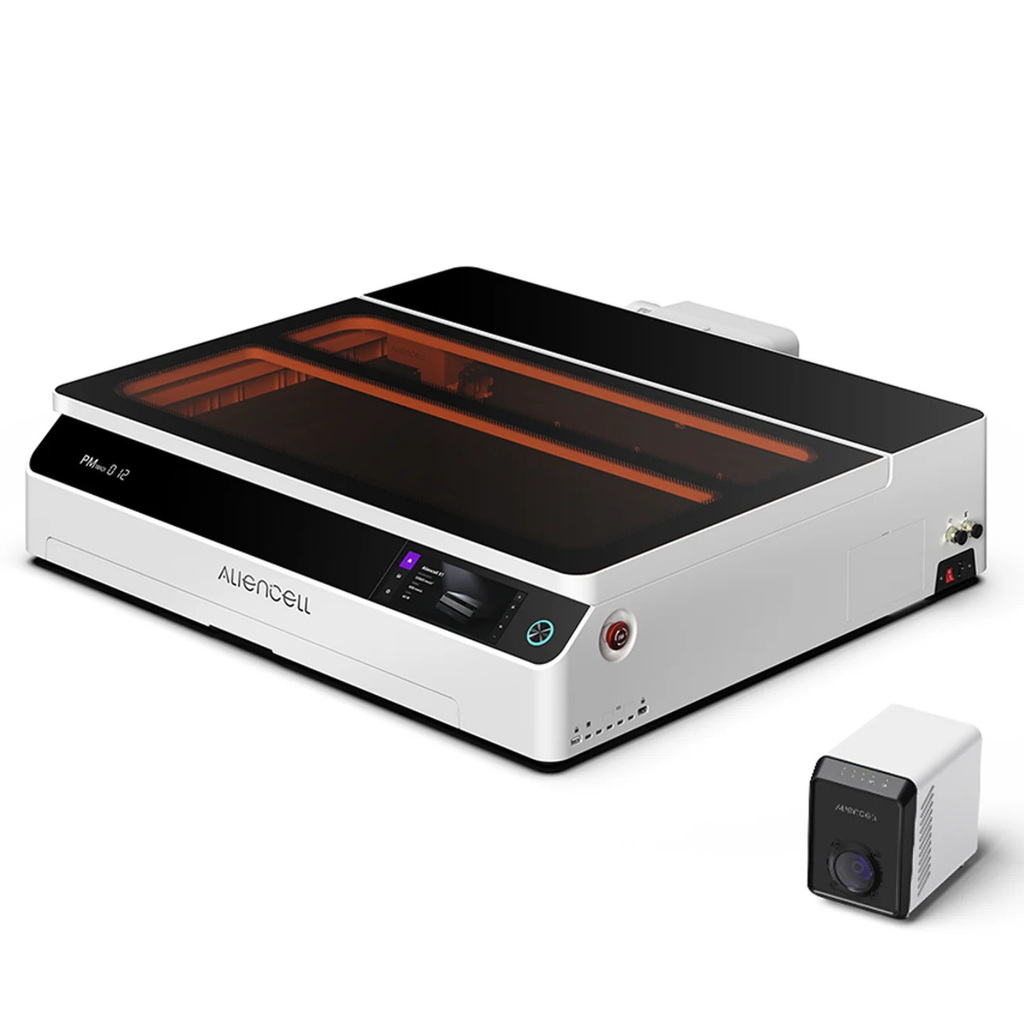

Air Assist Pro

Airflow: 40 L/min
Pressure: 14.5 psi
Noise level: 55 dB
Control: Auto mode and 3 adjustable airflow levels
Design: Metal piston pump
Weight: 1.3 kg
Function: Reduces smoke and residue for cleaner cuts
