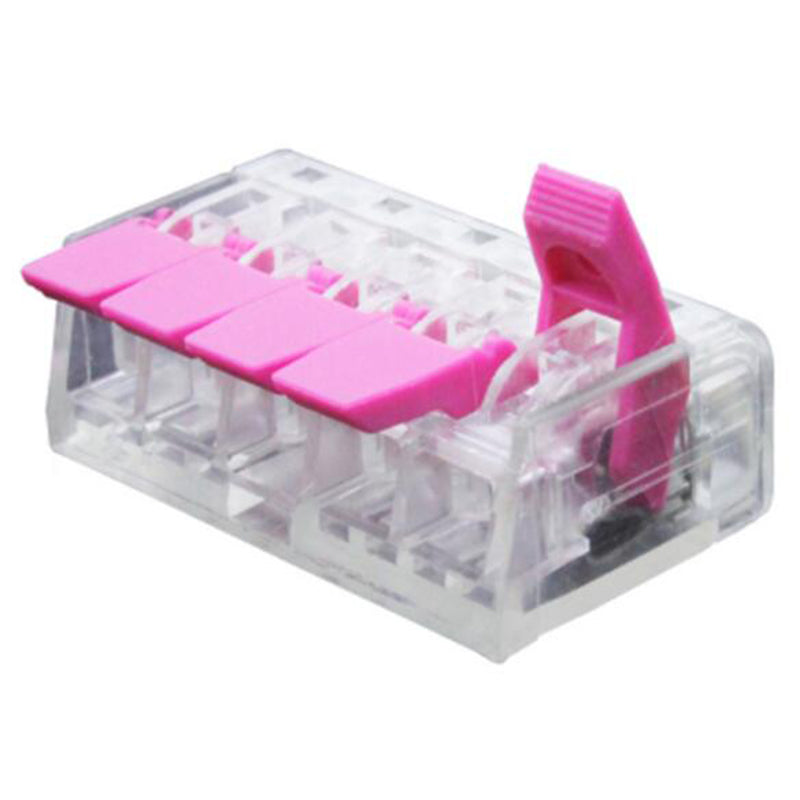

PCT412-PCT415 connection terminal - 10 pieces, 2- to 5-pin, 450 V / 32 A
PCT412-PCT415 connection terminal - 10 pieces, 2- to 5-pin, 450 V / 32 A
This goes with it
Pay in 30 days
Pay in 30 days
Description
Product Overview
- Pluggable lever connector for cable connections
- Tool-free connection and disconnection of wires
- Conductor cross-sections from 0.14 to 4.0 mm²

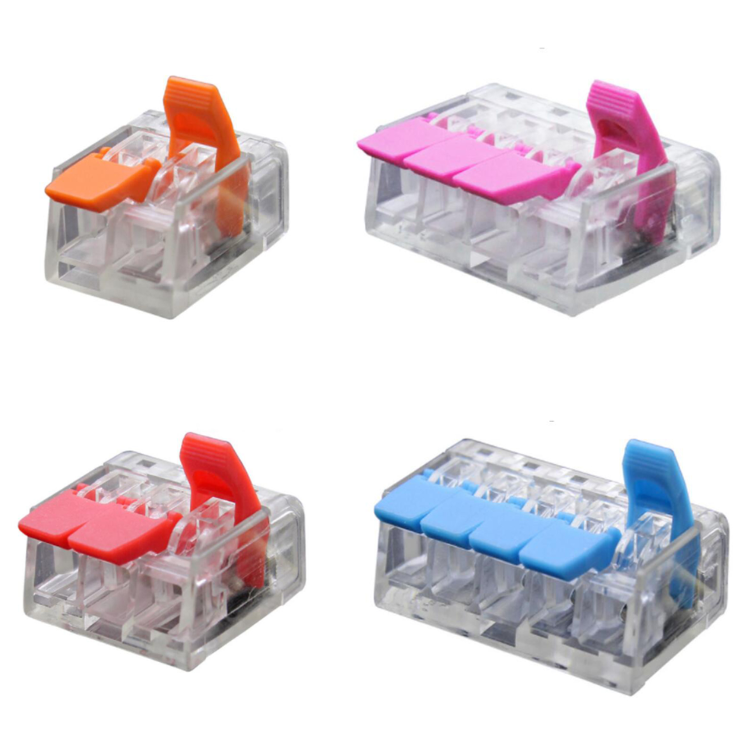

- Four sizes with 2 to 5 connections
- Rated for up to 450 V and 32 A

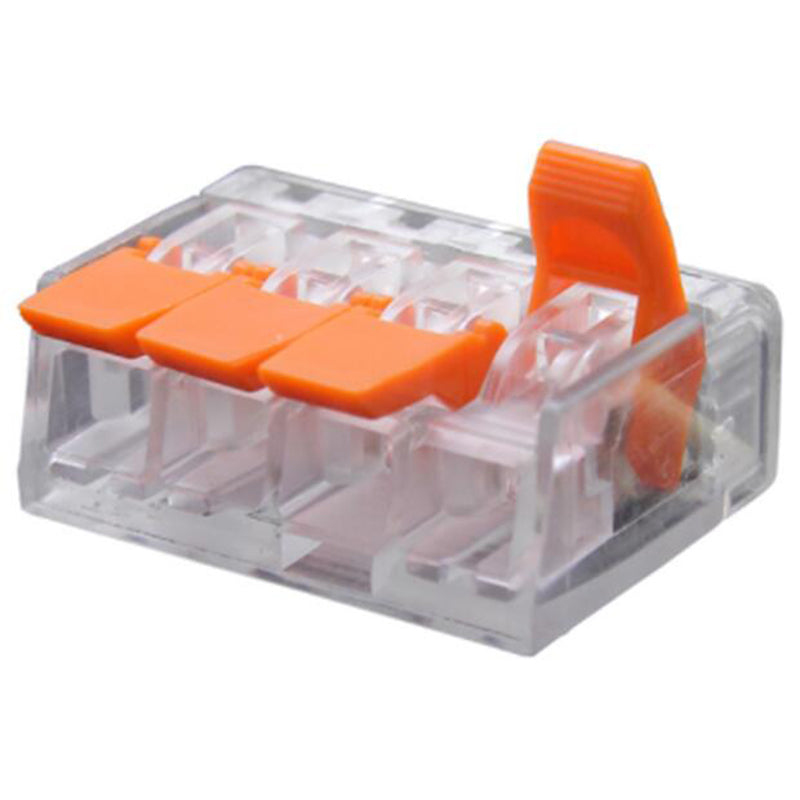

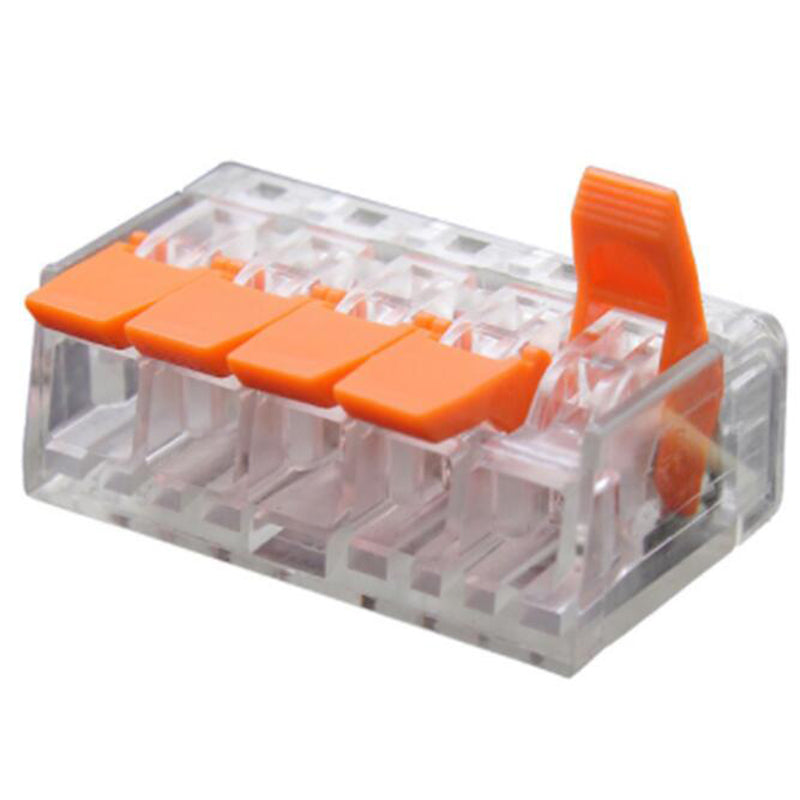

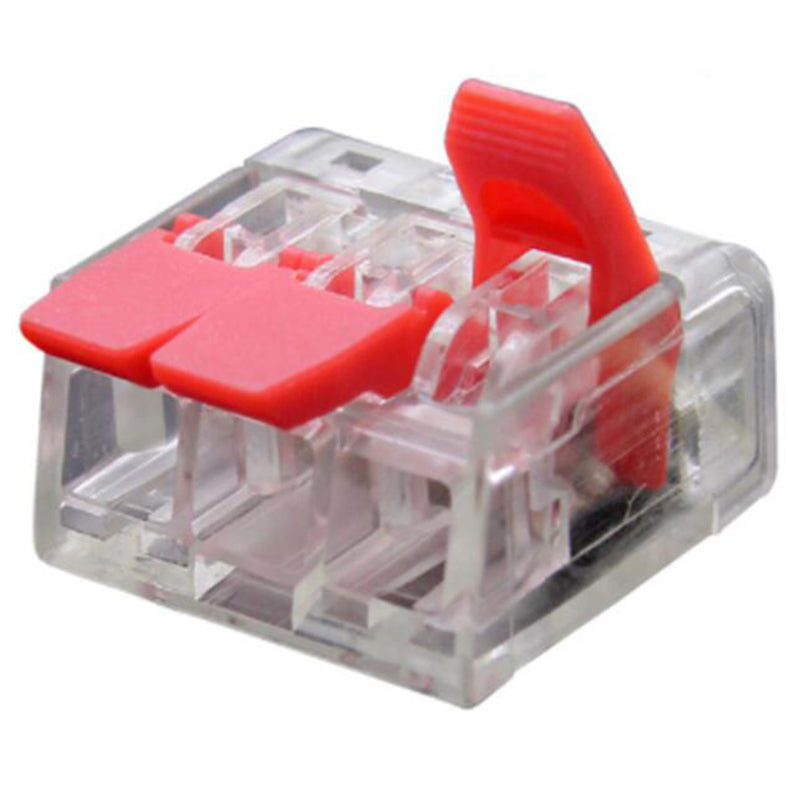

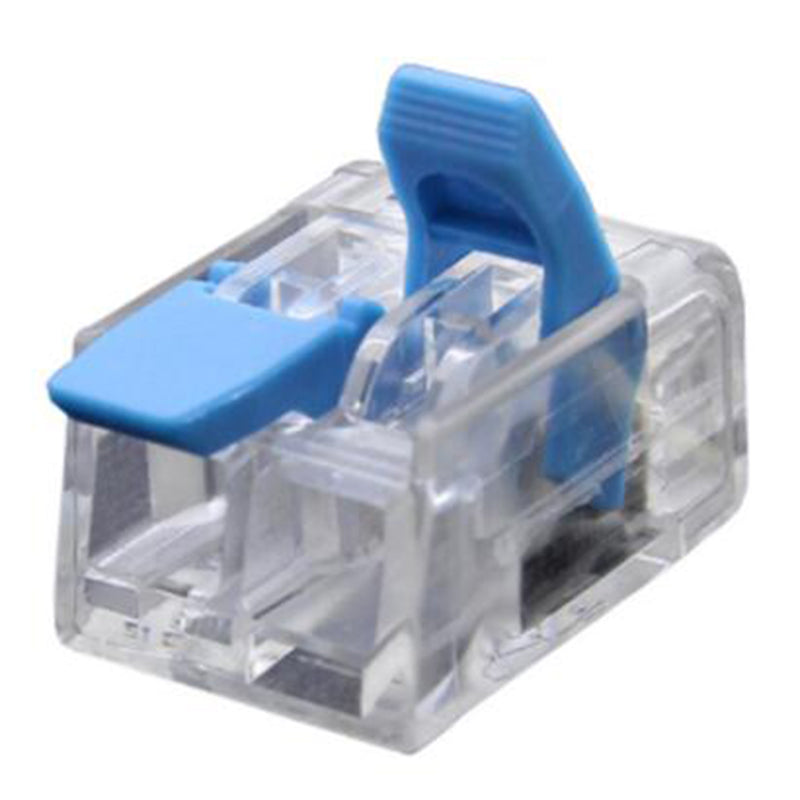

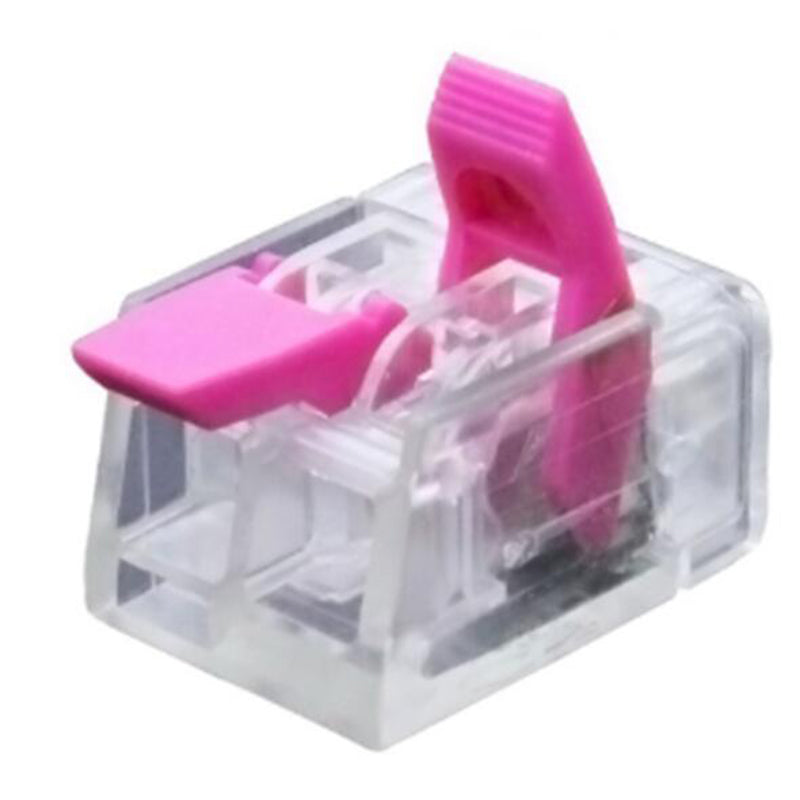

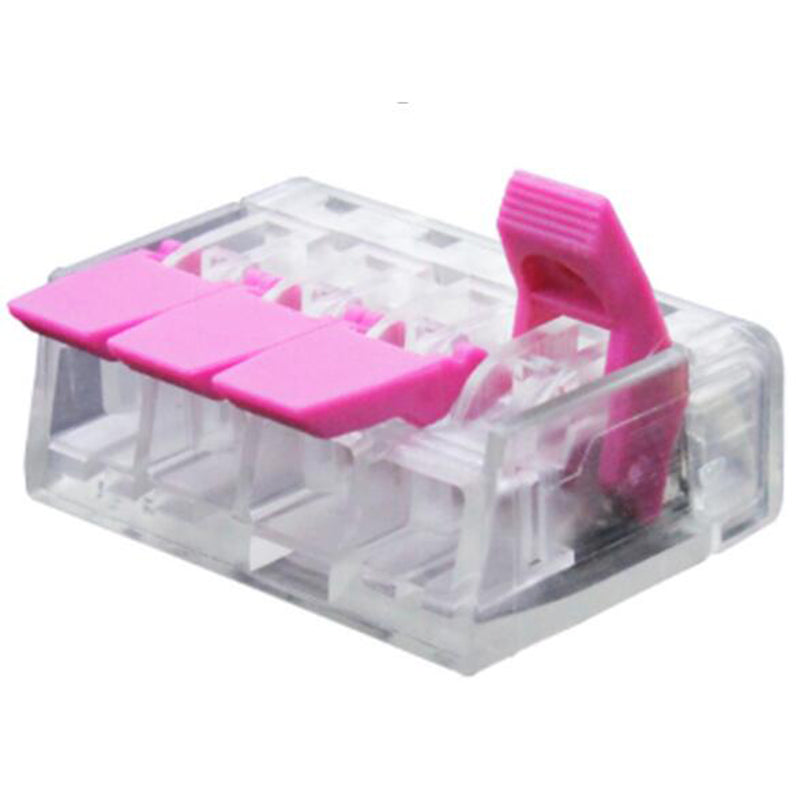

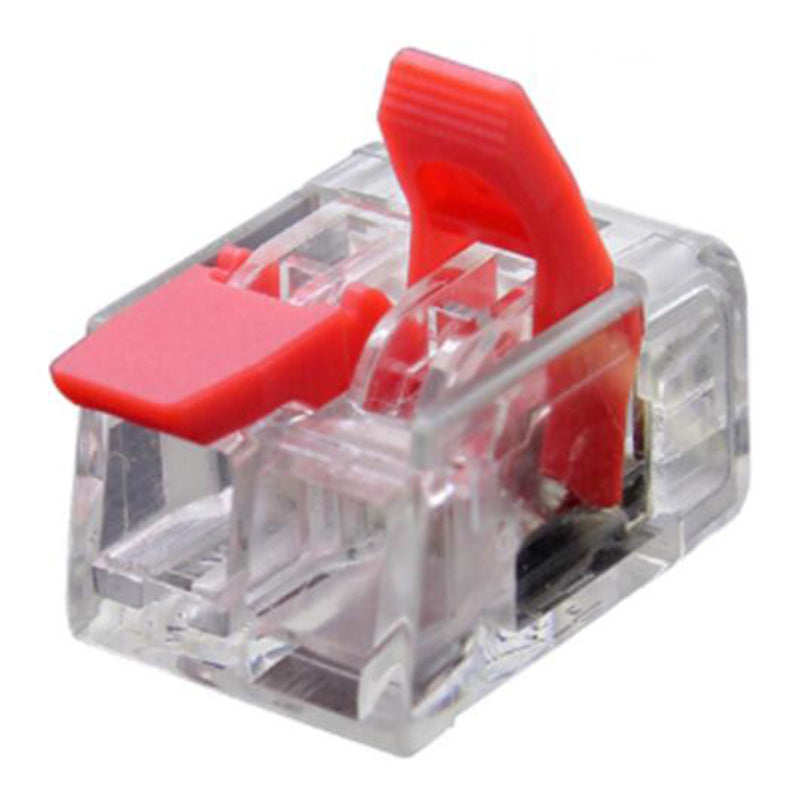

- Transparent housing for visual inspection
- Choice of colored levers, pack of 10
Product Description

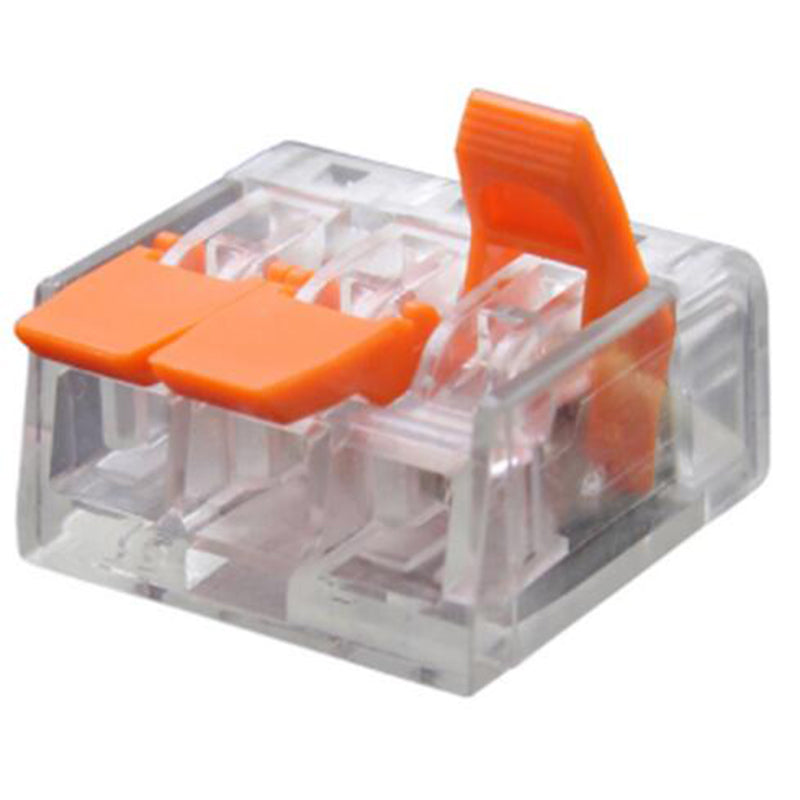

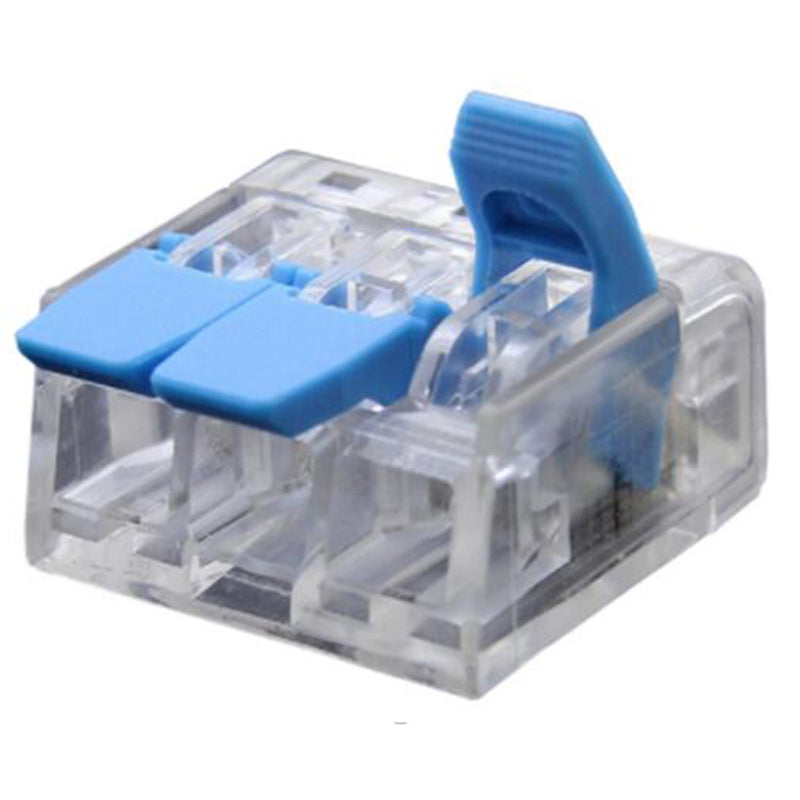

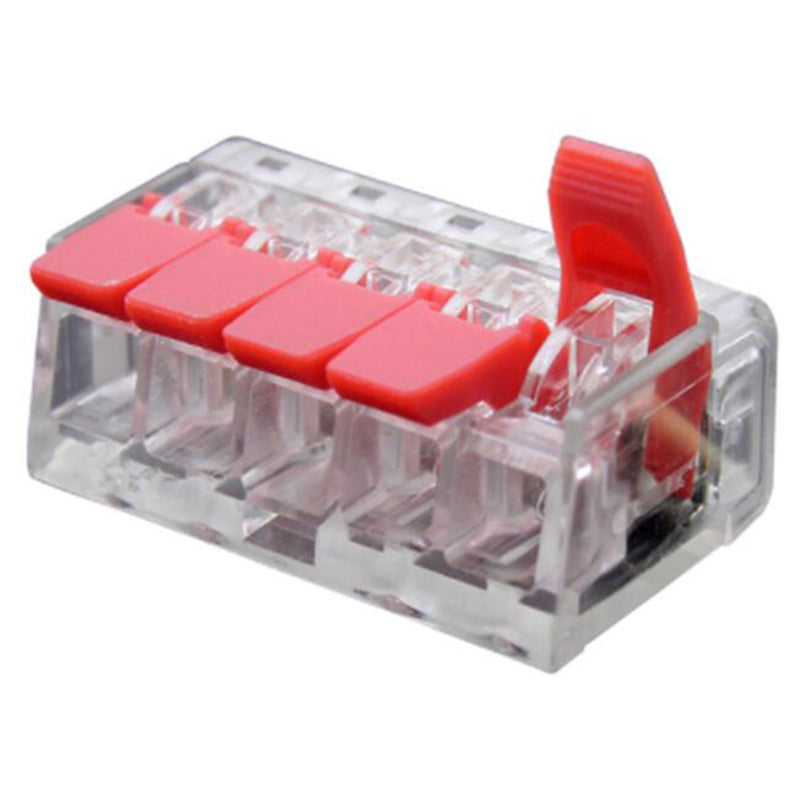

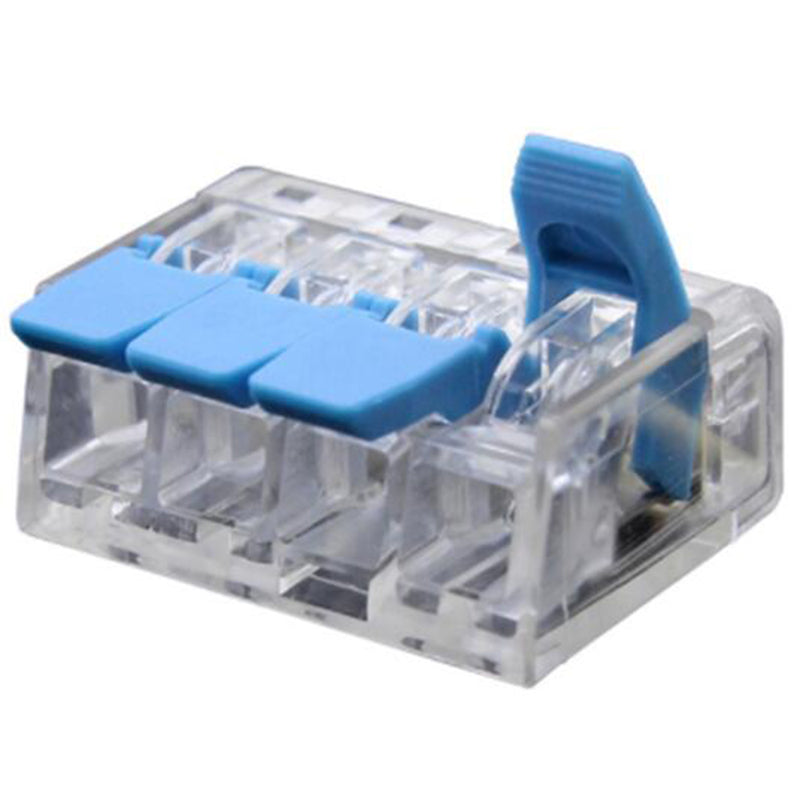

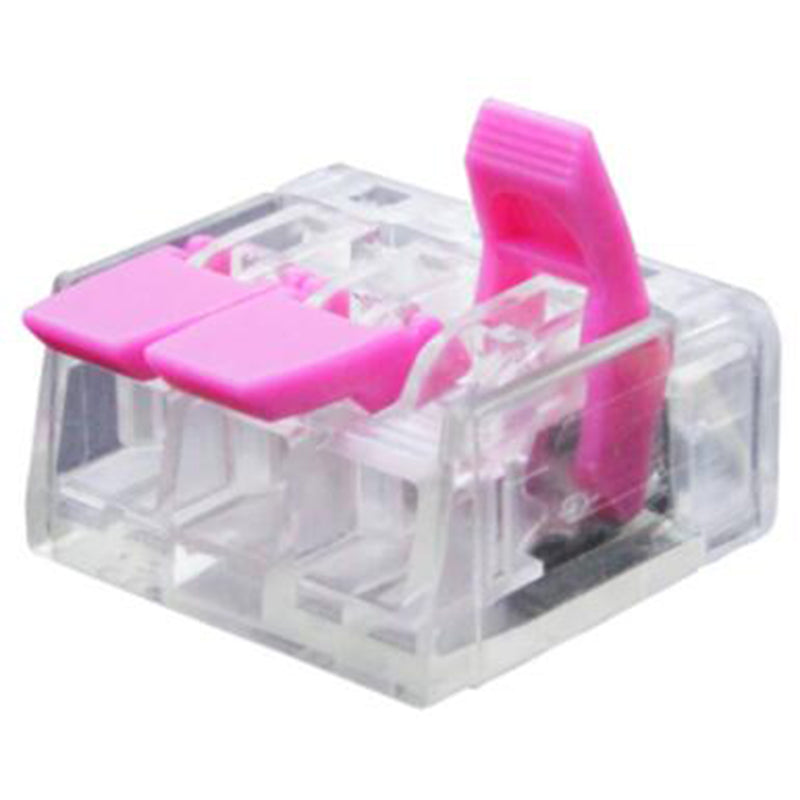

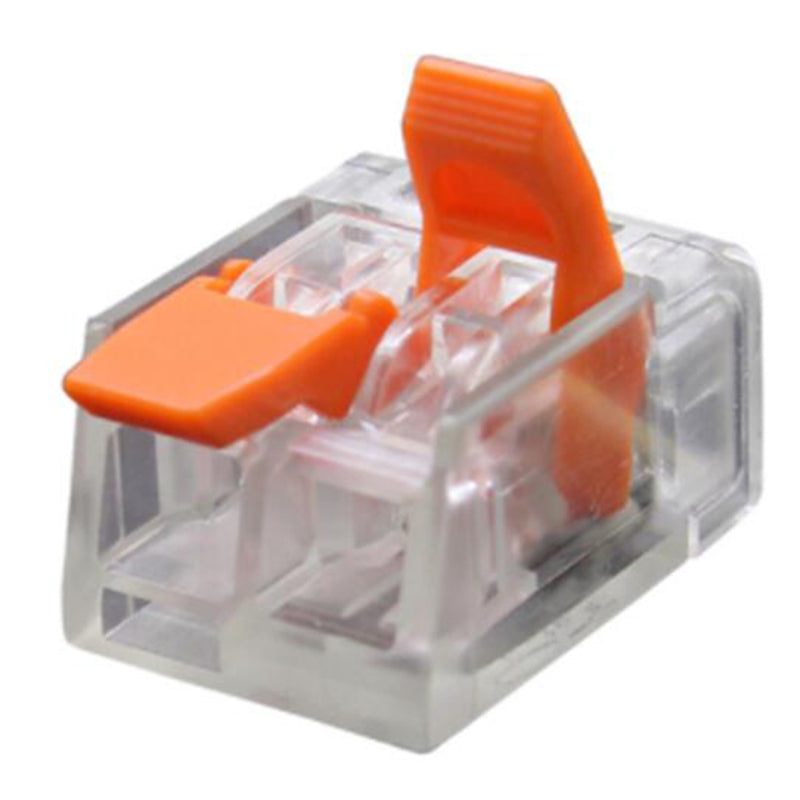

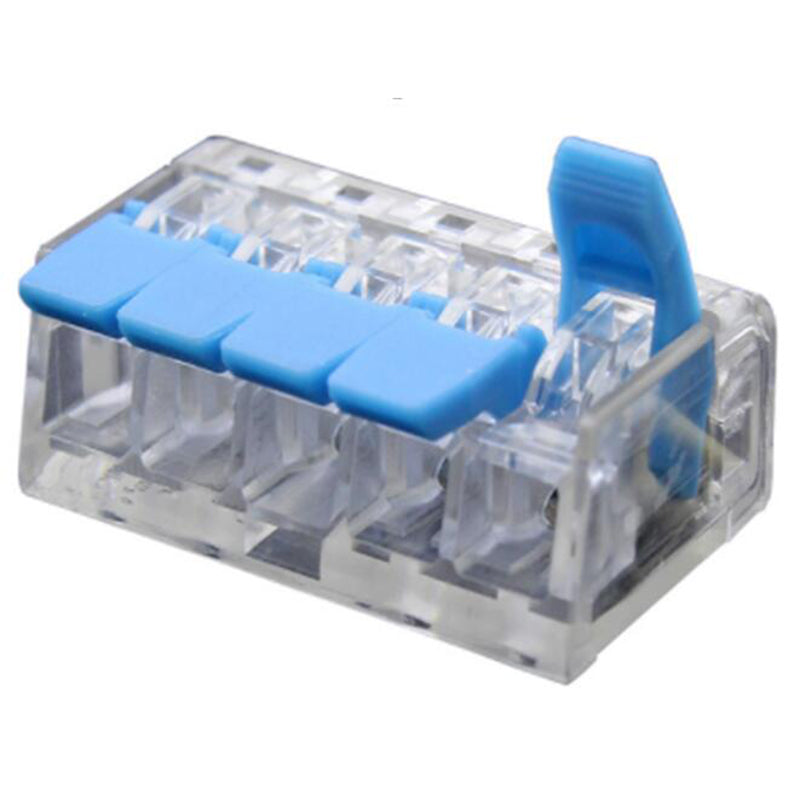

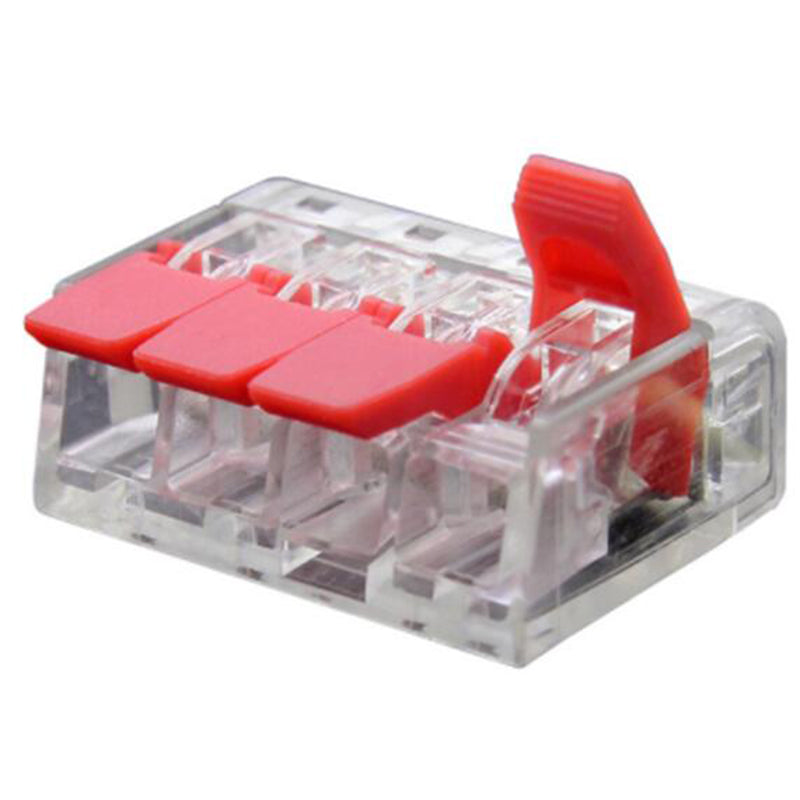

These connection terminals connect multiple cable conductors without soldering or screws. The transparent plastic allows visual inspection of the inserted wire ends from the outside. The terminals are available in several sizes with different numbers of connections.
To connect a wire, lift the colored lever, insert the wire into the corresponding opening, and then press the lever down to establish the contact. This process requires no additional tools and can be repeated as often as needed, since the terminal can be opened and refitted multiple times.
The terminal is designed for a maximum of 450 V and 32 A, allowing both thin control wires from 0.14 mm² and thicker connection wires up to 4.0 mm² to be connected. As the number of connections increases, the overall length increases while the housing cross-section remains the same. The plastic housing is made from flame-retardant polyamide, and the contacts are made of copper.
These pluggable terminals can be used in electrical installations, for wire distribution, in household appliances, or in lighting technology. The choice of lever colors supports clear labeling in more complex wiring scenarios. Supplied as a pack of 10.
Safety Notice
These connection terminals are intended exclusively for building prototypes and for testing and development purposes and are not intended for installation in household electrical circuits. Work on or near electrical installations must be carried out by qualified electricians; if anything is unclear, consult a qualified electrician before commissioning.
Scope of Delivery
- 10x Cable connection terminal - model / number of connections and color according to selection
