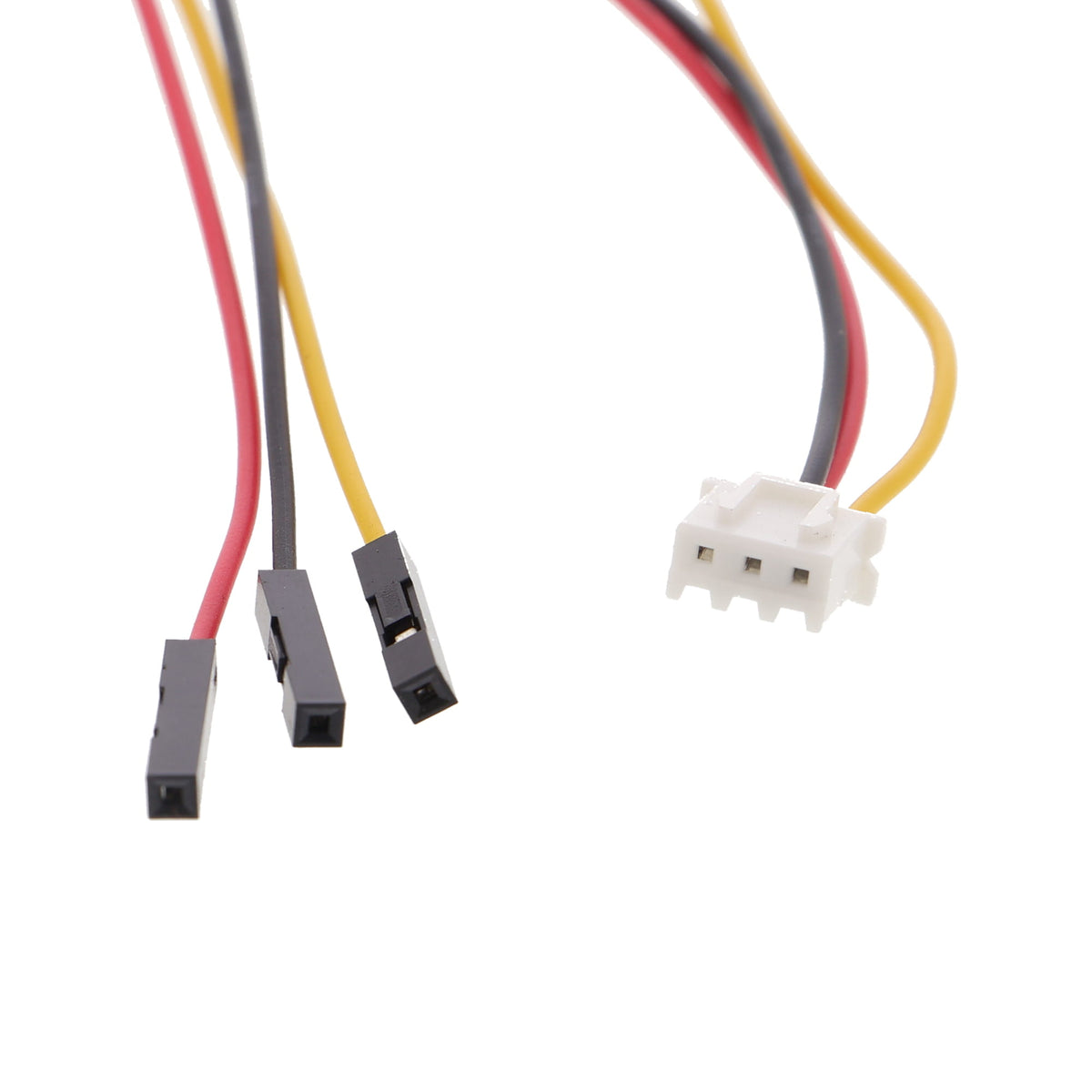

JST XH2.54 to 3P Dupont connection cable (20cm), male/female
Pay in 30 days
Pay in 30 days
Description
Product overview
- Adapter cable for connecting JST-XH connectors to 2.54 mm Dupont connectors
- Length: 20 cm
- JST XH2 connector (female) on one side
- 3-pin Dupont connectors (male) on the other side
- Enables connections between incompatible connector systems without soldering
Product description
This adapter cable connects JST-XH connectors to Dupont connectors, bridging the lack of compatibility between two common connector systems. One side features a JST-XH2 connector for plugging into female counterparts, while the other side has three individual male Dupont connectors that can be plugged into pin headers or PCB header pins.
The 20 cm cable is suitable for connections between battery management modules, charge controllers, and similar devices with JST-XH connectors and microcontroller boards or sensor modules equipped with standard Dupont connectors. For example, a power management module can be connected directly to a development board without soldering or special adapters.
The cable protects the pins from mechanical damage and prevents contact errors during repeated plugging and unplugging. Anyone who regularly needs to switch between different connector systems can save time and reduce the risk of downtime compared with loosely wired connections.
When connecting, note that the pinouts may differ depending on the source. If in doubt, check the pin assignment before initial operation.
Safety information
The cable is intended exclusively for building prototypes and for testing and development purposes. It is not suitable for installation in household electrical circuits. Check the power supply and connection sequence before operation; if you are unsure about the pin assignment, consult a qualified electrician.
Scope of delivery
- 1x JST XH2.54 to 3P Dupont cable (20 cm), female/female
