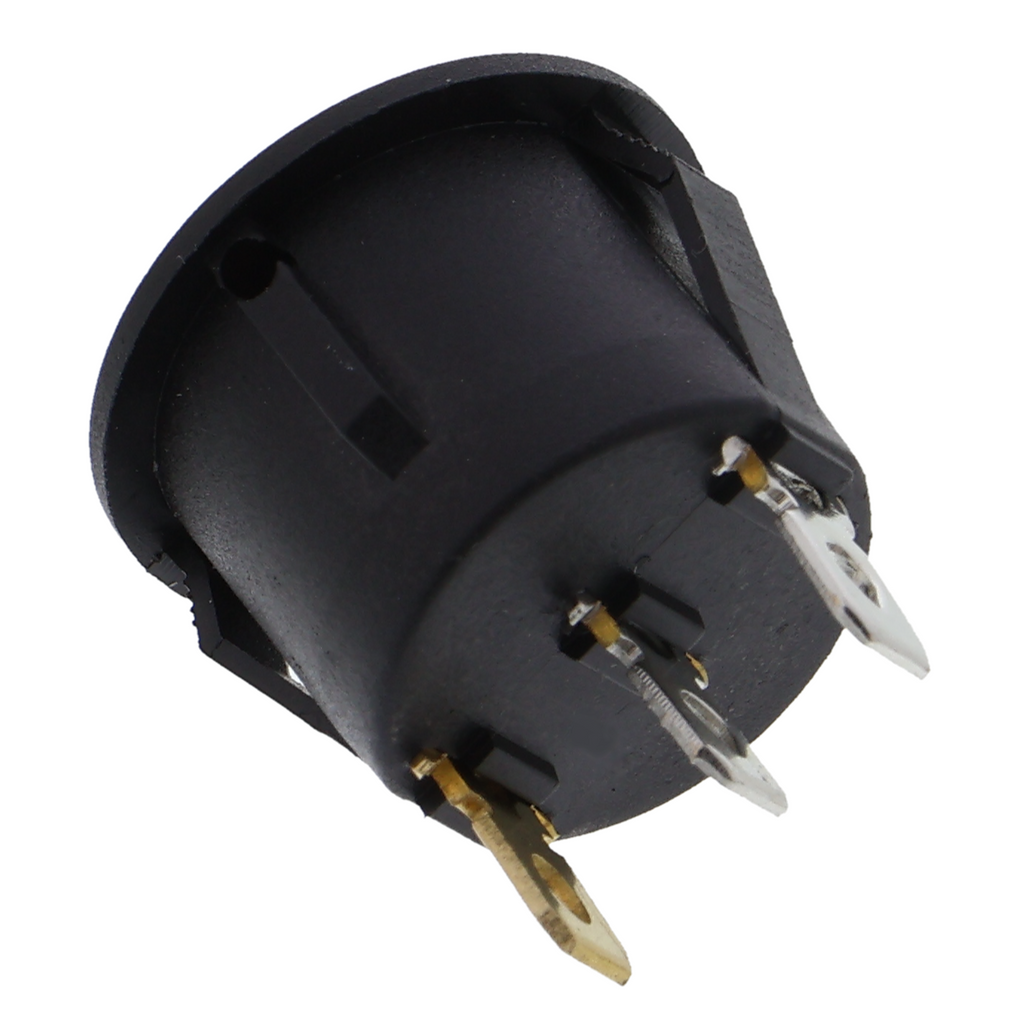

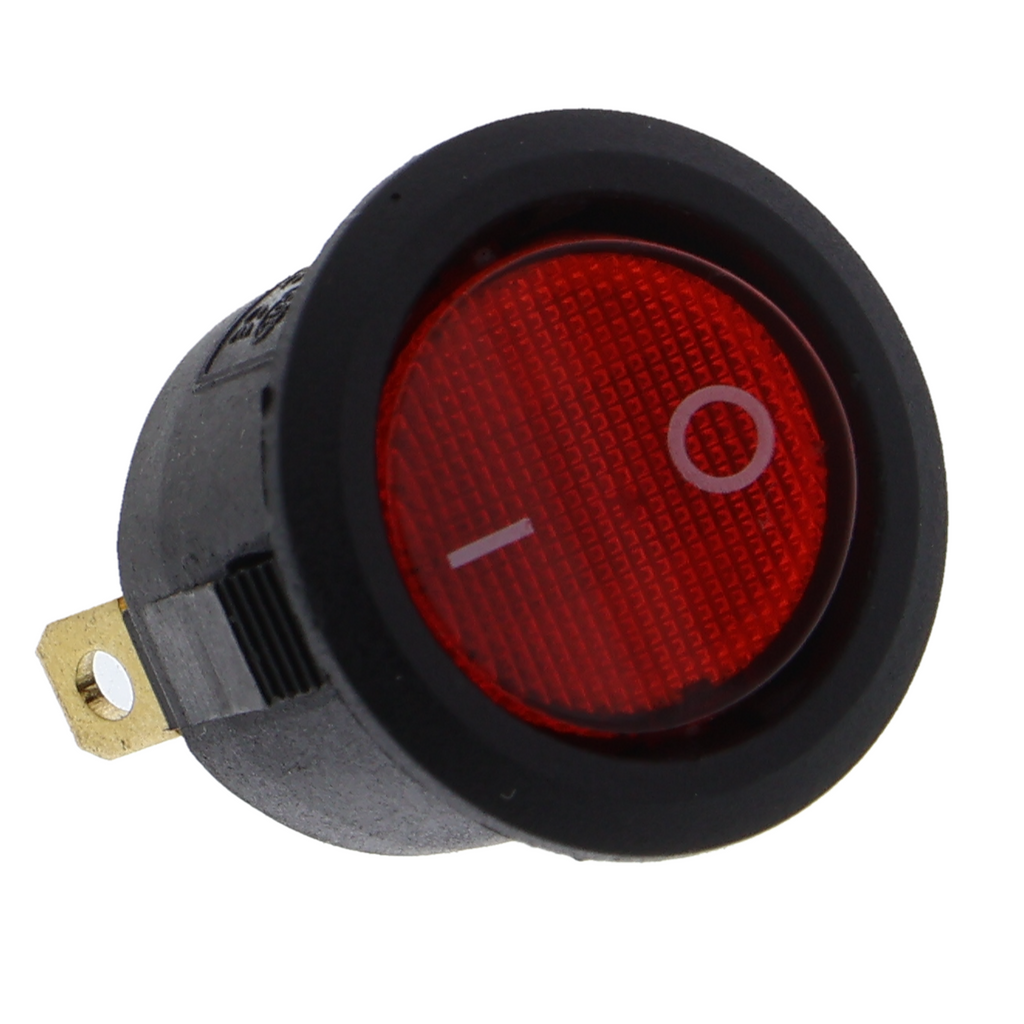

Illuminated rocker switch - 3 pins, red, 250 V / 6 A
Illuminated rocker switch - 3 pins, red, 250 V / 6 A
This goes with it
incl. VAT, plus shipping
Pay in 30 days
Pay in 30 days
Description
Product Overview
- Illuminated rocker switch with three terminals
- Operating voltage 250 V / 6 A or 125 V
- Red LED illumination
- Two-position switching behavior (On/Off)
- Screw terminals for secure cable connections
Product Description
An illuminated rocker switch controls circuits with high loads. The device handles up to 6 amps at 250 volts or alternatively 125 volts, making it suitable for larger loads such as heaters, pumps, or industrial machines. The red LED lights up when the switch is turned on, indicating the operating status at a glance.
Three connection terminals enable flexible wiring: one common line (COM), one for the on position, and one for the off position. This allows multi-stage switching or control of two separate circuits with one switch. The rocker mechanism with two stable positions enables reliable switching on and off without a second position.
Typical applications include heating systems, where the switch controls the pump or heating element and the LED indicates the operating status, as well as workshop machines with higher power consumption, ventilation systems, and water pump controls. In mobile applications and vehicle construction, the switch is also used for switching high-current lines.
The switch is supplied with screw terminals that enable a secure, vibration-resistant connection without soldering. Operation with alternating current requires the appropriate mains voltage; conversion or throttling to other voltages is not intended.
Safety Notice
This switch is not intended for direct installation in household electrical circuits and is exclusively intended for building prototypes and for testing and development purposes. Work on or near electrical installations and wiring involving mains voltage must be carried out by qualified electricians. If you have questions about correct integration or the load capacity for the intended application, consult a qualified electrician before commissioning.
Scope of Delivery
- 1x Illuminated rocker switch - 3 pins, 250V / 6A, 125V / 10A
