Description
Product overview
- Mini racing drone kit with a 250 mm diagonal, unassembled carbon fiber frame
- CC3D flight controller with STM32 microcontroller, 3-axis gyro, and accelerometer
- Four brushless MT2204 motors with 2300 KV, four Simonk ESCs rated for up to 11 A continuous current
- USB-configurable under Windows, Mac, and Linux
- 5 V, 1 A BEC output for receiver and peripherals

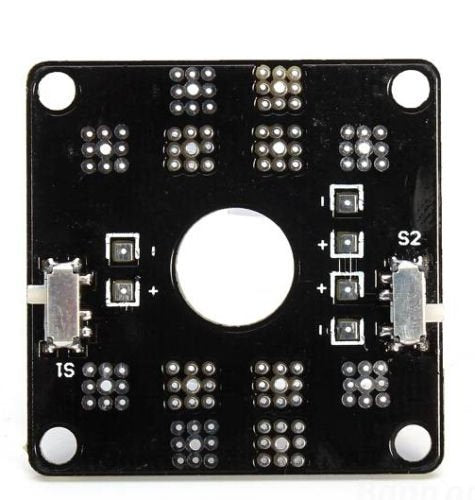

- Power distribution and LED mount on a central distribution board
Product description

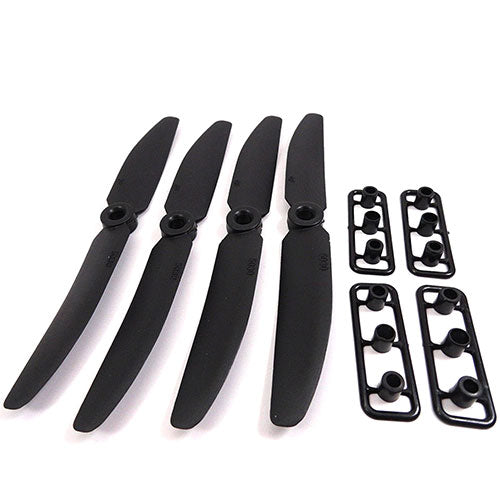

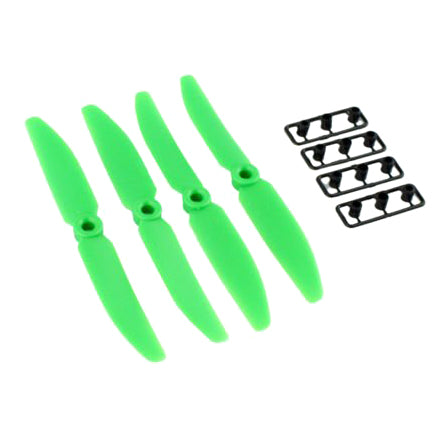

This mini racing drone kit contains all the main components for assembling an FPV racing quadcopter with a 250 mm diagonal. The carbon fiber frame is supplied unassembled; the flight controller, motors, ESCs, and propellers must be installed separately. The kit is therefore intended for users who want to build and calibrate their drone from the ground up.

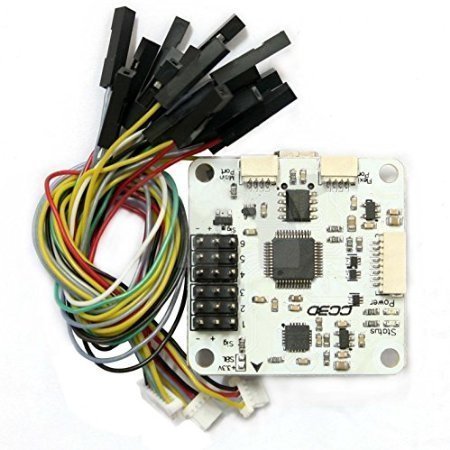

The CC3D board controls flight and stabilization via an STM32 microcontroller with 128 KB of flash memory. An integrated 3-axis gyro and accelerometer detect rotations and inclinations in real time. Configuration is performed via USB without requiring separate driver installation, and the software runs on common operating systems. The BEC system supplies the receiver and other electronics with stabilized 5 V.

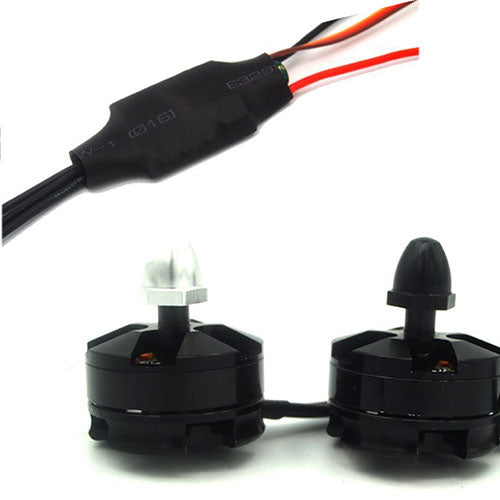

Four MT2204 motors with a speed constant of 2300 KV drive the propellers, controlled by four Simonk ESCs. These ESCs support up to 11 A continuous current and up to 16 A for short periods. They are designed for 2 to 3-cell LiPo batteries, allowing the use of small, lightweight batteries. A central distribution board consolidates the power supply and also serves as a mount for status lights.
Operation requires a remote control system with a suitable receiver and a 2S to 3S LiPo battery; neither is included. With these components, the kit is suitable for FPV racing and hobby aviation, where fast response and agility are required.
Safety notice
The battery must not be connected to the household mains power supply. This kit is intended exclusively for constructing prototypes and for testing and development purposes. Before initial operation, ensure that all propellers are securely attached and that all connectors are connected correctly.
Scope of delivery

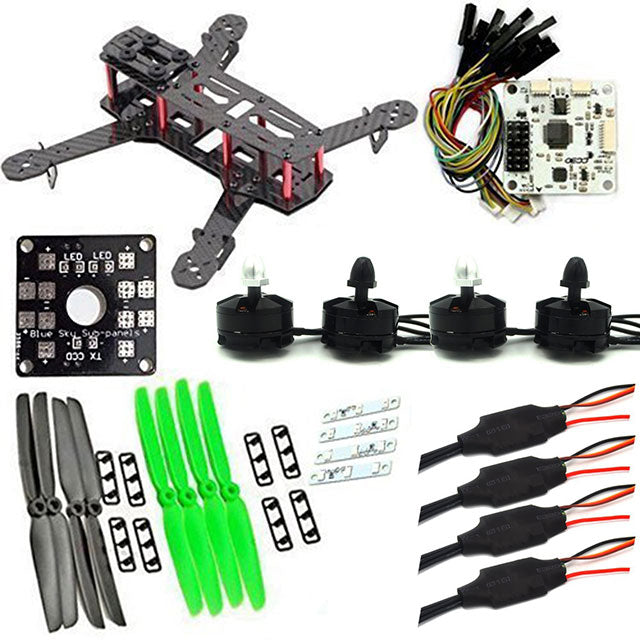

- 1x drone kit with LHI QAV250 frame, including flight controller and motors
